SKU: 26372
Part Number: RP2040-LCD-0.99-B
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2040-LCD-0.99-B

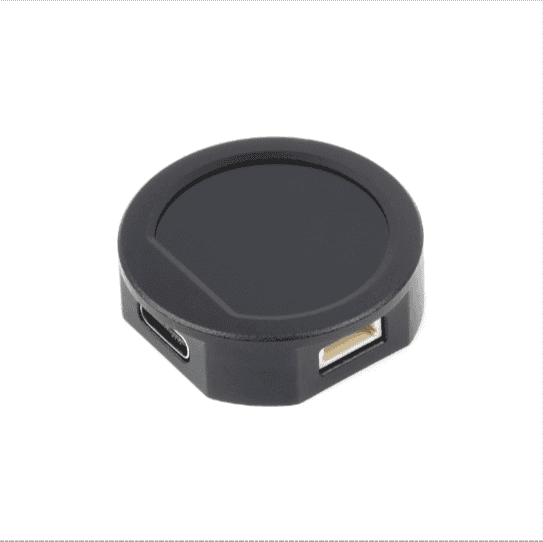

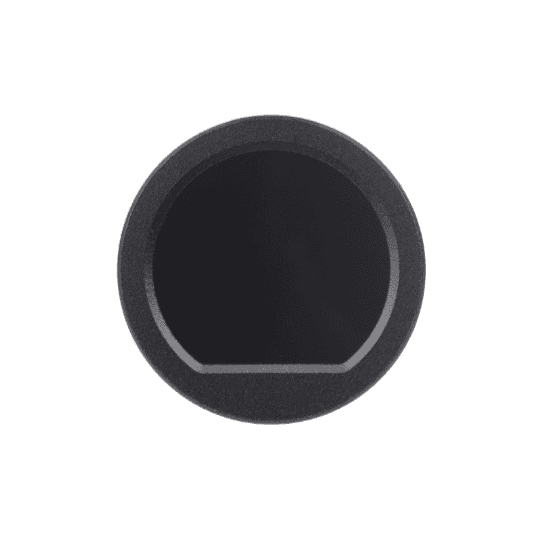

RP2040 MCU Board, With 0.99inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
RP2040 MCU Board With 0.99inch LCD
Based on Raspberry Pi RP2040, adopts CNC metal case
Features
RP2040-LCD-0.99-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 0.99inch LCD round display (with flat bottom), 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting 4 × GPIO pins through SH1.0 6PIN connector, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 0.99inch 128×115 pixels 65K colorful IPS LCD display (with flat bottom) for clear color pictures
- 4 × GPIO pins are adapted through SH1.0 6PIN connector
- Adopts CNC metal case with Acrylic dull-polish bottom plate
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × I2C, 4 × 12-bit ADC
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

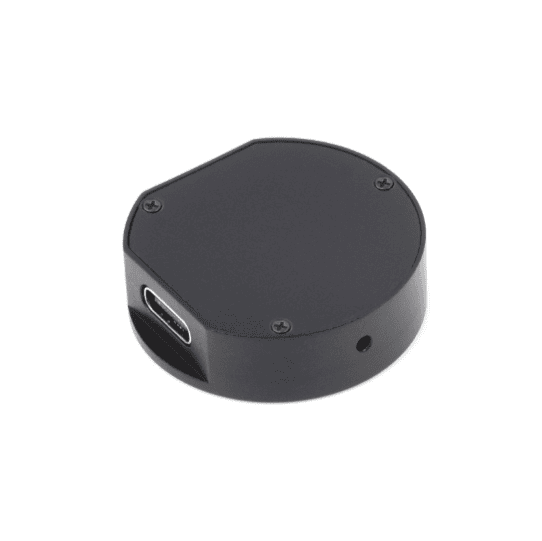

CNC Metal Case
Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
What's On Board
- USB Type-C connector
for programming, USB 1.1 with device and host support
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
- QMI8658C
IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
- W25Q16JVUXIQ
2MB NOR-Flash
- RP2040
Dual-core processor, up to 133MHz operating frequency
- SH1.0 6PIN connector
Adapting 4 × GPIO pins, the pin order is: GND, 3V3, GP26~GP29
- BOOT Button
press it when powering on to enter download mode
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.017 kg
- RP2040-LCD-0.99-B x1
- SH1.0 6PIN cable x1
