SKU 28161
Part #
RP2040-Touch-LCD-1.69 Brand Waveshare
Korisne informacije:

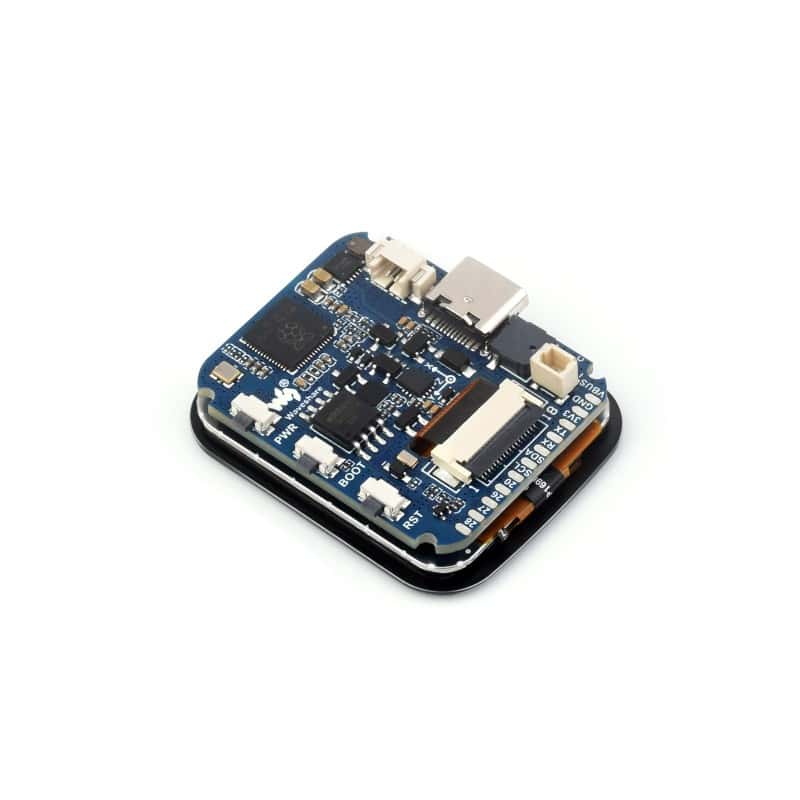

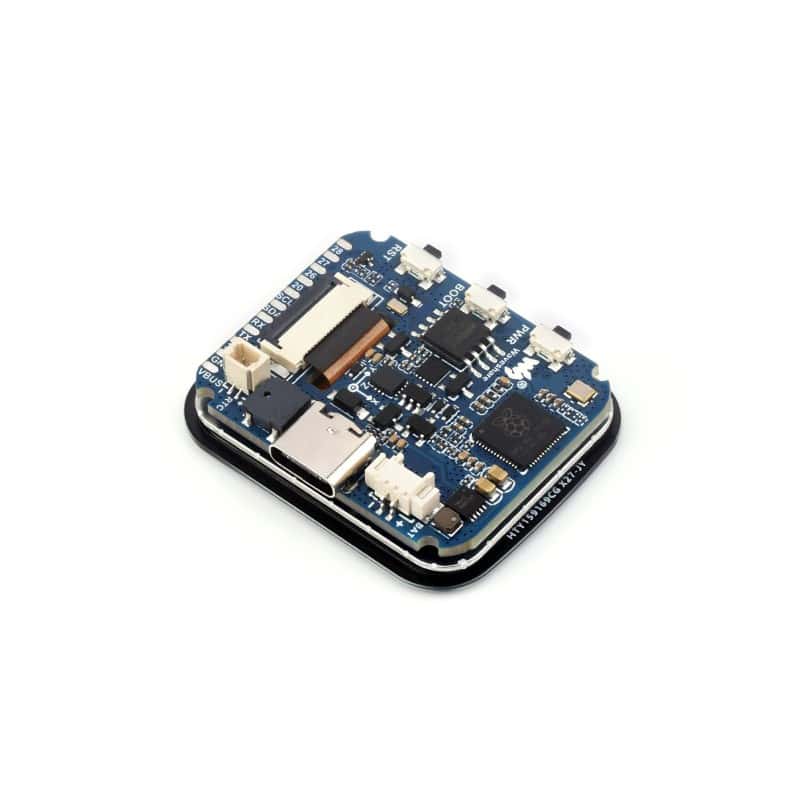

www.waveshare.com/wiki/RP2040-Touch-LCD-1.69 RP2040 Microcontroller Development Board, With 1.69inch Touch LCD, Rounded Corners, Dual-core Arm processor, 16MB Flash, Accelerometer And Gyroscope Sensor
RP2040-Touch-LCD-1.69 Based on Raspberry Pi RP2040
Features RP2040-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.69inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, buzzer, and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 16MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch capacitive touch display, 240×280 resolution, 65K color
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard RTC chip and RTC battery header for timing and scheduling functions
- Onboard buzzer for sound-producing peripheral
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Accurate clock and timer on-chip
- Temperature sensor
Small size, touch more possibilities Suitable for various smart devices development, can realize human-computer interaction function
Dual-Core Arm Processor Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
Supports C/C++, MicroPython, Arduino Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

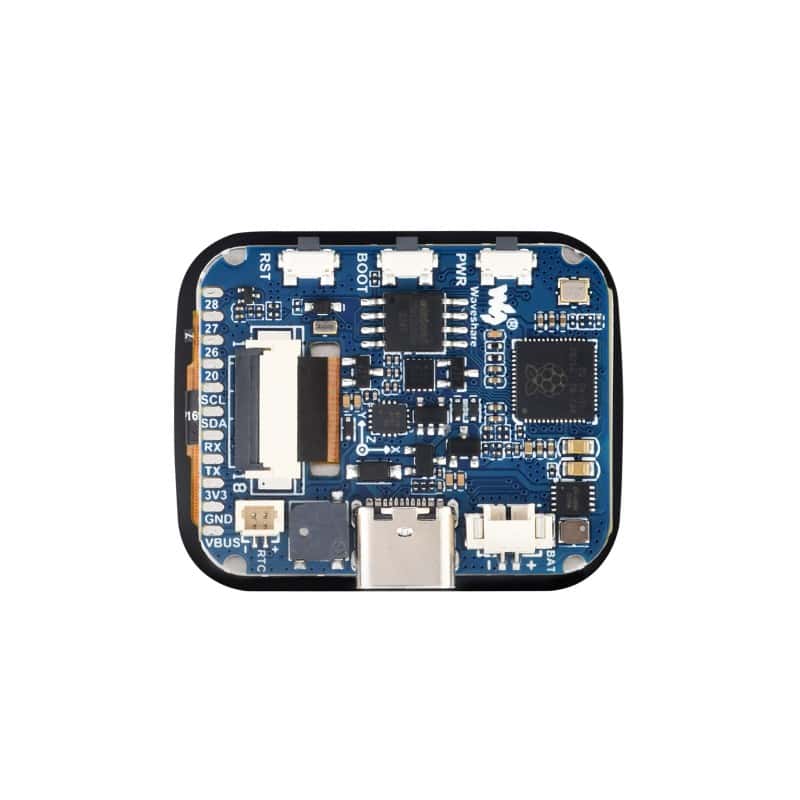

What's On Board
- RP2040
Dual-core processor, up to 133MHz operating frequency
- W25Q128JVSIQ
16MB NOR-Flash
- PCF85063
RTC chip
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- ETA6098
high-efficiency Lithium battery recharge manager
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
- Type-C connector
for programming, USB 1.1 with device and host support
- Buzzer
sound-producing peripheral
- RTC battery header
for connecting rechargeable RTC battery (only supports rechargeable RTC batteries)
- PWM button
supports battery power supply control, single-press, double-press, multi-press and long-press operations
- BOOT button
- RST Reset button
Pin Definition
Product show
Outline dimensions
Package content: Weight: 0.015 kg
RP2040-Touch-LCD-1.69 x1
