Konektori, žice, protobord SKU: 23503
Part Number: RP2040-Plus-
16MB Brand: Waveshare
Korisne informacije:

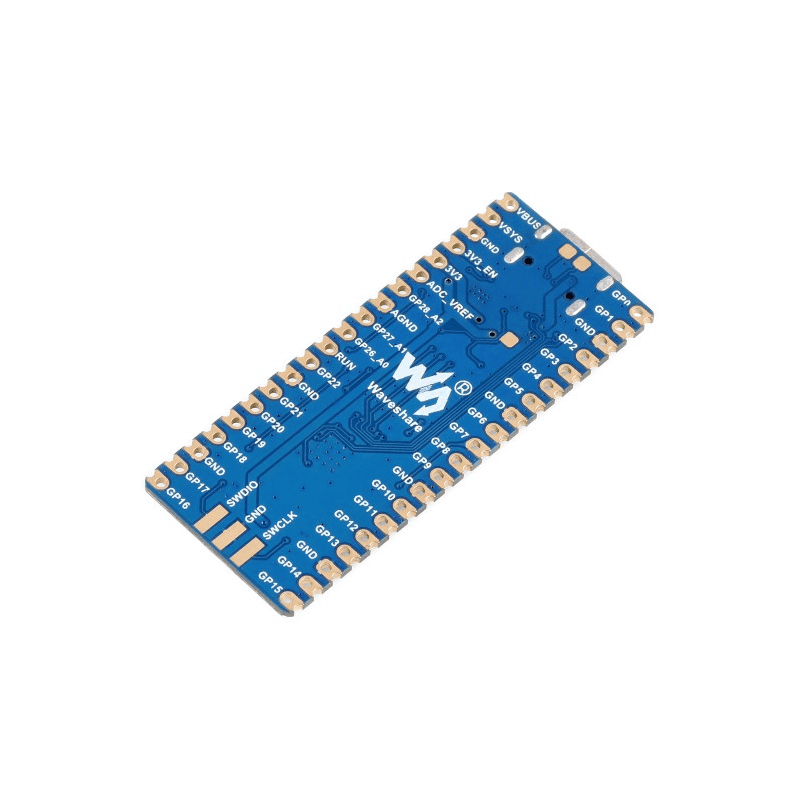

RP2040-Plus RP2040-Plus, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040
RP2040 MCU Board Plus a Pico-like MCU board based on Raspberry Pi RP2040
Compatible With Most Of The Raspberry Pi Pico Add-On Modules
Board Specifications Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our
RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What's different, it features onboard 4MB/16MB (optional) Flash, USB-C connector, recharge header, and higher current DC-DC chip.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB/16MB (optional) of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython Support Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-Core Arm Processor Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
26 × Multi-Function GPIO Pins Configurable Pin Function, Allows Flexible Development And Integration

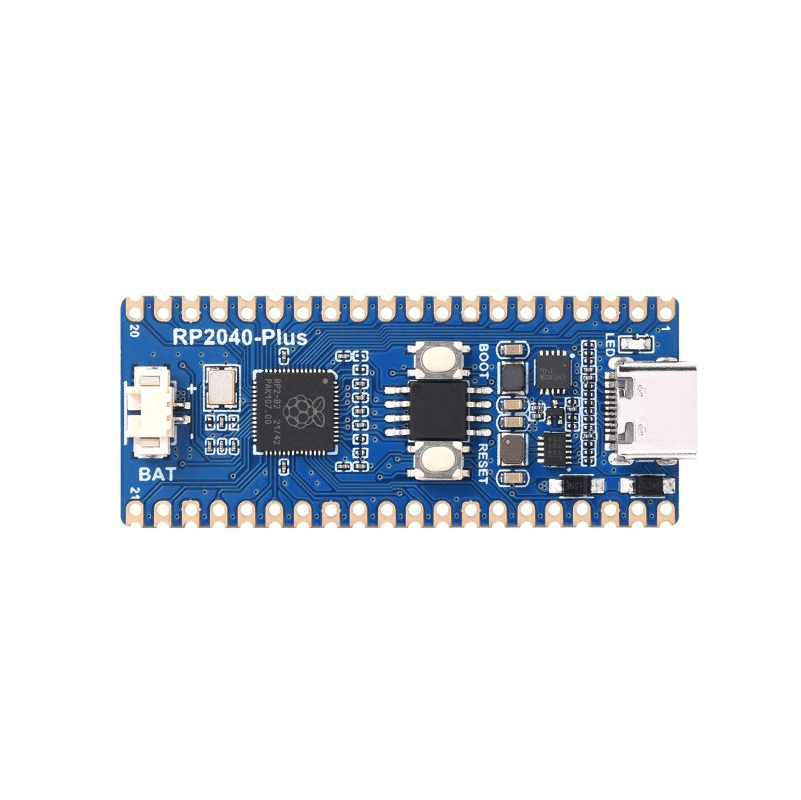

What's On Board
- LED
user LED (not power indicator)
- ETA6096
high efficiency Lithium battery recharge manager
- MP28164
high efficiency DC-DC buck-boost chip
- USB Type-C connector
- BOOT button
press it when resetting to enter download mode
- On-board flash memory
4MB: W25Q32JVSSIQ
16MB: W25Q128JVSIQ
- RESET button
- RP2040
dual-core processor, up to 133MHz operating frequency
- Battery header
MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time

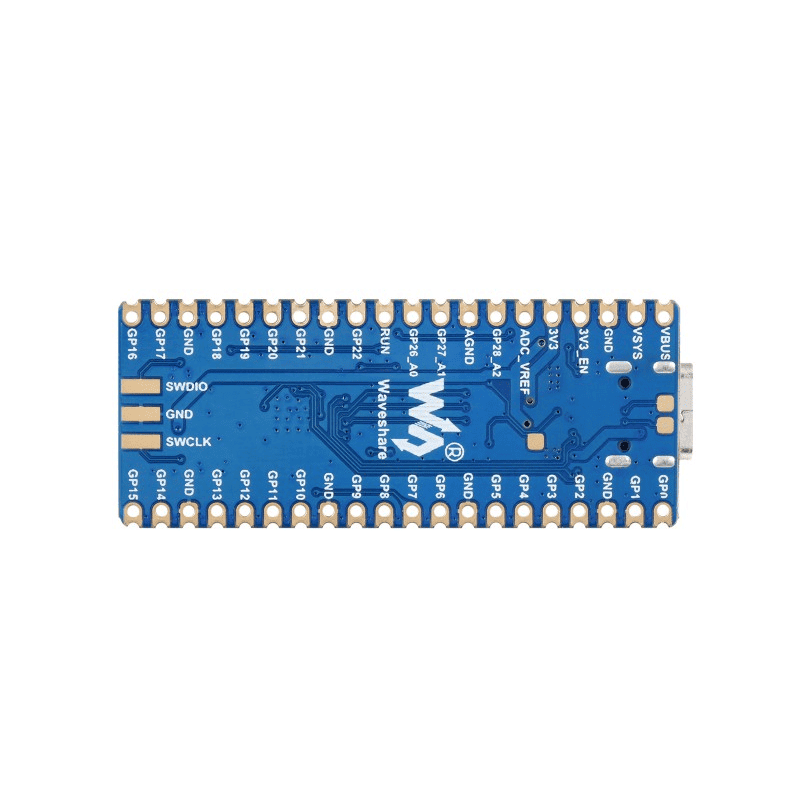

- Pinout
compatible with Raspberry Pi Pico
- USB test points
connecting to USB interface
- BOOT test point
connecting to BOOT button
- DEBUG points
Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.004 kg
RP2040-Plus
- OPTIONS RP2040-Plus x1
