Konektori, žice, protobord SKU: 24594
Part Number: RP2040-Matrix
Brand: Waveshare
Korisne informacije>
www.waveshare.com/wiki/RP2040-Matrix RP2040 RGB LED Matrix Board
a Pico-like MCU board based on Raspberry Pi RP2040 Castellated Module, Suitable For SMD Applications
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Onboard 5 × 5 RGB LED matrix for colorful lighting display
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 20 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support

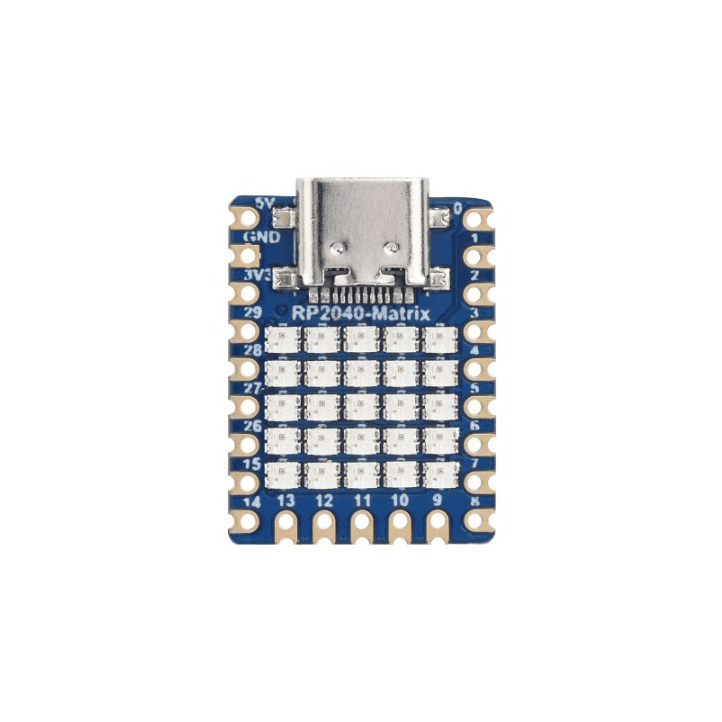

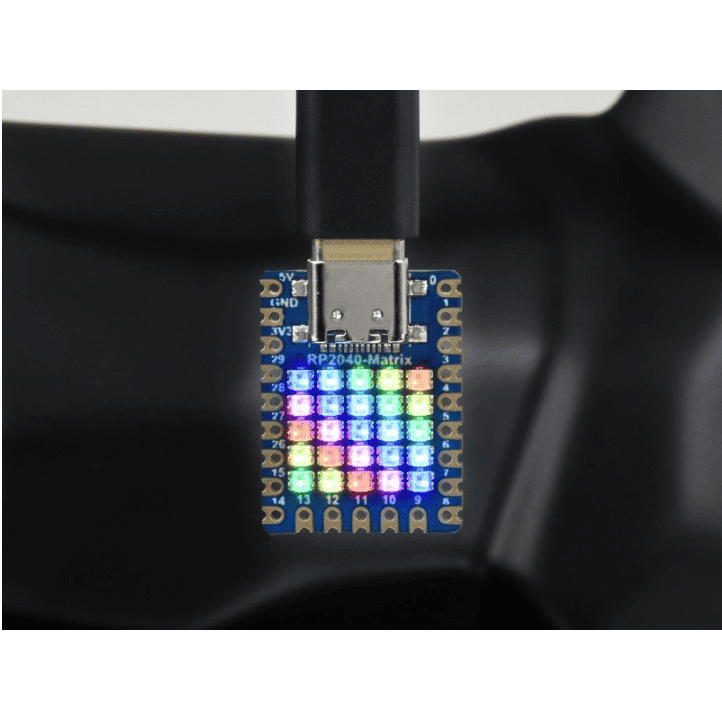

Onboard 5×5 RGB LED Matrix
For Colorful Lighting Display
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
Supports C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
20 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

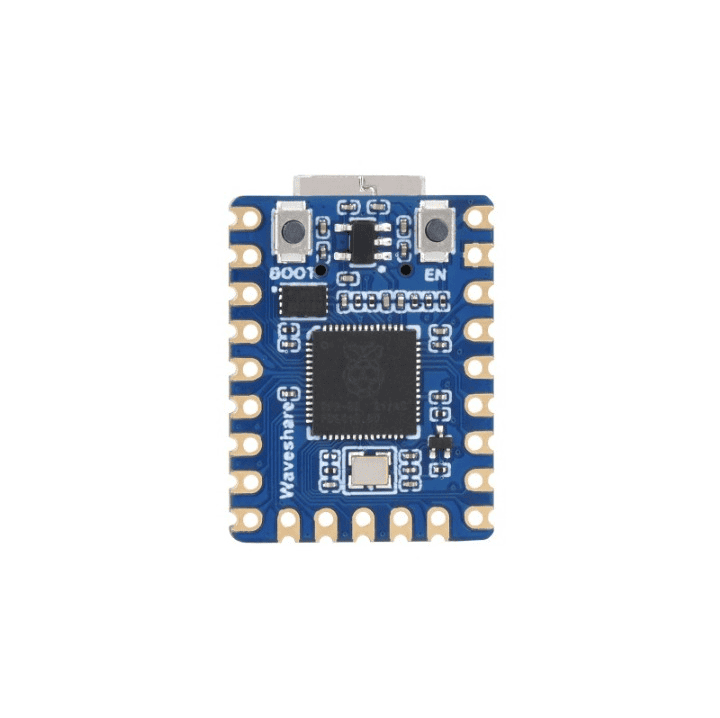

What's On Board
- USB Type-C connector
- 5×5 RGB LED Matrix
- BOOT button
press it when resetting to enter download mode
- RESET button
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
- W25Q16JVUXIQ
2MB NOR-Flash
- RP2040
dual-core processor, up to 133MHz operating frequency

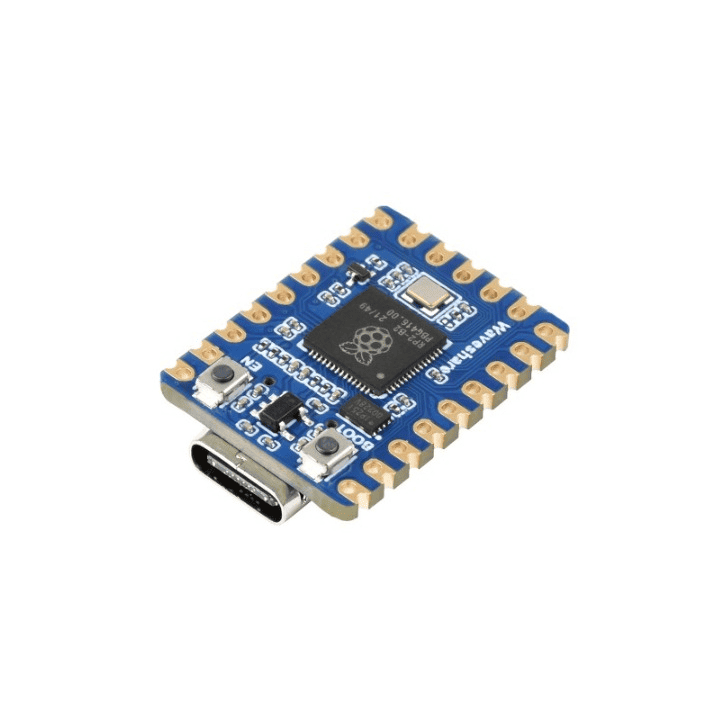

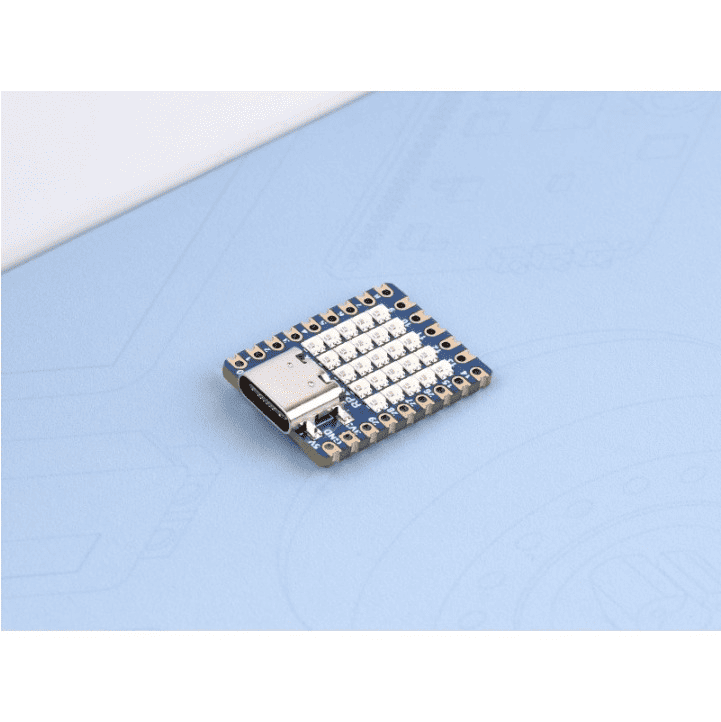

Product Show

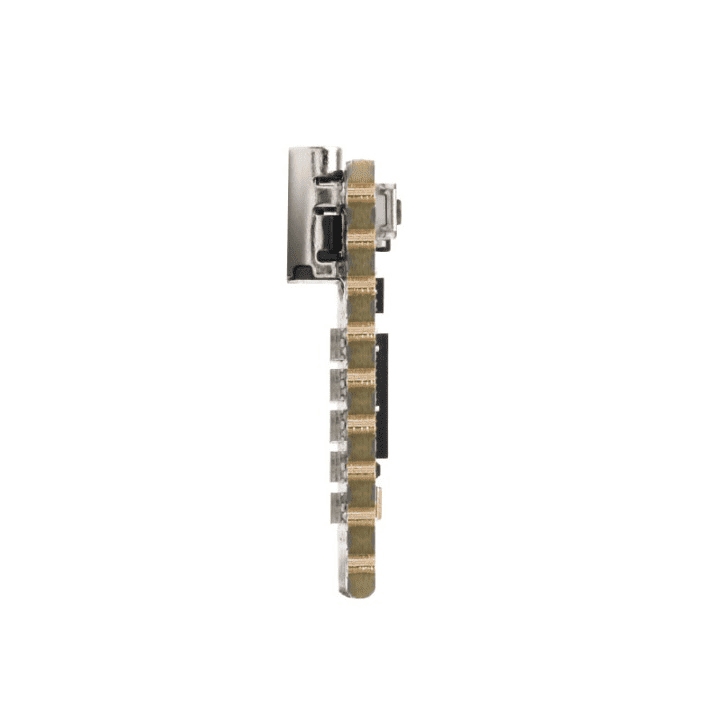

Outline Dimensions
- PACKAGE CONTENT
Weight: 0.002 kg
RP2040-Matrix x1
