SKU: 25394
Part Number: RP2040-GEEK
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2040-GEEK Waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, With 1.14inch 65K Color LCD, USB Debugging Downloader, With White Plastic Case
Board Specifications
RP2040-GEEK is a geeks development board designed by Waveshare, onboard USB-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Onboard 3PIN SWD port for connecting the debugged target board
- Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers
- Works with OpenOCD and other tools supporting CMSIS-DAP
- Adopts the Raspberry Pi 3PIN Debug Connector Specification
- Onboard 3PIN USB to UART bridge
- Onboard 4PIN I2C port for the testing target board
- Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
- Equipped with plastic case and cables
- Open-source firmware, more convenient to upgrade
Combines Multi Functions In One
Onboard Multi Interfaces And 1.14inch LCD Display, Compatible With Multi
Debugging Methods
Application Example
Connect To The Debugging Interface Of Pico Via The 3PIN SWD Cable

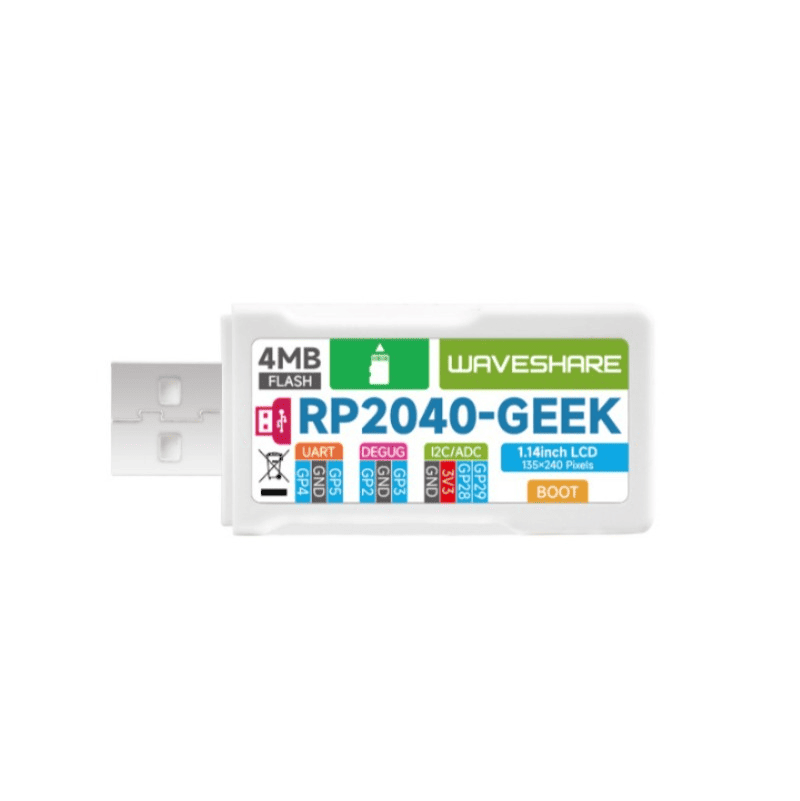

Onboard Resources
- USB-A interface
- UART port
- SWD port
- I2C port
- TF card slot
Supports SDIO interface and SPI interface communication
- W25Q32JVSSIQ
4MB NOR-Flash
- RP2040
- BOOT button

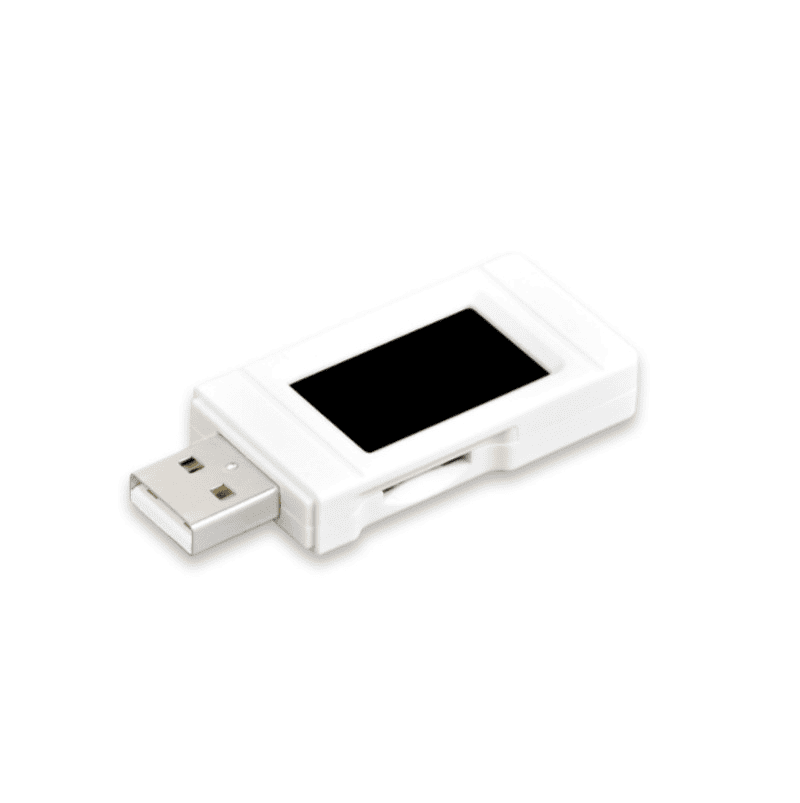

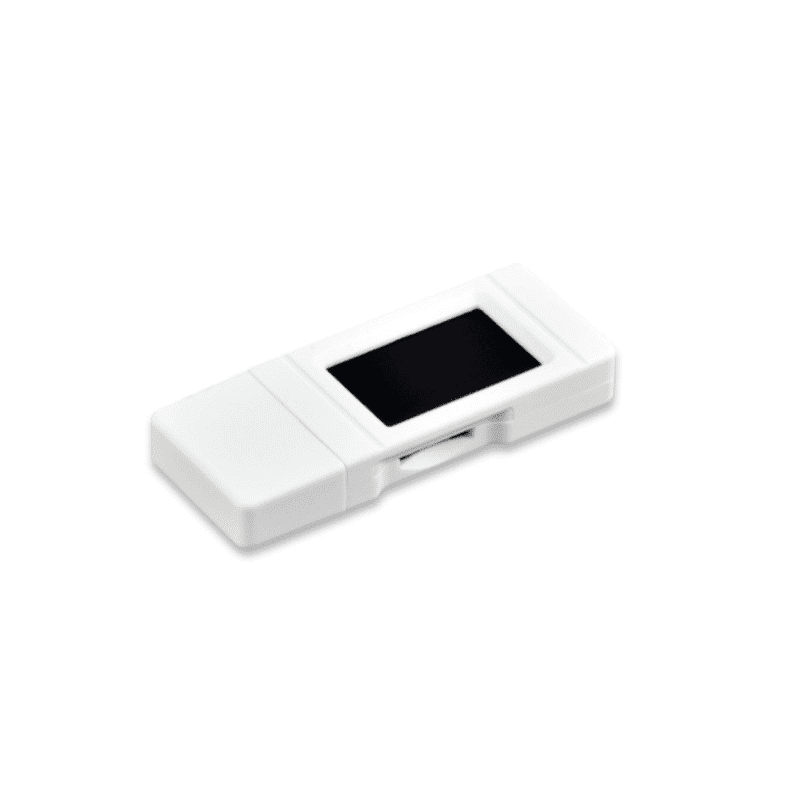

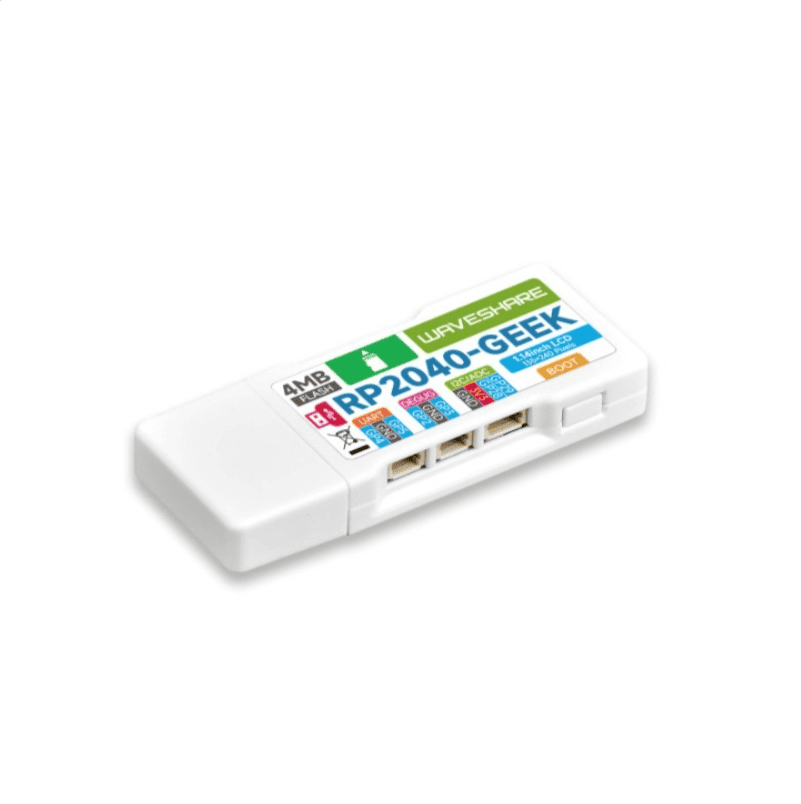

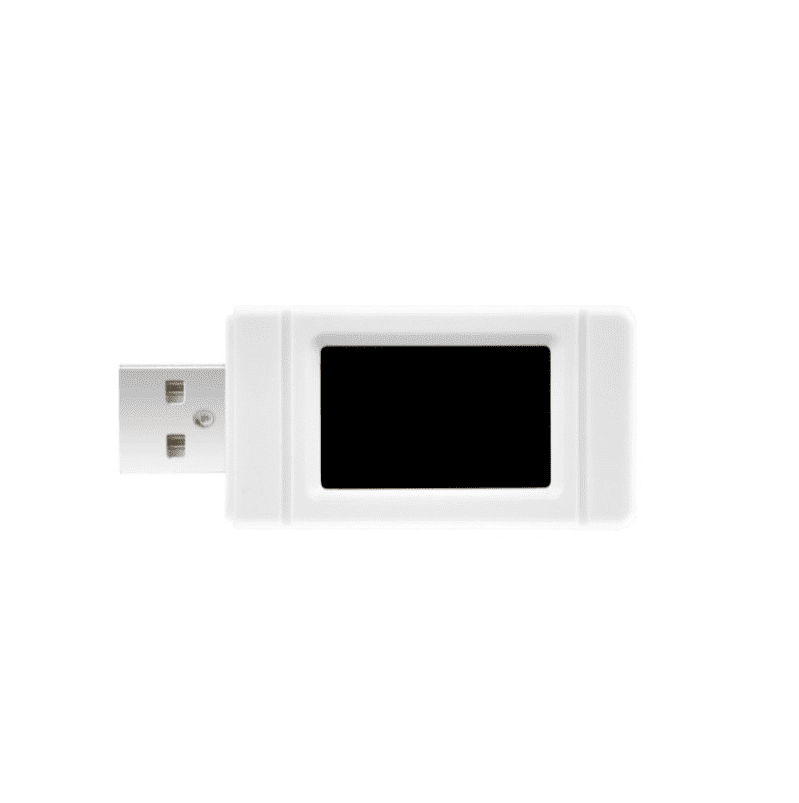

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.015 kg
RP2040-GEEK and cables x1
