Part Number: RP2040-ETH
Korisne informacije:
www.waveshare.com/wiki/RP2040-ETH Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor
RP2040-ETH
Based On RP2040, Onboard ETH Port
Board Specifications
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB of onboard Flash memory
- Onboard CH9120 with integrated TCP/IP protocol stack
- 14 × multi-function GPIO pins, compatible with some Pico HATs
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Temperature sensor
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Tiny Size And Easy Integration
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications
This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.
Support Multiple Communication Modes
Supports TCP Server / TCP Client / UDP Server / UDP
Controllable Via Network
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
14 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

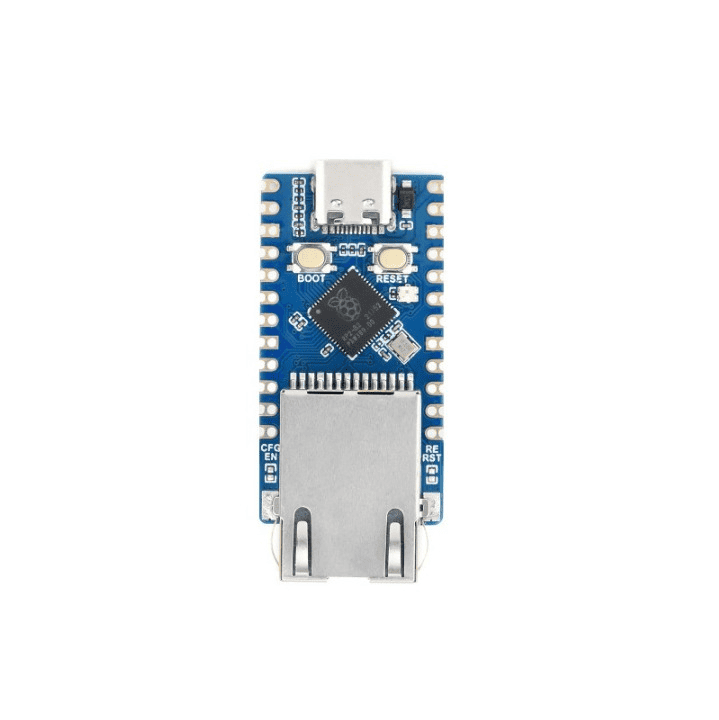

What's On Board
- USB Type-C connector
Supports USB1.1 hosts and slave devices
- BOOT button
Press it when resetting to enter download mode
- RESET button
- RP2040
dual-core processor, up to 133MHz operating frequency
- RJ45 Ethernet port
- RT9013-33GB
500mA Low Dropout, Low Noise, Ultra-Fast LDO
- W25Q32JVSSIQ
4MB NOR-Flash
- CH9120
Ethernet serial port transmission IC

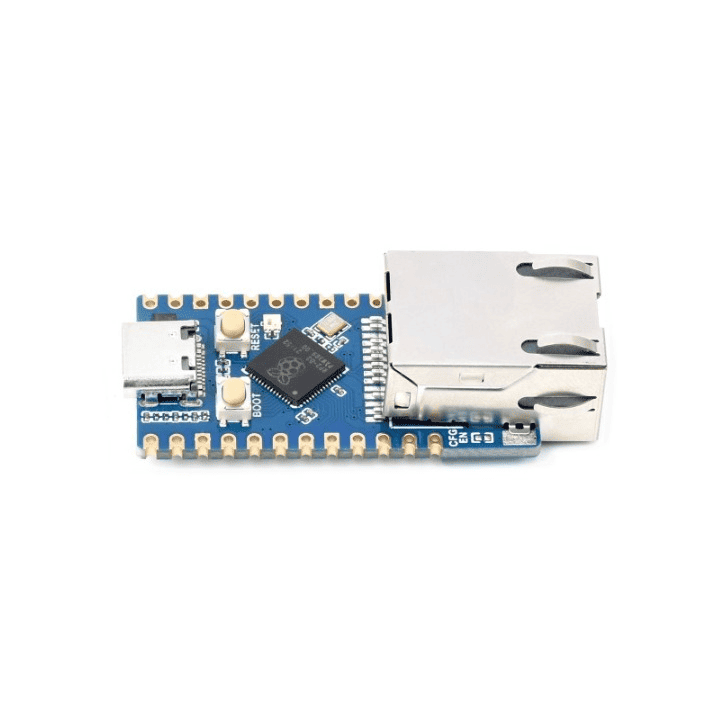

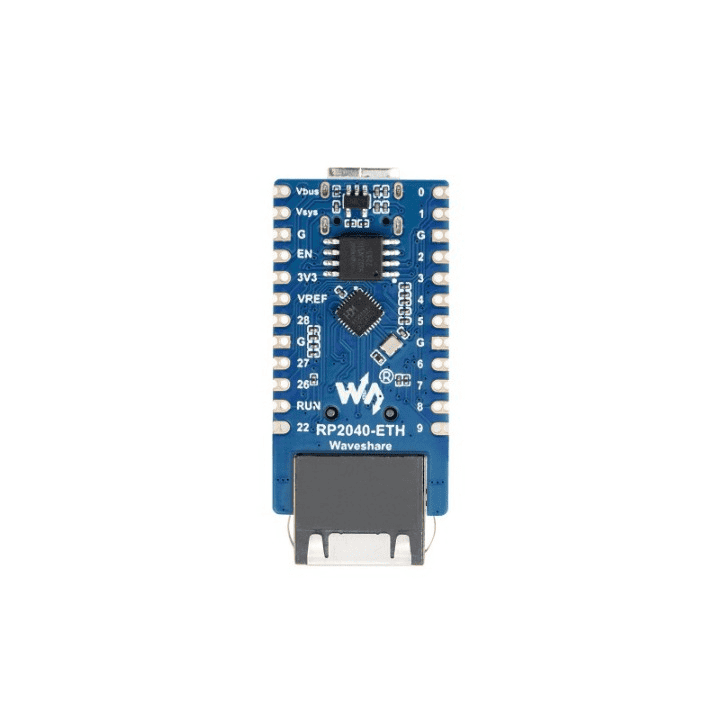

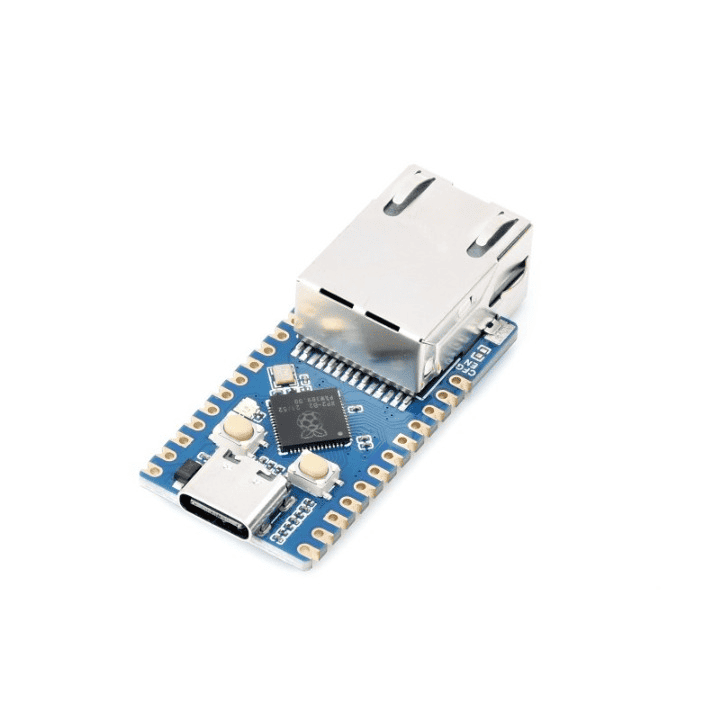

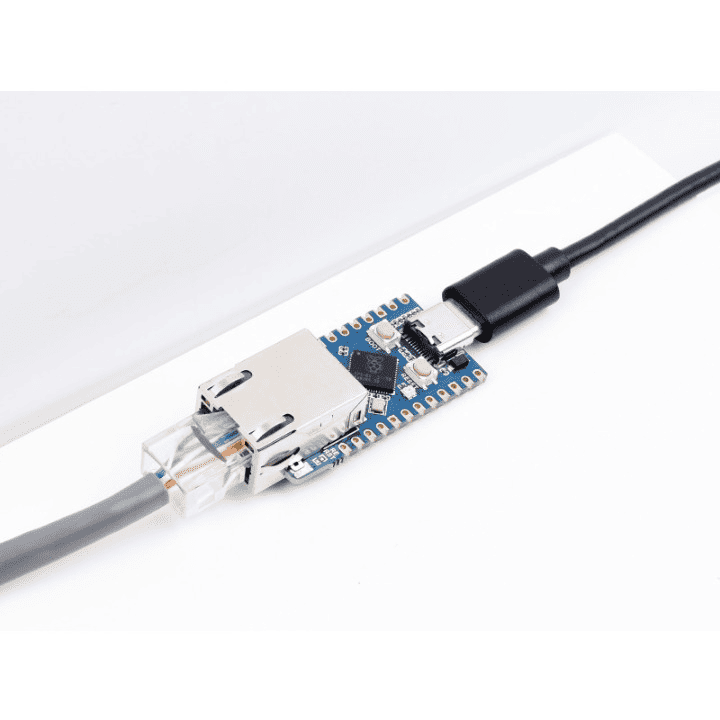

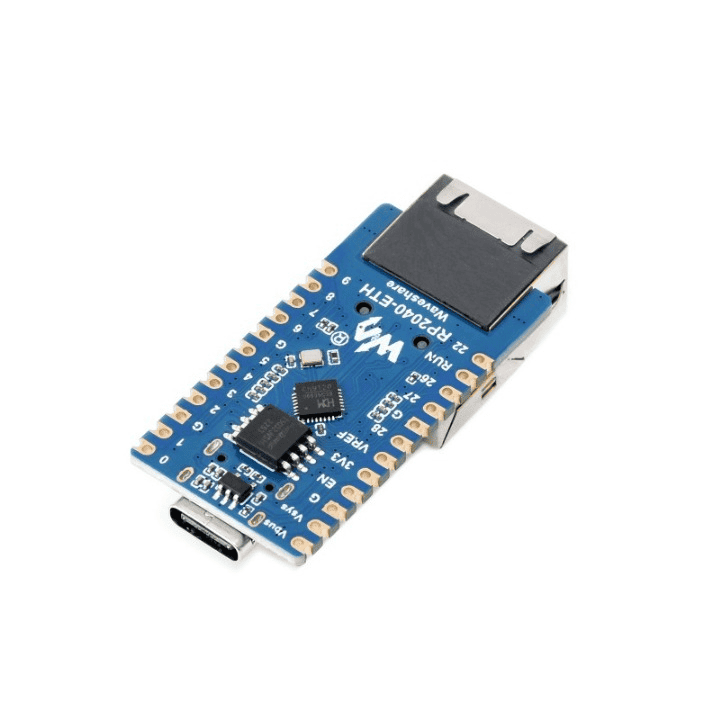

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.008 kg
RP2040-ETH x1
