SKU: 22101
Part Number: RGB-Matrix-P4-64x32
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/RGB-Matrix-P4-64x32 64×32 RGB LED Matrix Panel
RGB Full-Color LED Matrix Panel, 4mm Pitch, 64×32 Pixels, 2048 Individual RGB LEDs, Adjustable Brightness
Supports Raspberry Pi and Arduino
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Features At A Glance
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

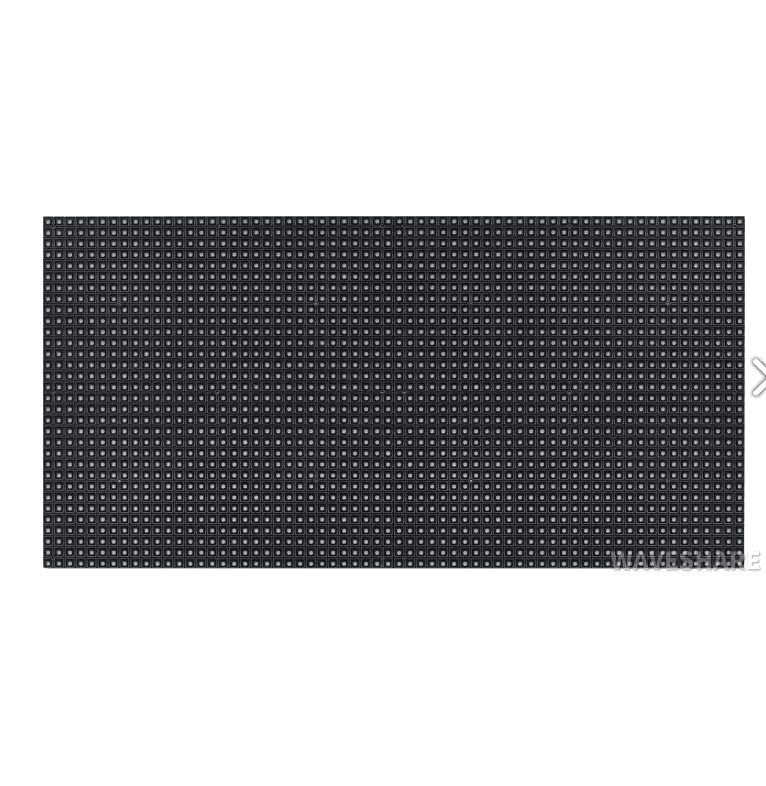

- 2048 individual RGB LEDs, full-color display, adjustable brightness

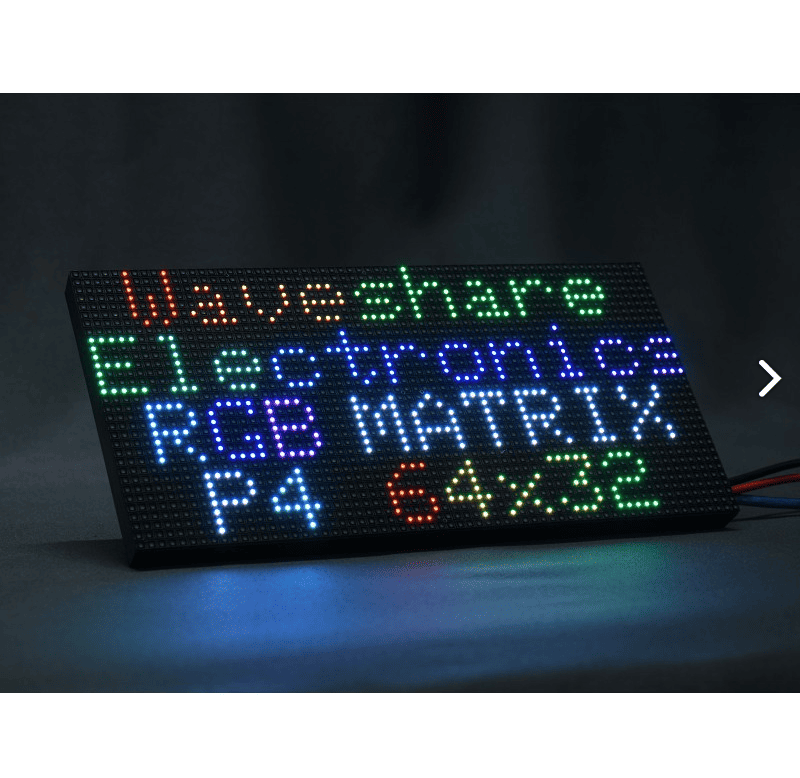

- 64×32 pixels, 4mm pitch, allows displaying text, colorful image, or animation
- 256×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on
█ Specifications
DIMENSIONS |
256mm × 128mm |
PIXELS |
64×32=2048 DOTS |
PITCH |
4mm |
PIXEL FORM |
1R1G1B |
VIEWING ANGLE |
≥160° |
CONTROL TYPE |
synchronization |
DRIVING |
1/16 scan |
HEADER |
HUB75 |
POWER SUPPLY |
5V / 4A (VH4 header input) |
POWER |
≤20W |
█ Header Definition

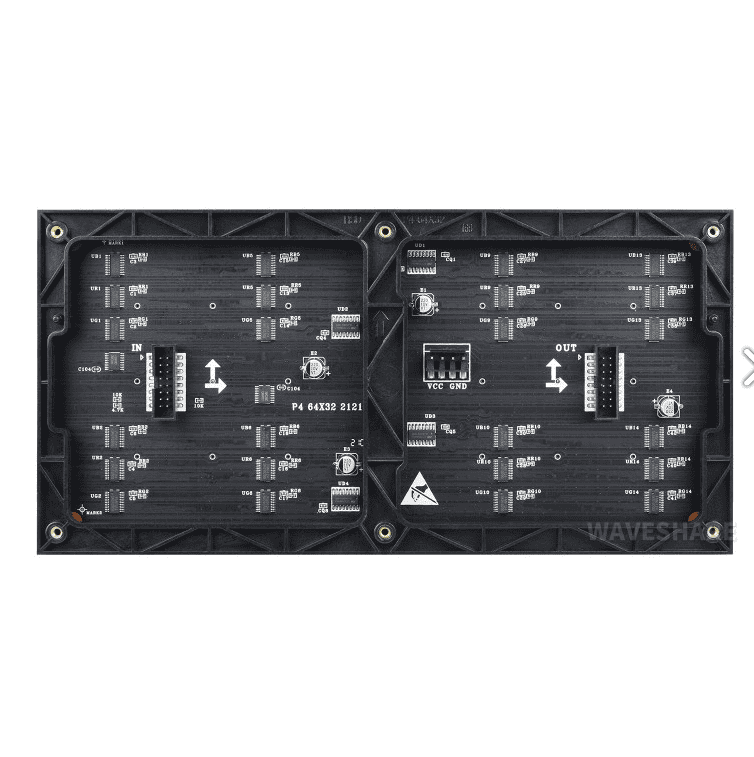

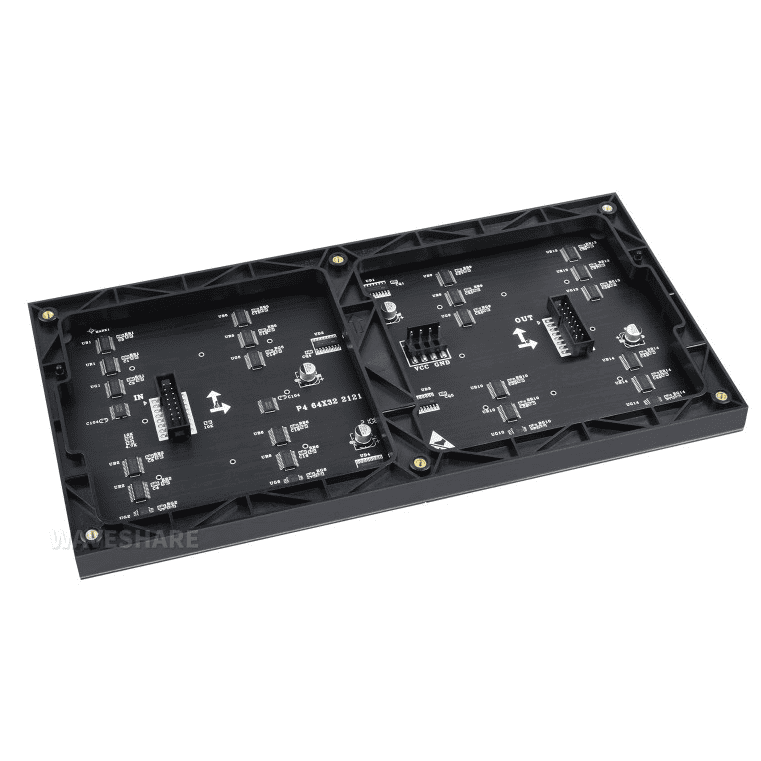

* this back view is for reference only PCB silkscreen and layout may have small differences from batch to batch, but the hardware interface and software are compatible.
PIN |
DESCRIPTION |
PIN |
DESCRIPTION |
VCC |
5V power input |
GND |
Ground |
R1 |
R higher bit data |
R2 |
R lower bit data |
G1 |
G higher bit data |
G2 |
G lower bit data |
B1 |
B higher bit data |
B2 |
B lower bit data |
A |
A line selection |
B |
B line selection |
C |
C line selection |
D |
D line selection |
E |
E line selection |
CLK |
clock input |
LAT/STB |
latch pin |
OE |
output enable |
█ Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
█ Usage Scenarios
DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
█ Dimensions
-
█ Package Content
-
- RGB-Matrix-P4-64x32 LED matrix and accessories x1
- Power supply terminal adapter x1
- 16P wire ~30cm x1
Weight: 0.255 kg
It is recommended to used with a 5V 4A power supply
