Raspberry Pi Zero 2 W, Five times faster. 1GHz quad-core Arm Cortex-A53 CPU, WiFi, Bluetooth 4.2 BLE
Raspberry Pi Zero 2 W
Just as small. Five times as fast.
ideal choice for smart home applications and other IoT projects
Board specifications
At the heart of

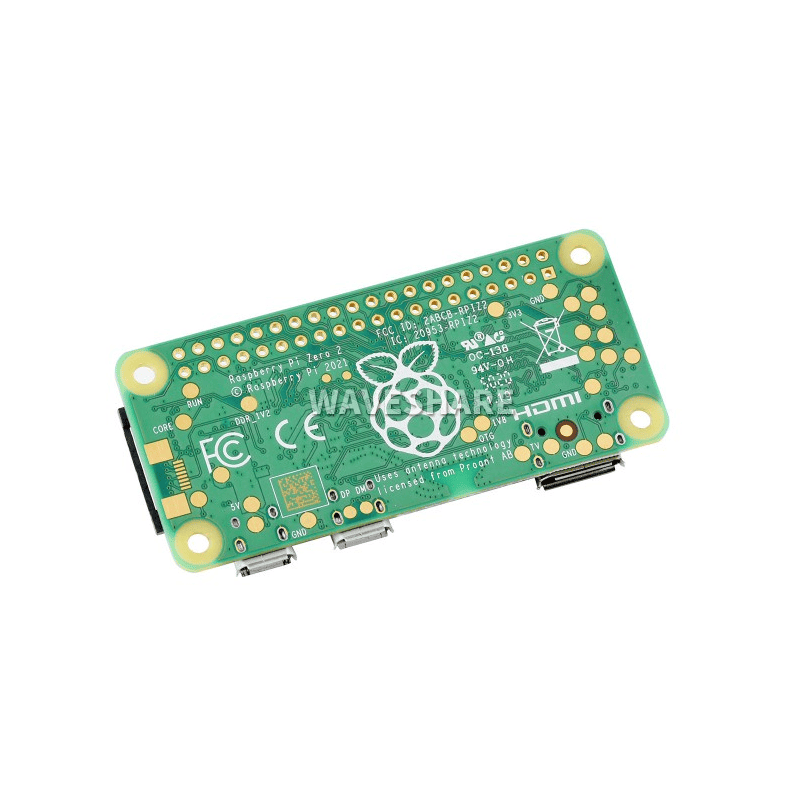

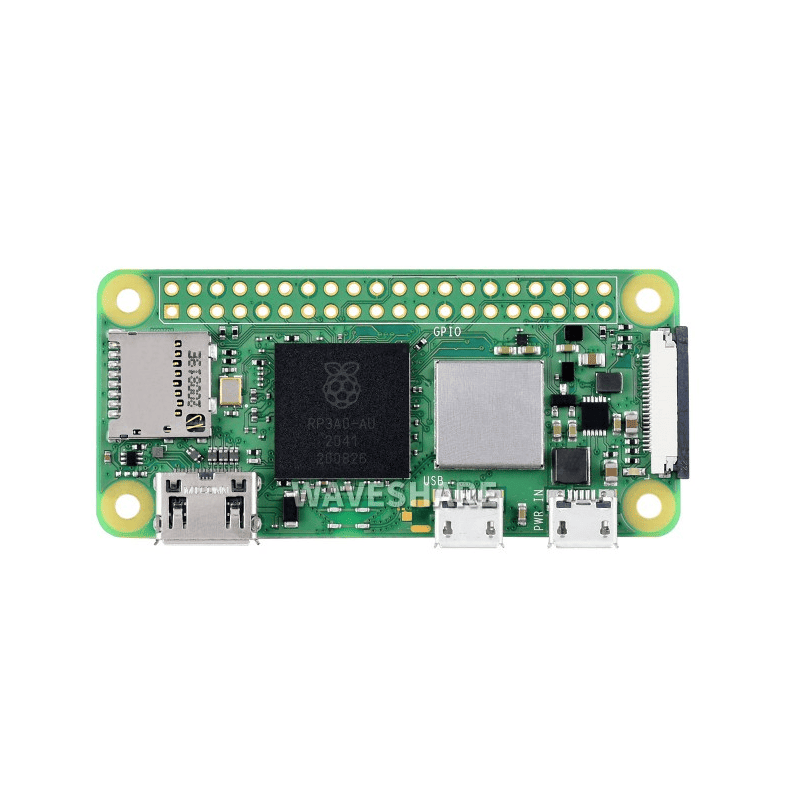

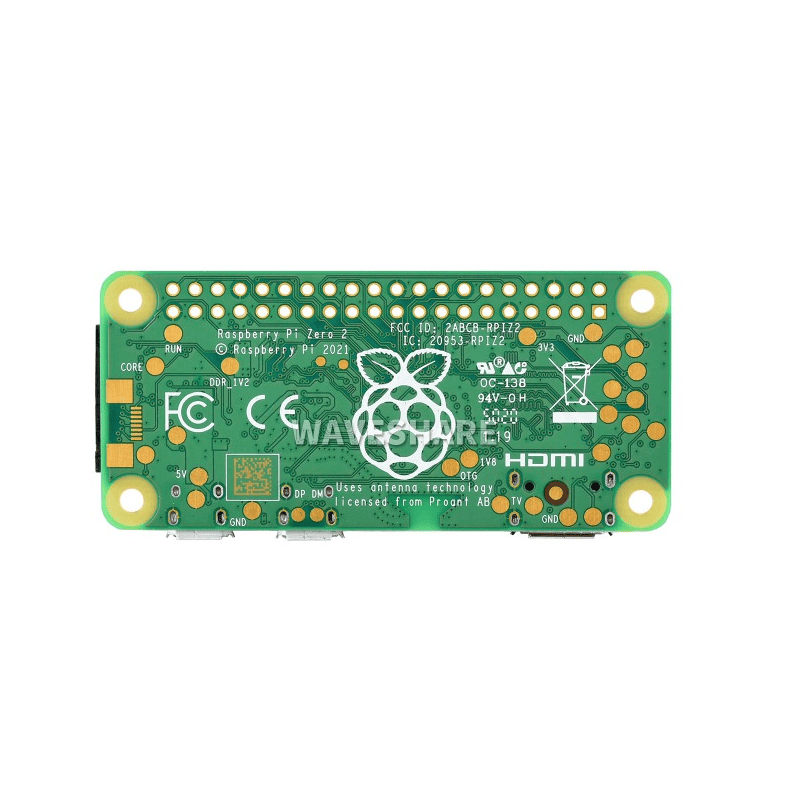

Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concern, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining higher performance without higher temperature.
Key features include:
- Broadcom BCM2710A1, 1GHz quad-core 64-bit Arm Cortex-A53 CPU
- 512MB LPDDR2 SDRAM
- 2.4GHz 802.11 b/g
wireless LAN
- Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
- Mini HDMI port and micro USB On-The-Go (OTG) port
- microSD card slot
- CSI-2 camera connector
- HAT-compatible 40-pin header footprint (unpopulated)
- Micro USB power
- Composite video and reset pins via solder test points
- H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
- OpenGL ES 1.1, 2.0 graphics
Pinheader options
Introduction
Quad-core 64-bit ARM Processor
BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
WiFi & Bluetooth wireless
2.4GHz 802.11 b/g
wireless LAN
Bluetooth 4.2, Bluetooth Low Energy (BLE)
outline dimensions
