SKU: 15668
Part Number: WM8960 Audio HAT
Brand: Waveshare
wiki:
www.waveshare.com/wiki/WM8960_Audio_HAT WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record

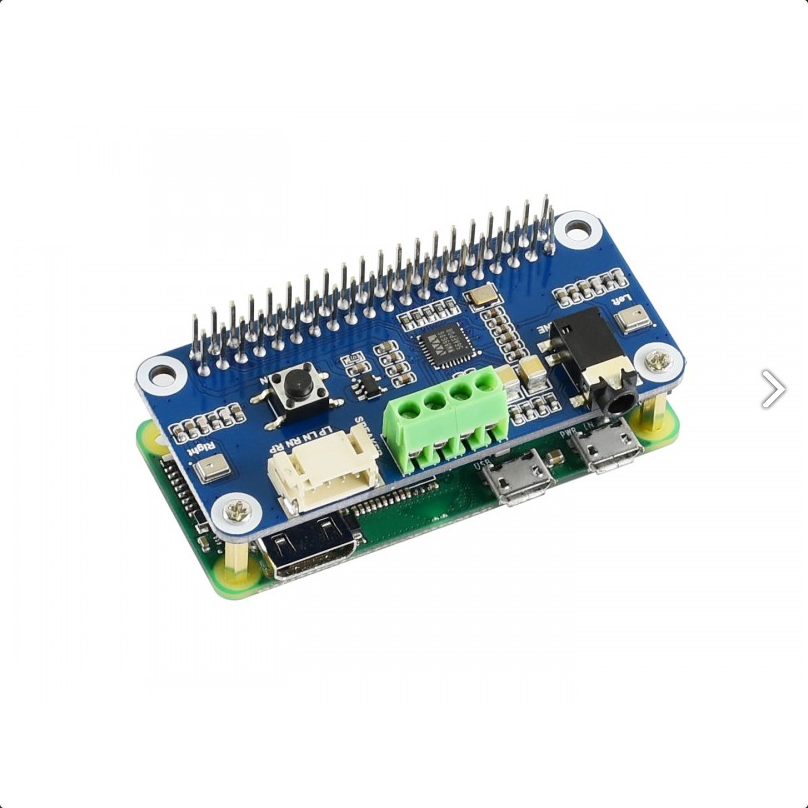

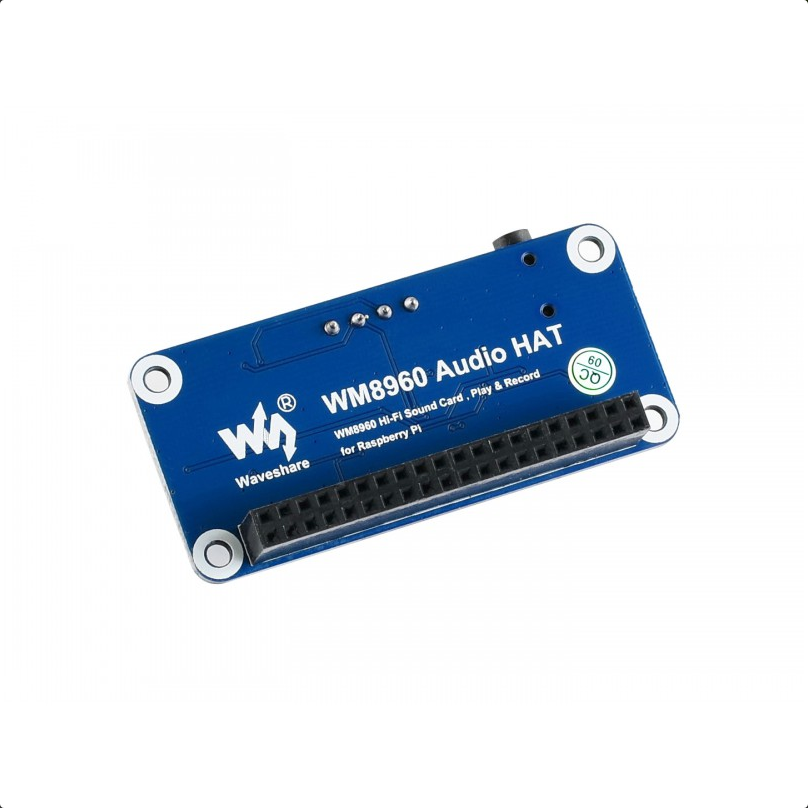

Overview
This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

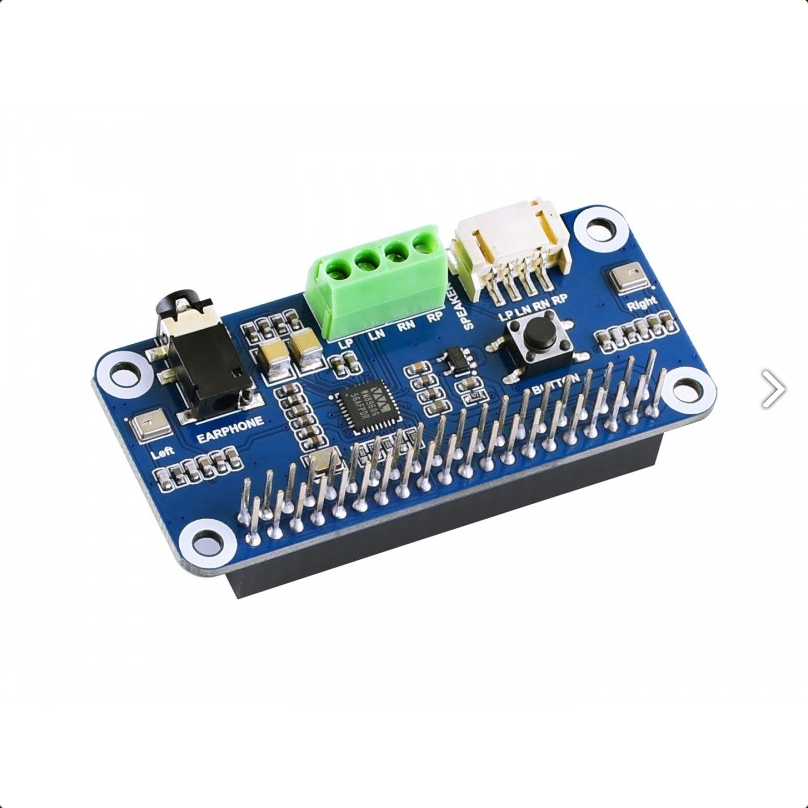

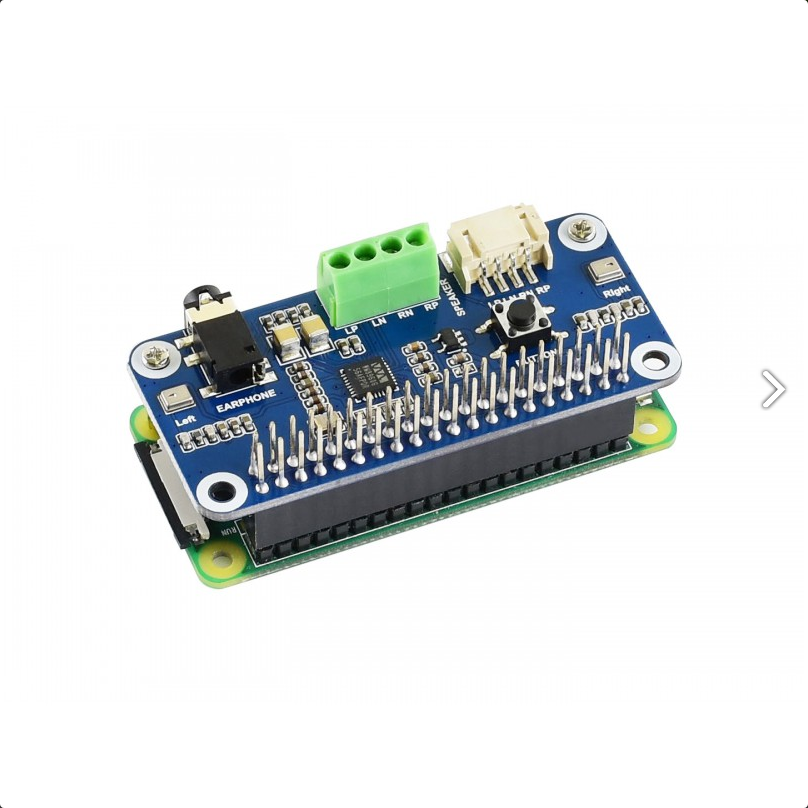

Features

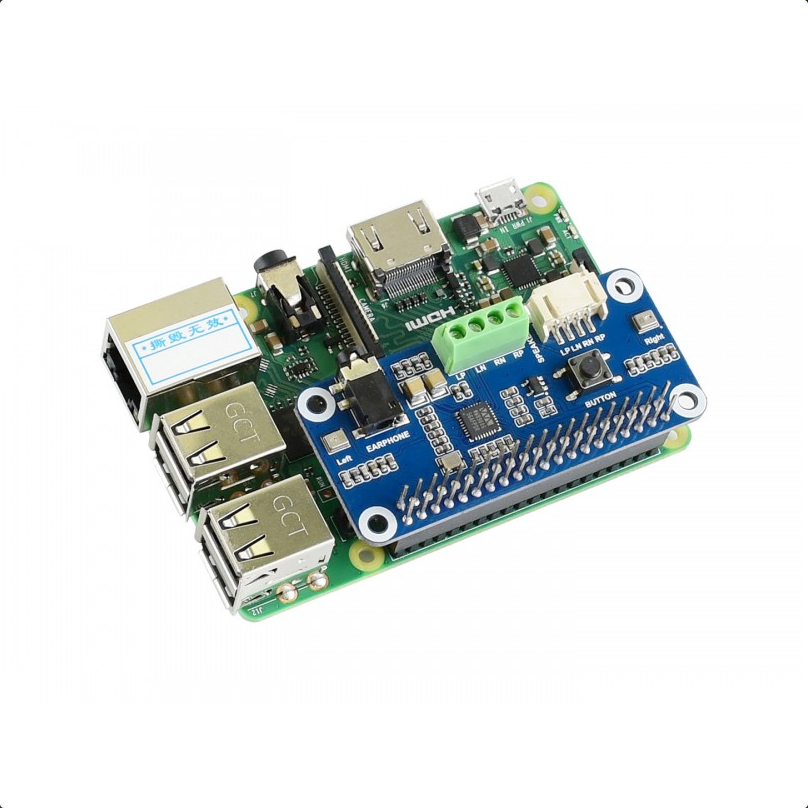

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Integrates WM8960 low power stereo CODEC, communicates via I2S interface
- Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality

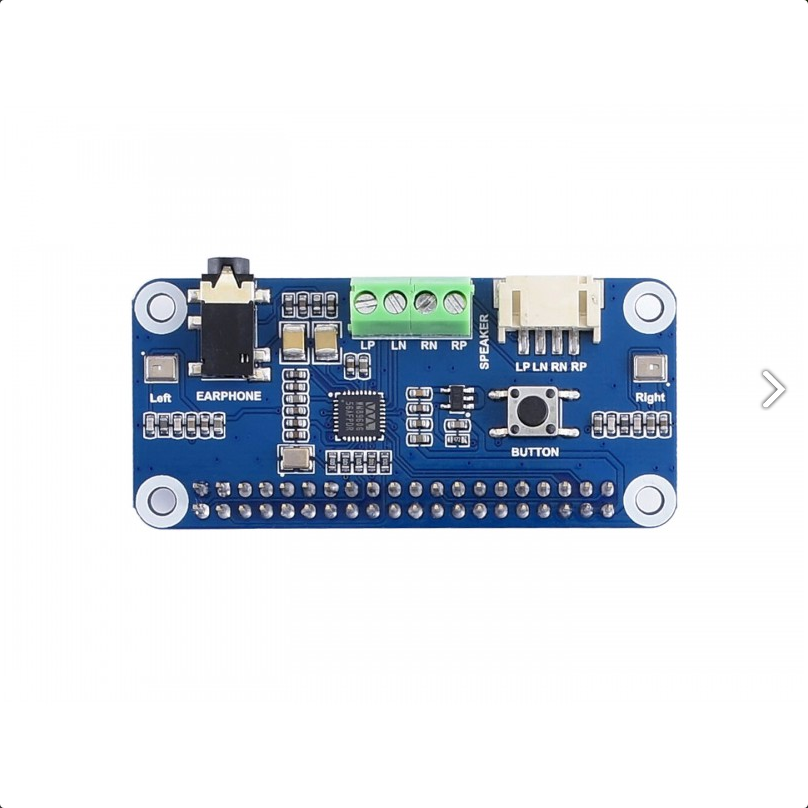

- Onboard standard 3.5mm earphone jack, play music via external earphone
- Onboard dual-channel speaker interface, directly drives speakers
- Supports sound effects such as stereo, 3D surrounding, etc.
- Comes with development resources and manual (python demo code for playing / recording)
Specifications
- CODEC: WM8960
- Power supply: 5V
- Logic voltage: 3.3V
- Control interface: I2C
- Audio interface: I2S
- DAC signal-noise ratio: 98dB
- ADC signal-noise ratio: 94dB
- Earphone driver: 40mW (16Ω@3.3V)
- Speaker driver: 1W per channel (8Ω BTL)

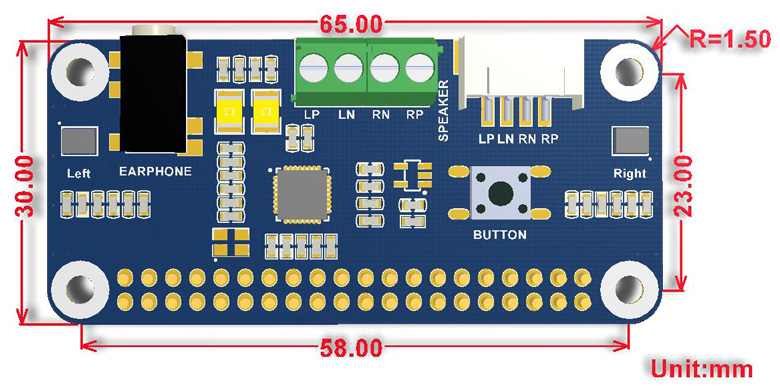

Dimensions
Link Waveshare Wiki
Package Content
Weight: 0.163 kg
Note: Raspberry Pi in the photos is NOT included.
- WM8960 Audio HAT x1

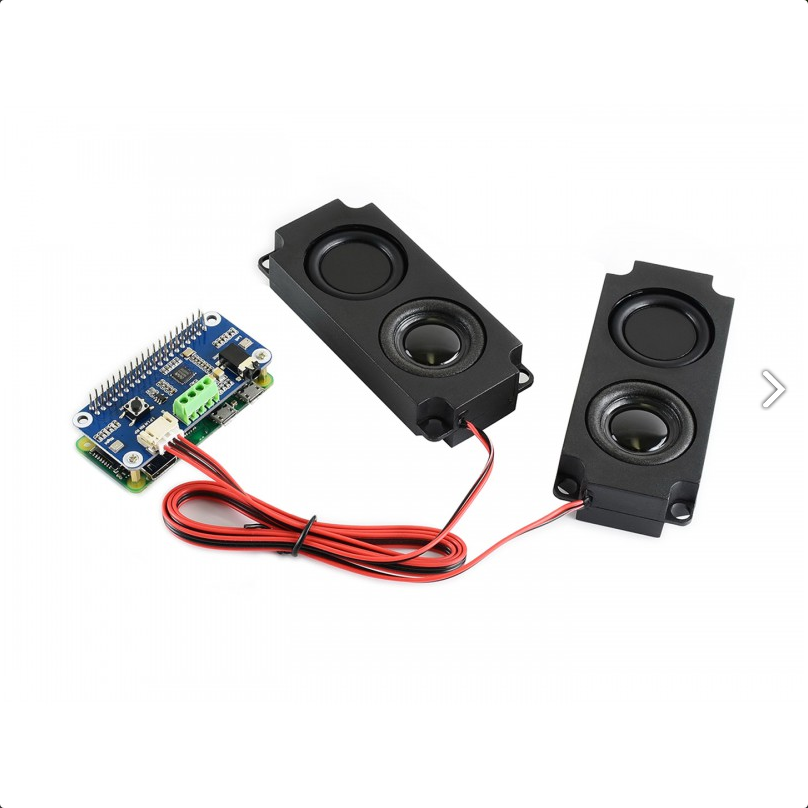

- 8Ω 5W Speaker x1
- RPi screws pack (2pcs) x1
1
2
3
