SKU: 12725
Part Number: RGB LED HAT
Brand: Waveshare
Korisne informacije
: http://www.waveshare.com/wiki/RGB_LED_HAT RGB LED HAT

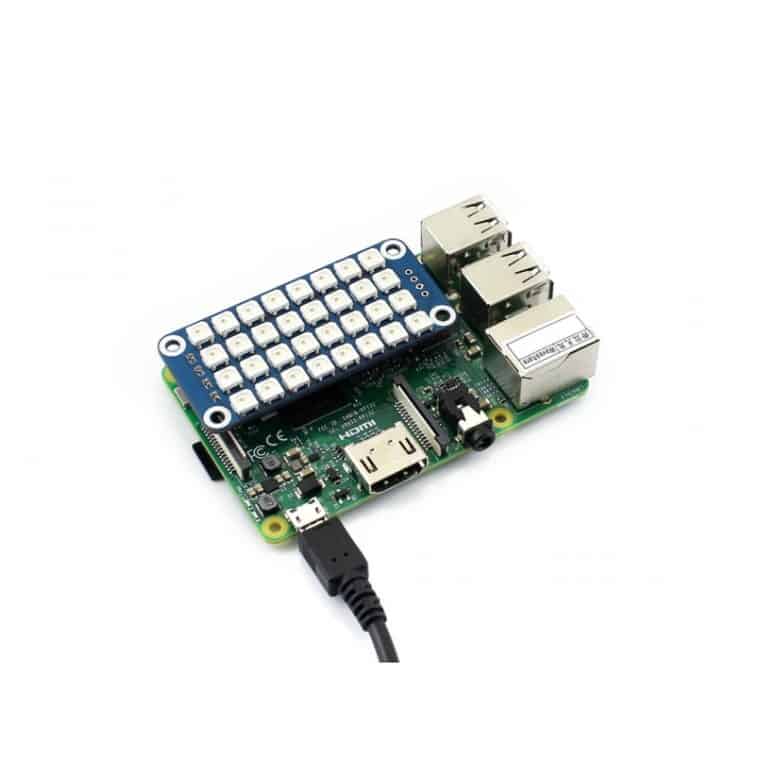

True Color RGB LED HAT For Raspberry Pi, Colorful Display
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Overview
This RGB LED HAT can be easily attached on top of the Raspberry Pi to display colorful effect, and controlled by only one signal pin.
█ Features At A Glance
- Supports any revision of Raspberry Pi (directly-pluggable)
- Onboard 4 × 8 RGB LED (WS2812B)
- Control pin is configurable via jumpers (0Ω resistor)
- Break out control pins, easy for working with other MCUs
- Comes with development resources and manual (examples in Python and Web control)
█ Specifications
- Operating voltage: 5V
- Brightness: adjustable 256 levels
- Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors)
- Data rate: 800Kbps(typ)
- Dimension: 65mm × 30.2mm
- Mounting hole size: 3.0mm
█ How to Use
In the case of working with a MCU:
- 5V ↔ 5V power
- GND ↔ GND
- DIN ↔ Signal input
- DOUT ↔ Signal output (optional)
█ Demo
█ Dimensions
-
█ Package Content
1. |
 |
2. |
 |
|
|
|
|
- RGB LED HAT x1
- RPi screws pack (2pcs) x1
Weight: 0.016 kg
