SKU: 11638
Part Number: RPi Relay Board
Brand: Waveshare
wiki:
www.waveshare.com/wiki/RPi_Relay_Board Raspberry Pi Expansion Board, Power Relay
Overview

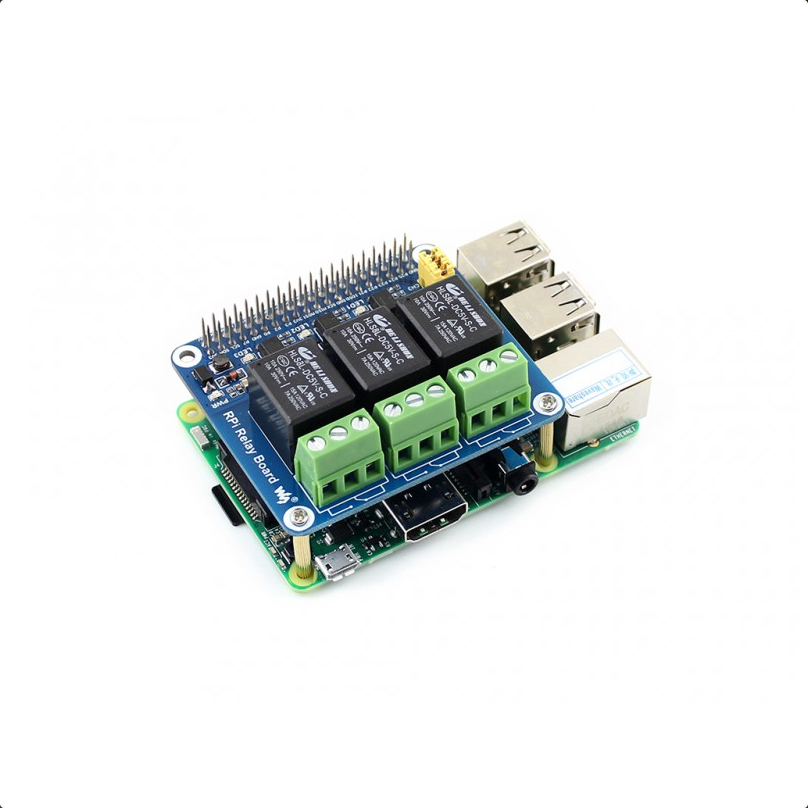

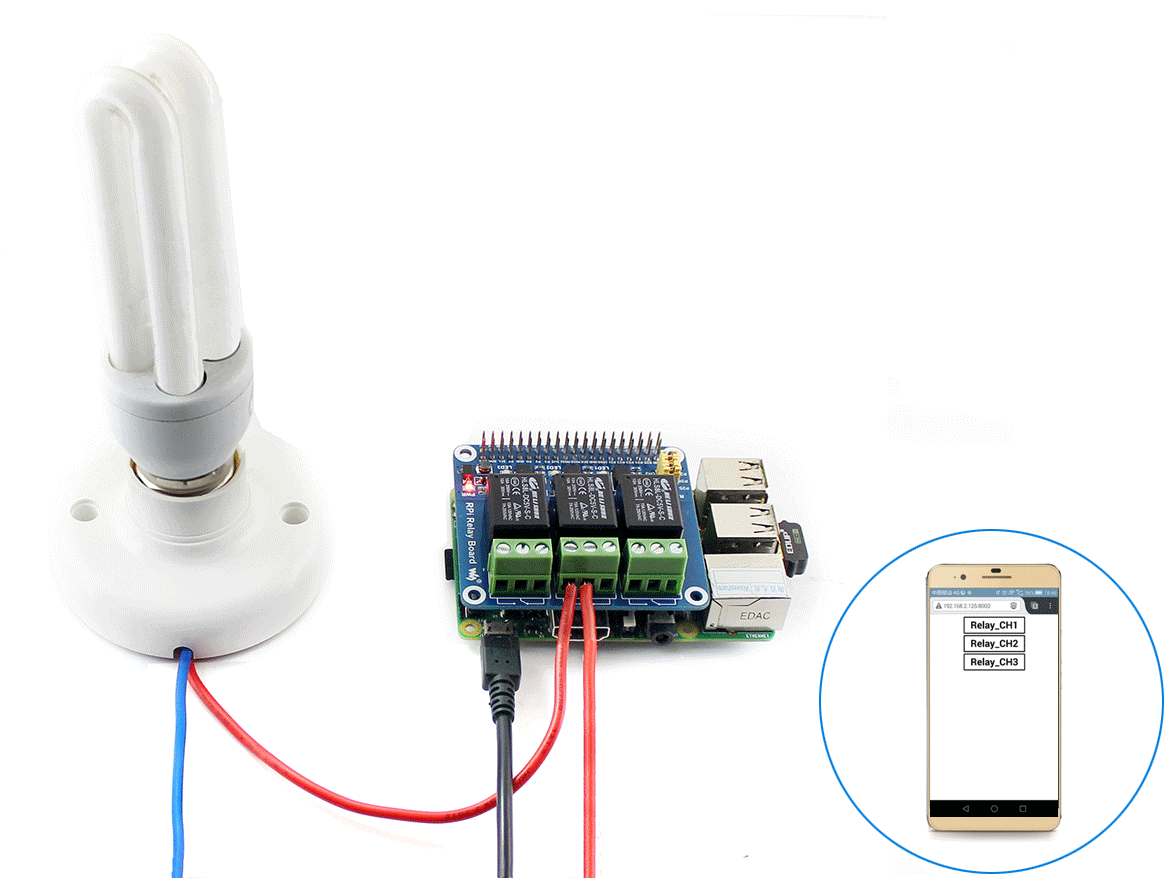

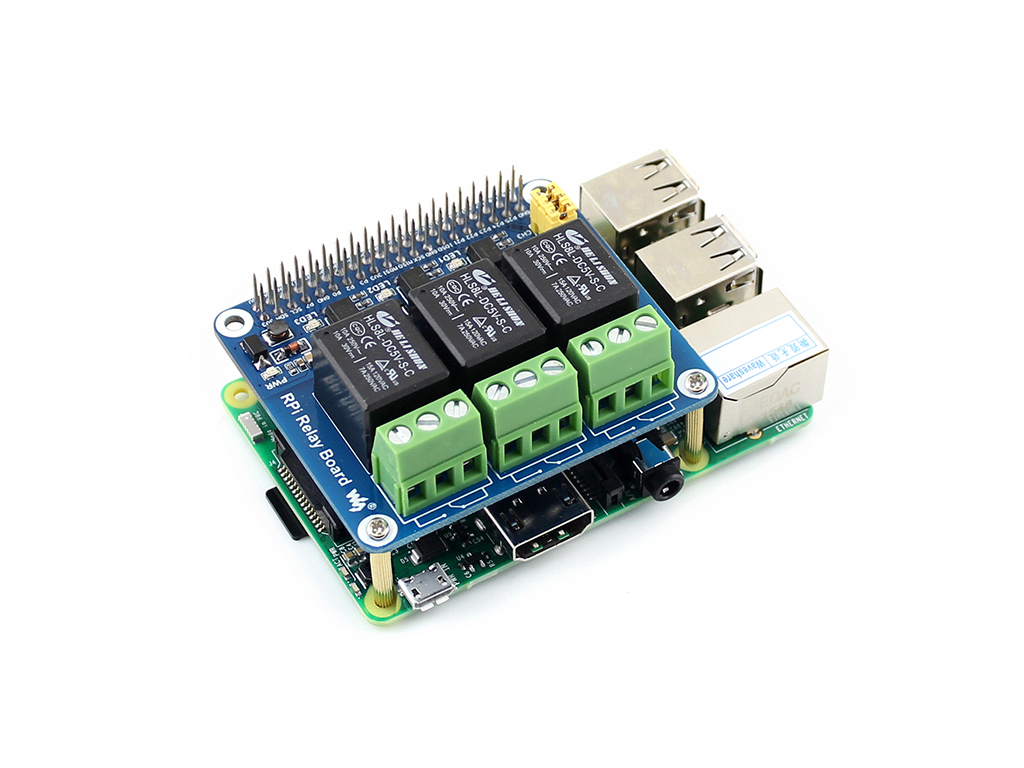

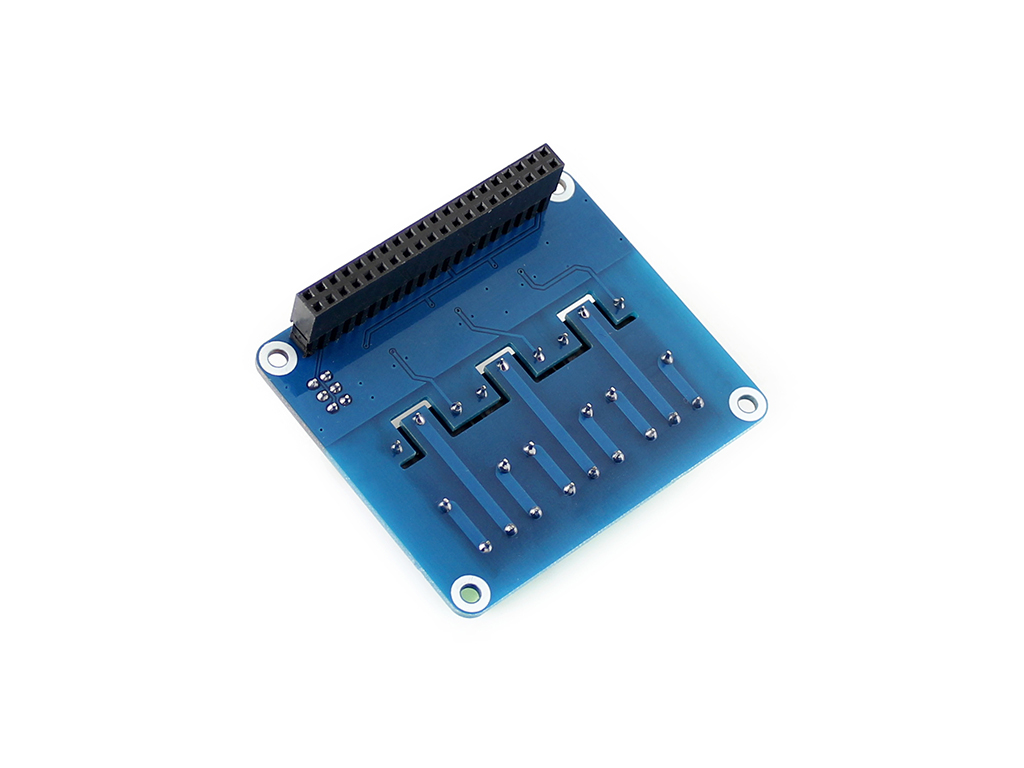

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
RPi Relay Board Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- High quality relays, loads up to 5A 250V AC or 5A 30V DC
- Photo coupling isolation, prevent interference from high voltage circuit
- Onboard LEDs for indicating relays status
- Relay control jumper, allows to control the relays by custom pins other than the default pins
- Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

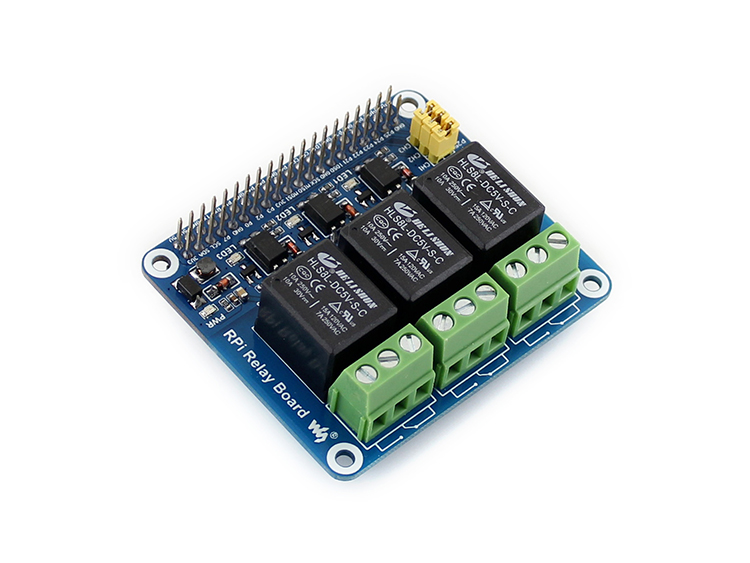

What's on the RPi Relay Board
- Raspberry Pi GPIO interface: for connecting Raspberry Pi
- Relay screw terminal: for connecting target devices
- Relays
- Photocoupler: PC817
- Relay indicator
- LED on: relay NC is opened, NO is closed
- LED off: relay NC is closed, NO is opened
- Power indicator
- Relay control jumper
- short the jumper: control the relays by default I/Os used in the example code
- open the jumper: control the relays by custom I/Os through jumper wires

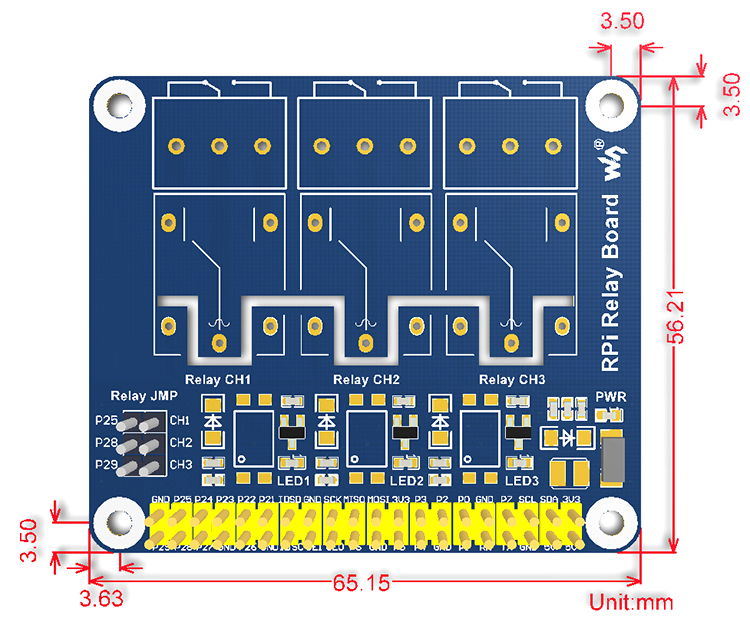

Dimensions
Link Waveshare Wiki
Package Content
Weight: 0.061 kg
- RPi Relay Board x 1
- RPi screws pack (2pcs) x 1
