SKU: 19717
Part Number: Pico-2CH-RS485
Korisne informacije:

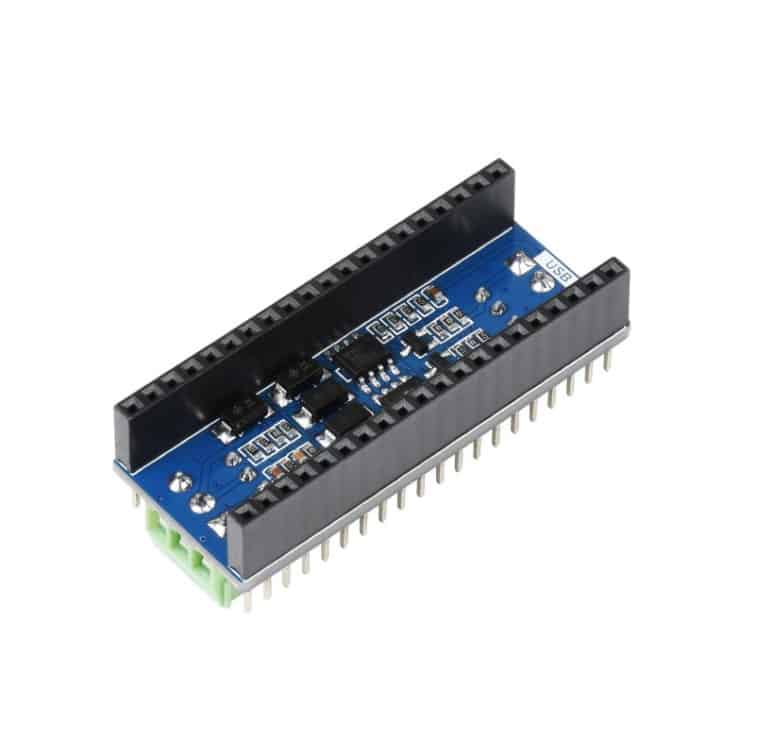

Pico-2CH-RS485 2-Channel RS485 Module For Raspberry Pi Pico, SP3485 Transceiver, UART To RS485
2-Channel RS485 Module For Pico Incorporates RS485 Transceiver SP3485, Using UART Bus
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Using UART bus, easily converting UART to RS485, or vice versa
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
3.3V |
RS485 TRANSCEIVER |
SP3485 |
COMMUNICATION BUS |
UART |
BAUDRATE |
300~500000bps |

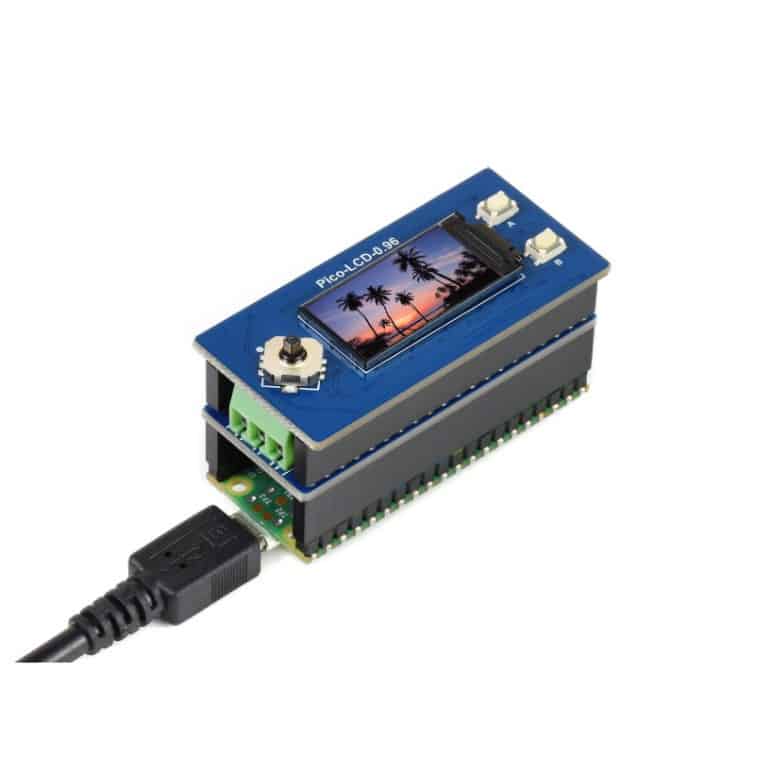

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Male Pin Header For Stacking Other Modules
Raspberry Pi Pico and Pico-LCD-0.96 are NOT included. What's On Board

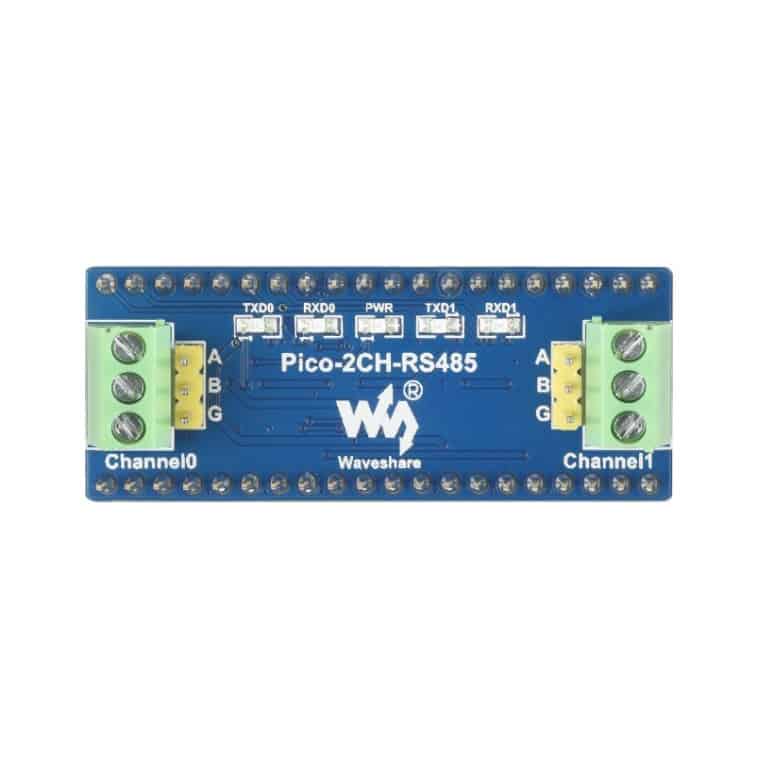

- RS485 bus interface
2-channel RS485
- UART status indicators
RXD0/TXD0: Channel 0 RX/TX indicators
RXD1/TXD1: Channel 1 RX/TX indicators
- Power indicator

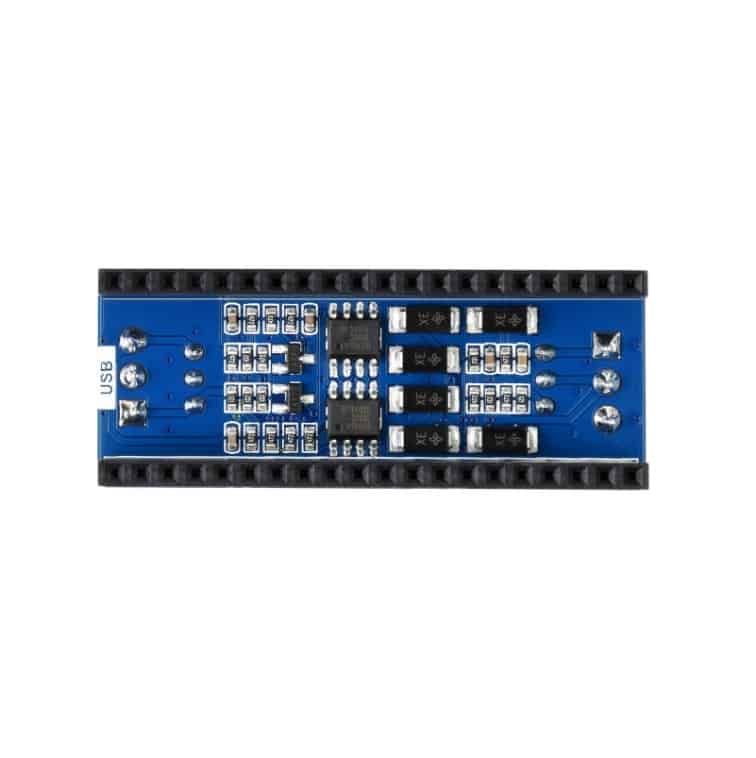

- SP3485 RS485 transceiver
- SMAJ12CA
transient suppress diode array
- Raspberry Pi Pico header
Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.013 kg
- Pico-2CH-RS485 x1
