SKU: 29446
Part No.: Raspberry-Pi-Pico-2-W-Sensor-Kit
Korisne informacije:
www.waveshare.com/wiki/Raspberry_Pi_Pico_2_W Raspberry Pi Pico 2 W Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Supports WIFI and Bluetooth, Various Development Kit Options

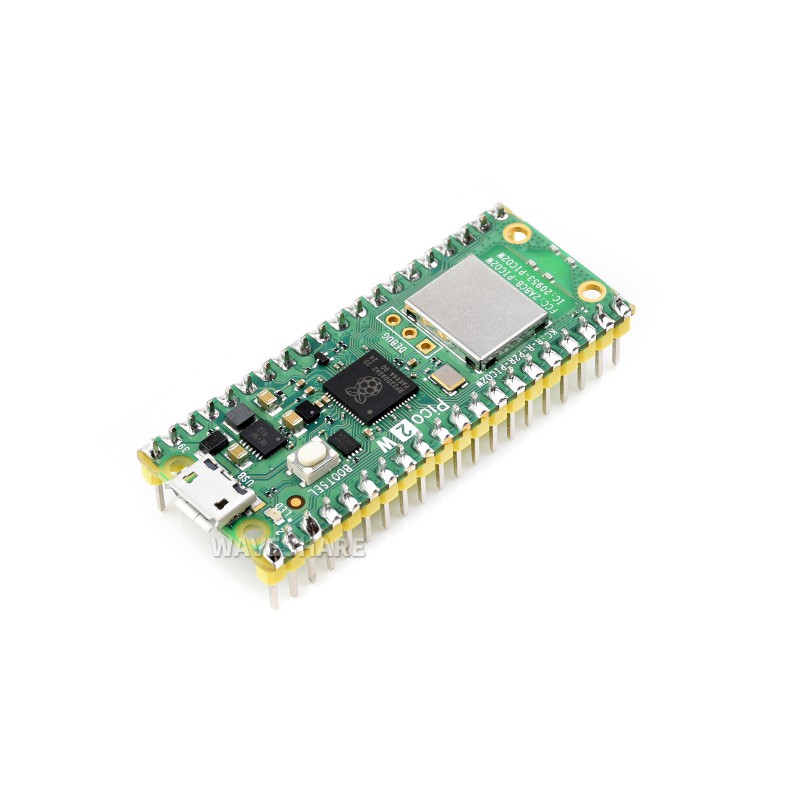

Raspberry Pi Pico 2 W The next big tiny thing
Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi
Board specifications Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
- 520KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Pico Comparison
Model |
Pico 2 W |
Pico 2 |
Pico W |
Pico |
processor |
Dual-core ARM Cortex-M33
or dual-core Hazard3 RISC-V
@150MHz |
Dual-core ARM Cortex-M0+
@133MHz |
SRAM |
520KB |
264KB |
Flash |
4MB |
2MB |
WIFI |
2.4GHz 802.11n WIFI 4 |
- |
2.4GHz 802.11n WIFI 4 |
- |
Bluetooth |
Bluetooth 5.2 |
- |
Bluetooth 5.2 |
- |
Security |
Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. |
- |
Peripherals |
2 × UART
2 × SPI
2 × I2C
3 × ADC
1 × USB 1.1 and PHY
16 × PWM |
12 × PIO state machines |
8 × PIO state machines |
1 × HSTX |
- |
GPIO pins |
26 |

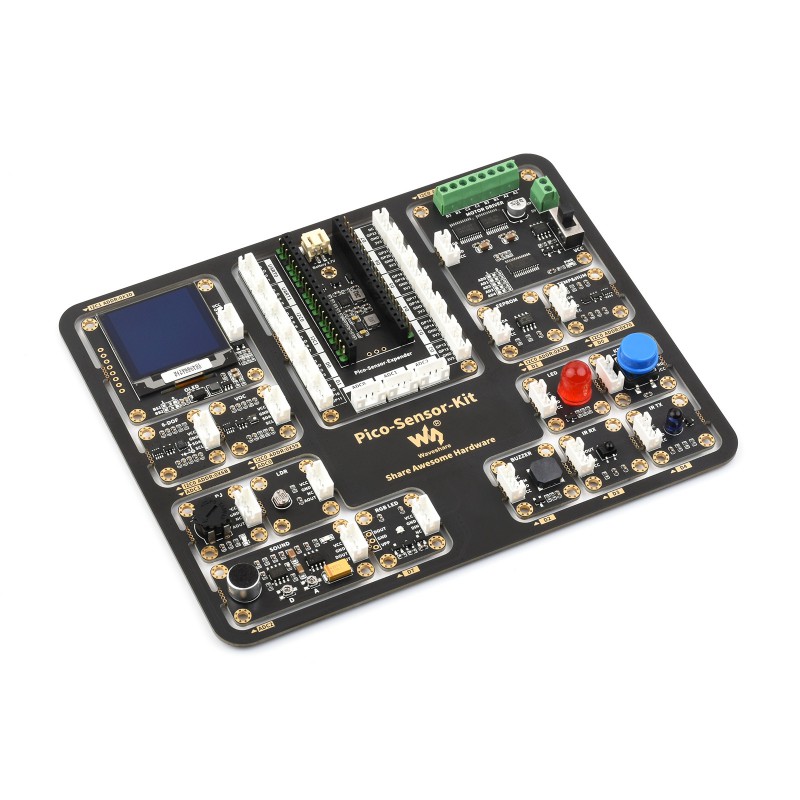

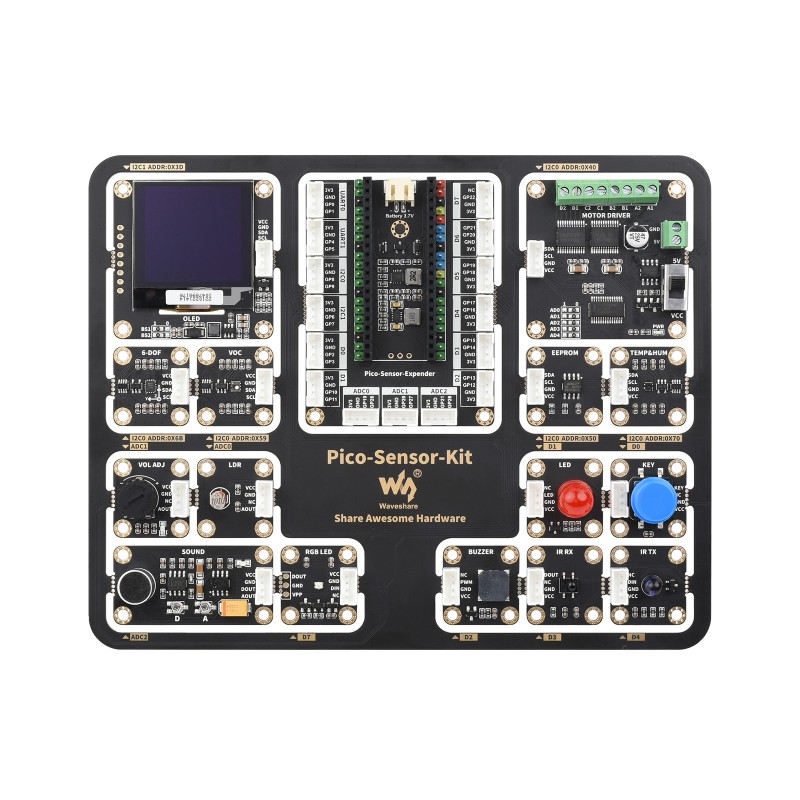

Pico 2 W Sensor Kit On the basis of the starter kit, equipped with entry-level Raspberry Pi Pico 2 W Sensor Kit which is including 15 common modules such as LED, button, buzzer, etc. All-in-one design, all modules are connected to Pico 2 W via PCB castellated holes, no soldering or wiring is required. Each module can be easily separated for individual use, offering more flexibility for your experiments and projects. Standard Raspberry Pi Pico 2 W header, plug-and-play, also comes with clear Acrylic protection case, this kit is your ideal choice to quickly build prototypes or explore the functionality of various sensors
The Raspberry Pi Pico Sensor Kit includes
- Standard Raspberry Pi Pico 2 W header
- 1.5inch OLED Module
- 6-Axis Motion Sensor
- Potentiometer Module
- Photosensitive Resistor Module
- Sound Sensor Module
- RGB LED Module
- Buzzer Module
- VOC Sensor Module
- IR Receiver Module
- IR Transmitter Module
- Button Module
- LED Module
- Temperature/Humidity Sensor Module
- EEPROM Module
- Motor Drive Module
C/C++, MicroPython support Comprehensive SDK, dev resources, tutorials to help you easily get started
Dual-core, dual-architecture The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
WIFI and Bluetooth Support Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
26 × multi-function GPIO pins configurable pin function, allows flexible development and integration
Outline dimensions
Raspberry-Pi-Pico-2-W-Sensor-Kit
- Pico-Sensor-Kit-B x1

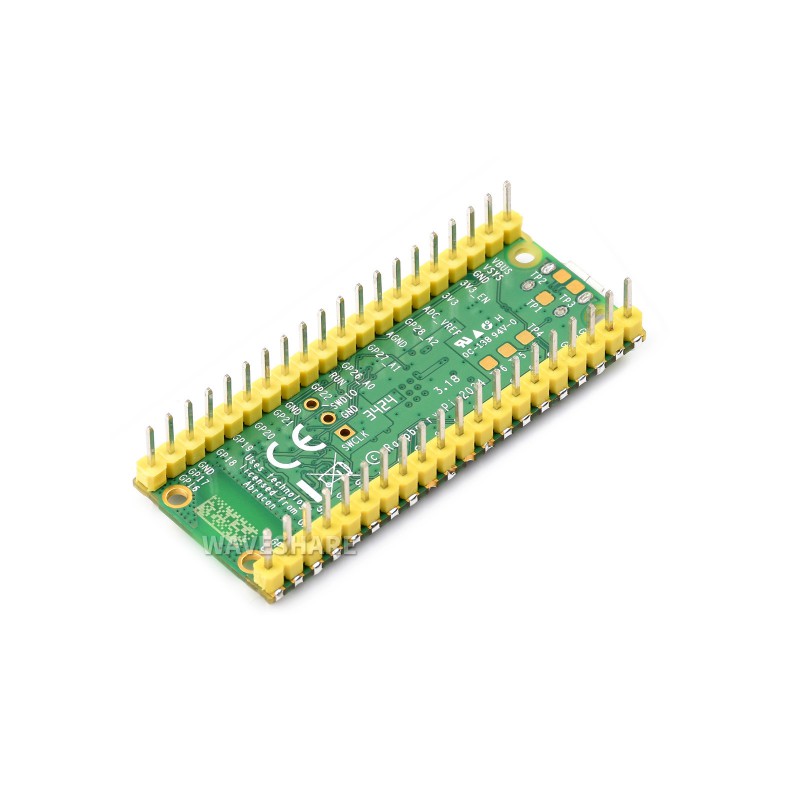

- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1
- Acrylic protective case (top and bottom) x1
- PH2.0 4PIN cable ~300mm (5pcs) x1
- PH2.0 dual-plug 4PIN cable (15pcs) x1
- IR remote controller x1
- USB-A to micro USB cable ~1.2m x1
