Konektori, žice, protobord Raspberry Pi Pico 2 W Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Supports WIFI and Bluetooth
Raspberry Pi Pico 2 W Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Supports WIFI and Bluetooth, Various

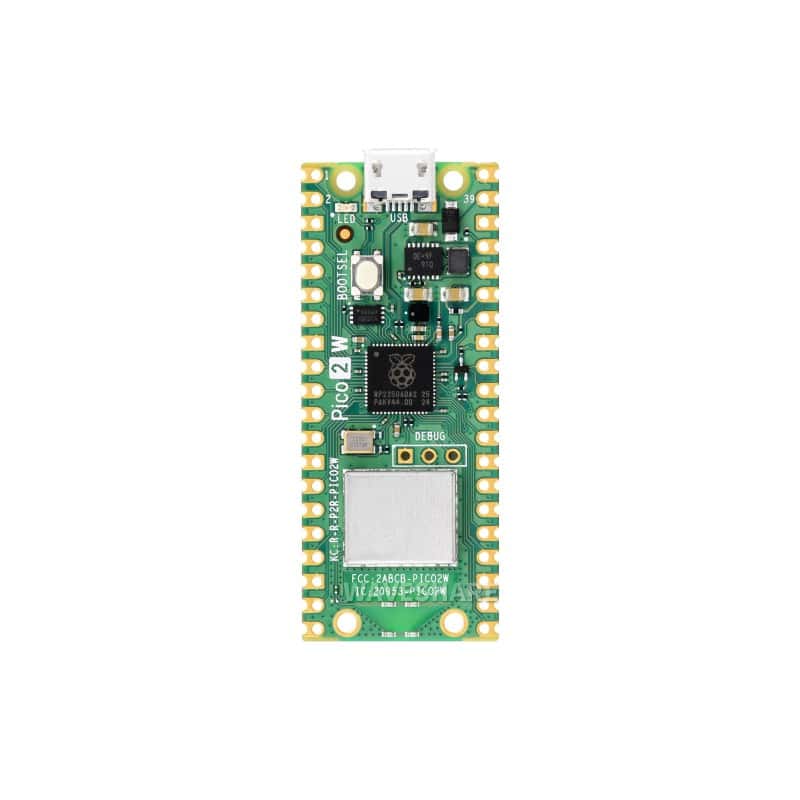

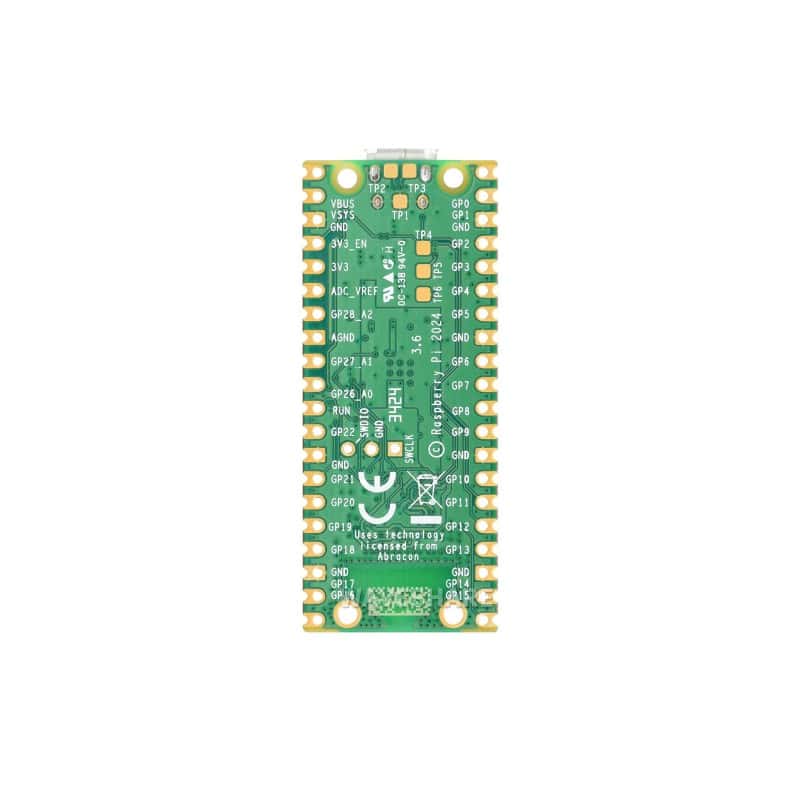

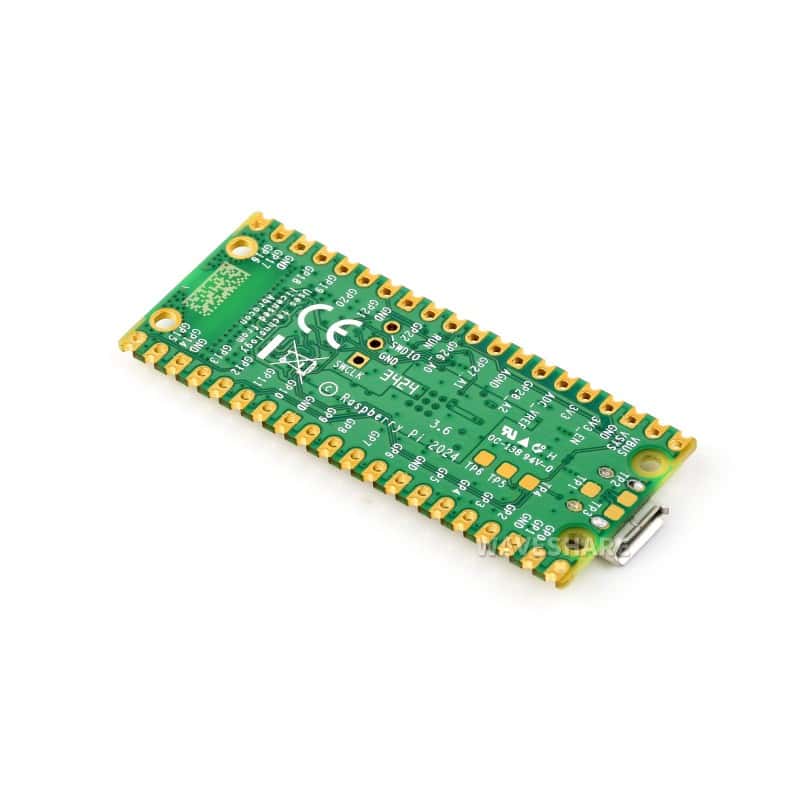

Raspberry Pi Pico 2 W
The next big tiny thing
Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi
Board specifications
Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
- 520KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Pico Comparison
Model |
Pico 2 W |
Pico 2 |
Pico W |
Pico |
processor |
Dual-core ARM Cortex-M33
or dual-core Hazard3 RISC-V
@150MHz |
Dual-core ARM Cortex-M0+
@133MHz |
SRAM |
520KB |
264KB |
Flash |
4MB |
2MB |
WIFI |
2.4GHz 802.11n WIFI 4 |
- |
2.4GHz 802.11n WIFI 4 |
- |
Bluetooth |
Bluetooth 5.2 |
- |
Bluetooth 5.2 |
- |
Security |
Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. |
- |
Peripherals |
2 × UART
2 × SPI
2 × I2C
3 × ADC
1 × USB 1.1 and PHY
16 × PWM |
12 × PIO state machines |
8 × PIO state machines |
1 × HSTX |
- |
GPIO pins |
26 |
C/C++, MicroPython support Comprehensive SDK, dev resources, tutorials to help you easily get started
dual-core, dual-architecture The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
WIFI and Bluetooth Support Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
26 × multi-function GPIO pins configurable pin function, allows flexible development and integration
outline dimensions
Wiki: www.waveshare.com/wiki/Raspberry_Pi_Pico_2_W
