SKU:28584
Part No.:Raspberry-Pi-Pico-2-Kit-B
Korisne informacije:
www.waveshare.com/wiki/Raspberry_Pi_Pico_2 Raspberry Pi Pico 2 Microcontroller Board, Based on Official RP2350 Chip, Dual-core & Dual-architecture Design, Various Development Kit Options
Raspberry Pi Pico 2 a tiny, fast, and versatile microcontroller board
Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi
Board specifications Raspberry Pi Pico 2 is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own
RP2350 microcontroller chip, with unique dual-core and dual-architecture design, running up to 150 MHz, embedded 520KB of SRAM and 4MB of on-board Flash memory, as well as 26x multi-function GPIO pins.
For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 24 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Pico Comparison
Model |
Raspberry Pi Pico 2 |
Raspberry Pi Pico |
processor |
Dual-core ARM Cortex-M33
or dual-core Hazard3 RISC-V
@150MHz |
Dual-core ARM Cortex-M0+
@133MHz |
SRAM |
520KB |
264KB |
Flash |
4MB |
2MB |
Security |
Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. |
- |
Peripherals |
2 × UART
2 × SPI
2 × I2C
3 × ADC
1 × USB 1.1 and PHY |
12 × PIO state machines |
8 × PIO state machines |
24 × PWM |
16 × PWM |
1 × HSTX |
- |
GPIO pins |
26 |
Pico 2 Evaluation Kit On the basis of the starter kit, this kit includes Pico-LCD-1.3, Pico-10DOF-IMU and Pico-Dual-Expander, etc. Simply connect the Pico 2 and these two Pico HAT to the GPIO expander board, you can quickly set up a fully functional evaluation platform and start your innovation journey.
C/C++, MicroPython support
Comprehensive SDK, dev resources, tutorials to help you easily get started
Dual-core, dual-architecture The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
26 × multi-function GPIO pins configurable pin function, allows flexible development and integration
Outline dimensions
Package content: Raspberry-Pi-Pico-2-Kit-B

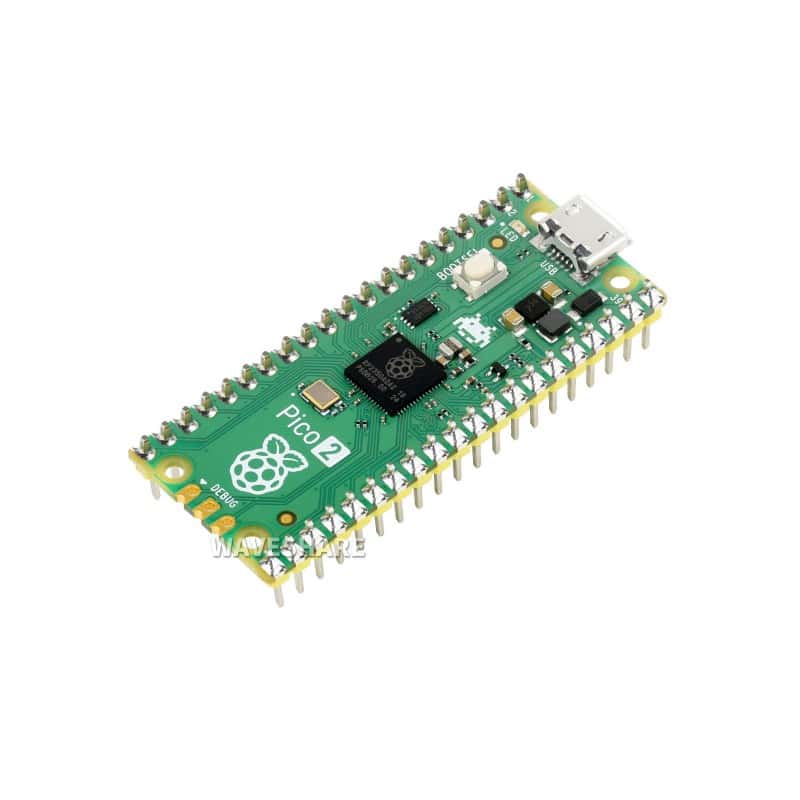

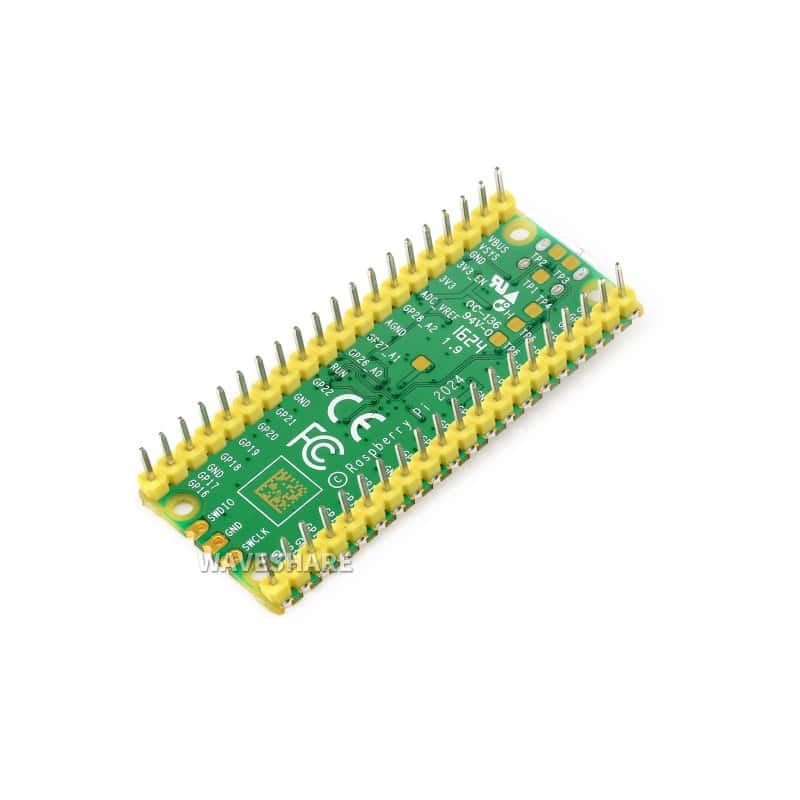

- Raspberry Pi Pico 2 with pre-soldered header (mono) x1

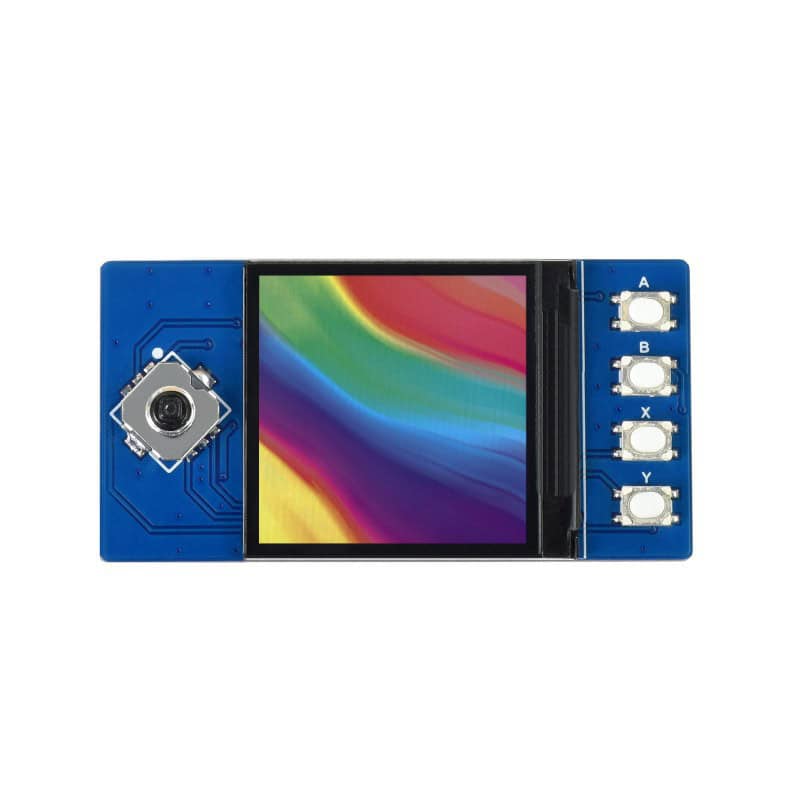

- Pico-LCD-1.3 x1

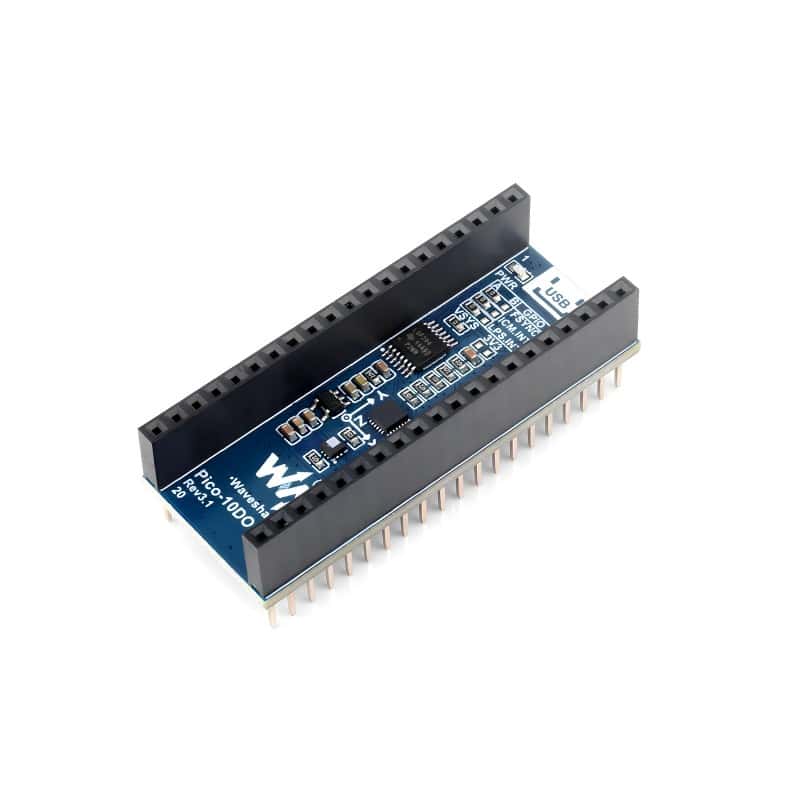

- Pico-10DOF-IMU x1

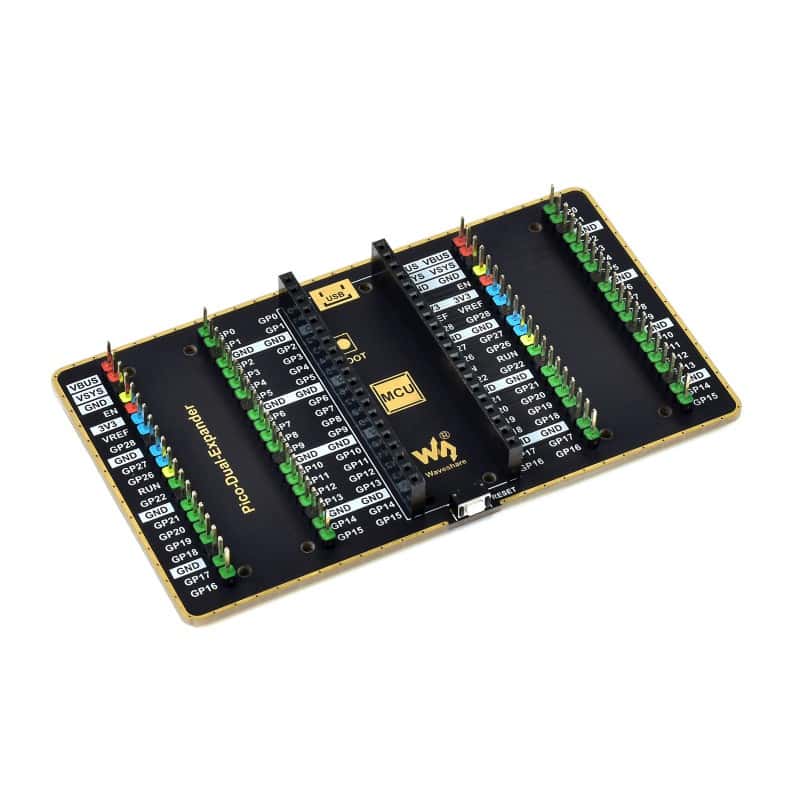

- Pico-Dual-Expander x1
- Acrylic protective case (top and bottom) x1
- USB-A to micro USB cable ~1.2m x1
- Black anti-slip rubber 4PCS x1

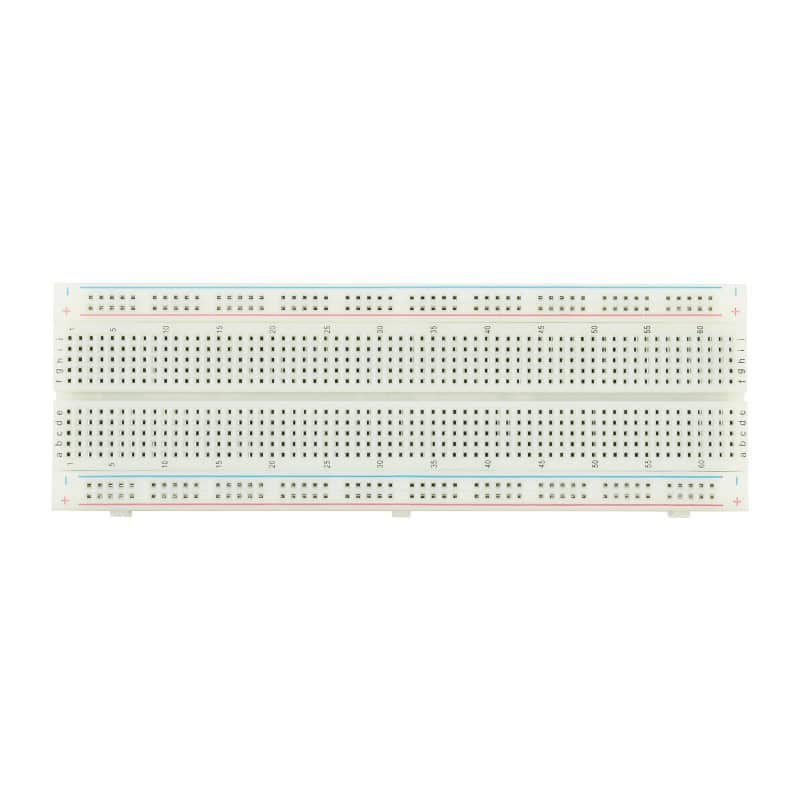

- Experimental board + jumper wires x1
- Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
- Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
- Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
