SKU: R0159
Part Number: Raspberry Pi M.2 HAT+
Brand: Raspberry Pi Foundation
Korisne informacije:
www.waveshare.com/wiki/Raspberry_Pi_M.2_HAT+ Official Raspberry Pi PCIe To M.2 HAT, Designed for Raspberry Pi 5, High-Speed Reading/Writing, HAT + Standard, Supports NVMe Protocol M.2 Solid State Drive, Raspberry Pi 5 HAT

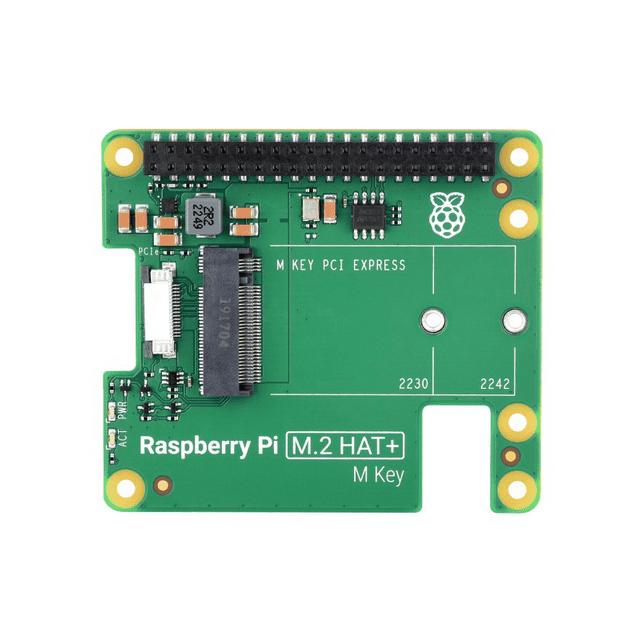

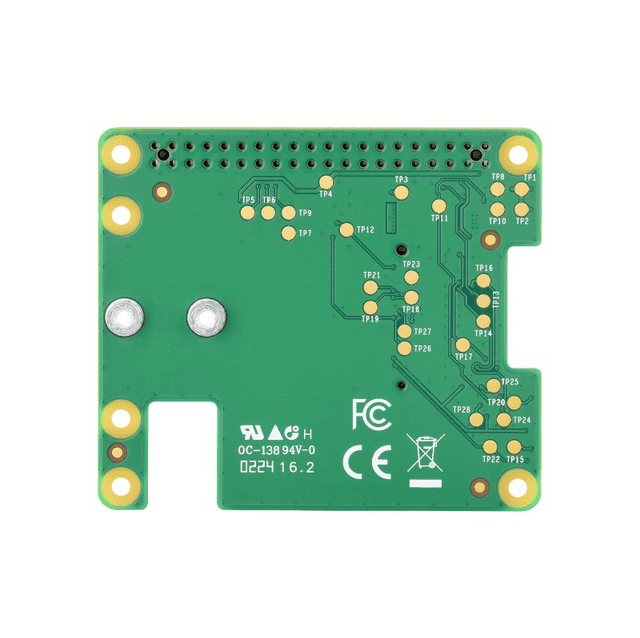

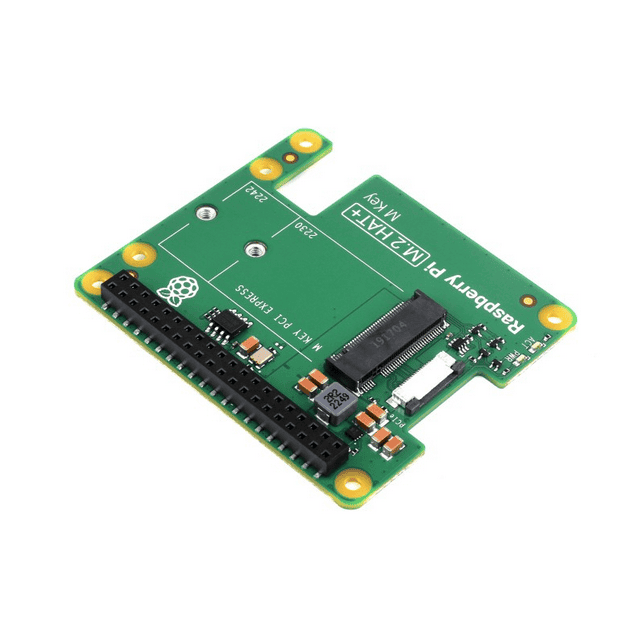

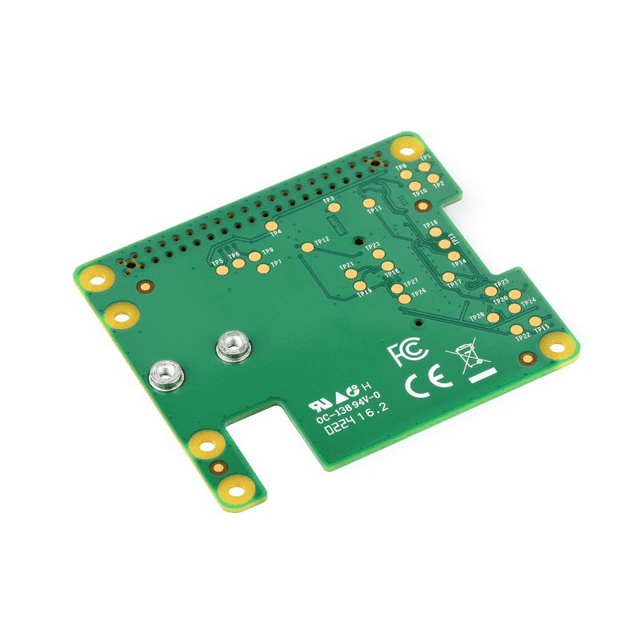

Raspberry Pi M.2 HAT+ Official Raspberry Pi PCIe to M.2 HAT, Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing
Suitable for Raspberry Pi 5 Comes with Official 16PIN PCIe cable for connecting the HAT to PI5
* for reference only, the Raspberry Pi 5, cooling fan and Solid State Drive are not included
NVMe Drive Protocol Support Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
Onboard Dual LED Indicators Easy to monitor the Working Status
Onboard EEPROM
How to install
* for reference only, the Solid State Drive, Raspberry Pi 5, cooling fan and TF card are NOT included, please refer to the Package Content for detailed part list
Outline dimensions
Wiki: www.waveshare.com/wiki/Raspberry_Pi_M.2_HAT+
Package Content Weight: 0.022 kg
Raspberry Pi M.2 HAT+ x1
