SKU: 10703
Part Number: RPi Camera (H)
Korisne informacije:
www.waveshare.com/wiki/RPi_Camera_(H) Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
Uz ovu kameru dobijate flet kabl za povezivanje sa raspberry Pi (2, 3, 4) pločama. Bele je boje.
Features

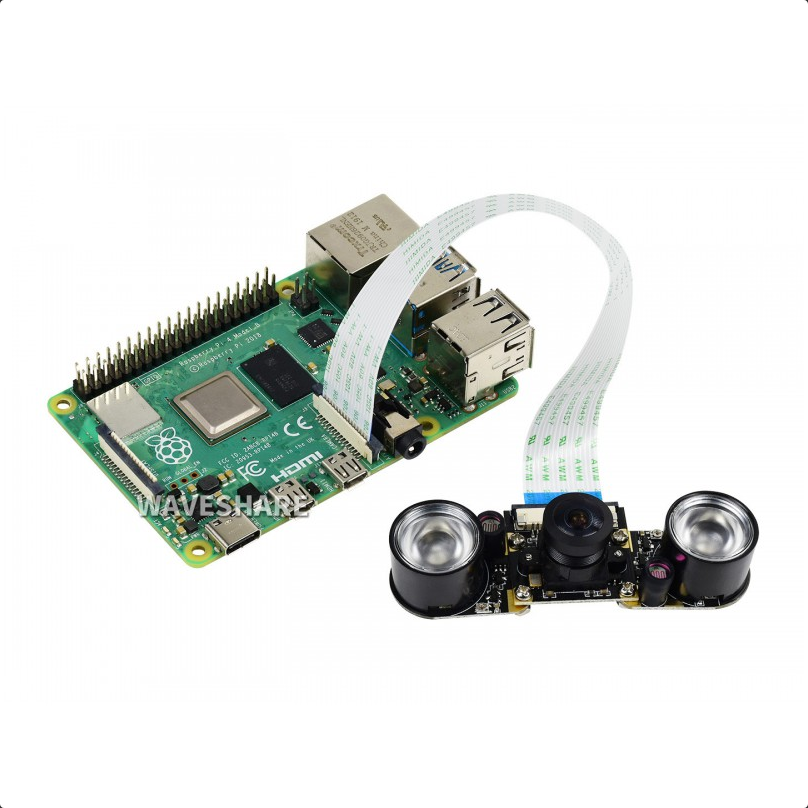

- Raspberry Pi Camera, supports all revisions of the Pi

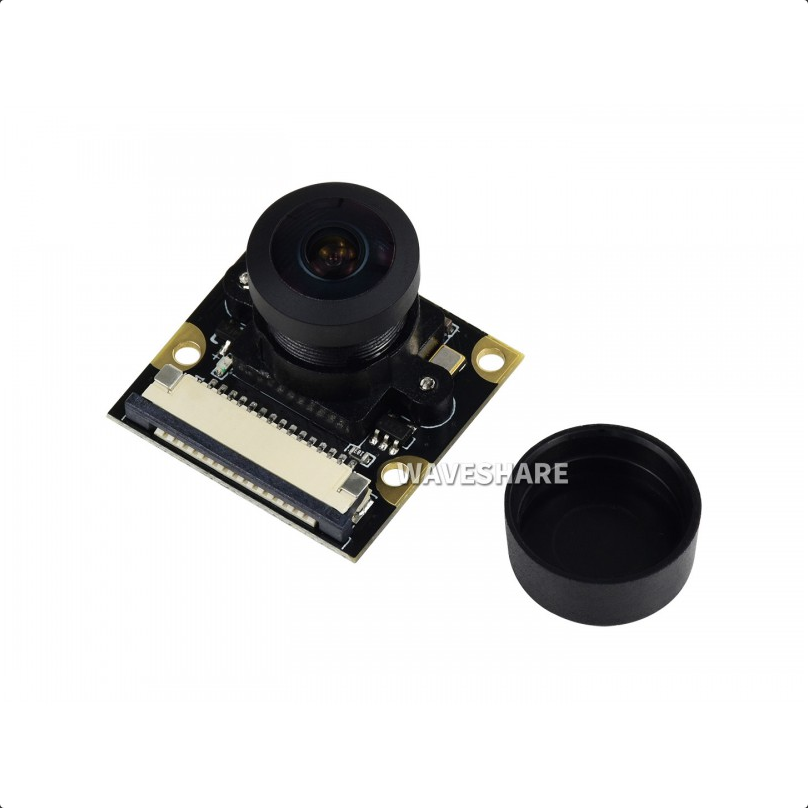

- Fisheye Lens, offers wider field of view

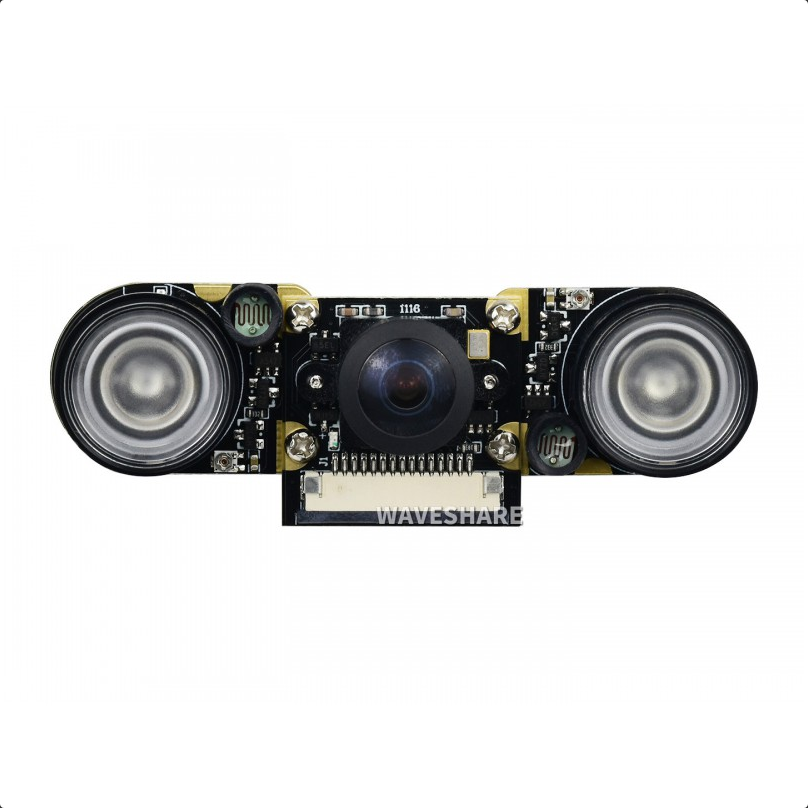

- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 25mm x 24mm

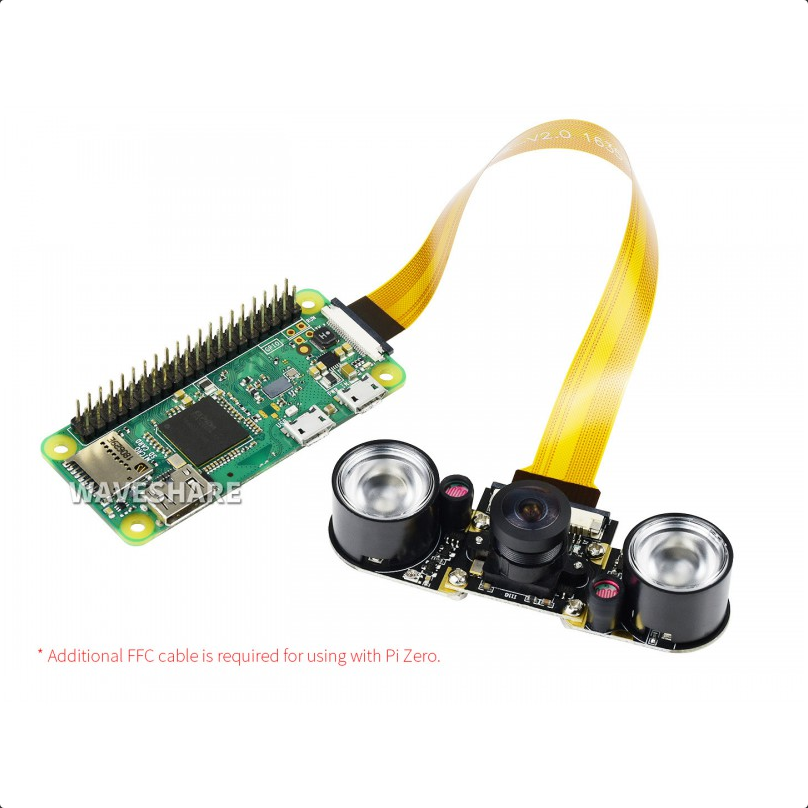

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Package Content
Weight: 0.058 kg
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (H) x1

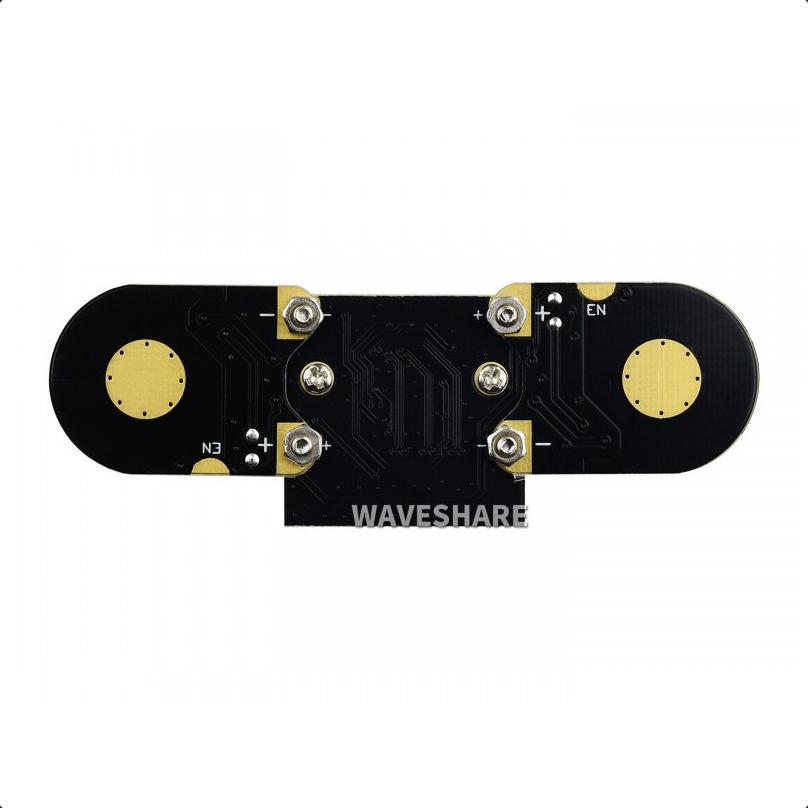

- Infrared LED Board (B) x2
- 15-pin FFC (opposite sides contact) x1
