SKU: 11297
Part Number: RPi Camera (D)
Brand: Waveshare
wiki:

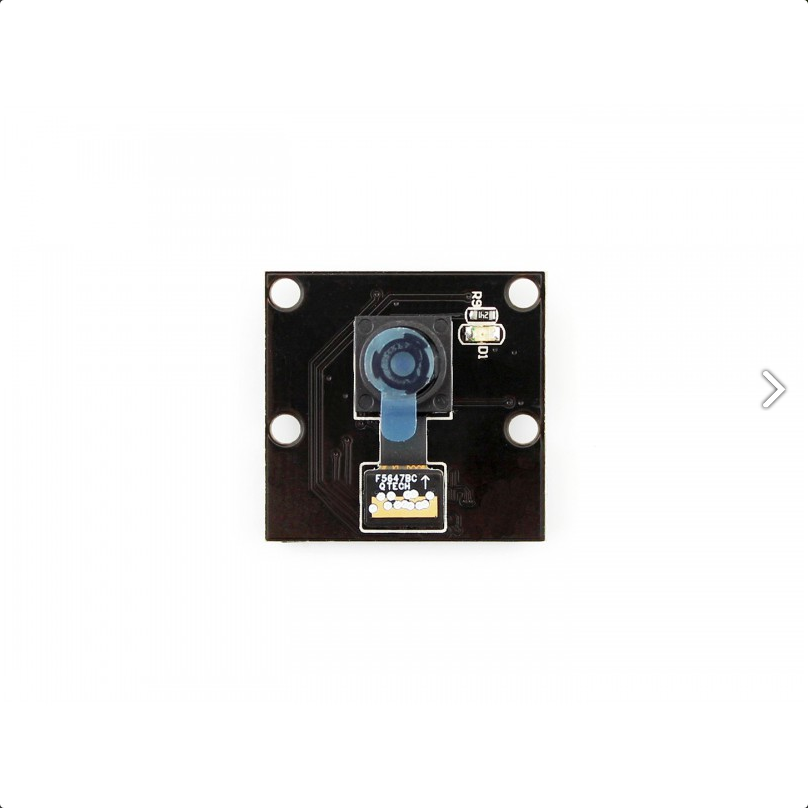

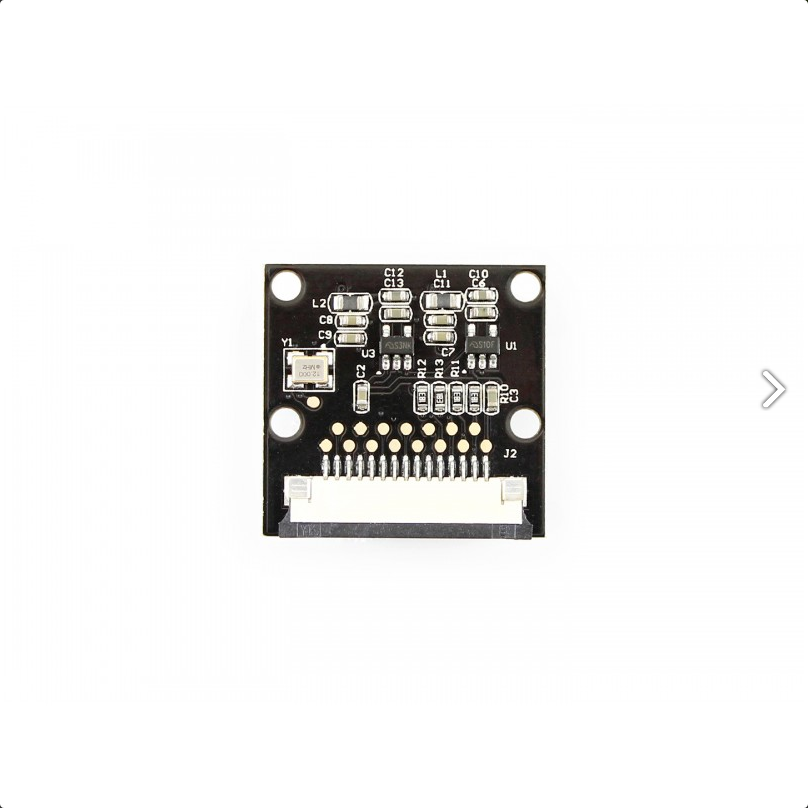

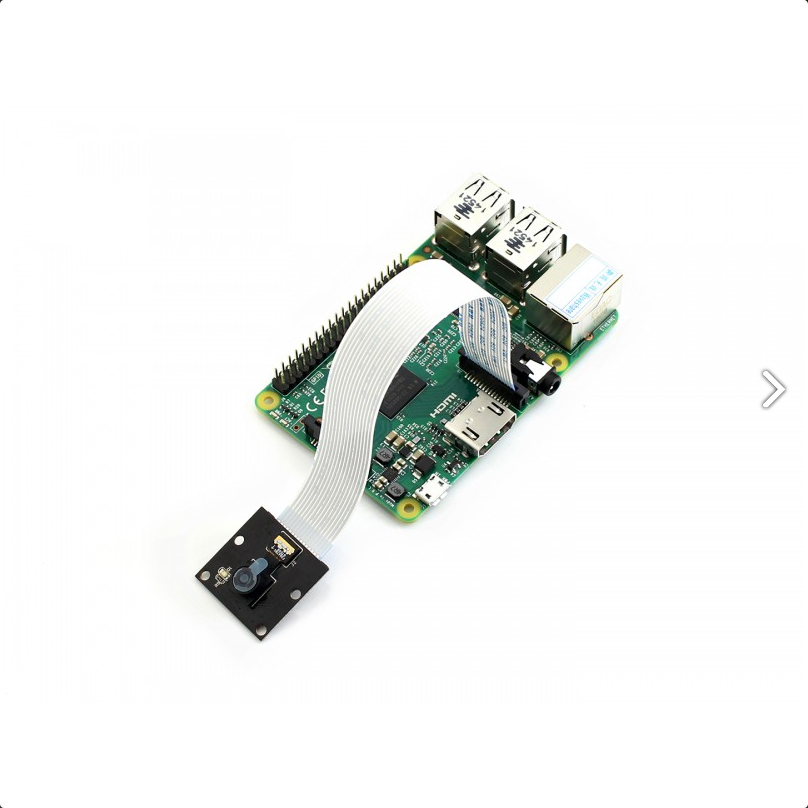

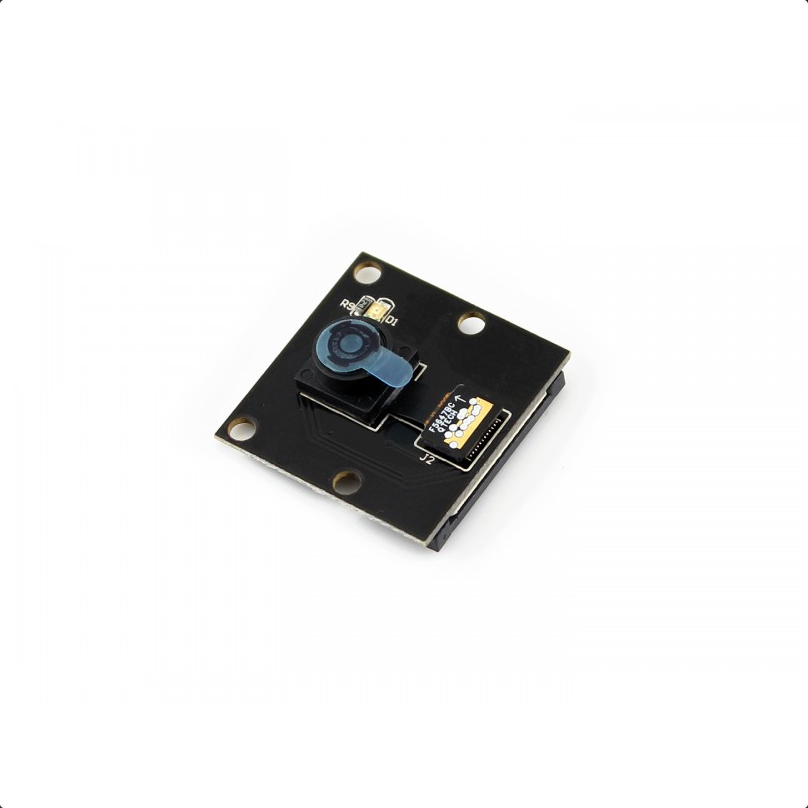

www.waveshare.com/wiki/RPi_Camera_(D) Raspberry Pi Camera Module, Fixed-focus
Uz ovu kameru dobijate flet kabl za povezivanje sa raspberry Pi (2, 3, 4) pločama. Bele je boje.
Features
- Raspberry Pi Camera, compatible with the original one, supports all revisions of the Pi
- 5 megapixel OV5647 sensor in a fixed-focus module
- Camera specifications
- CCD size : 1/4 inch
- Aperture (F) : 2.8
- Focal Length : 3.4 mm
- Angle of View (diagonal) : 66 degree
- Sensor best resolution : 1080p
- 2592 × 1944 still picture resolution
- Support 1080p30, 720p60 and 640x480p60/90 video record
- Dimension: 25mm x 24mm x 9mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH / 5, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Link Waveshare Wiki
Package Content
Weight: 0.003 kg
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- RPi Camera (D) x1
- 15-pin FFC (opposite sides contact) x1
