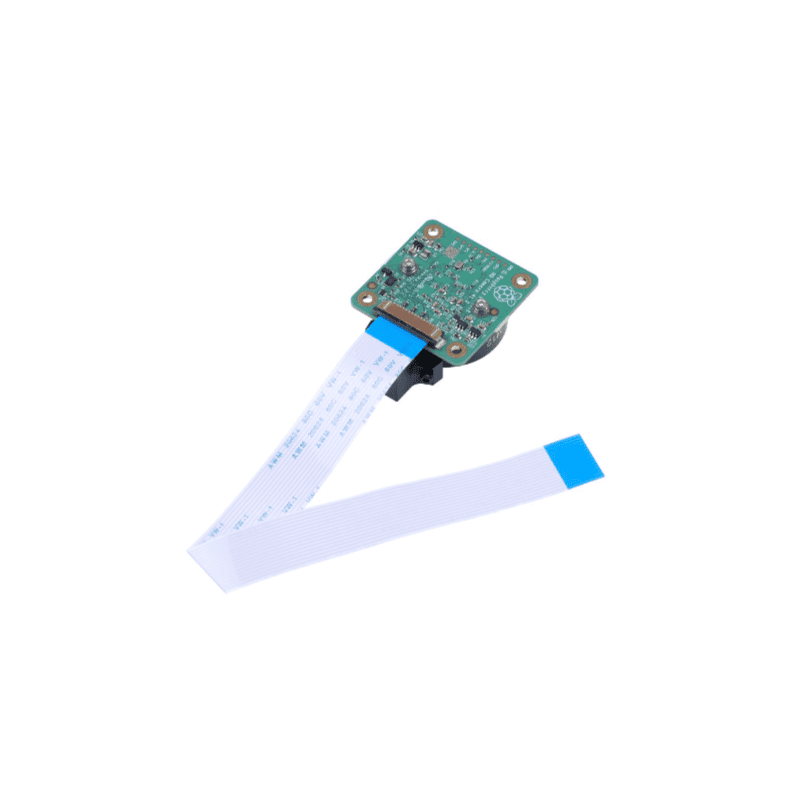

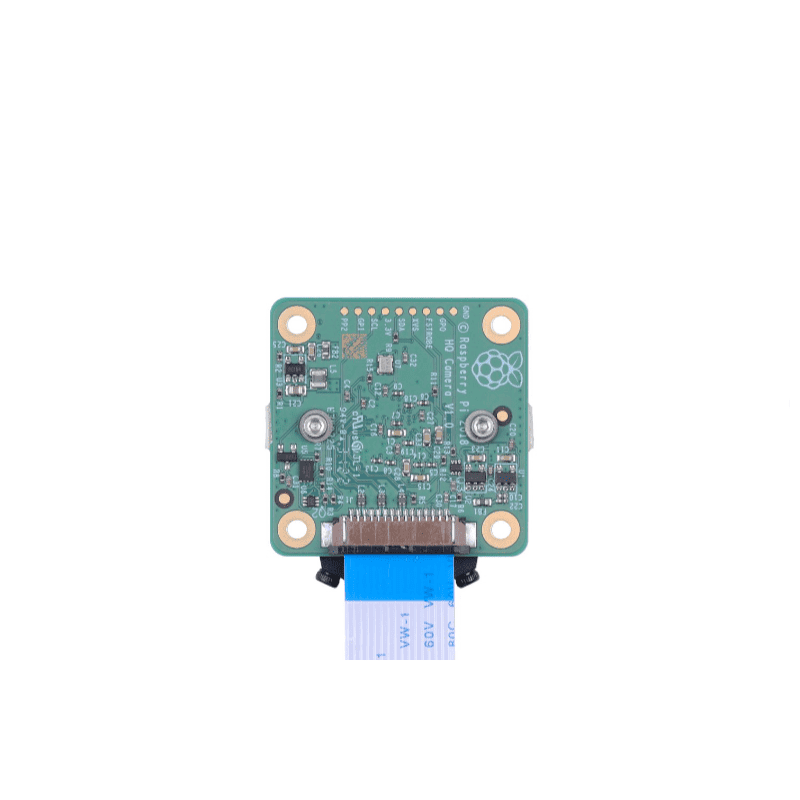

This camera sensor is all-model-Raspberry Pi-compatible, designed to M12 mount lenses. It offers 12.3-Megapixel black-illuminated with stacked Sony IMX477R sensor. It is well suited to industrial and consumer applications.

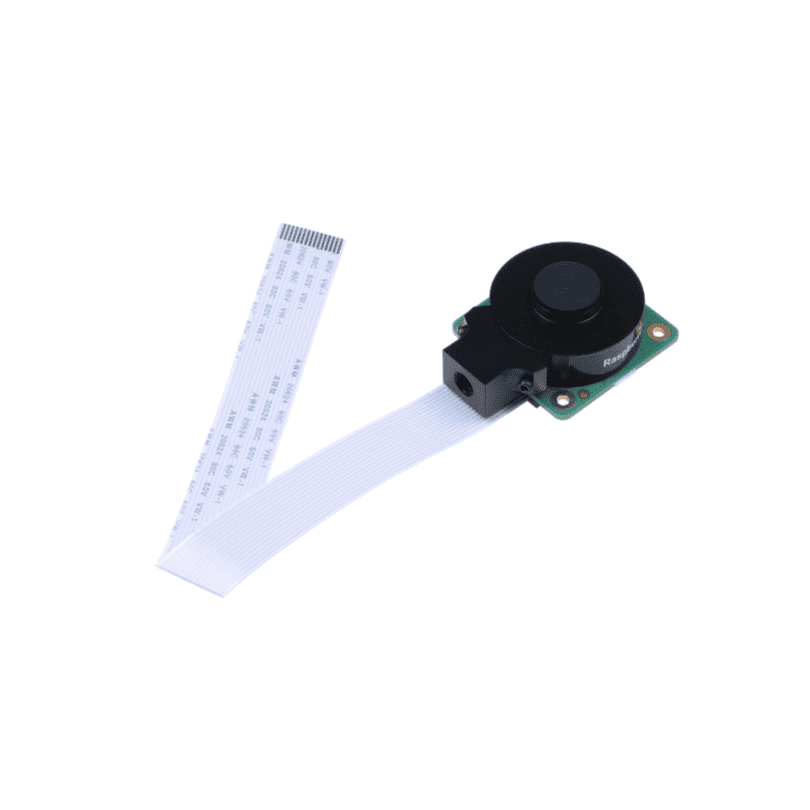

Raspberry Pi HQ Camera – M12 mount offers 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance,designed to work with most interchangeable M12 lenses.

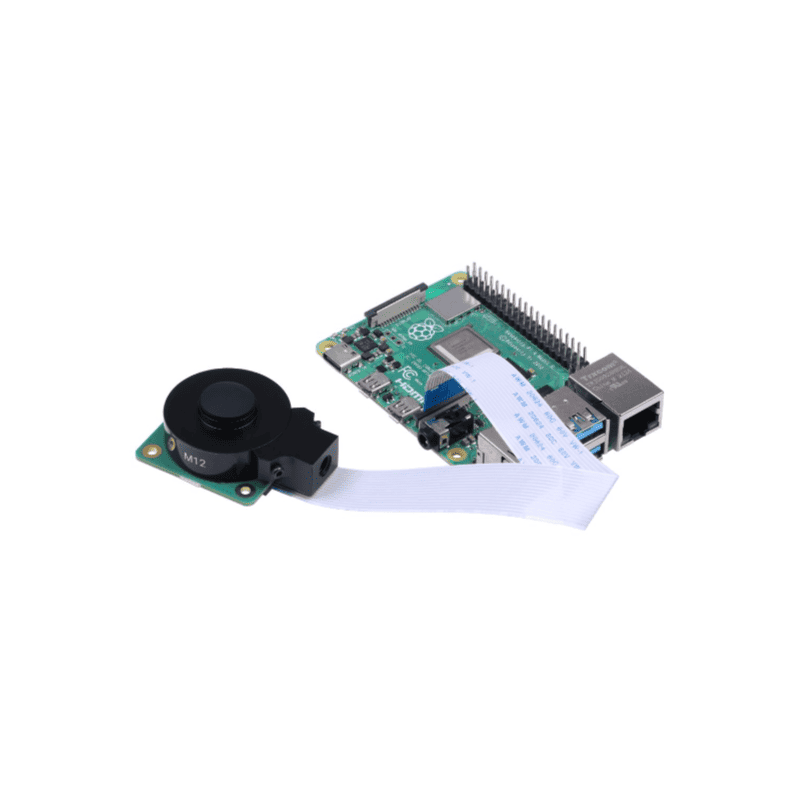

This camera sensor is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release.
| Parameter | Detail |
| Sensor | Sony IMX477R stacked, back-illuminated sensor |
| Resolution | 12.3 megapixels |

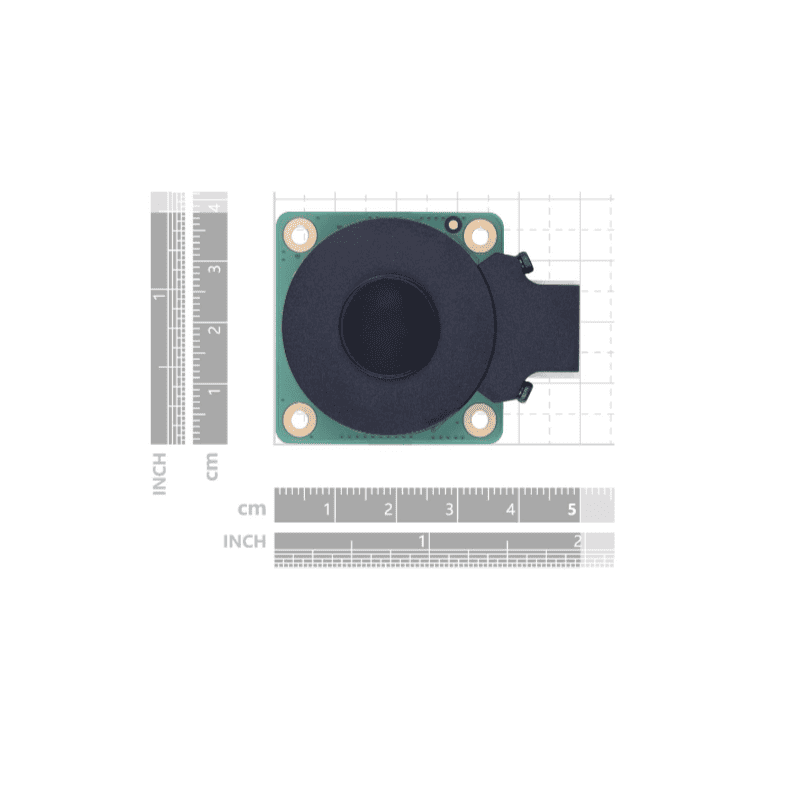

| Sensor size | 7.9mm sensor diagonal |
| Pixel size | 1.55μm × 1.55μm |
| Output | RAW12/10/8, COMP8 |
| Back focus length of lens | 2.6mm – 11.8mm |
| Lens sensor format | 1/2.3” (7.9mm) or larger |
| IR cut filter | Integrated |
| Ribbon cable length | 200mm |
| Tripod mount | 1/4”-20 |
| Compliance | FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
| Raspberry Pi HQ Camera - M12 mount | x1 |
| Conversion ring | x3 |
