Byte
Experimental range |
5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps) |
Power supply |
5V |
Logic level |
3.3V/5V |
Operating temperature |
-40~85℃ |
Applications |
smart home, industrial sensors, building automation, smart meters, and other IoT applications |
Applicable region |
|
Europe, Asia, Africa |
|
Note: for reference only, please confirm the local supported LoRa bands before placing an order. |

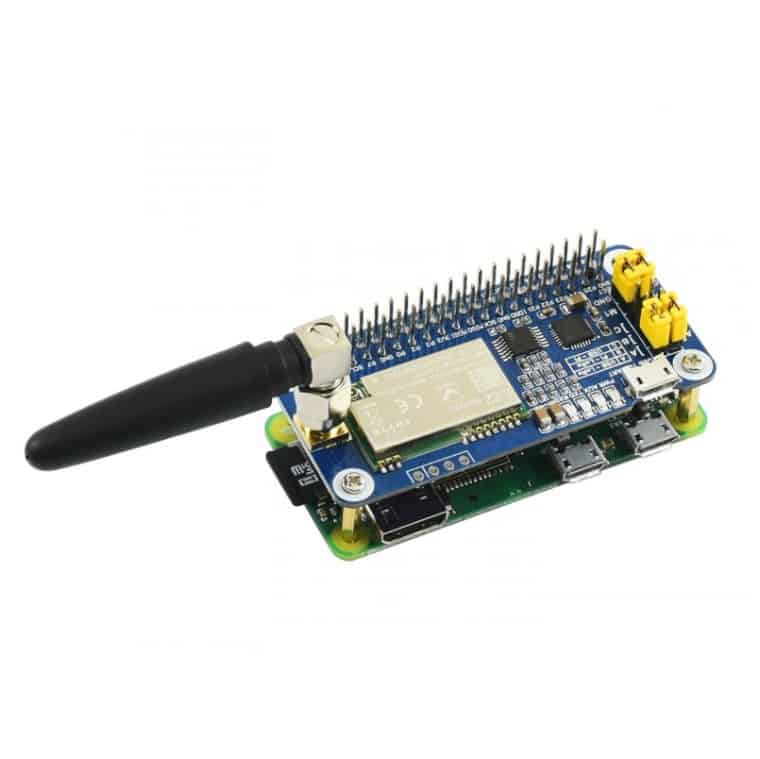

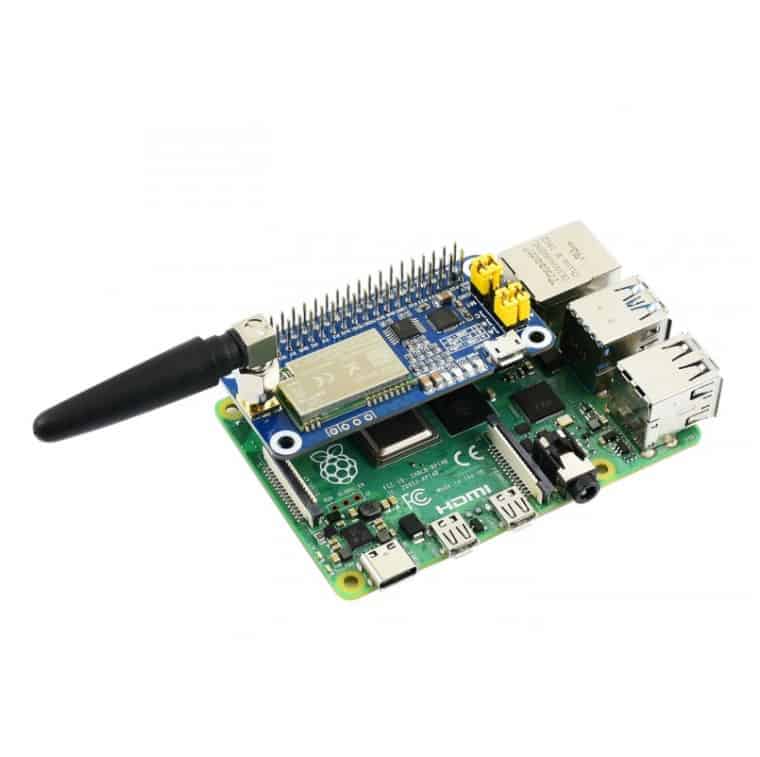

Connect to Raspberry Pi series boards Standard Raspberry Pi 40PIN GPIO extension header, support Raspberry Pi series boards
* for reference only, the Raspberry Pi boards are NOT included.
Faster transmission speed The radio rate is up to 62.5kbps, 3X the speed of the SX127X series LoRa module
Supports long-distance transmission The LoRa spread spectrum transmission distance of the SX126X series is up to 5000m, which is 65% longer than the SX127X LoRa module with the same power
Supports Wake on Radio, low power consumption and more power saving
Supports multiple transmission methods Fixed-point transmission, broadcast, fixed-point broadcast, channel monitoring

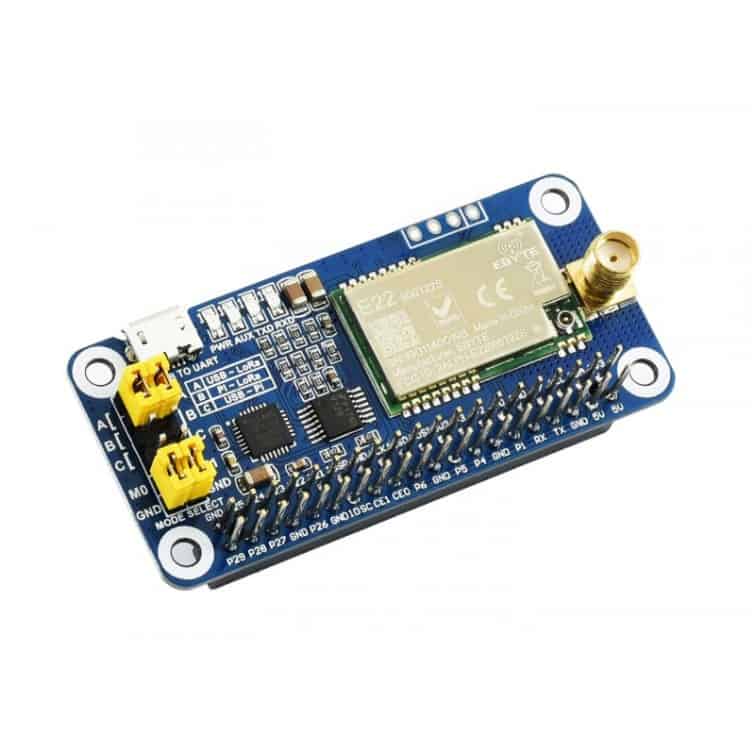

What's on board
- SX1268/SX1262 LoRa module
- 74HC125V:
voltage level translator
- CP2102:
USB TO UART converter
- Raspberry Pi GPIO connector:
for connecting with Raspberry Pi
- USB TO UART port
- UART header:
for connecting host boards like STM32/Arduino
- SMA antenna connector
- IPEX antenna connector
- Indicators:
RXD/TXD: UART RX/TX indicator
AUX: auxiliary indicator
PWR: power indicator
- UART selection jumpers
A: control the LoRa module through USB TO UART
B: control the LoRa module through Raspberry Pi
C: access Raspberry Pi through USB TO UART
- LoRa mode selection jumpers
short M0, short M1: transmission mode
short M0, open M1: configuration mode
open M0, short M1: WOR mode
open M0, open M1: deep sleep mode
Application example Smart wireless meter solution
Automatic monitoring and data collection, reducing labor costs; Wireless transmission, no need for cable connection, easy to install. LoRa spread spectrum has strong anti-interference ability and supports stable transmission in the complex environment
Application scenarios
Industrial manufacturing Using Short-range wireless signal transmission to replace signal cables in the industrial field, which can reduce wiring and improve production efficiency, easy to manage
Smart home The physical layer technology solution of Home IoT with good diffraction performance and wide coverage for villa-level deployment
Smart Farm Accurately monitor the details of each operation area for statistical management and finding potential risks at the first time
Hotel Scheme Supports large data volume access points, which can facilitate centralized management in the backend, reduce manpower for inspections and improve regulatory efficiency

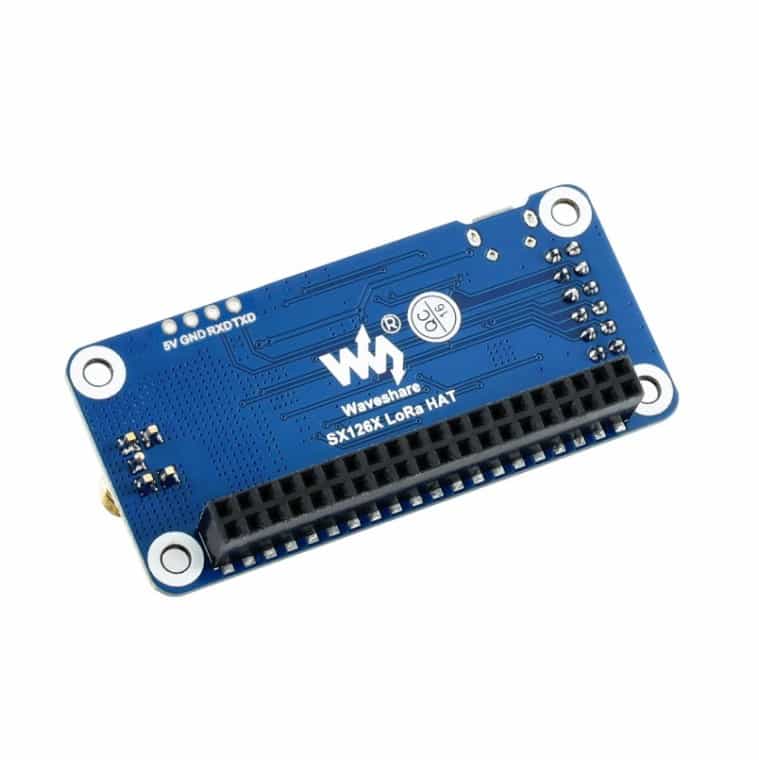

Product show
Outline dimensions
- PACKAGE CONTENT
Weight: 0.069 kg
- SX1262 868M LoRa HAT x1
- USB type A plug to micro plug cable x1
- 868MHz antenna x1
