SKU: 16595
Part Number: ETH/USB HUB HAT
Brand: Waveshare
wiki:
www.waveshare.com/wiki/ETH/USB_HUB_HAT Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports
Overview
This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
Features
- 3x USB ports, compatible with USB2.0/1.1
- 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
- Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port
What's on Board
- Raspberry Pi GPIO interface: for connecting Raspberry Pi
- USB extended ports: USB1~USB3
- RJ45 port: 10/100M Ethernet interface
- USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
- Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
- Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
- TS8121A: Ethernet wave filter
- RTL8152B: 10/100M Ethernet chip
- FE1.1S: USB HUB chip
- LED indicators:
- PWR: power indicator
- ACT: Ethernet indicator
- D1~D3: dedicated indicator for USB1~USB3 respectively
Specifications
- Operating voltage: 5V
- Dimension: 65mm × 30mm
- Mounting hole size: 3.0mm

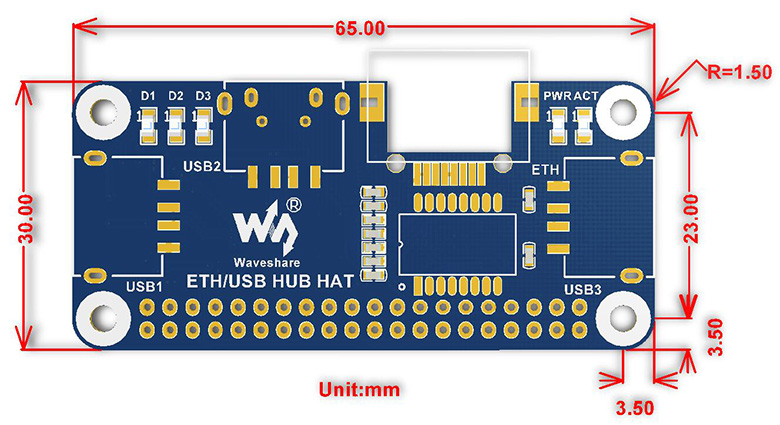

Dimensions
Link Waveshare Wiki
Package Content Weight: 0.068 kg
- ETH/USB HUB HAT x1
- Micro USB connector x1
- Micro USB cable x1
- RPi screws pack (2pcs) x1
