SKU: 19720
Part Number: CM4-FAN-3007
Brand: Waveshare

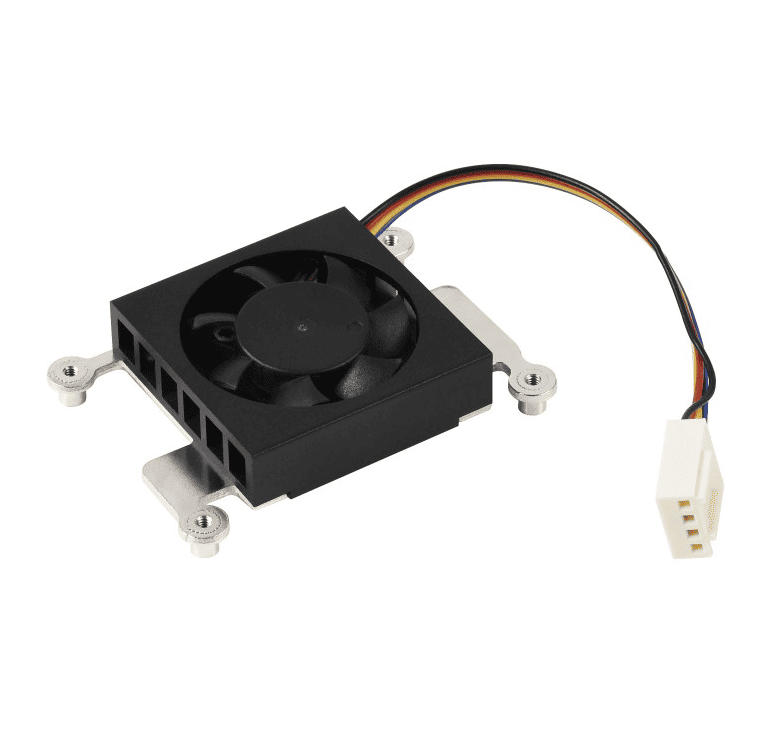

Dedicated 3007 Cooling Fan For Raspberry Pi Compute Module 4 CM4, Low Noise, With Thermal Tapes
3007 Cooling Fan For CM4 Low Noise, With Thermal Tapes
Specifications
GENERAL |
Low-profile, PWM speed adjustment |
INTERFACE |
4-wire PWM speed-adjustable fan header |
RATED SPEED |
8000±10%RPM |
RATED POWER |
1.62W (12V, 0.135±0.02A) |
CABLE LENGTH |
90±10mm |
DIMENSIONS |
54×39×13mm |

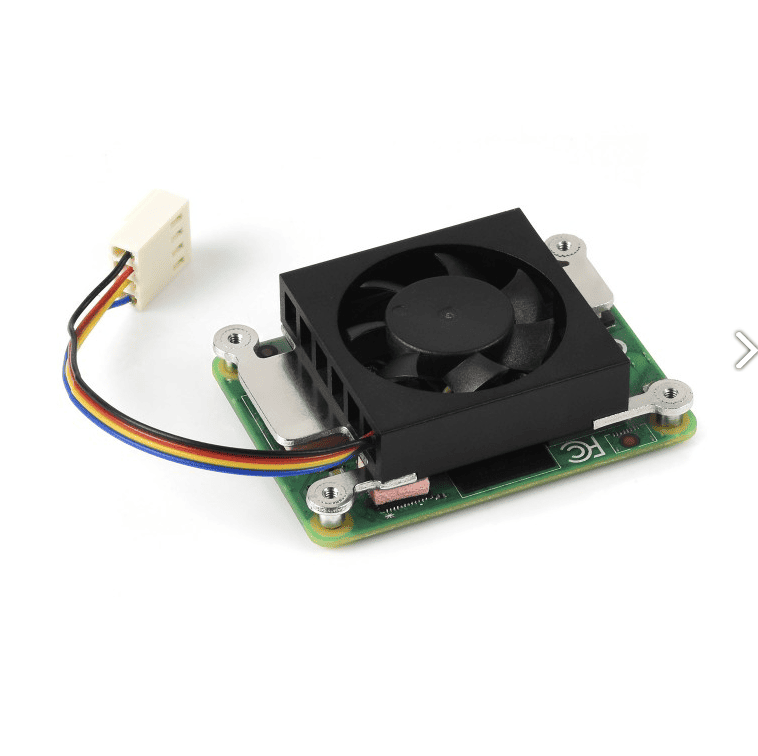

Tailored For Raspberry Pi CM4 Matching With The CM4 On Size And Mounting Holes, Fast Heat Dissipation
Proper Space For Antenna Section No Hindrance To The Antenna

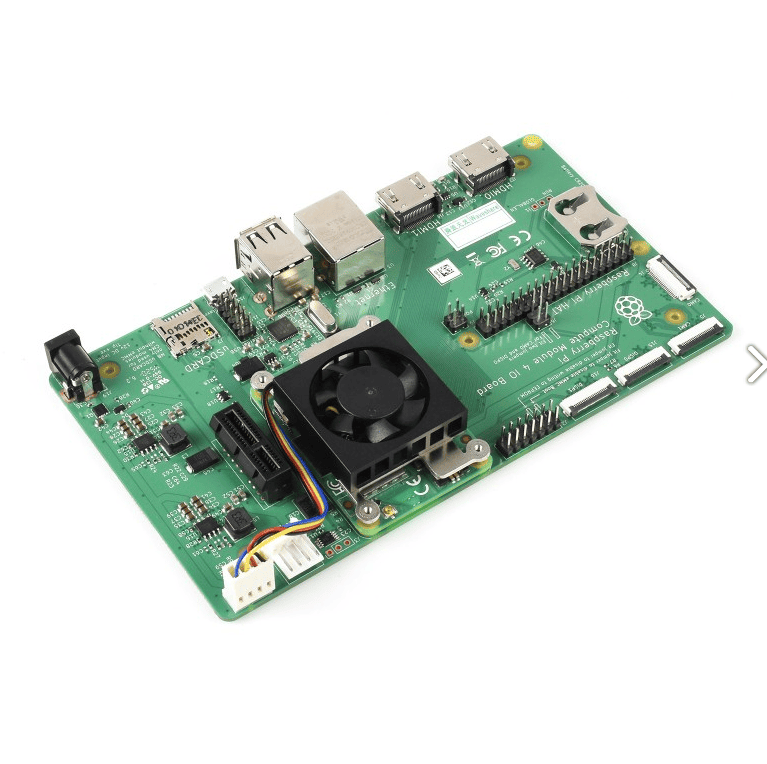

Using With Base Board
for reference only, CM4 and based boards are NOT included. Comparing CM4 Cooling Solutions
Outline Dimensions
How To Install 1. Attach thermal tapes onto the CM4
2. Fix the screws as the pictures shown

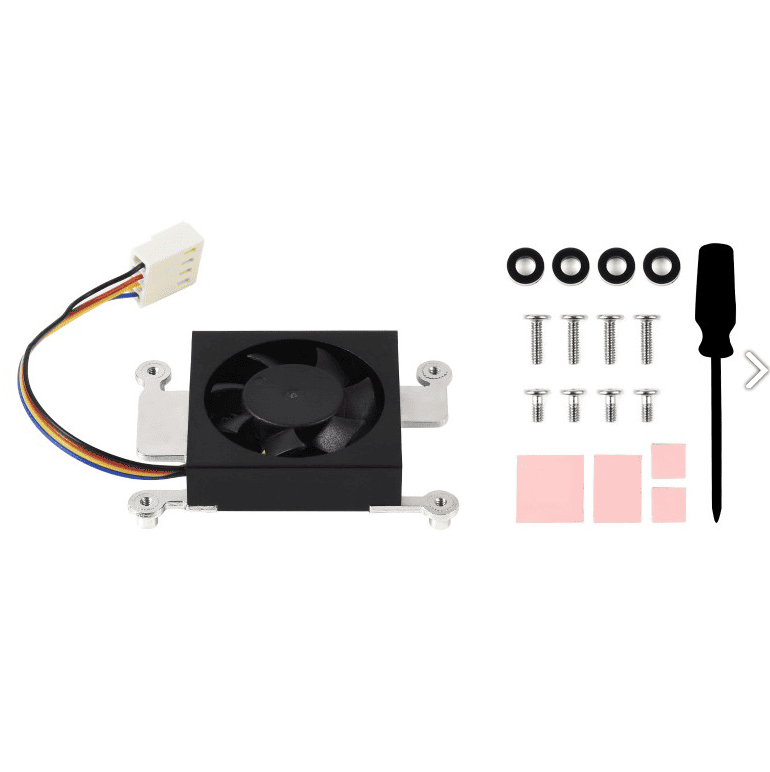

- PACKAGE CONTENT
Weight: 0.042 kg
- CM4-FAN-3007 x1
- Screws and thermal tapes x1
