SKU: 19623
Part Number: CM4-HEATSINK
Brand: Waveshare

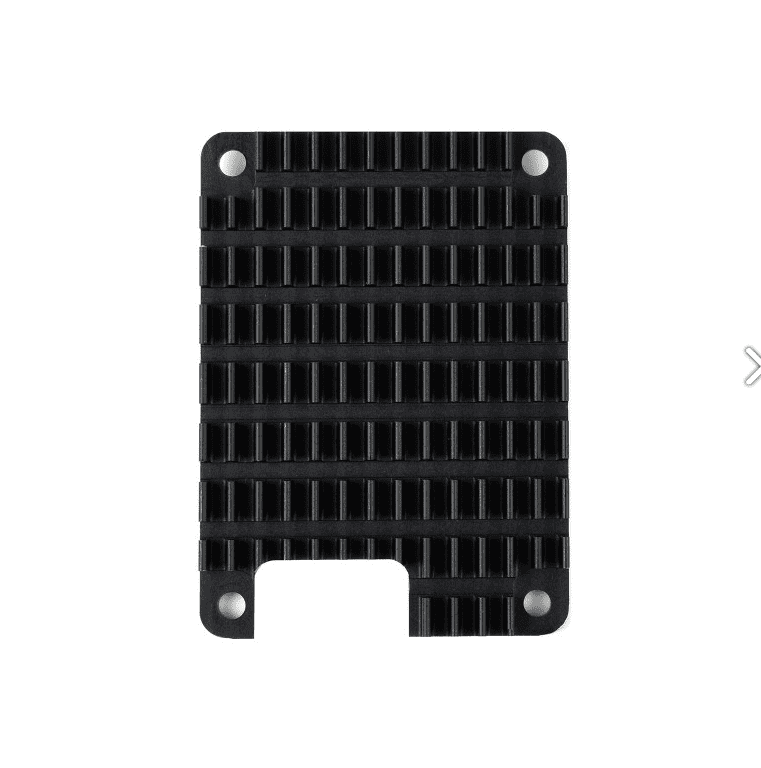

Dedicated Aluminum Heatsink For Raspberry Pi Compute Module 4 CM4, Notched For Antenna
Aluminum Heatsink For CM4 Dedicated Aluminum Heatsink, Corrosion / Oxidation Resisting, Better Heat Dissipation
Tailored For CM4 & Based Board Matching With The CM4 On Size And Mounting Holes, Fast Heat Dissipation

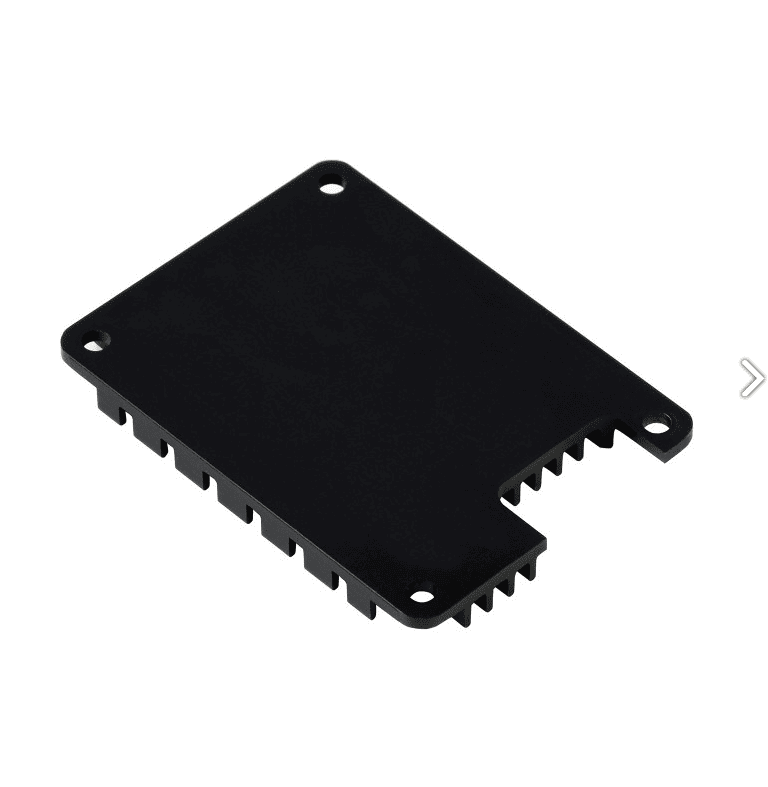

Notched For Antenna Section No Hindrance To The Antenna

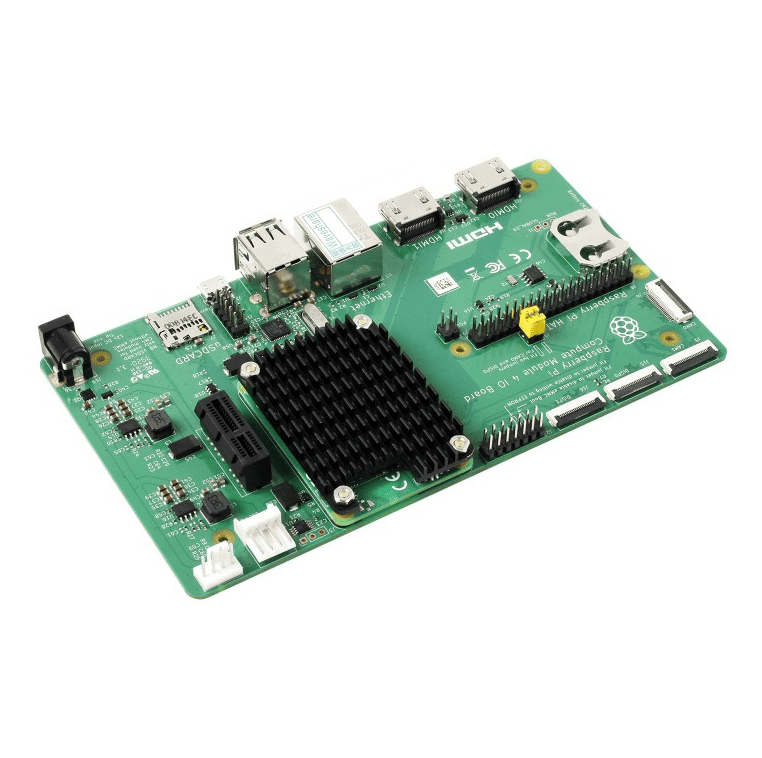

Using With Base Board
for reference only, CM4 and based boards are NOT included. Comparing CM4 Cooling Solutions
Outline Dimensions

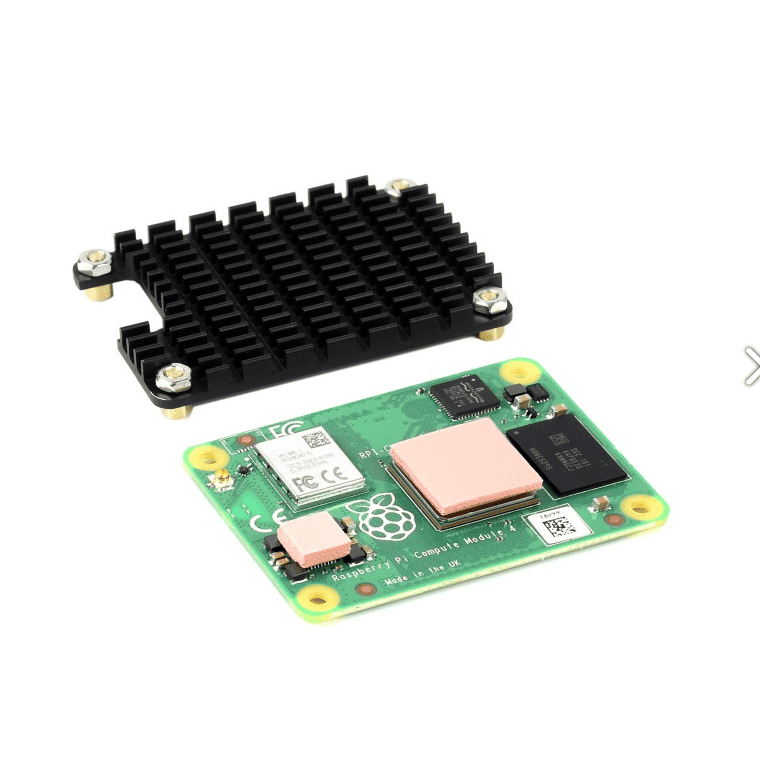

How To Install 1. Attach thermal tapes onto the CM4, fix the nuts and standoffs to the heatsink

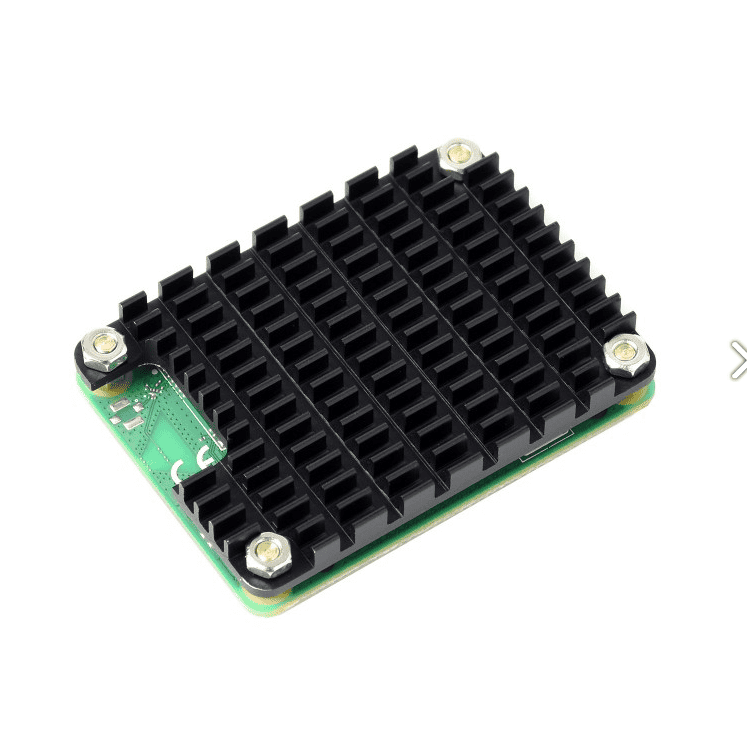

2. Fix the screws as the pictures shown
- PACKAGE CONTENT
Weight: 0.022 kg
- CM4-HEATSINK x1
- Screws and thermal tapes x1
