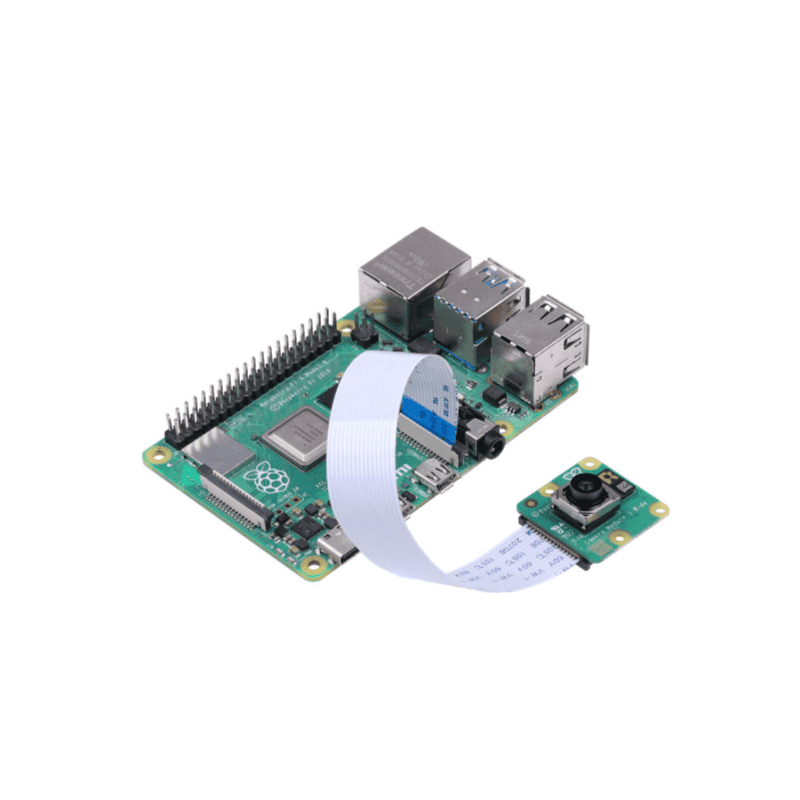

Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.
| | Camera Module 3 | Camera Module 3 NoIR | Camera Module 3 Wide | Camera Module 3 Wide NoIR |
| Focus range | 10cm –∞ | 10cm –∞ | 5cm –∞ | 5cm –∞ |
| Focal length | 4.74mm | 4.74mm | 2.75mm | 2.75mm |
| Diagonal field of view | 75 degrees | 75 degrees | 120 degrees | 120 degrees |
| Horizontal field of view | 66 degrees | 66 degrees | 102 degrees | 102 degrees |
| Vertical field of view | 41 degrees | 41 degrees | 67 degrees | 67 degrees |
| Focal ratio (F-stop) | F1.8 | F1.8 | F2.2 | F2.2 |
| Infrared-sensitive | No | Yes | No | Yes |
| Parameter | Detail |
| Sensor | Sony IMX708 |
| Resolution | 11.9 megapixels |
| Sensor size | 7.4mm sensor diagonal |
| Pixel size | 1.4μm × 1.4μm |
| Horizontal/vertical | 4608 × 2592 pixels |
| Common video modes | 1080p50, 720p100, 480p120 |
| Output: | RAW10 |
| IR cut filter: | Integrated |
| Autofocus system | Phase Detection Autofocus |

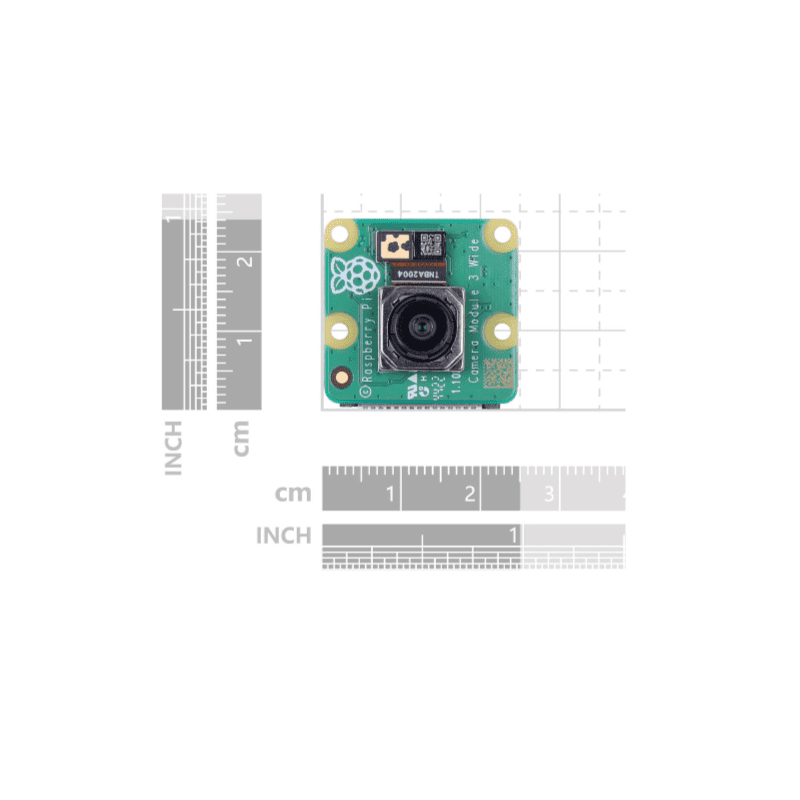

| Dimensions | 25 × 24 × 11.5mm (12.4mm height for Wide variants) |

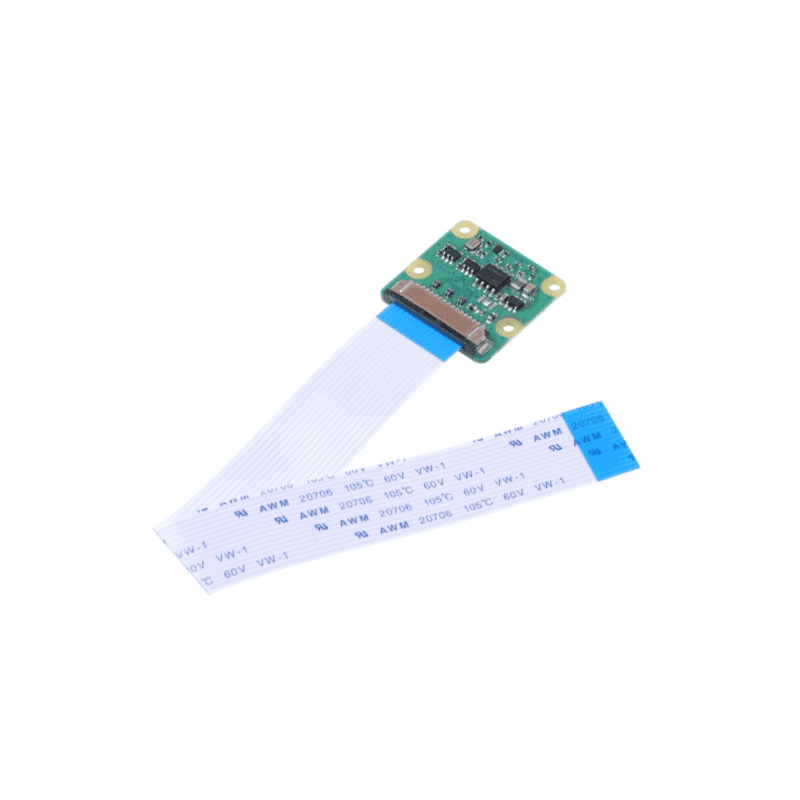

| Ribbon cable length | 200mm |
| Cable connector | 15 × 1mm FPC |
| Compliance | FCC 47 CFR Part 15, Subpart B, Class B Digital Device, Electromagnetic Compatibility Directive (EMC) 2014/30/EU, Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
| Raspberry Pi Camera 3 Wide | ×1 |
| Specifikacija nije definisana |
