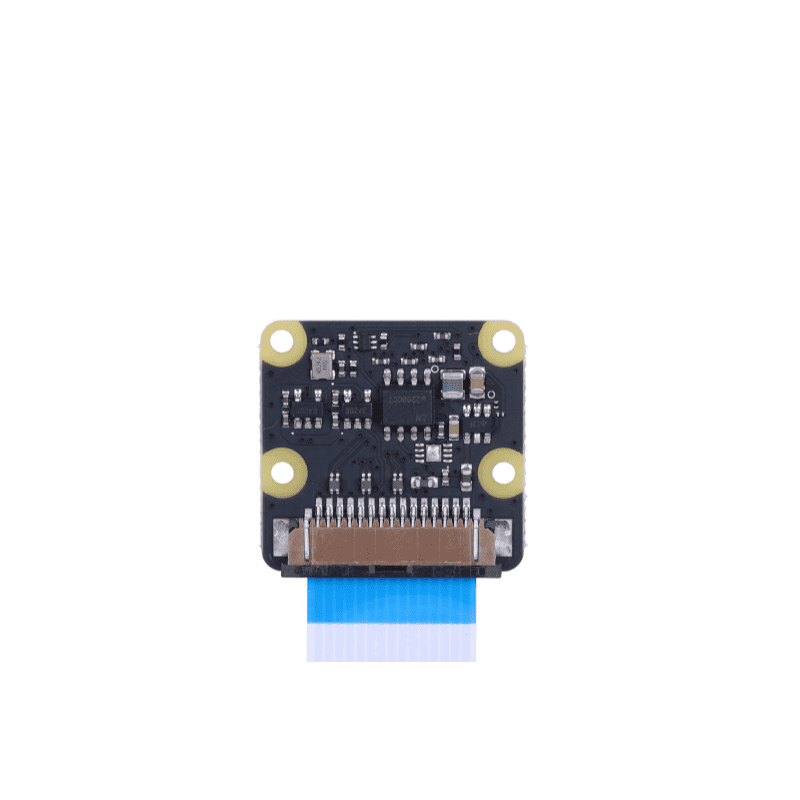

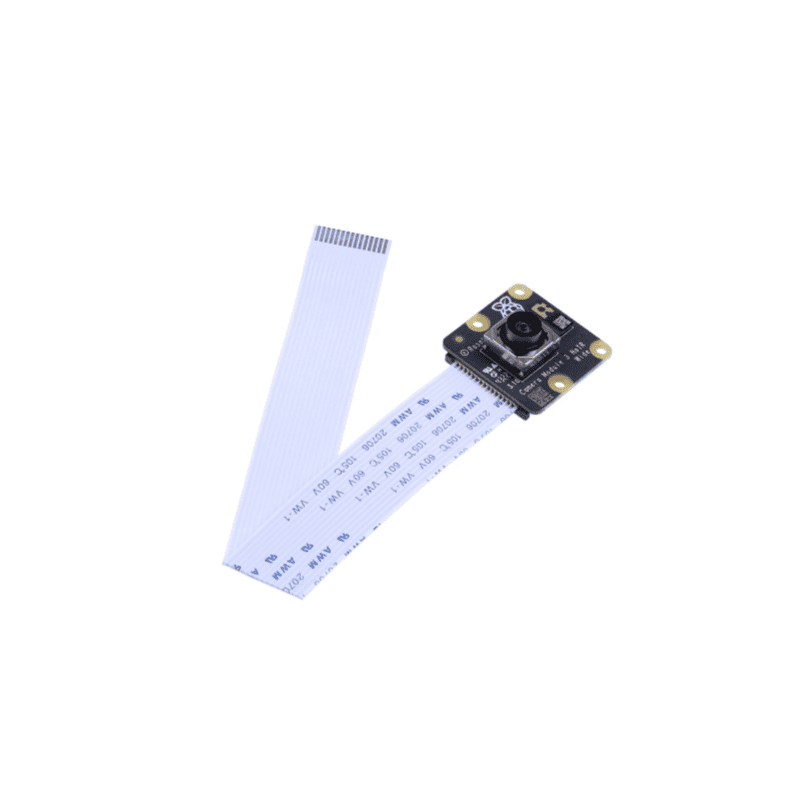

Raspberry Pi Camera Module 3 Wide NoIR is a compact camera from Raspberry Pi, presenting 120 degrees Diagonal FOV. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus.
Raspberry Pi Camera Module 3 Wide NoIR can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels. It presents 120 degrees Diagonal field of view, where 102 degrees horizontal field of view and 67 vertical field of view.
Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.
| | Camera Module 3 | Camera Module 3 NoIR | Camera Module 3 Wide | Camera Module 3 Wide NoIR |
| Focus range | 10cm –∞ | 10cm –∞ | 5cm –∞ | 5cm –∞ |
| Focal length | 4.74mm | 4.74mm | 2.75mm | 2.75mm |
| Diagonal field of view | 75 degrees | 75 degrees | 120 degrees | 120 degrees |
| Horizontal field of view | 66 degrees | 66 degrees | 102 degrees | 102 degrees |
| Vertical field of view | 41 degrees | 41 degrees | 67 degrees | 67 degrees |
| Focal ratio (F-stop) | F1.8 | F1.8 | F2.2 | F2.2 |
| Infrared-sensitive | No | Yes | No | Yes |
| Parameter | Detail |
| Sensor | Sony IMX708 |
| Resolution | 11.9 megapixels |
| Sensor size | 7.4mm sensor diagonal |
| Pixel size | 1.4μm × 1.4μm |
| Horizontal/vertical | 4608 × 2592 pixels |
| Common video modes | 1080p50, 720p100, 480p120 |
| Output: | RAW10 |
| Autofocus system | Phase Detection Autofocus |

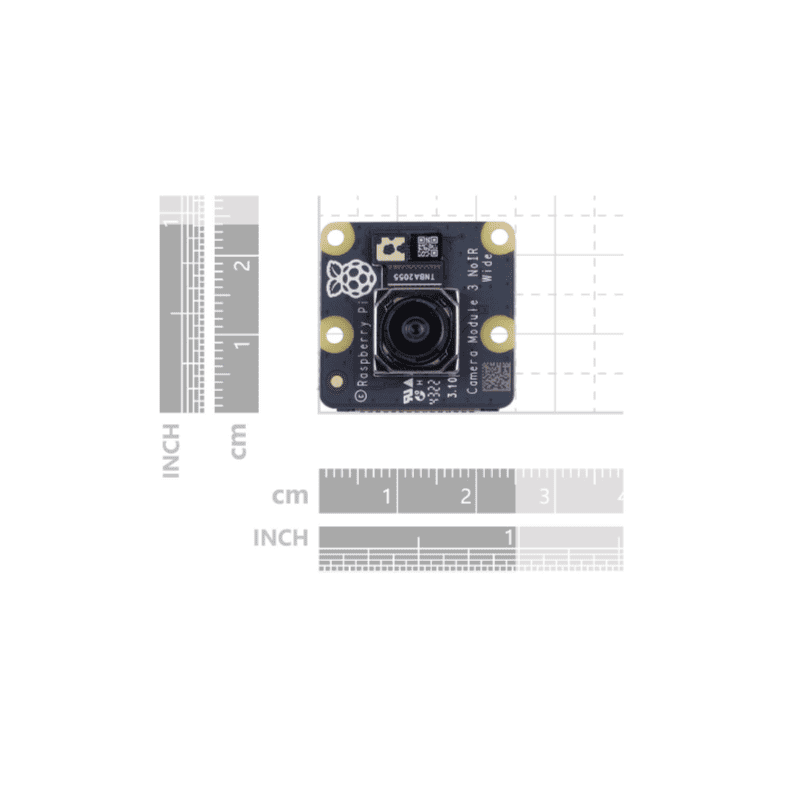

| Dimensions | 25 × 24 × 11.5mm (12.4mm height for Wide variants) |

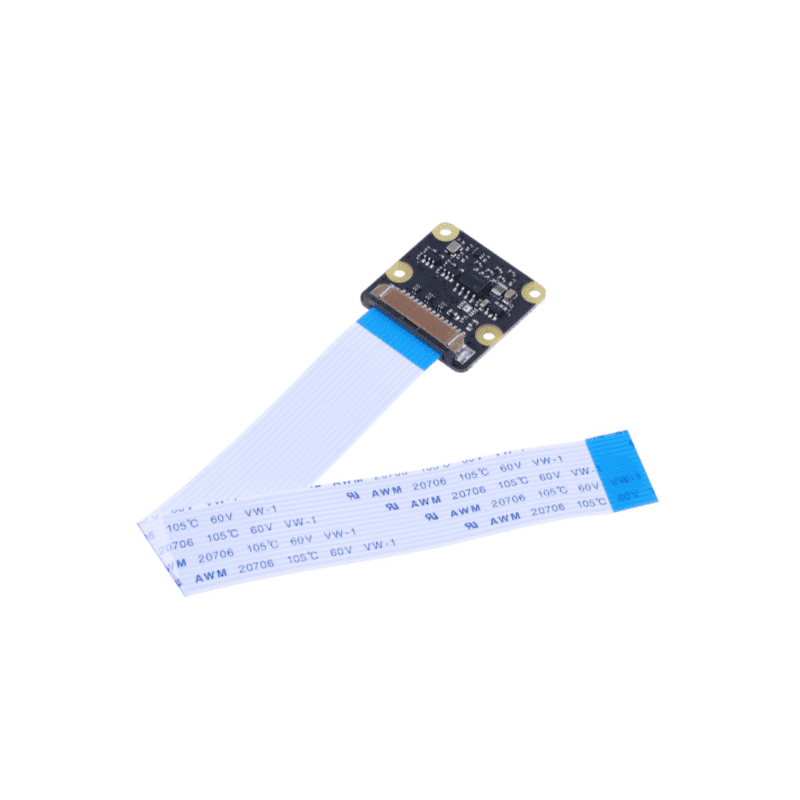

| Ribbon cable length | 200mm |
| Cable connector | 15 × 1mm FPC |
| Compliance | FCC 47 CFR Part 15, Subpart B, Class B Digital Device, Electromagnetic Compatibility Directive (EMC) 2014/30/EU, Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |

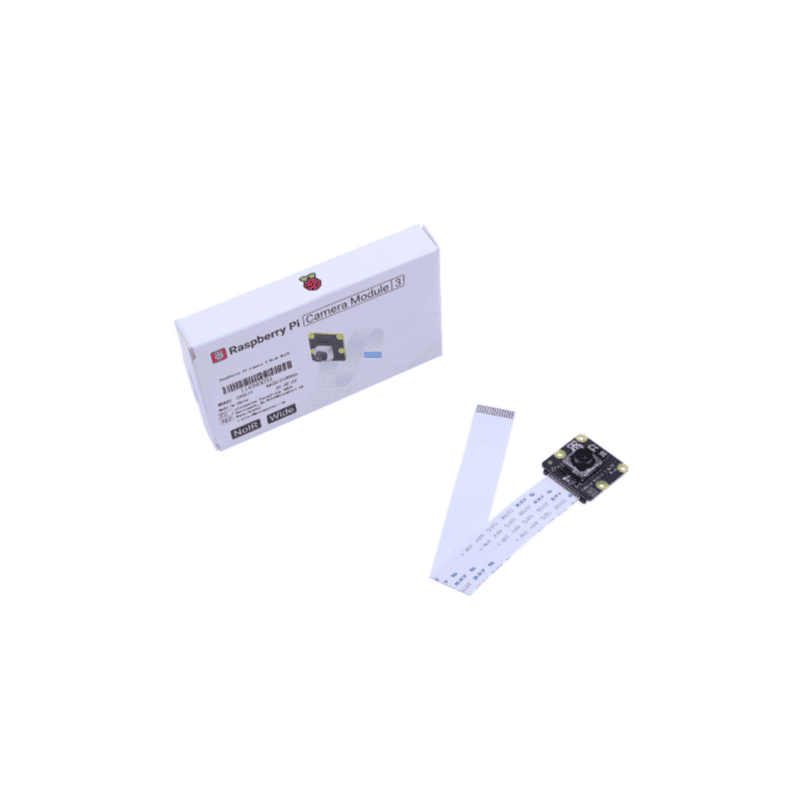

| Raspberry Pi Camera 3 Wide NoIR | ×1 |
