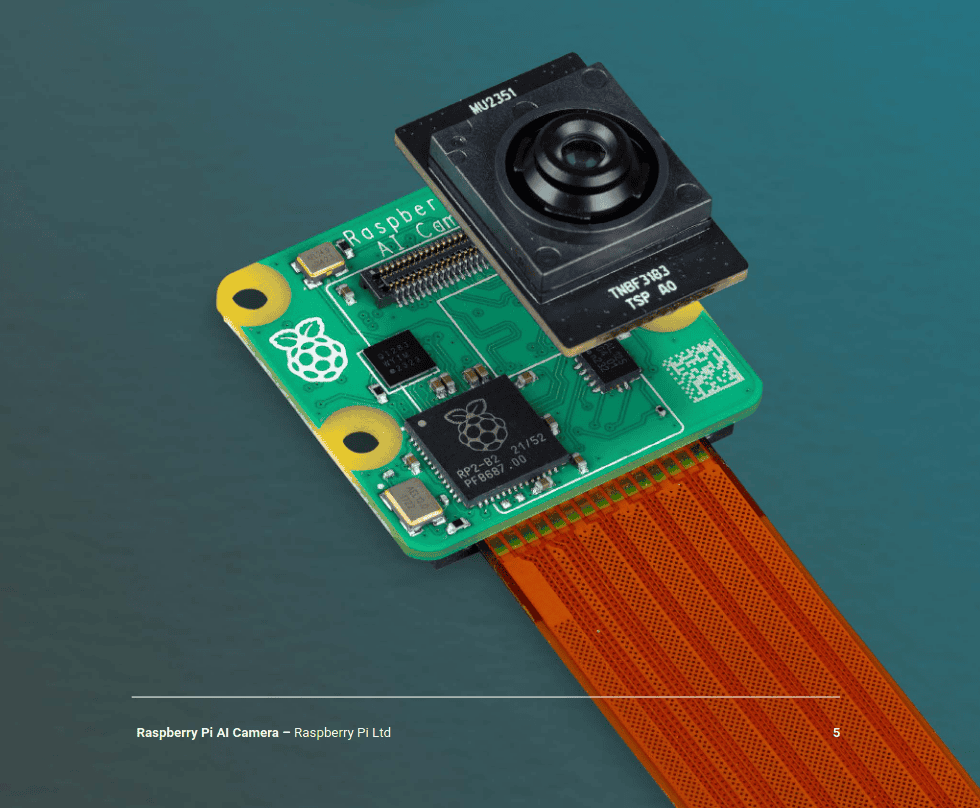

Raspberry Pi AI Camera
In with the old, in with the new
Compatible with all Raspberry Pi computers, the Raspberry Pi AI Camera takes advantage of Sony’s IMX500 Intelligent Vision Sensor to help you create impressive vision AI applications and neural network models using the on-module AI processor.
Vision AI made simple
The IMX500’s tight integration with Raspberry Pi’s camera software stack allows users to deploy their own neural network models with minimal effort. To get started, we’ve developed a guide to get you running either a pre-packaged or custom-made neural network model on the camera.
Get started
Scale up with AITRIOS
Create AI models and applications for the IMX500 Intelligent Vision Sensor and Raspberry Pi, then scale up to an enterprise deployment with AITRIOS.
Find out more
Discover Sony’s AI Services
Local Studio walks you through the necessary steps to efficiently label, train and produce AI models.
Find out more
Specification
12.3 MP Sony IMX500 Intelligent Vision Sensor with a powerful neural network accelerator
Framerates:
- 2×2 binned: 2028×1520 10-bit 30fps
- Full resolution: 4056×3040 10-bit 10fps
7.857 mm sensor size
1.55 μm × 1.55 μm pixel size
78.3 (±3) degree FoV with manual/mechanical adjustable focus
F1.79 focal ratio
25 × 24 × 11.9 mm module dimensions
Integrated RP2040 for neural network firmware management
Works with all Raspberry Pi models, using our standard camera connector cable
Documents
- Raspberry Pi AI Camera product brief
- Getting started with Raspberry Pi AI Camera
Compliance
Raspberry Pi AI Camera has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
Obsolescence
Raspberry Pi AI Camera will remain in production until at least January 2028
