SKU: 26185
Part Number: Pi5-IMX219-120
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Pi5-IMX219 IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, 120° FOV, Comes With Pi5 CSI Flexible Cable 200mm
8MP Camera Module For Raspberry Pi 5
IMX219 Sensor, MIPI-CSI Interface, 120° FOV
Pi5-IMX219-120 120° FOV
Specifications
MODEL |
Pi5-IMX219-120 |
|
PIXELS |
8MP |
SENSOR |
IMX219 |
RESOLUTION |
3280×2464 |
CMOS SIZE |
1/4 inch |
APERTURE (F) |
2.0 |
FOCAL LENGTH |
1.79mm |
|
FIELD OF VIEW |
120° |
|
DISTORTION |
<13.6% |
|
LENS DIMENSIONS |
6.5×6.5mm |
SCREW HOLES |
4 × screw holes, used for attachment, provides 3.3V power output |
DIMENSION |
25×24mm |

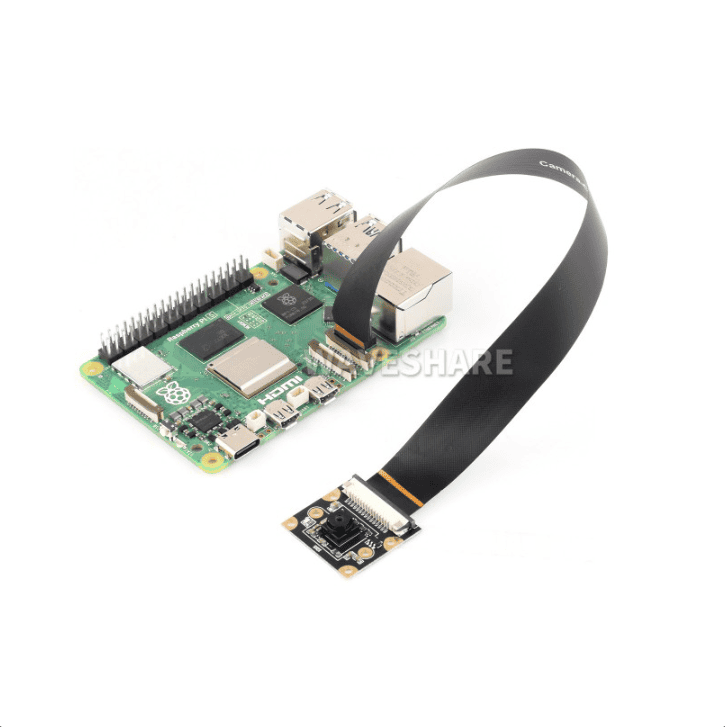

Working With Raspberry Pi 5
Comes With CSI Flexible Cable 200mm, Easy To Use With Raspberry Pi 5
for reference only, the Raspberry Pi 5 is NOT included

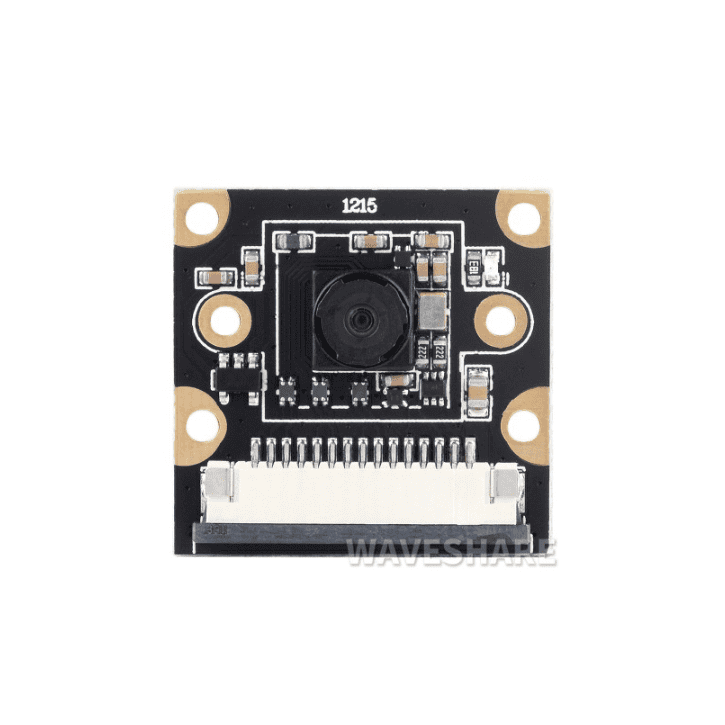

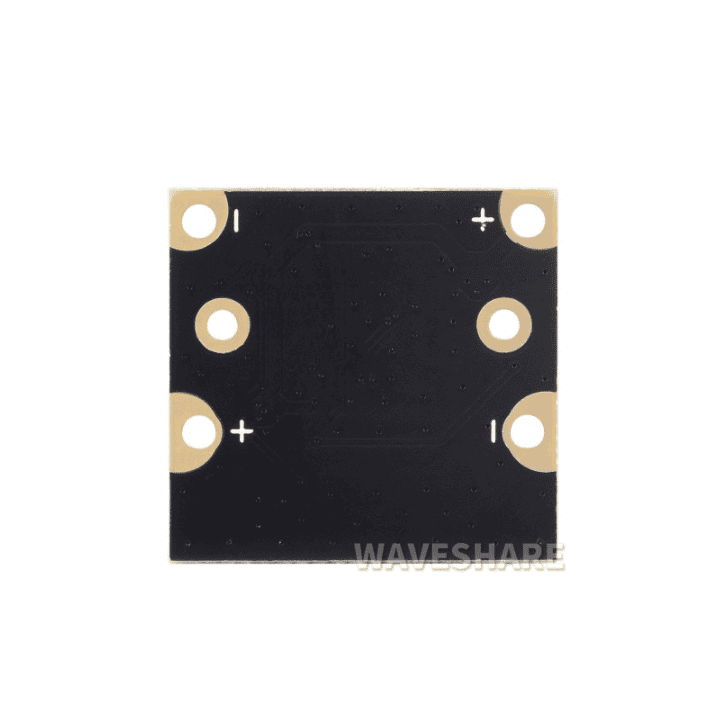

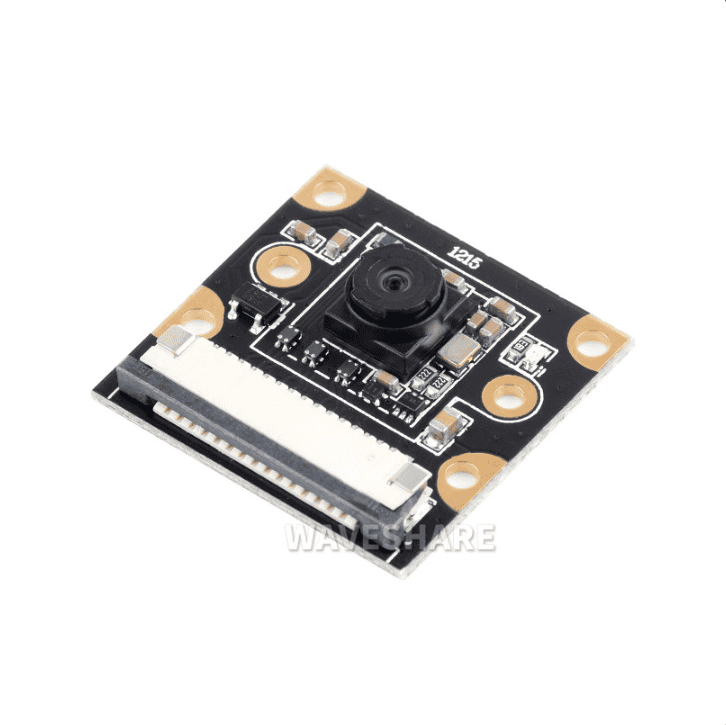

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.012 kg
Pi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
