SKU: 21797
Part Number: OV9281-120 Camera
Brand: Waveshare
Korisne informacije:

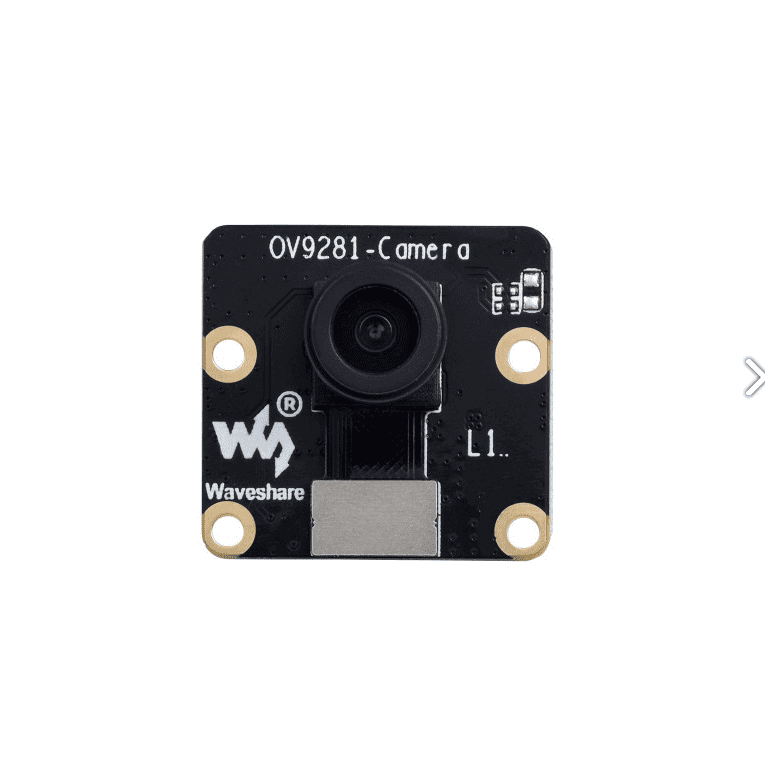

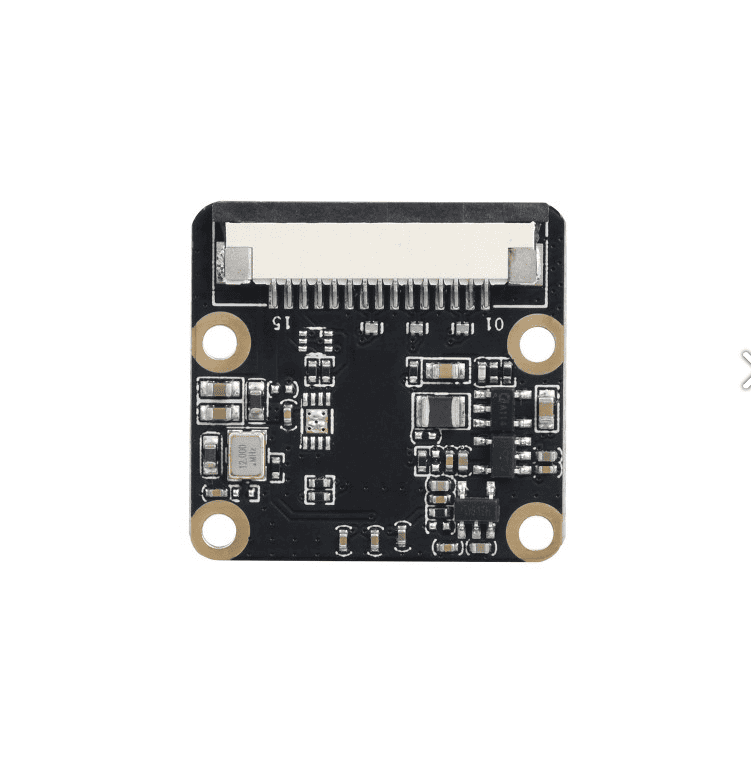

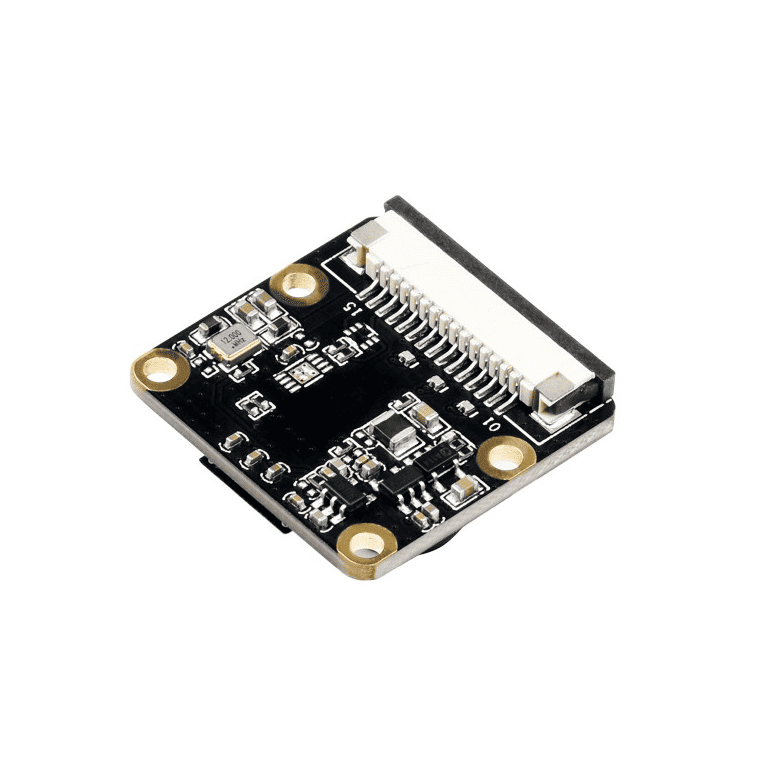

OV9281-120_Camera OV9281-120 Mono Camera For Raspberry Pi, Global Shutter, 1MP
OV9281-120 Mono Camera 1MP, Global Shutter, 110°FOV
Compatible with Raspberry Pi series boards
Device Support
Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)
Specifications
SENSOR |
OV9281 |
CMOS SIZE |
1/4 inch |
CAMERA TYPE |
mono |
PIXELS |
1MP (1280 × 800) |
SHUTTER |
Global Shutter |
APERTURE |
F2.5 |
DISTORTION |
< 7.5% |
FIELD OF VIEW |
120°(D) |
FOCAL LENGTH |
3.15mm |
FOCUSING |
Fixed Focus |
Global Shutter, More Clear Imaging The Global Shutter Eliminates Jello-Effect While Shooting Fast Moving Objects
More Suitable For High Frame Rate Capturing

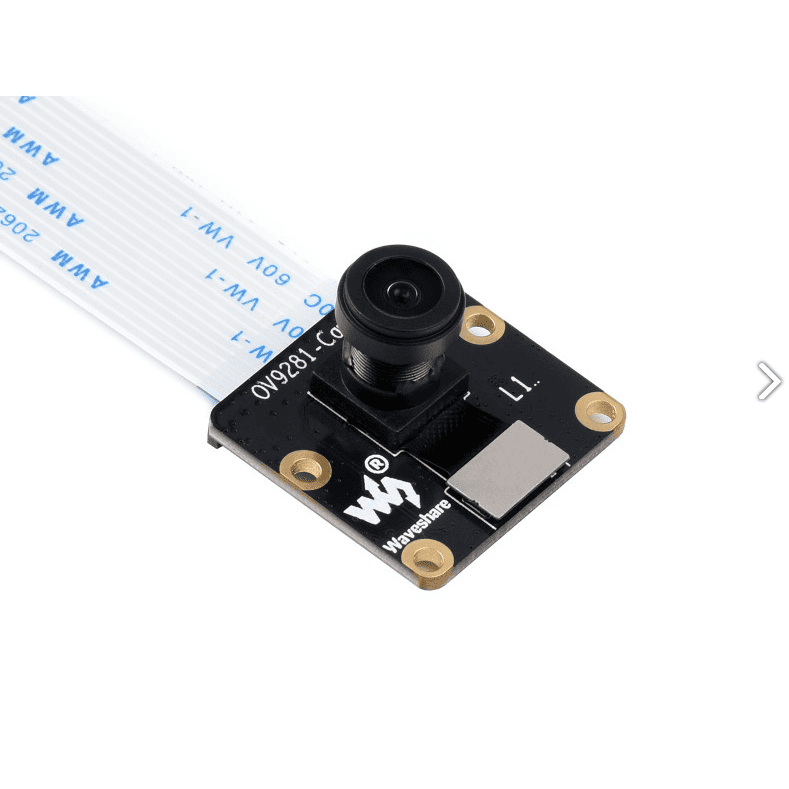

Working With Raspberry Pi Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series
* for reference only, Raspberry Pi and yellow FPC are NOT included. Outline Dimensions
- PACKAGE CONTENT
Weight: 0.006 kg
- OV9281-120 Camera x1
- 15-pin FFC (opposite sides contact) x1
