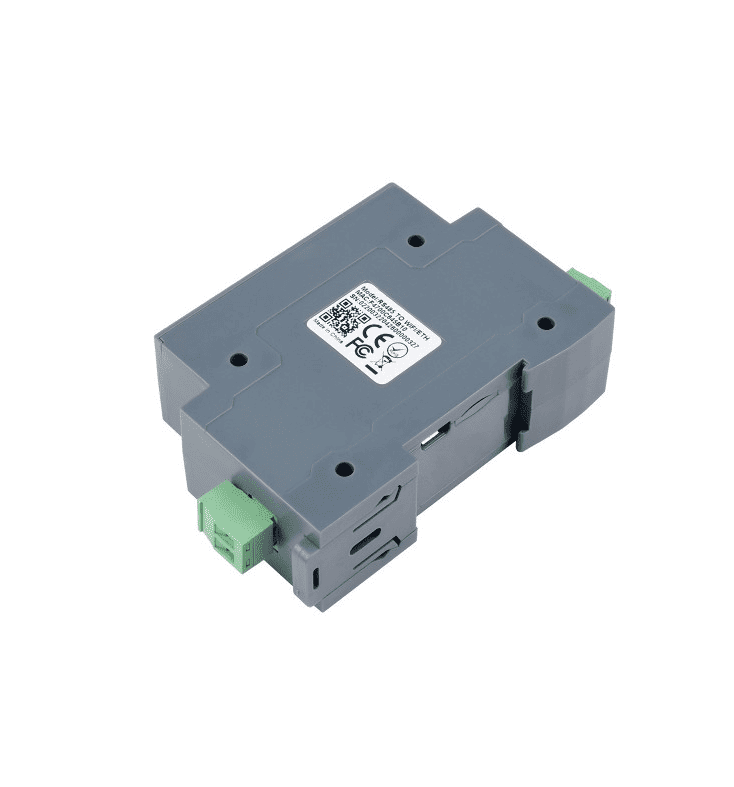

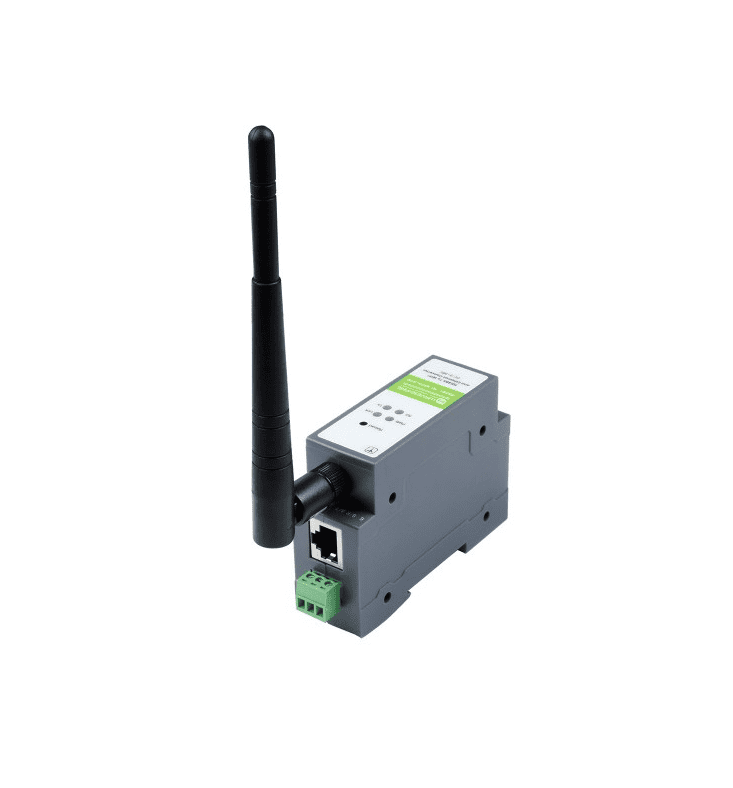

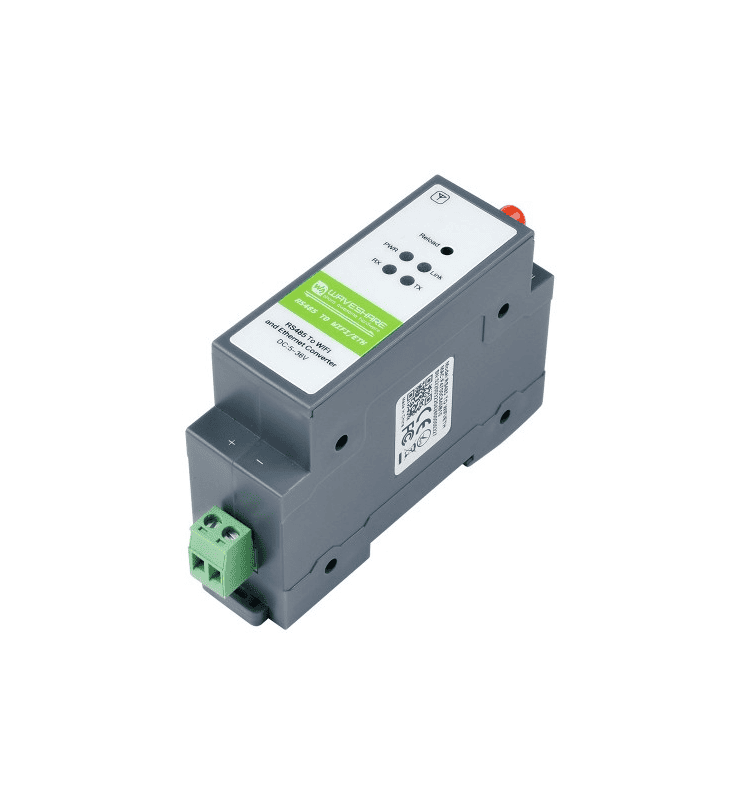

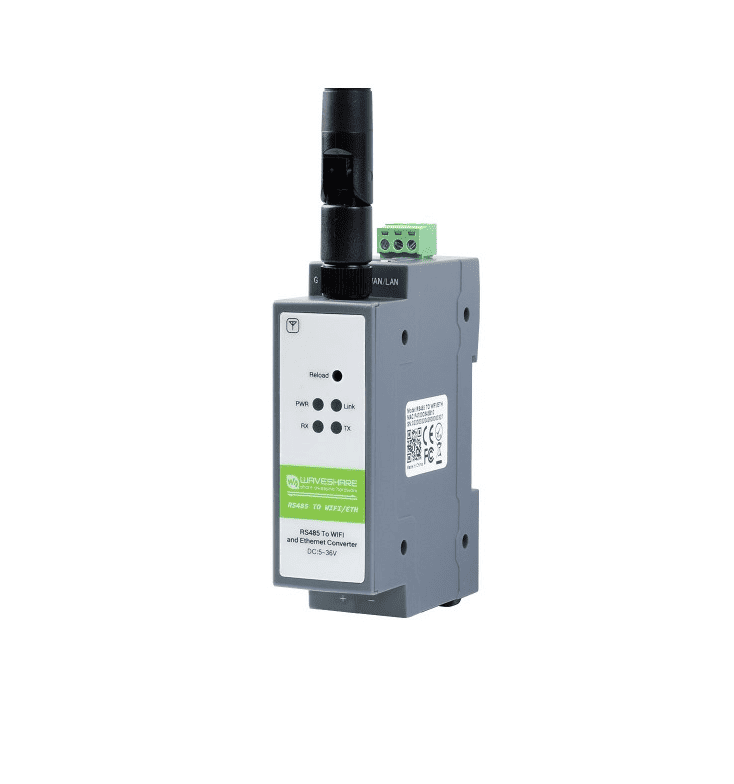

Rail-mount RS485 serial server
Modbus Gateway
MQTT Gateway
| OUTLINE | |
|---|---|
| Communication interface | RS485, screw terminal |
| Power supply | 5 ~ 36V DC, screw terminal |
| Case | PC + ABS, V0 flame retardant grade |
| Dimensions | L × W × H: 109.66 × 28 × 64.71 mm |
| COMMUNICATION | |
| Ethernet | 10 / 100M auto-negotiation RJ45 connector |
| WIFI | 802.11b/g compliant |
| Serial port | RS485 interface (Anti-surge, Lightningproof, Over-current protection) |
| WIRELESS SPECIFICATION | |
| Frequency Band | 2.412 ~ 2.484 GHz |
| Wireless network | Station / AP / AP+Station Mode |
| Security mechanism | WPA-PSK / WPA2-PSK |
| Encryption type | TKIP / AES |
| Transmitting power | 802.11b: +19dBm (Max.@11Mbps) 802.11g: +18dBm (Max.@54Mbps) 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7) |
| Receiving sensitivity | 802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7) |
| SERIAL SPECIFICATION | |
| Baudrate | 300 ~ 460800 bps |
| Parity bit | none, odd, even, mark, space |
| Data bit | 5 ~ 9 bits |
| Flow control | N/A |
| SOFTWARE | |
| Protocol | TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT |
| Configuration | host, web browser, serial AT command |
| Communication method | TCP/IP direct communication, VCOM |
| Operating mode | Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU |
| ENVIRONMENT REQUIREMENT | |
| Operating temperature | -40℃ ~ 85℃ |
| Storage temperature | -45℃ ~ 125℃ |
| Humidity range | 5% ~ 95% relative humidity |
Support RS485 To WIFI, RS485 To Ethernet, Ethernet To WIFI, Etc.
Industrial Rail-Mount Support, Easy To Install, Compact Size, Cost-Effective
Supports TCP Server / TCP Client / UDP Server / UDP Client
The user sends data to the server according to the protocol
Send data to different servers without restarting
After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms
Support Modbus TCP And Modbus RTU Interconversion Mode
The user can query the current status of the module, or set related parameters, by sending AT commands
