Part Number: R7FA4 PLUS A
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/R7FA4_PLUS_A R7FA4 PLUS A Development Board, Based On R7FA4M1AB3CFM, Compatible With Arduino UNO R4 Minima
R7FA4 PLUS A Development Board
Enhanced Version Of Arduino UNO R4 Minima
Based On R7FA4M1AB3CFM, Compatible With Arduino UNO R4 Minima

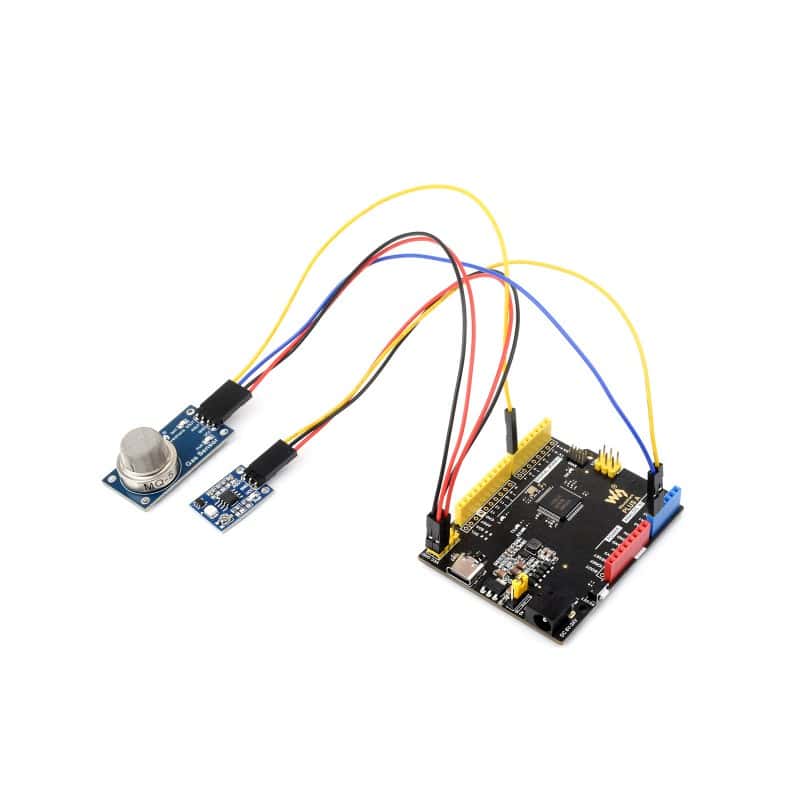

Connecting With Waveshare Shields
Connecting With Sorts Of Sensors
Connecting With 2.8inch TFT Touch Shield
* for reference only, please refer to the Package Content for detailed part list

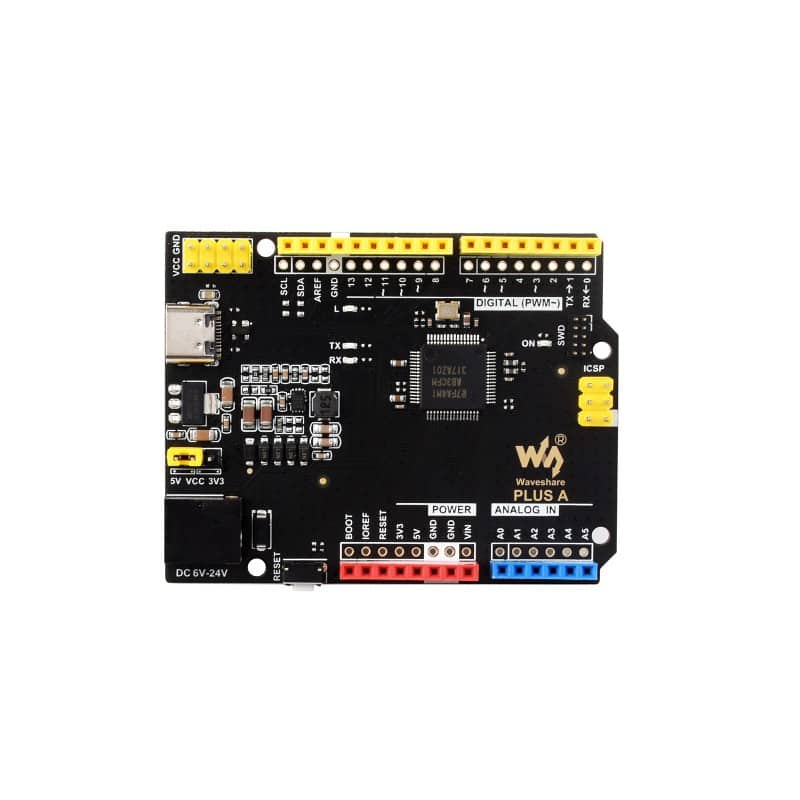

What's On Board
- R7FA4M1AB3CFM
- AMS1117-3.3
3.3V voltage regulator
- MP8759
5V voltage regulator
- Arduino interface
compatible with standard Arduino interface, adapting 2.54 pitch solder pad, can be directly connected to experimental board
- ICSP interface
- Power output header
3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output and common-grounding with other boards
- Power configuration
for configuring R7FA4 PLUS A operating voltage
- SWD indicator
- Power indicator
- User LED
- USB Type-C connector
for uploading program OR serial port debugging
- Serial port RX/TX indicators
- DC input
6V ~ 24V
- Reset button

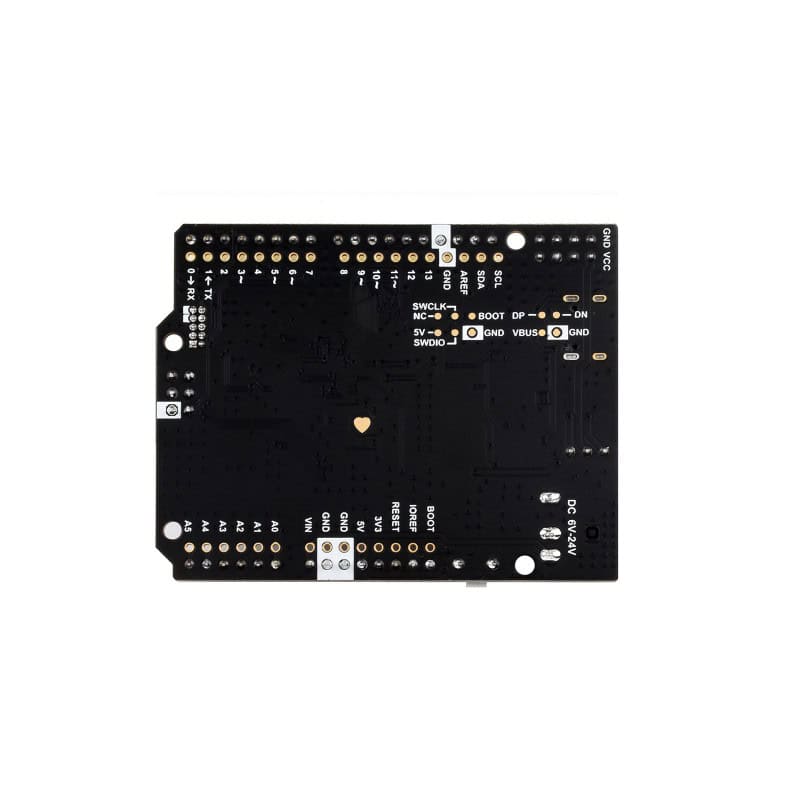

Pinout Definition
Outline Dimensions
PACKAGE CONTENT
Weight: 0.047 kg
- R7FA4 PLUS A x1
- USB Type-A to Type-C cable x1
