EG25-G mPCIe

Šifra: w28569

5.799,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.017 Kg

SKU:28569
Part No.:EG25-G mPCIe
Brand:QUECTEL

Korisne informacije: www.waveshare.com/wiki/EG25-G_mPCIe

Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor, Supports Multiple Wireless Communication Modes, Integrates Multiple Industrial Standard Interfaces

Quectel EG25-G mPCIe Module

LTE Cat 4 Mini-PCIe Module

PCI Express Mini Card standard interface, designed for M2M and IoT applications

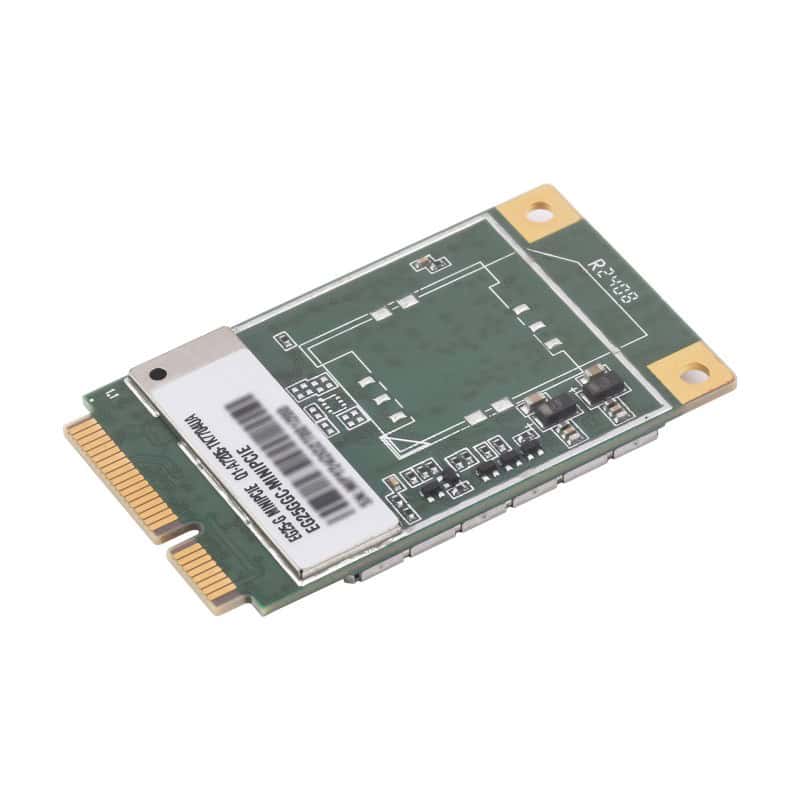

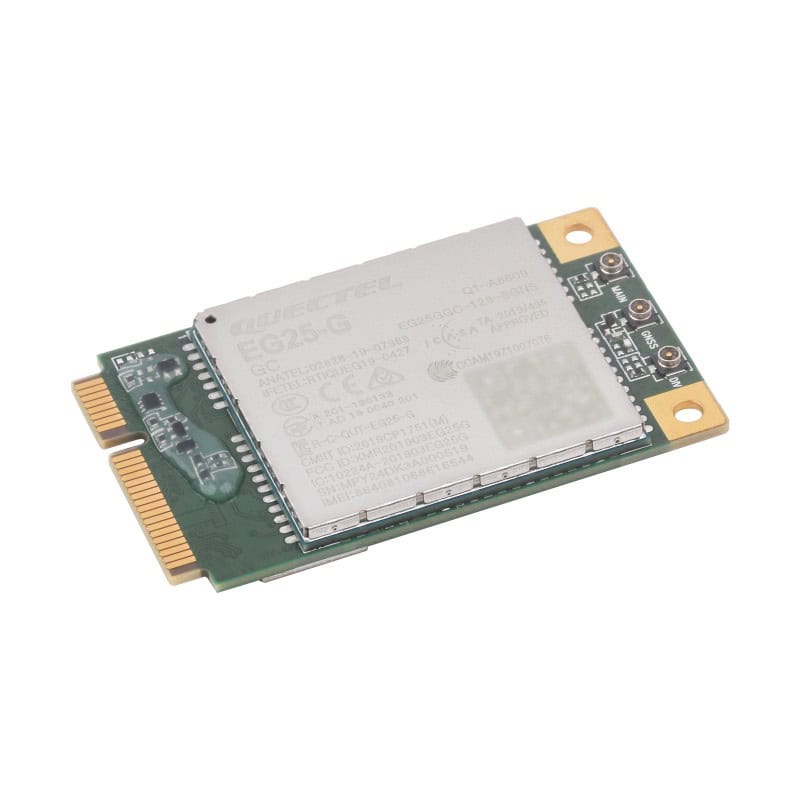

Quectel EG25-G mPCIe Module, front and back view

Features

The EG25-G mPCIe is a LTE Cat 4 module which supports multiple wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc, with maximum downlink rate of 150Mbps and uplink rate of 50Mbps.

It adopts PCI Express Mini Card standard interface, based on Qualcomm IZat positioning technology Gen8C Lite, with multi-constellation GNSS receiver which greatly simplifies product design, supports GPS, GLONASS, BDS, Galileo and QZSS echnologies, provides quicker, more accurate and more reliable positioning.

Built in rich network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, and Android, etc.), suitable for various M2M and IoT applications such as industrial routers, industrial PDA, rugged tablet PCs, video transmission, digital signage, remote monitoring, telemedicine, etc.

Mini-PCIE interface with strong compatibility

Multi-constellation GNSS receiver support

Suitable for LTE, UMTS and GSM networks with global coverage

AT commands of the EG25-G mPCIe series are compatible with the EG25-G series modules

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Specifications

Frequency Band
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE-TDD	B38, B39, B40, B41
WCDMA	B1, B2, B4, B5, B6, B8, B19
GSM	850, 900, 1800, 1900 MHz
GNSS	GPS, Beidou, GLONASS, GALILEO, QZSS
Data Transfer
LTE-FDD	150 Mbps (DL) / 50 Mbps (UL)
LTE-TDD	130 Mbps(DL) / 30 Mbps(UL)
HSPA+	42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA	384 Kbps (DL) / 384 Kbps (UL)
EDGE	296 Kbps (DL) / 236.8 Kbps (UL)
GPRS	107 Kbps (DL) / 85.6 Kbps (UL)
Software Features
Operating system	Windows / Linux / Android
Protocol	TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	DFOTA / USB
Hardware Specifications
SIM card	1.8V / 3.0V
Antenna interface	IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)
Power supply	3V ~ 3.6V
Form factor	Mini PCIe
Dimensions	51.0 mm × 30.0 mm × 4.9 mm
Operating temperature	-40℃ ~ +80℃
Applications
Applicable regions	global coverage

Application Scenarios

Industrial Routers, industrial PDAs, rugged tablet PCs, video transmission, digital signage, remote monitoring, telemedicine, etc.

Dimensions
Quectel EG25-G mPCIe Module, outline dimensions

Package content:

Weight: 0.01 kg

This is a mini PCIe module without antenna and SMA to IPEX adapter cable, it is recommended to used with the 4G antenna, GPS active antenna and SMA to IPEX1 RF cable.
EG25-G mPCIe x1
