SKU: 20987
Part Number: POE-SPLITTER-TYPE-C
Brand: Waveshare
Korisne informacije:

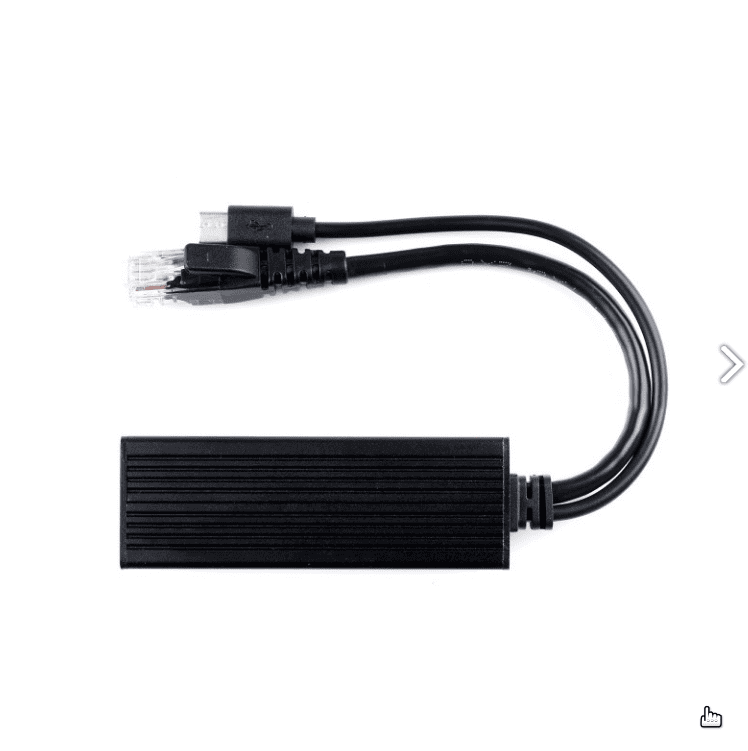

POE-SPLITTER-TYPE-C Industrial Gigabit PoE Splitter, Metal Case Protection, 5V 2.5A Type-C Power Output
Industrial Gigabit PoE Splitter 5V 2.5A Type-C power output
IEEE 802.3af/at-compliant Gigabit Ethernet
Features At A Glance
- Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- 802.3af/at-compliant PoE (Power over Ethernet) standard
- Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
POWER SUPPLY |
supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
POE INPUT VOLTAGE |
37V ~ 57V |
TYPE-C OUTPUT |
5V 2.5A (MAX) |
CABLE |
Cat-5 UTP |
STANDARD |
IEEE 802.3 af/at PoE Ethernet |
DATA RATE |
10/100/1000Mbps |
LED INDICATOR |
PoE power input indicator |
DIMENSIONS |
86 × 30 × 25mm (l × w × h) |
OPERATING TEMPERATURE |
-40℃ ~ 85℃ |

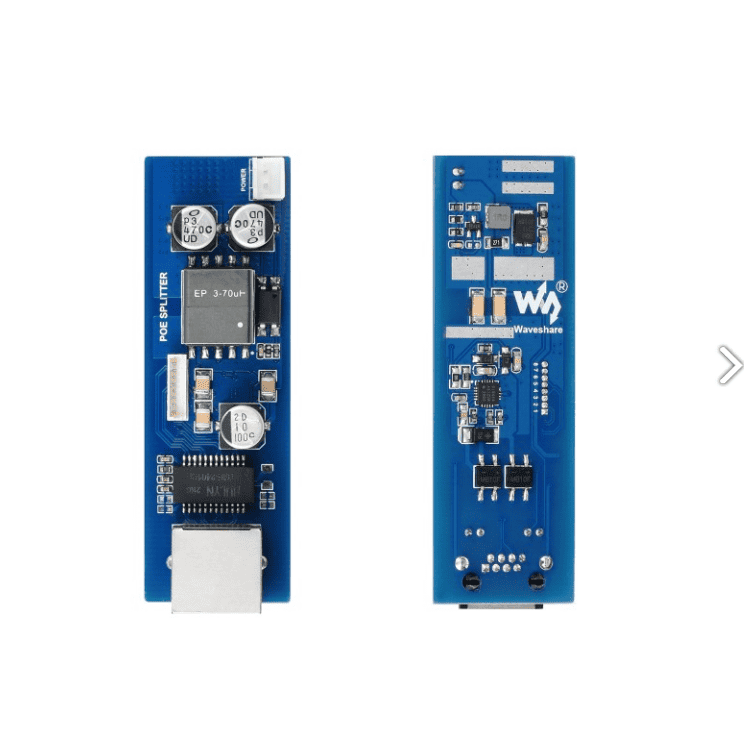

Original Chip Solution Incorporates Si3404, High-Integration, High-Efficiency, More Safe And Reliable
Switching Mode Power Supply (SMPS) Isolated Circuit Protection, Effectively Protecting The Powered Device

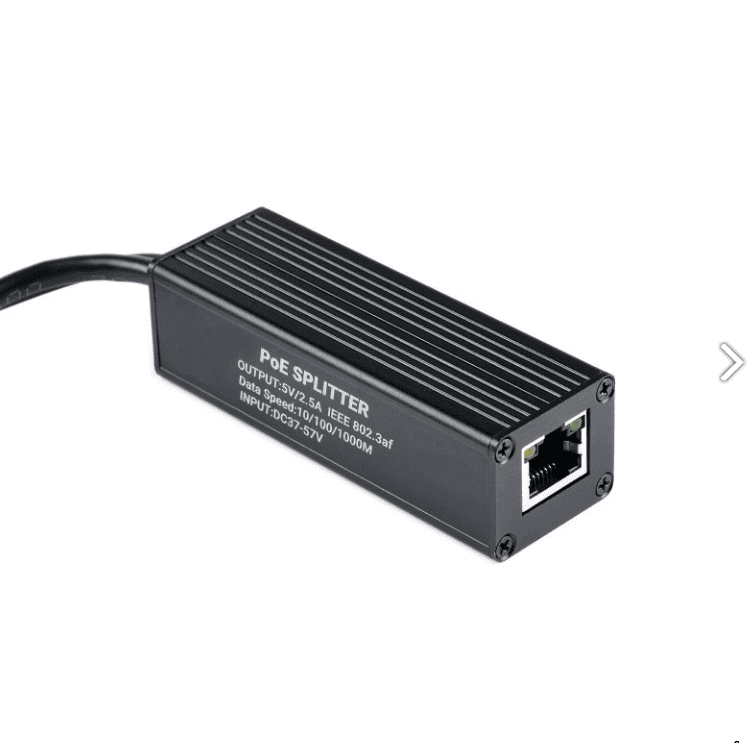

Industrial Grade Protection Case Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation
Interface Introduction

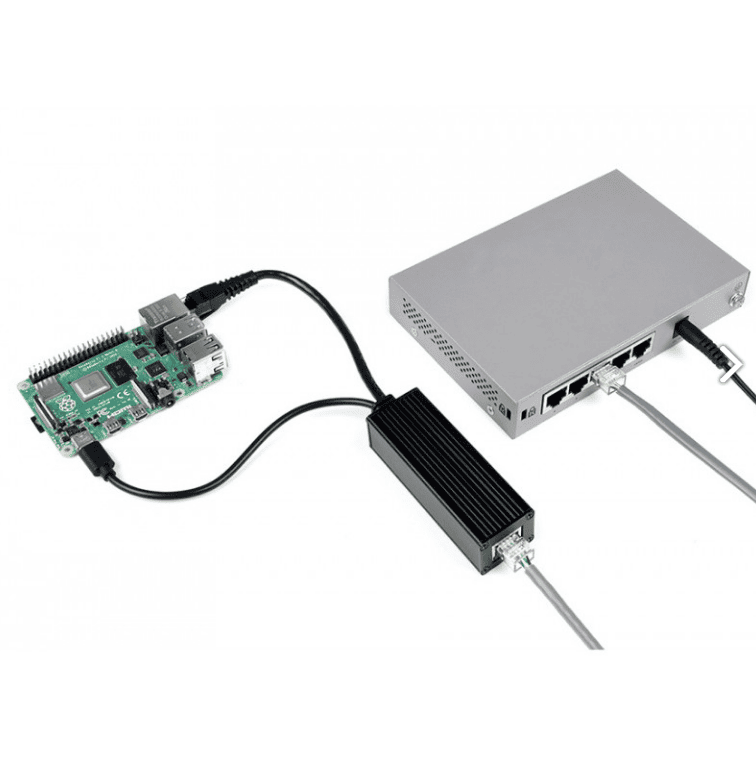

Application Examples Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch
for reference ONLY, Raspberry Pi and switch are NOT included. Outline Dimensions
- PACKAGE CONTENT
Weight: 0.087 kg
- POE-SPLITTER-TYPE-C x1
