SKU: 19532
Part Number: PoE HAT (D)
Power Over Ethernet HAT (Type D) For Raspberry Pi 3B+/4B, 802.3af-Compliant, Tailored For Raspberry Pi Official Case
POE HAT FOR RASPBERRY PI Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant
Tailored for Raspberry Pi official case
Features At A Glance The
PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the
Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
- PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, better heat dissipation
Specifications
POE POWER INPUT |
37V ~ 57V DC in |
POWER OUTPUT |
5V 2.5A DC out |
NETWORK STANDARD |
IEEE 802.3af PoE |
DIMENSIONS |
58.90 × 54.92mm |

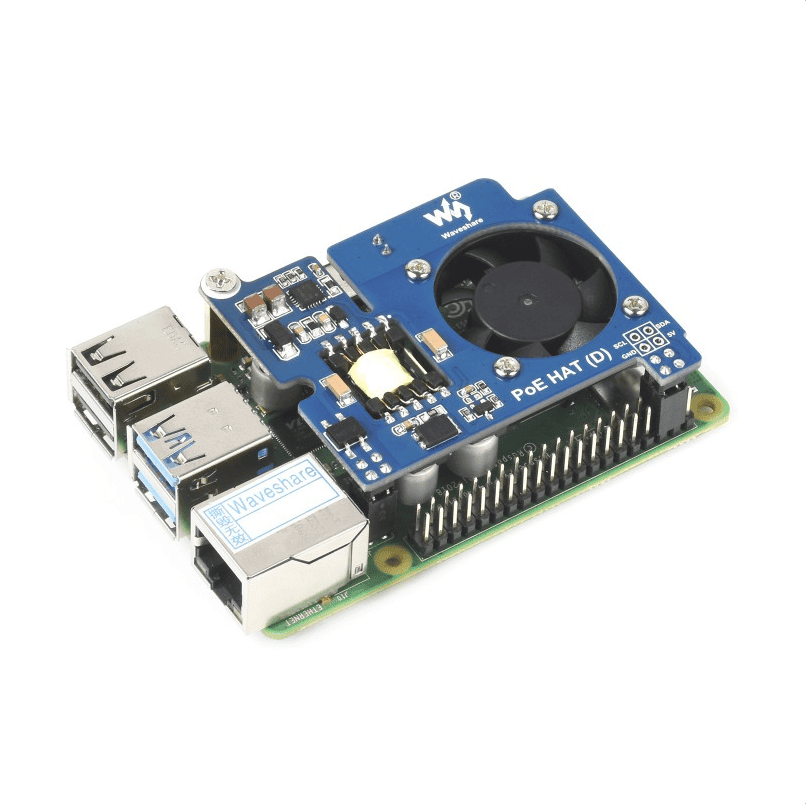

For Use With Raspberry Pi 3B+/4B

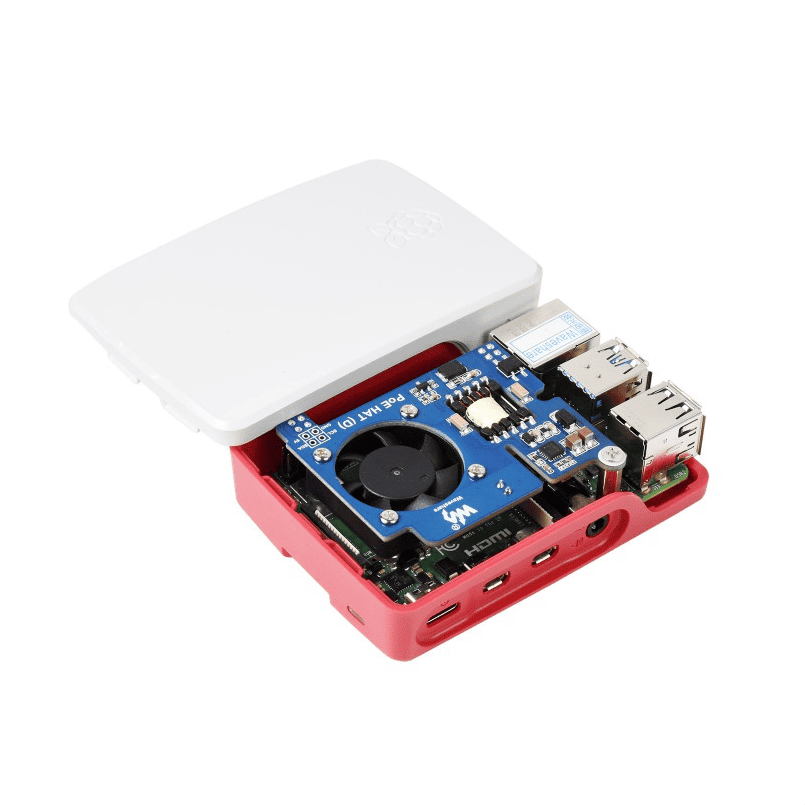

Compatible With Official Case Raspberry Pi Official 4B Case (Left) And Raspberry Pi Official 3B+ Case (Right)
Application Example
Power Over Ethernet Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

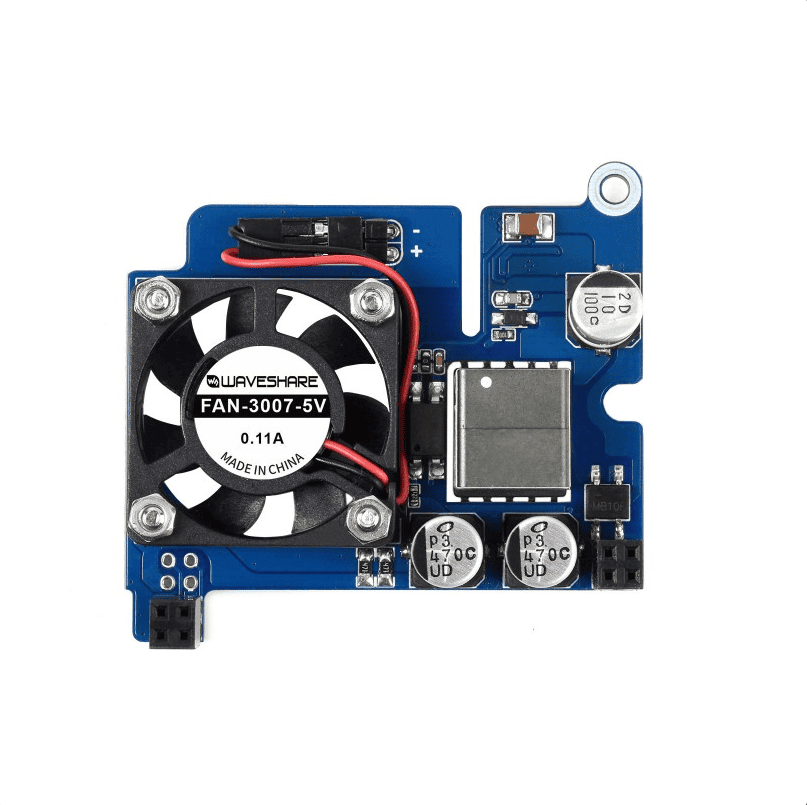

Raspberry Pi, official cases, and PoE equipment are NOT included. Active Cooling Fan

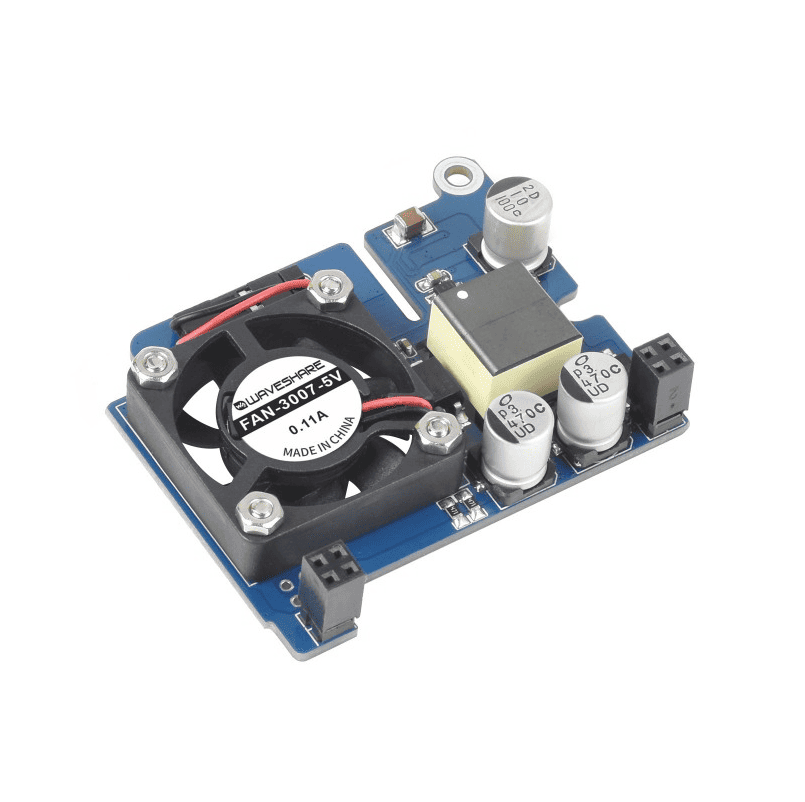

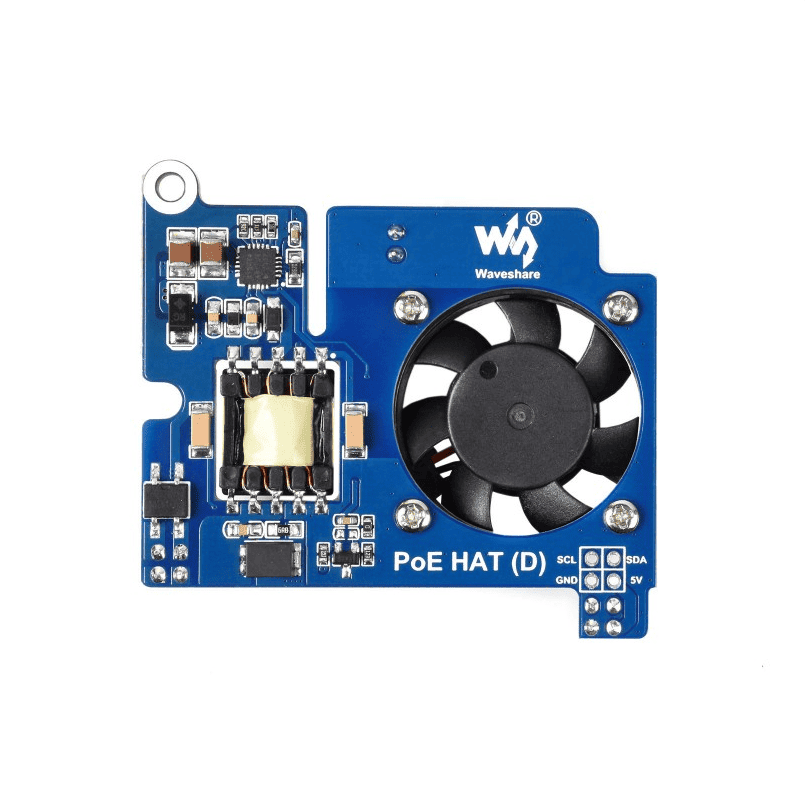

Onboard Resources
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.029 kg
- PoE HAT (D) x1
- Standoffs pack x1
1
2
WIKI: PoE_HAT_(D)
