SKU: 19445
Part Number: PoE HAT (C)
Brand: Waveshare
Korisne informacije:

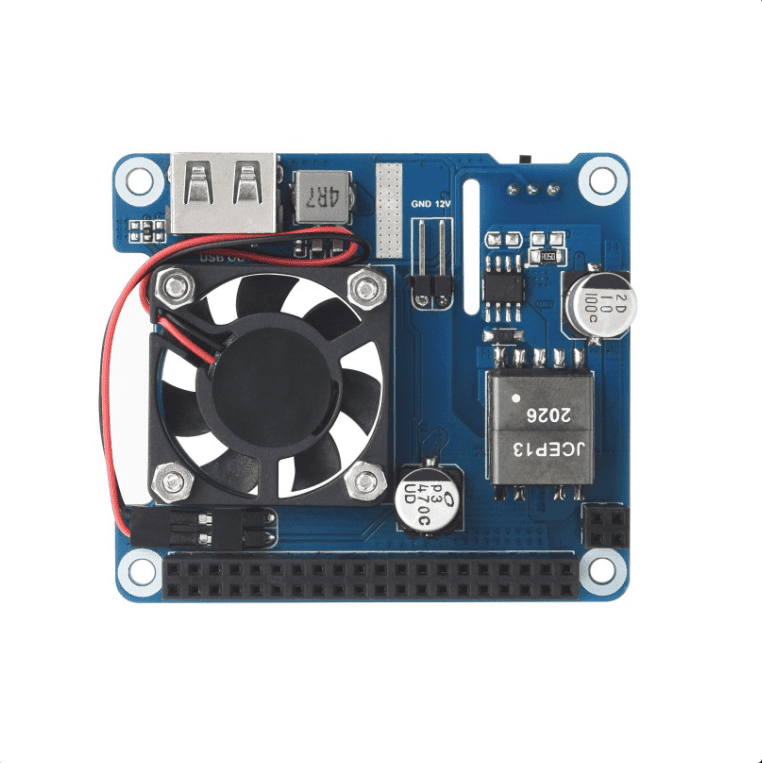

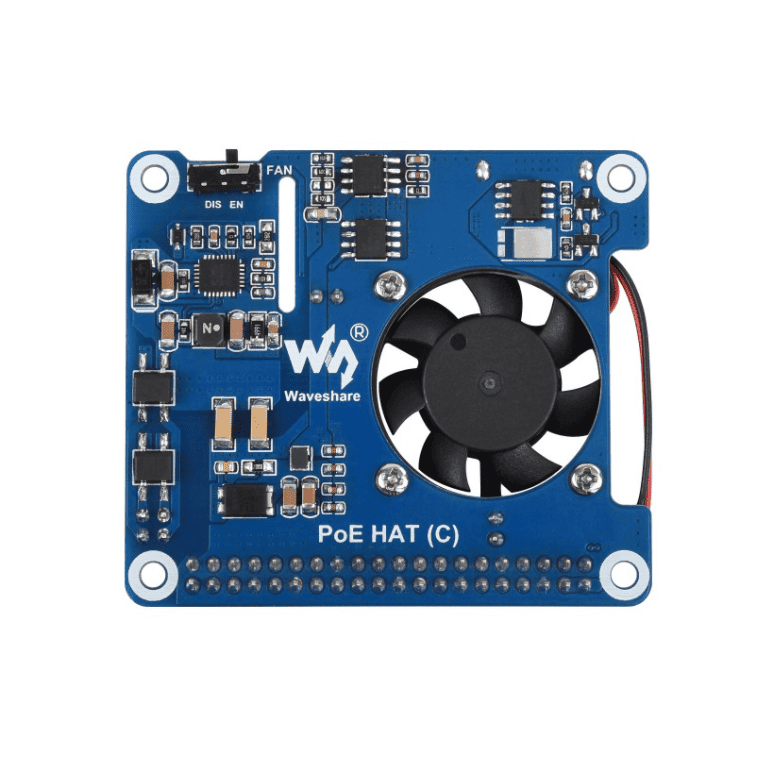

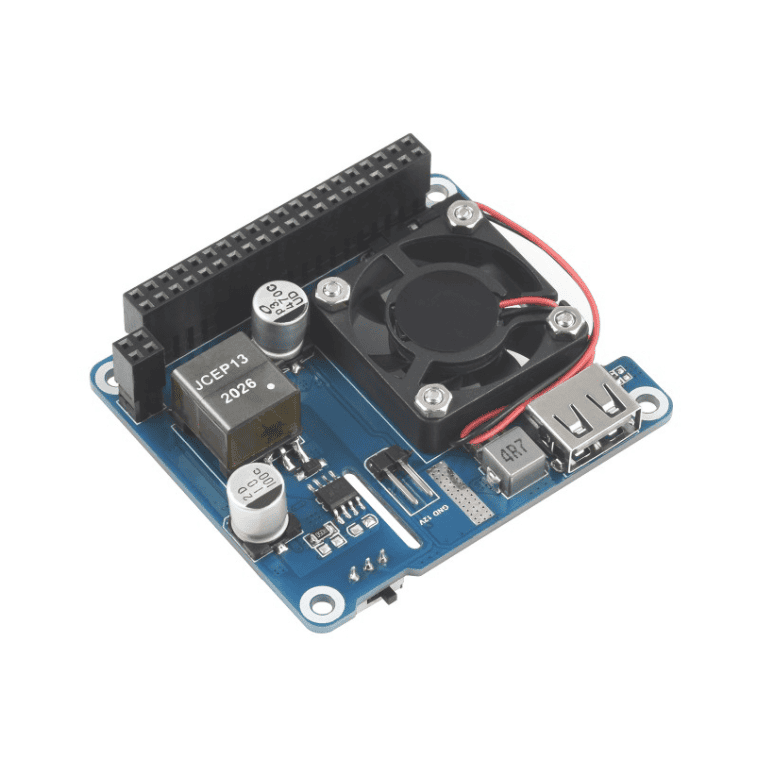

PoE_HAT_(C) Power Over Ethernet HAT (Type C) For Raspberry Pi 3B+/4B, 802.3af/at Power-Sourcing Equipment Required
POE HAT FOR RASPBERRY PI Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af/at-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)
12V and 5V power outputs to support more peripherals
Features At A Glance The
PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the
Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- While providing stable power for the Raspberry Pi, there's also a USB-A port for powering extra external device
- Onboard high speed active cooling fan, better heat dissipation
Specifications
POE POWER INPUT |
37V ~ 57V DC in |
POWER OUTPUT |
USB-A: 5V 4A (MAX)
2P header: 12V 2A (MAX) |
NETWORK STANDARD |
IEEE 802.3af/at PoE |
DIMENSIONS |
56.5 × 65mm |

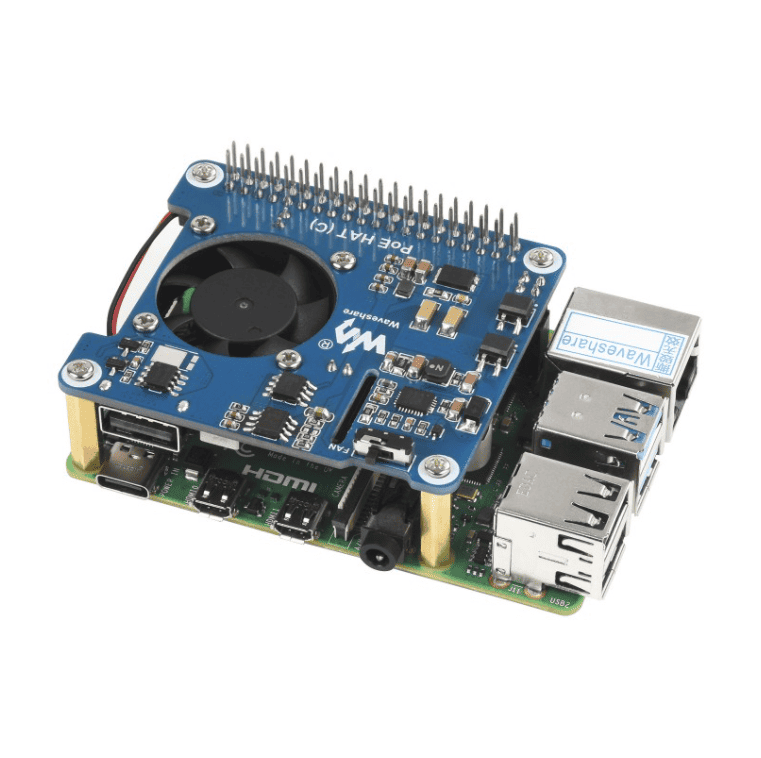

For Use With Raspberry Pi 3B+/4B Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
Power Over Ethernet Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Raspberry Pi or PoE equipment is NOT included. 5V USB-A & 12V Header Outputs 5V USB-A Provides Up To 4A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Device While Providing Stable Power To Raspberry Pi
Active Cooling Fan
Onboard MP8676 Buck Chip Incorporates Original Voltage Buck Chip
Providing Up To 4.5A Output For Raspberry Pi And USB-A Port
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.055 kg
- PoE HAT (C) x1
- Heatsink x1
- Standoffs pack x1
