SKU: 23285
Part Number: PoE HAT (E)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PoE_HAT_(E) Power Over Ethernet HAT (E) For Raspberry Pi 3B+/4B, 802.3af-Compliant
MINI POE HAT FOR RASPBERRY PI Power Over Ethernet HAT For Raspberry Pi 3B+/4B, IEEE 802.3af-Compliant
Mini Body, More Space-Saving
Features At A Glance The

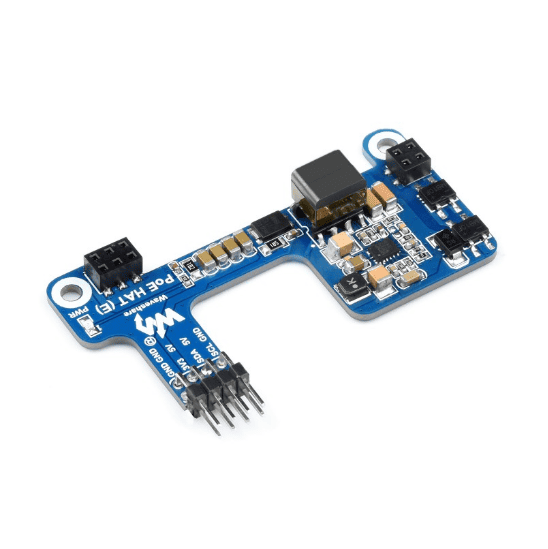

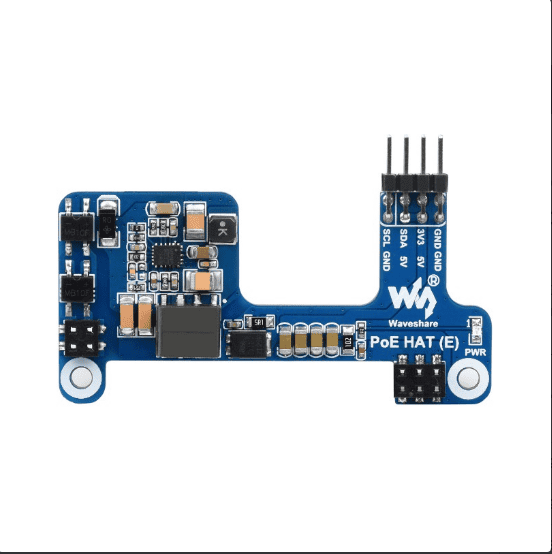

PoE HAT (E) is a mini 802.3af-compliant Power Over Ethernet accessory for the
Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
- PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
- Fully isolated switched-mode power supply (SMPS)
- Smaller and more flexible with a more compact component layout
Specifications
POE POWER INPUT |
37V ~ 57V DC in |
POWER OUTPUT |
5V 2.5A DC out |
NETWORK STANDARD |
IEEE 802.3af PoE |
DIMENSIONS |
65.00 × 32.00mm |

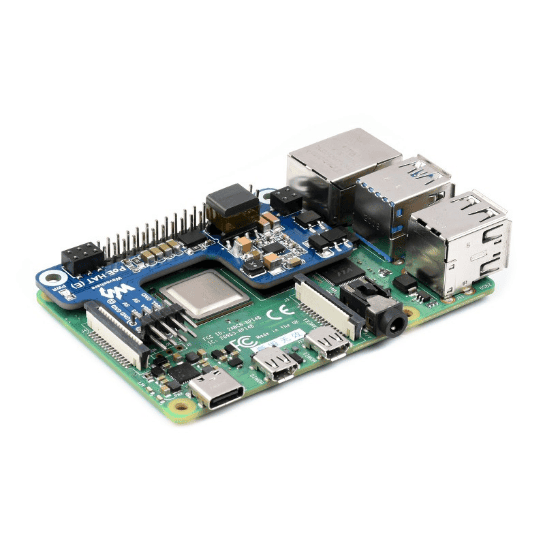

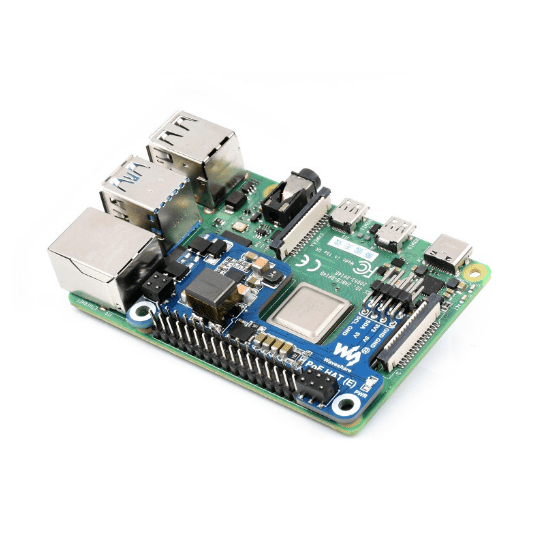

For Use With Raspberry Pi 3B+/4B

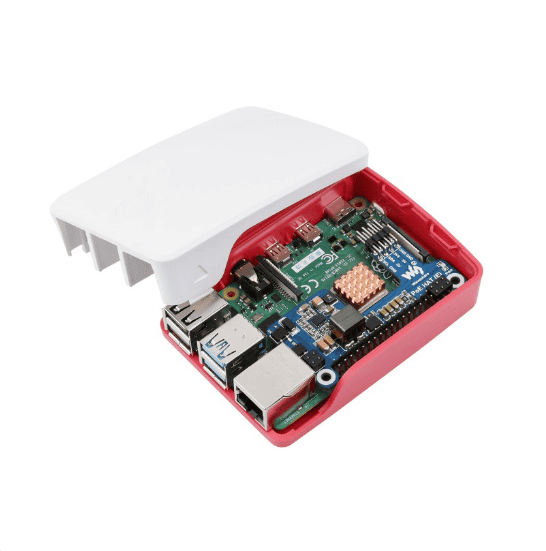

Compatible With Official Case
Support Connecting Cooling Fan
Power Over Ethernet Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Raspberry Pi, official case, heatsink, cooling fan and PoE equipment are NOT included. Onboard Resources
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.009 kg
PoE HAT (E) x1
