Raspberry Pi Zero nije u
paketu. Imamo ga u ponudi.
SKU: 20895
Part Number: PoE-ETH-USB-HUB-BOX
Brand: Waveshare
Korisne informacije: PoE/ETH/USB_HUB_HAT PoE Ethernet / USB HUB BOX for Raspberry Pi Zero series, 3x USB 2.0 Ports, 802.3af-compliant
PoE Ethernet / USB HUB BOX for Zero Dull polish surface, well designed, nice & dust-proof
PoE 802.3af-compliant Ethernet Port | 3x USB 2.0 Ports

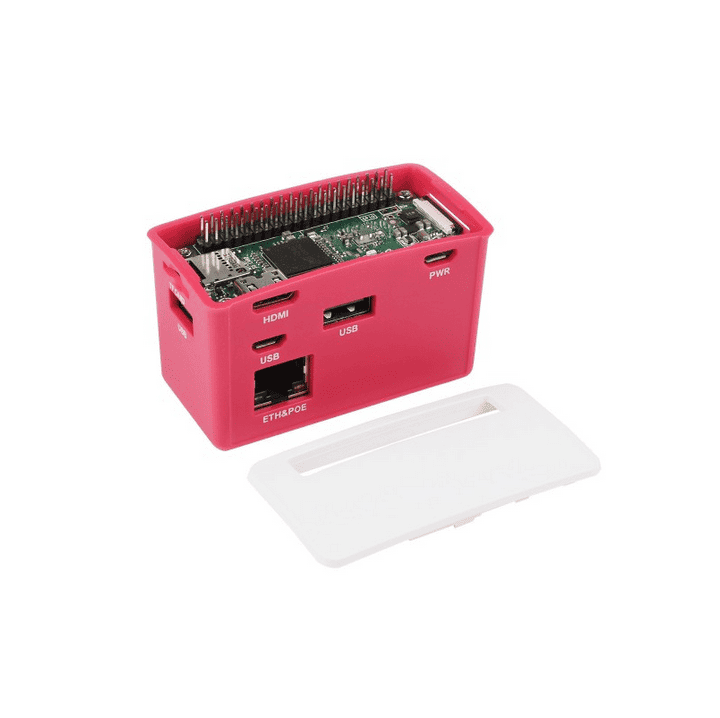

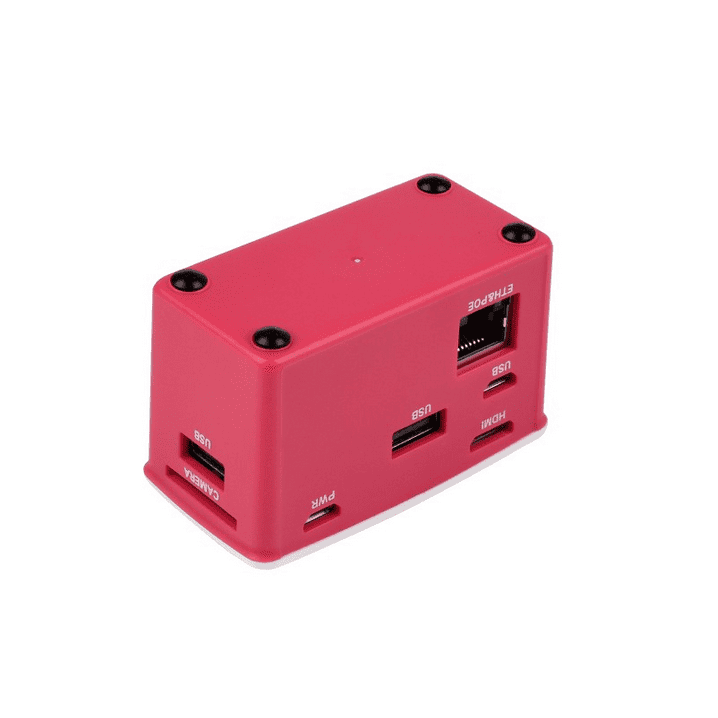

Features at a glance The
PoE-ETH-USB-HUB-BOX is a HUB kit with
PoE/ETH/USB HUB HAT inside. It is tailored for
Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.
- Designed for Raspberry Pi Zero, compatible with Zero series boards
- Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
- PoE (Power over Ethernet) feature, 802.3af-compliant
- Fully isolated SMPS (Switch Mode Power Supply)
- 3x extended USB ports, compatible with USB 2.0 / 1.1
- Angle rounded design, smooth hand feeling, "simple snap" case lid
- Quality ABS material, dull polish surface, anti-fingerprint
- Comes with two different lids, changing as you like
Specifications
PoE power input |
37V ~ 57V DC in |
Power output |
5V 2.5A DC out |
Network standard |
IEEE 802.3af-compliant PoE |
Dimensions |
72.80 × 37.50 × 45.80 mm |
Compatible with Raspberry Pi Zero series specialized pogo pin connection, dedicated cut-outs for Zero series, plug-and-play
3x extended USB 2.0 ports USB1 ~ USB3, compatible with USB 2.0 / 1.1
Extended Ethernet port USB to Ethernet conversion by the RTL8152B chip, 10M / 100M auto-negotiation
Two different lids, changing as you like "simple snap" design, easy to change, allows attaching other Zero HATs

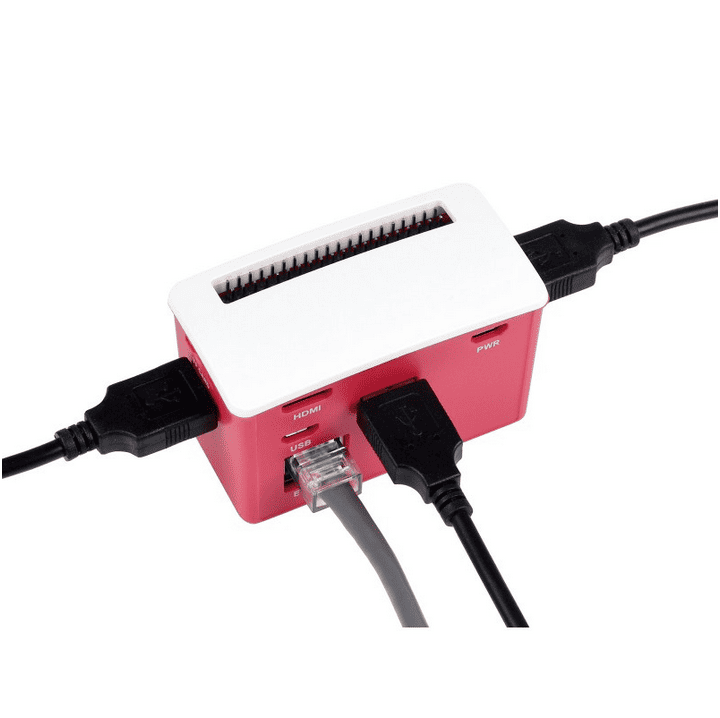

Application example
Raspberry Pi Zero is NOT included. Outline dimensions
Package Content Weight: 0.096 kg
- PoE/ETH/USB HUB HAT kit x1
- ABS case x1
- Rubber feet 4PCS x1
- Screws pack x1
