PiRacer DonkeyCar, AI Racing Robot, Pi 4

Šifra: w17674
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
16.999,00 RSD
Cena sa PDV
u korpu
  • Kategorija: mini PC
  • Težina po komadu: 2.895 Kg
SKU: 17674
Part Number: PiRacer AI Kit Acce
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/RGB_LED_HAT

Uz robota vam je potreban i Raspberry Pi 4, Baterije 18650 x 3, micro sd kartica.


R Pi 4, link1, link2, link3

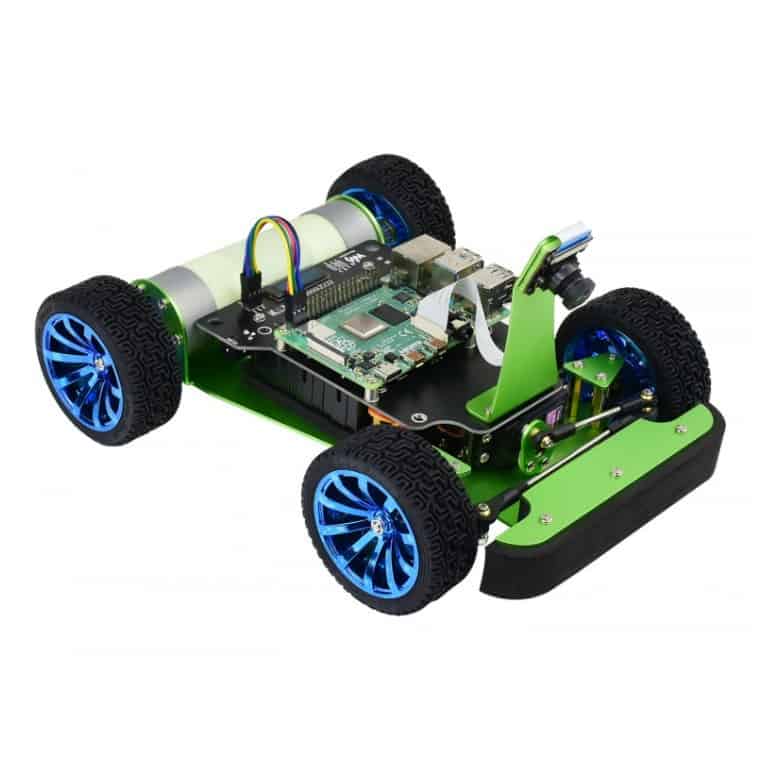

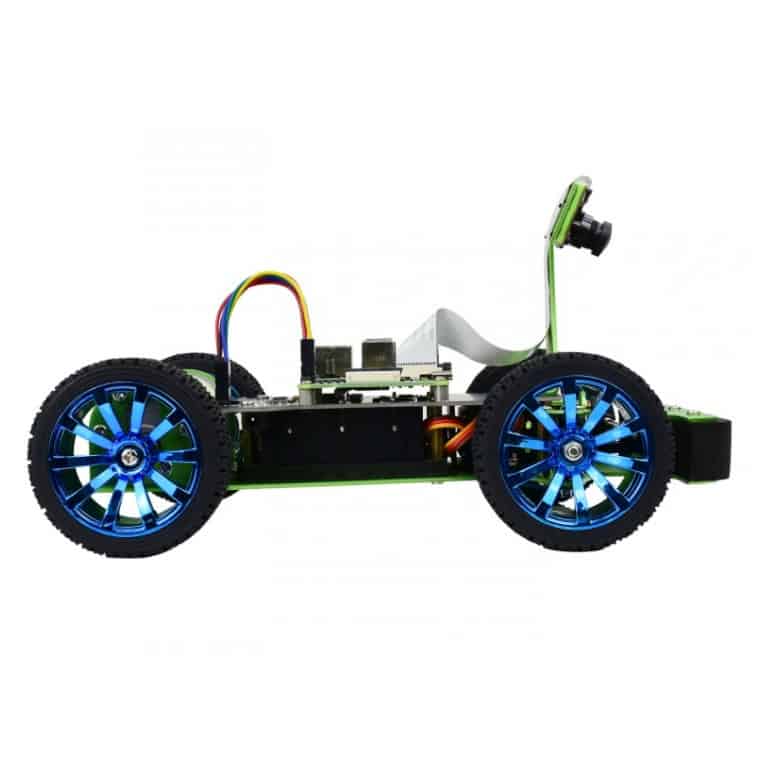

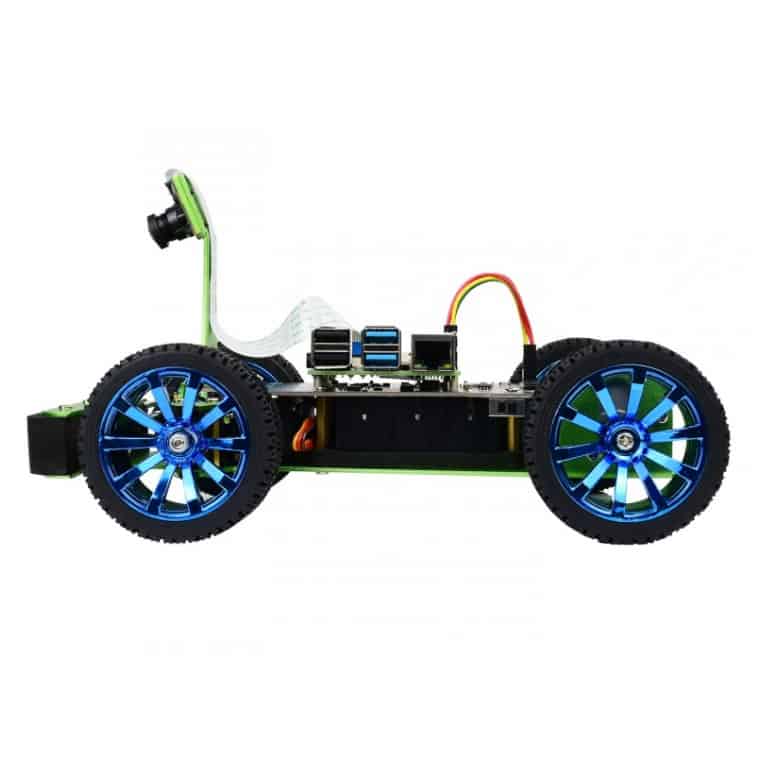

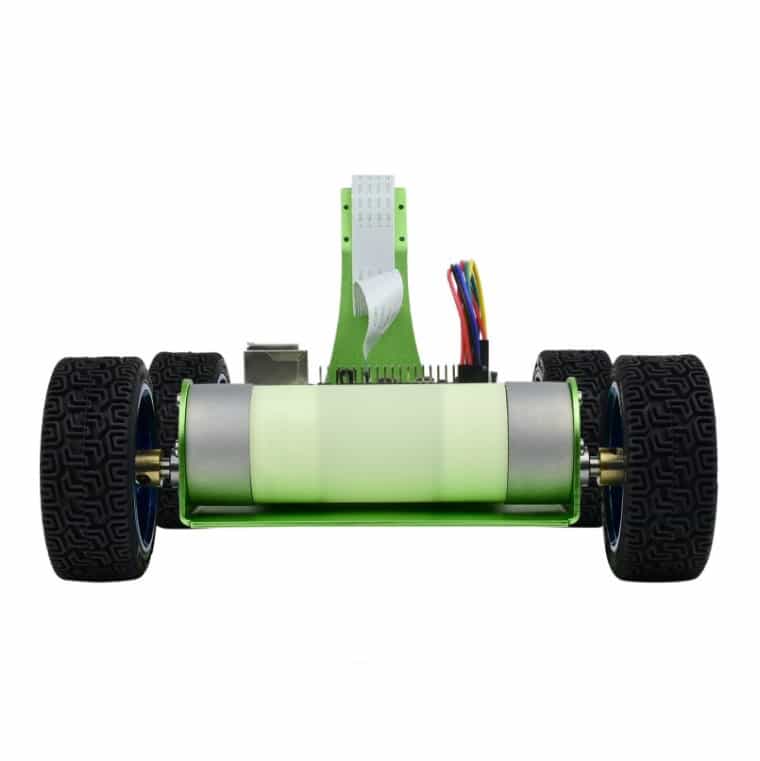

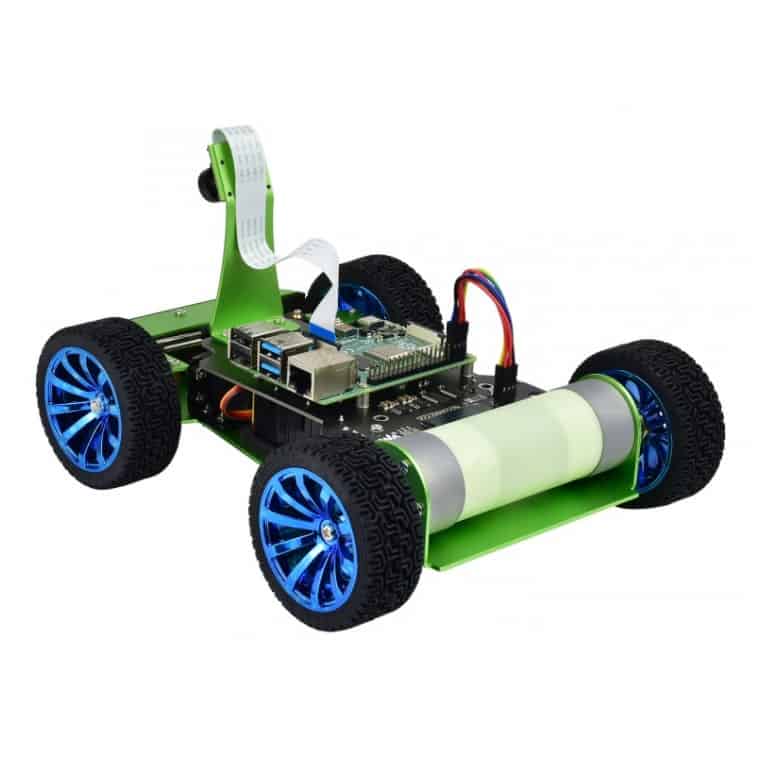

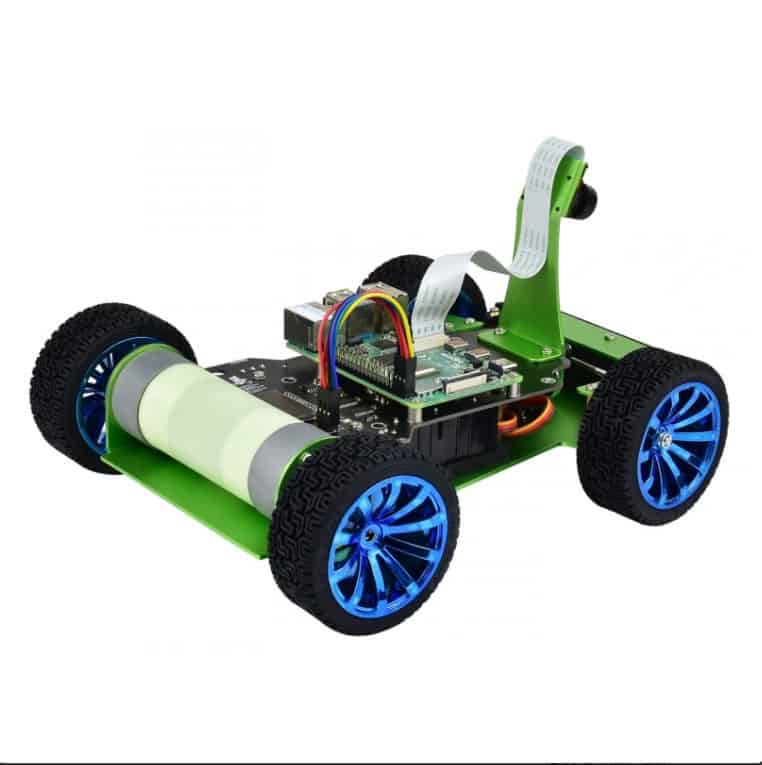

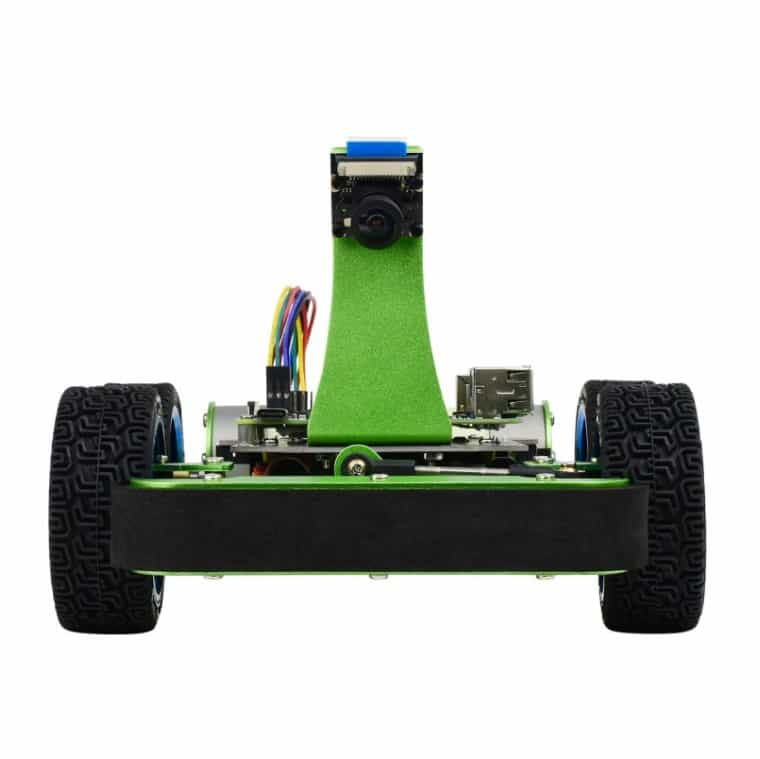

PiRacer, AI Racing Robot Powered by Raspberry Pi 4 (NOT included), Supports DonkeyCar Project
PiRacer — AI Autonomous Racing Robot Powered By Raspberry Pi 4, Supports DonkeyCar Project, Deep Learning, Self Driving



Note: the Raspberry Pi 4 is not included.




SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.

  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.

  • Do not mix use old batteries with new ones, avoid using batteries of different brands.

  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.

  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.

  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.








PACKAGE CONTENT



Weight: 2.719 kg


  • The 18650 batteries are NOT included

  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more




  1. RPi 4 nije u kompletu

  2. kartica micro SD nije u kompletu

  3. PiRacer metal kit 6PCS

  4. EVA felt pad 2PCS

  5. 3D-printed motor lid

  6. PiRacer expansion board

  7. RPi Camera (G)

  8. Acrylic piece

  9. Servo mount

  10. Metal Gearmotor 2PCS

  11. Tire 4PCS

  12. Coupler 2PCS

  13. MG996R servo

  14. MG996R servo wheel

  15. Steering knuckle 2PCS

  16. Ball bearing 4PCS

  17. M3 plastic ball joint 4PCS

  18. M3 pull bar 2PCS

  19. 12.6V battery charger + EU head

  20. Wireless gamepad

  21. 6Pin cable

  22. Spanner 2PCS

  23. Screwdriver 2PCS

  24. Mini cross wrench sleeve

  25. Micro SD card reader

  26. Screws pack

  27. Track map




Specifikacija nije definisana
