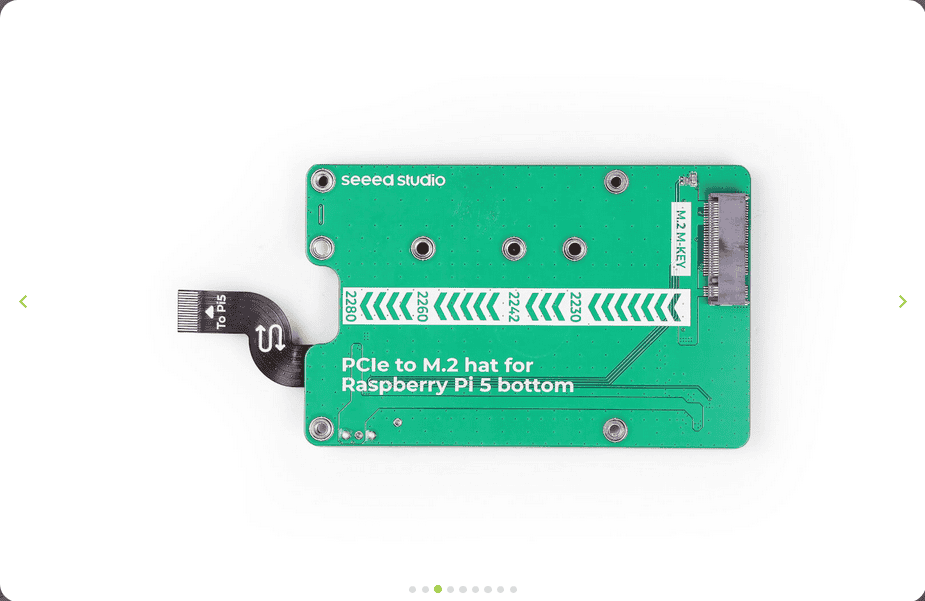

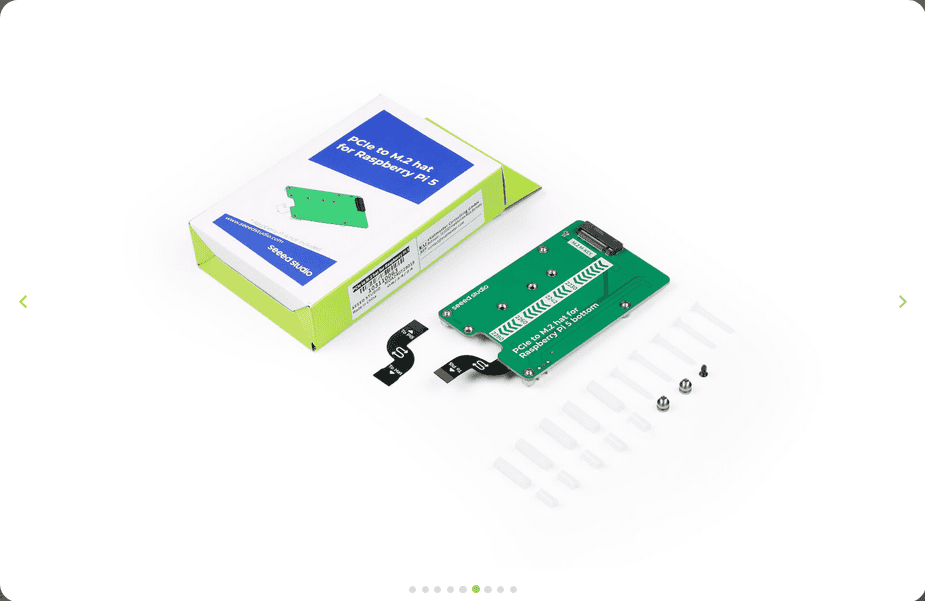

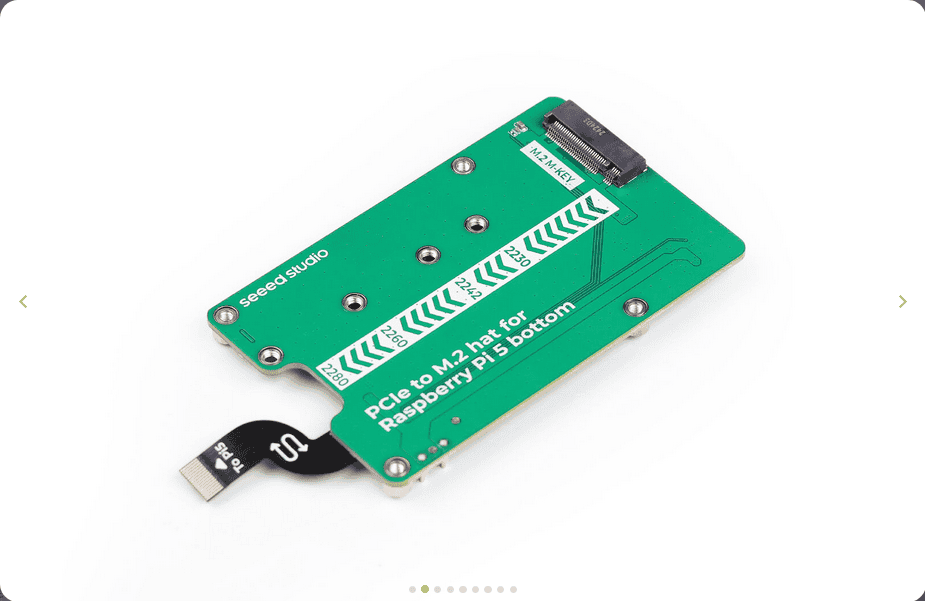

PCIe to M.2 hat for Raspberry Pi 5

Šifra: se103110063

890,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: mini PC
Težina po komadu: 0.048 Kg

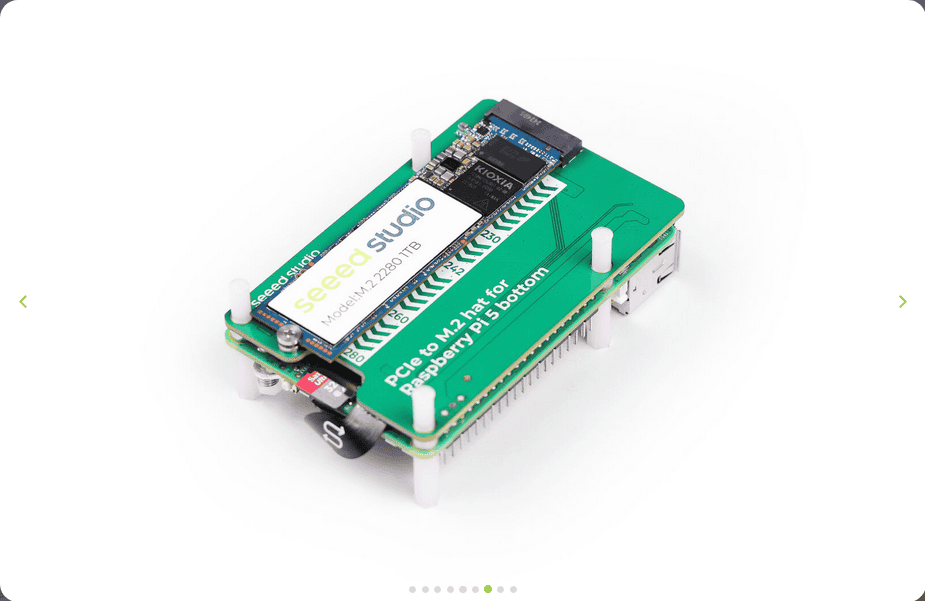

High-speed expansion: Seeed Studio PCIe to M.2 hat compatible with Raspberry Pi 5, supporting PCIe Gen2 x1 and PCIe Gen3 x1 speeds. It can be used to expand high-speed storage with NVMe SSDs and Hailo8/8L NPU AI accelerators.

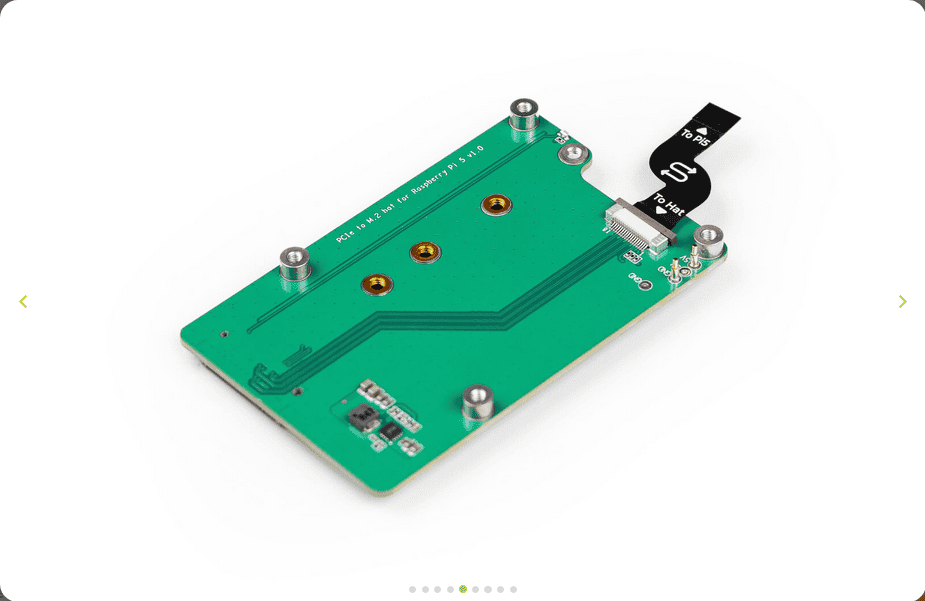

Stable Connection: Additional Pogo Pins for extra power supply to ensure a stable high-speed connection.

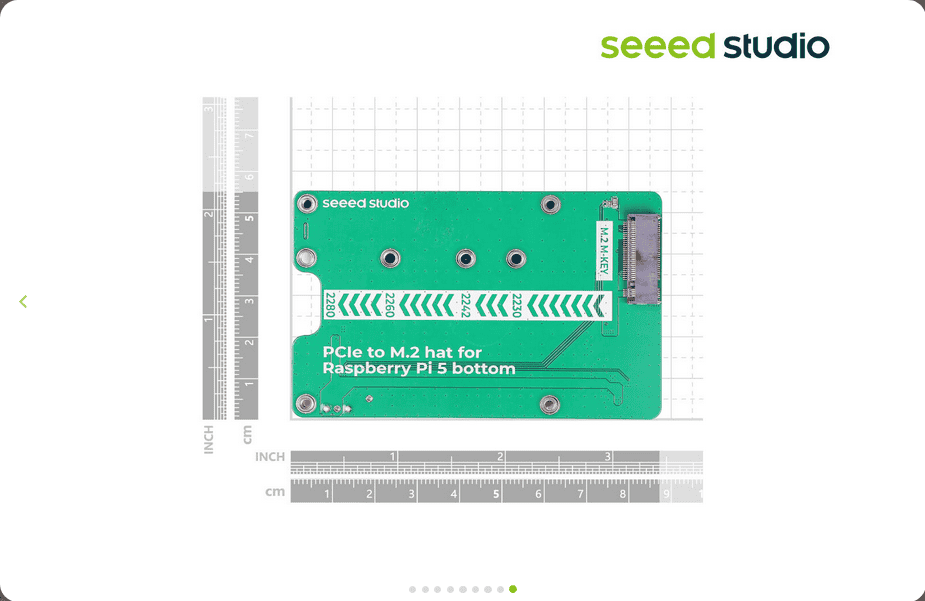

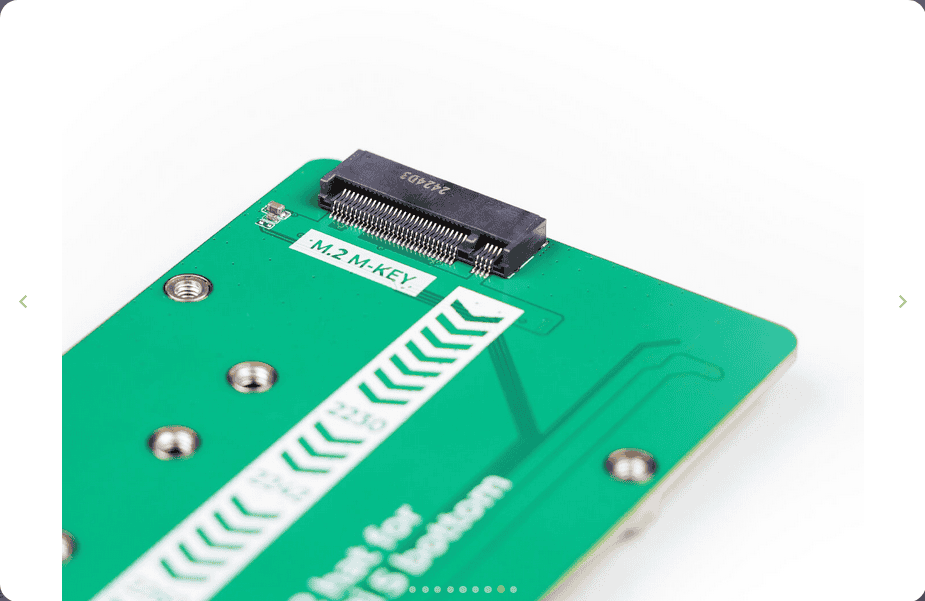

Multiple size support: 2230/2242/2260/2280 compatible.

Back-mounted design: This hat features a back-mounted design, allowing users to freely use the 40-pin GPIO and can be used in conjunction with other hats. Additionally, it does not obstruct official Raspberry Pi heatsinks and fans, providing better airflow and cooling efficiency.

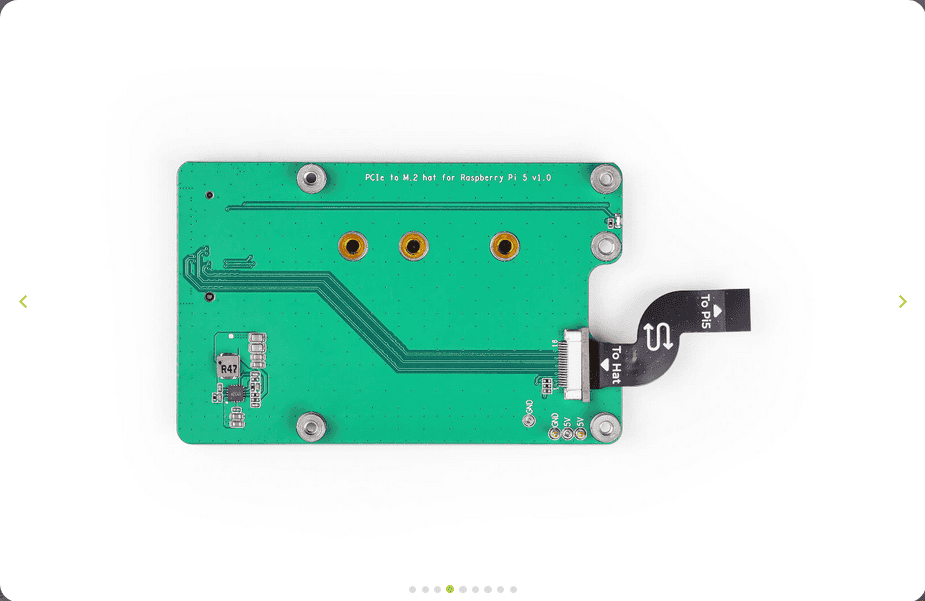

User-friendly Design: S-shaped FPC cable design that does not obstruct the micro SD card.

Open source case: Seeed M.2 hats aren't compatible with Raspberry Pi official case, so we provide adapted 3D printing case stp file. Click to download

Due to compatibility issues with Raspberry Pi's PCIe, not all NVMe SSDs are supported. Raspberry Pi's official developers are continuously updating the system to support more NVMe SSD controllers and models. Especially if booting from an SSD is required, we strongly recommend updating to the latest Raspberry Pi firmware and bootloader. For detailed instructions, please refer to the Seeed wiki.

Note: SATA SSD is not compatible with this hat.

Many excellent suppliers, such as Pimoroni, provide detailed compatibility lists. We are sorry that at this stage we have not tested enough SSD models to provide a detailed SSD compatibility list. Currently, on the Seeed homepage of pibenchmarks, there are several verified SSDs that can be used for storage and system boot disks. We will try to improve this list as much as possible in the future. Users are also welcome to share compatibility information in the comments section or via email. For now, you can refer to the compatibility lists of other SSD with Raspberry Pi 5 in the community. If you are unsure which SSDs are compatible, you can purchase SSDs sold on the Seeed website, all of which are verified. Among them, 128GB, 256GB, and 512GB are from Foresee, and 1TB is from Kioxia.

NVMe M.2 2280 SSD 1TB-Seeed Studio

512GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio

256GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio

128GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
