SKU: 26847
Part Number: PCIe TO USB 3.2 Gen1 HAT+
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_HAT+ Features
- PCI-E×1 Gen2 mode.
- Only support PI5B.
- Equipped with VL805 original high-performance main control chip.
- Reserved airflow vent for cooling fan, better cooling effect for Raspberry Pi 5, more stable performance.
- Support USB power control.
PCIe To USB 3.2 Gen1 HAT For Raspberry Pi 5, PCIe To USB HUB, 4x High Speed USB Ports, Driver-Free, Plug And Play, HAT + Standard
PCIe TO USB 3.2 Gen1 HAT
Designed for Raspberry Pi 5, driver-free, plug and play
Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
More USB Capability For Raspberry Pi 5
Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
Onboard Power Monitoring Chip And EEPROM
Real-Time Monitoring Of Power Status, Supports USB Port Power Control Via Software

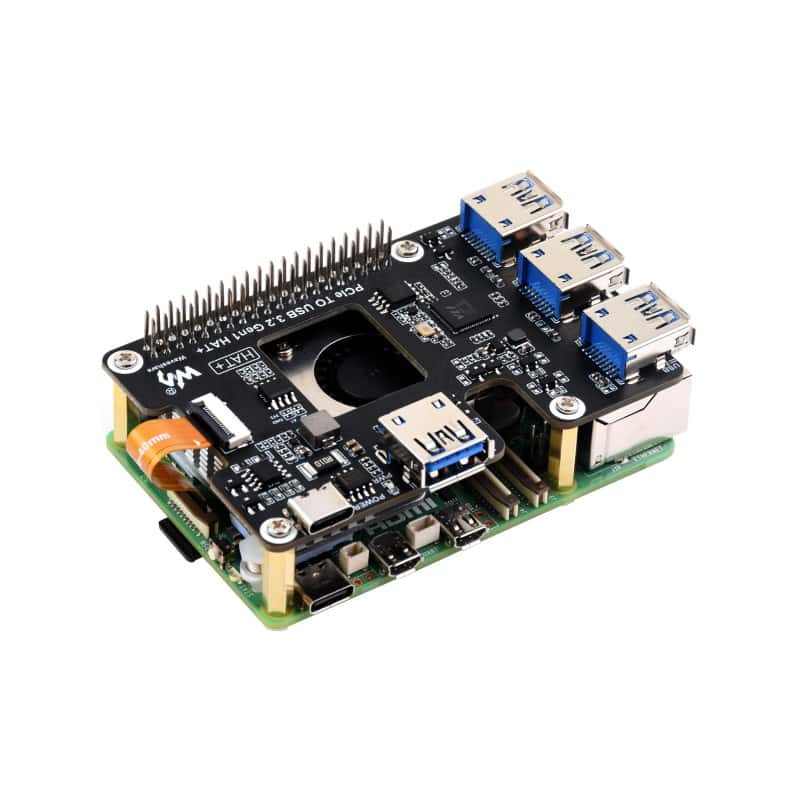

Reserved Airflow Vent For Cooling Fan
Better Cooling Effect For Pi5, More Stable Operation
* for reference only, the Raspberry Pi 5 and cooling fan are NOT included

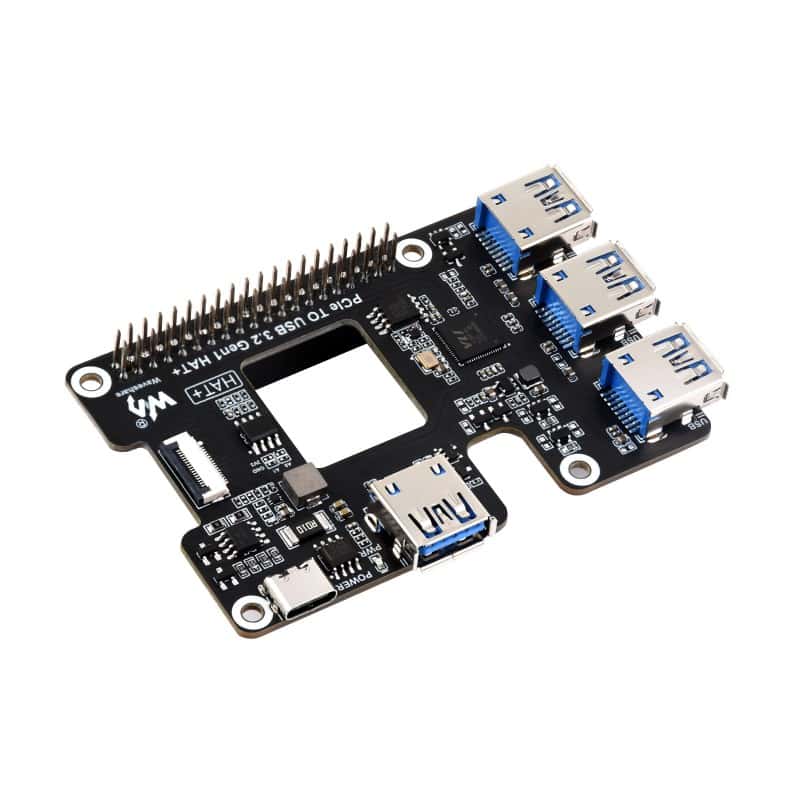

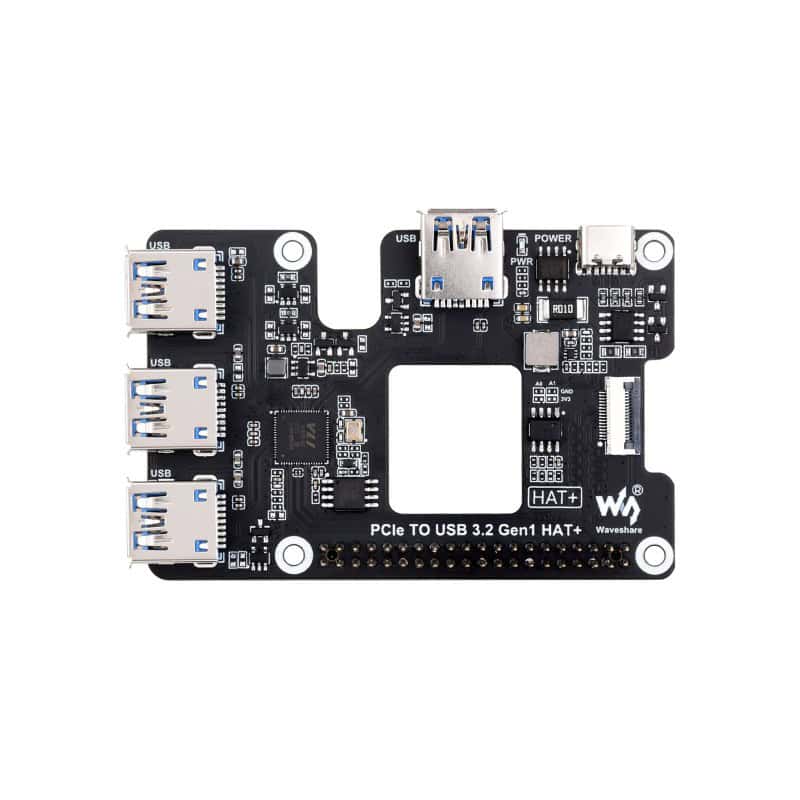

What's On Board
- Raspberry Pi GPIO header
for connecting Raspberry Pi 5
- USB 3.2 Gen1 expanded ports
USB1~USB4
- INA219
Power monitoring chip
- Power port
for external Type-C 5V DC power supply
- PWR LED
Power indicator
- MX25L3206
FLASH chip
- VL805
PCIe to USB 3.2 Gen1 HUB
- PCIe interface
for connecting to the PCIe interface of Raspberry Pi 5
How To Install
* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
PACKAGE CONTENT
Weight: 0.017 kg
- PCIe TO USB 3.2 Gen1 HAT+ x1
- Standoff pack x1
- 16P-Cable-40mm x1
