Frequency band |
LTE-FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
LTE-TDD |
B34, B38, B39, B40, B41 |
B38, B39, B40, B41 |
WCDMA |
B1, B2, B4, B5, B6, B8, B19 |
GSM |
850, 900, 1800, 1900 MHz |
GNSS |
GPS, Beidou, GLONASS, GALILEO, QZSS |
Data Transfer |
LTE-FDD |
150 Mbps (DL) / 50 Mbps (UL) |
LTE-TDD |
130 Mbps(DL) / 35 Mbps(UL) |
130 Mbps(DL) / 30 Mbps(UL) |
HSPA+ |
42 Mbps (DL) / 5.76 Mbps (UL) |
WCDMA |
384 Kbps (DL) / 384 Kbps (UL) |
EDGE |
236.8 Kbps (DL) / 236.8 Kbps (UL) |
296 Kbps (DL) / 236.8 Kbps (UL) |
GPRS |
85.6 Kbps (DL) / 85.6 Kbps (UL) |
107 Kbps (DL) / 85.6 Kbps (UL) |
Software Features |
Operating system |
Windows / Linux / Android |
Communication protocols |
TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS |
TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE |
SMS |
Supports MT, MO, CB, Text, PDU |
Firmware upgrade |
USB/FOTA |
USB/DFOTA |
Hardware Specifications |
SIM card |
1.8V / 3.0V |
Antenna interface |
IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) |
Power supply |
3V ~ 3.6V |
Form factor |
Mini-PCIe |
Dimensions |
50.8 × 31.0 × 5.5 mm |
51.0 × 30.0 × 4.9 mm |
Operating temperature |
-40℃ ~ +80℃ |
Applications |
Applicable regions |
global coverage |
Note: The 4G module is not included, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module. |
Designed for Raspberry Pi 5, HAT+ standard Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable
* for reference only, please refer to the Package Content for detailed part list
More USB Capability For Raspberry Pi 5 Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
* for reference only, please refer to the Package Content for detailed part list
Extends 1x Gigabit Ethernet port Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful
Network Speed Measurement Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable
and reliable network speed
Multi-system Support Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
Global band 4G / 3G / 2G support LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)
2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink)
Note: the 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function GNSS positioning Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
Note: the 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function Onboard power monitoring chip and EEPROM Real-time monitoring of power status, supports USB port power control via software

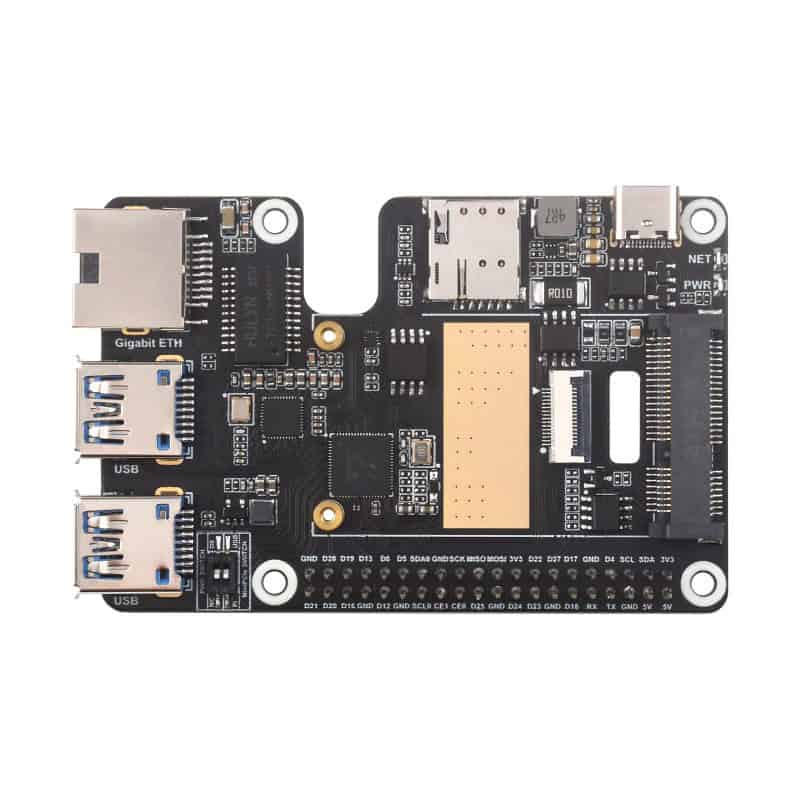

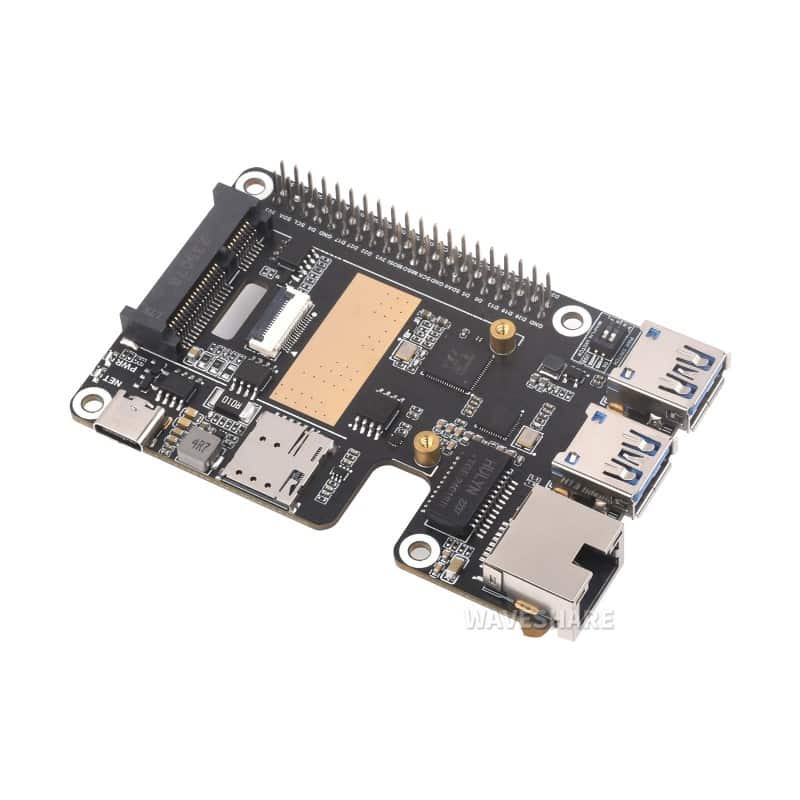

What's On Board
- RTL8153B
USB to Gigabit ETH
- VL805
PCIe to USB 3.2 Gen1 HUB chip
- INA219
Power monitoring chip
- EEPROM
for saving HAT ID and product information
- Raspberry Pi GPIO header
for connecting Raspberry Pi 5
- MiniPCIe slot
for connecting the 4G module with MIniPCIe interface
- 16PIN PCIe interface
for connecting to the PCIe interface of Raspberry Pi 5
- Type-C interface
for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
- Nano SIM card slot
for installing Nano-SIM card
- Gigabit Ethernet port
up to 1000Mbps data rate, compatible with 100Mbps
- USB 3.2 Gen1 expanded ports
USB1~USB2
- DIP switchs
for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
- NET indicator
Module Network status indicator
- PWR indicator
Power indicator
Pinout definition
How to Install
* for reference only, the Raspberry Pi 5 and Active Cooler are not included.
Application Scenarios Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...
Outline dimensions
Package content: Weight: 0.09 kg

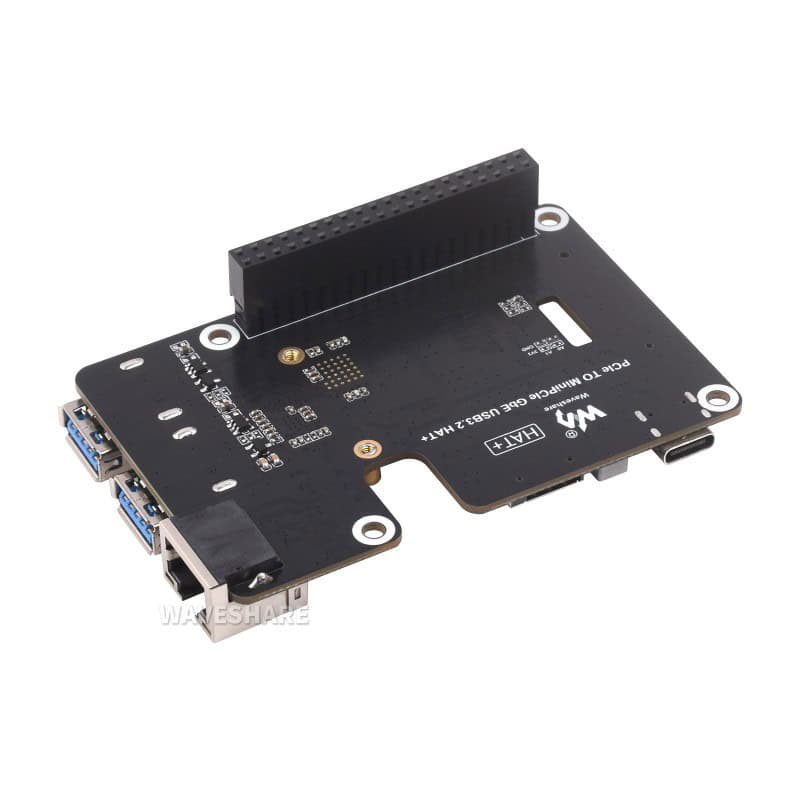

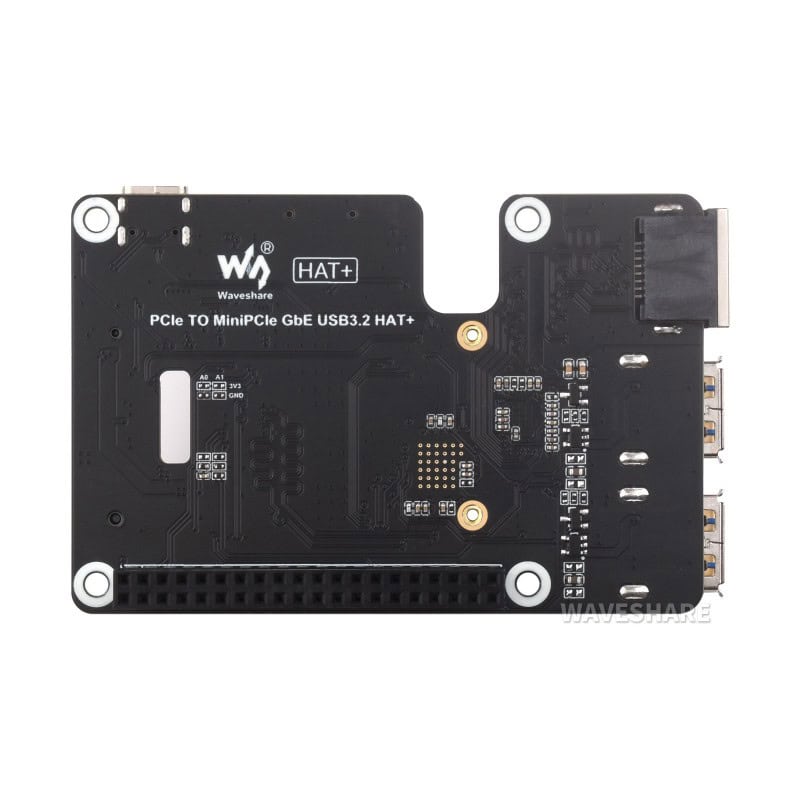

PCIe TO MiniPCIe GbE USB3.2 HAT+
- PCIe TO MiniPCIe GbE USB3.2 HAT+ x1
- 16P-Cable-40mm cable x1
- Network cable ~1.5m x1
- Screws pack x1
