SKU: 26785
Part Number: PCIe TO M.2 Board (C)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PCIe_TO_M.2_Board_(C) Features
- Support NVMe protocol M.2 interface Solid State Drive protocol, high-speed write/read, higher working efficiency.
- Support PCI-E×1 Gen2 or Gen3 mode.
- Only support PI5B.
- Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive.
- Onboard working indicator, light-up when powering on, and the ACT status indicator keeps blinking while writing/reading.
PCIe To M.2 Adapter Board (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, With Transparent Acrylic Mounting Plate, Side-Mounting Solution
PCIe To M.2 Board (C)
Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency
Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5

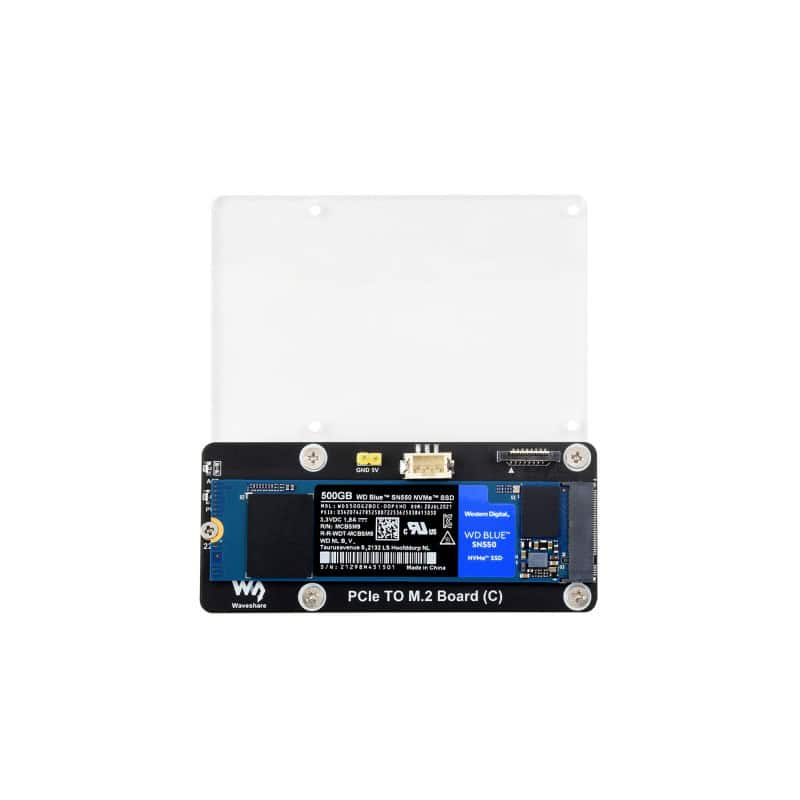

* for reference only, please refer to the Package Content for detailed part list Comes With Transparent Acrylic Mounting Plate

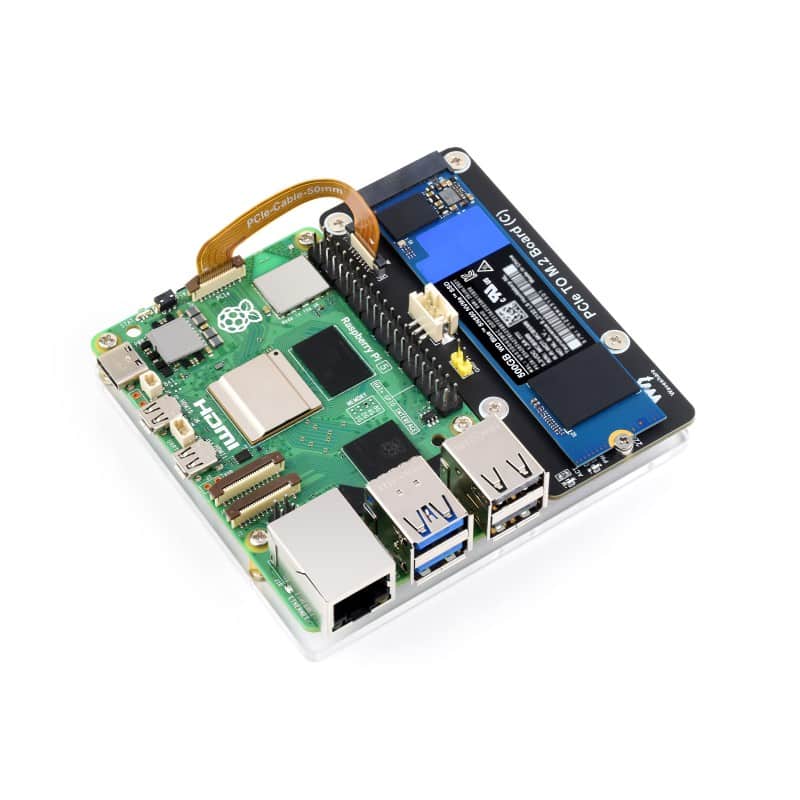

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
NVMe Drive Protocol Support
Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive
Multiple Power Supply Methods
Supports Power Supply Via PCIe Cable Or 3PIN Cable
* Note: uses PCIe cable for power supply by default, you can add 3PIN cable in cases of insufficient power

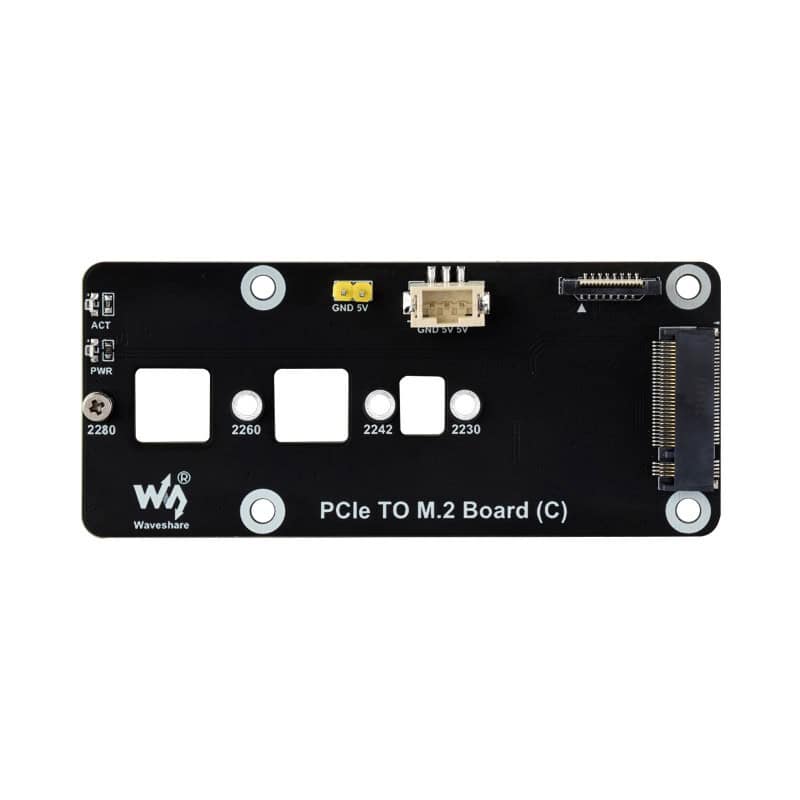

Onboard Dual LED Indicators
Easy To Monitor The Working Status
Outline Dimensions
PACKAGE CONTENT Weight: 0.017 kg
- PCIe TO M.2 Board (C) x1
- Transparent acrylic mounting plate x1
- PH2.0 3PIN cable ~5cm x1
- PCIe-Cable-50mm x1
- Standoff pack x1
