SKU: 26848
Part Number: PCIe TO Gigabit ETH Board (C)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PCIe_TO_Gigabit_ETH_Board_(C) Features
- PCI-E×1 Gen2 mode.
- Only support PI5B.
- Network working indicator:
- Accessing 1000M network: the green indicator keeps blinking.
- Accessing 100M network: the yellow indicator keeps blinking.
- Equipped with original RTL8111H high-performance controller.
PCIe TO Gigabit ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter, With Transparent Acrylic Mounting Plate, Side-Mounting Solution
PCIe TO Gigabit ETH Board (C)
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-Free, Plug And Play
Specifications
CONTROLLER |
RTL8111H |
ETHERNET PORT |
RJ45 Gigabit Ethernet |
PICE INTERFACE |
PICe x1 GEN2 |
POWER SUPPLY |
5V |
NETWORK STANDARD |
10/100/1000Mbps |
INDICATOR STATUS |
accessing 1000M network: the green indicator keeps blinking
accessing 100M network: the yellow indicator keeps blinking |

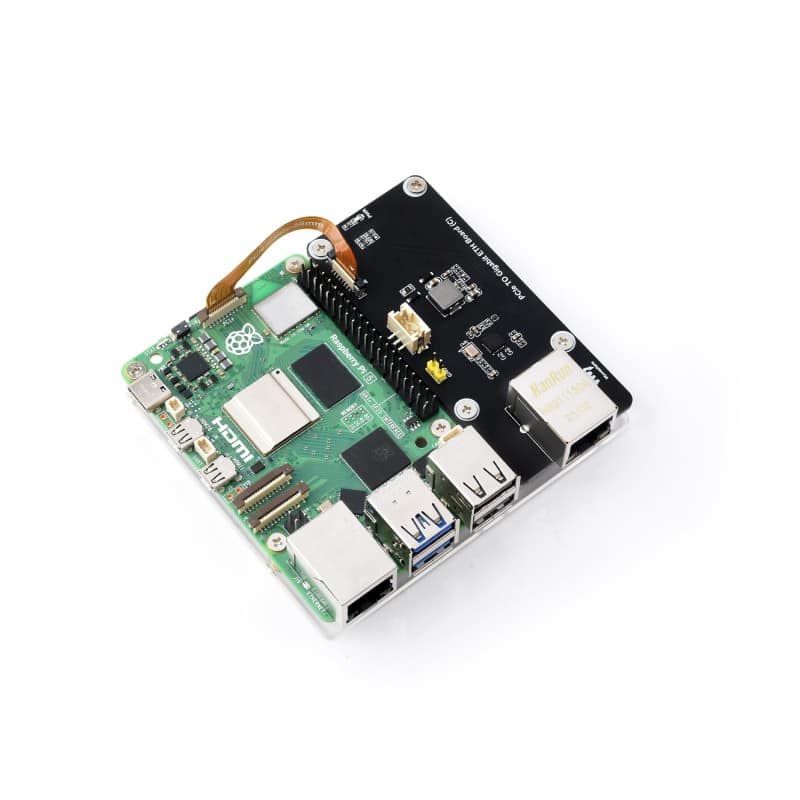

Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list

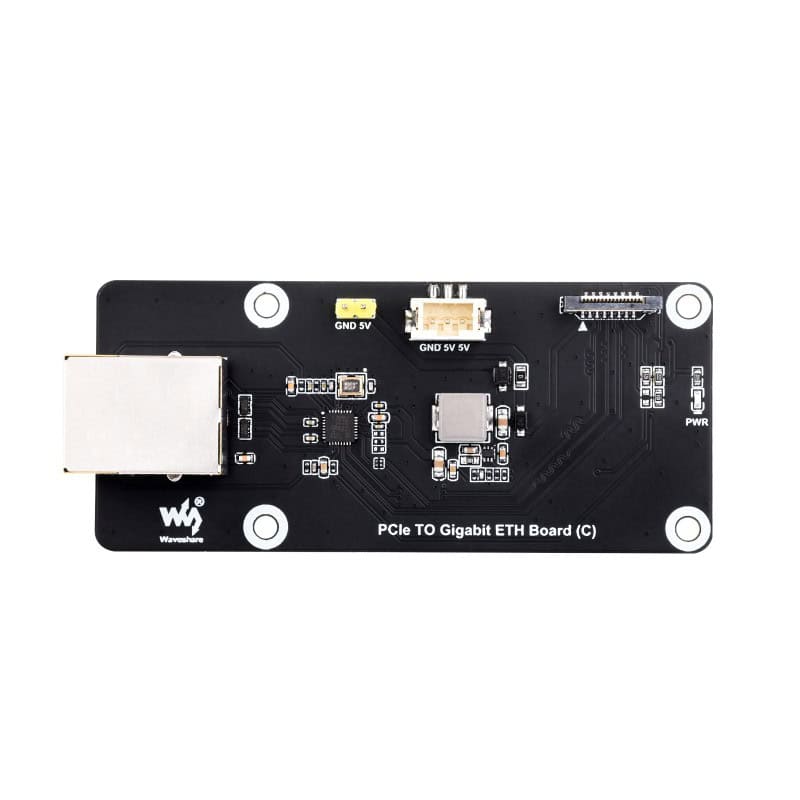

High-Performance Controller
Onboard Original High-Performance RTL8111H Chip
Supports Raspberry Pi OS, Driver-Free, Plug And Play
Comes With Transparent Acrylic Mounting Plate
Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
Supports Power Supply Via PCIe Cable
Outline Dimensions
PACKAGE CONTENT
Weight: 0.021 kg
- PCIe TO Gigabit ETH Board (C) x1
- Transparent acrylic mounting plate x1
- PH2.0 3PIN cable ~5cm x1
- PCIe-Cable-50mm x1
- Standoff pack x1
