Šifra: w27834
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
1.990,00 RSD
Cena sa PDV
u korpu
  • Kategorija: mini PC
  • Težina po komadu: 0.082 Kg
SKU: 27834
Part Number: PCIe TO USB 3.2 Gen1 Board (C)
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_Board_(C)
PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

PCIe TO USB 3.2 Gen1 Board (C)

Designed for Raspberry Pi 5


Supports Raspberry Pi OS, Driver-Free, Plug And Play

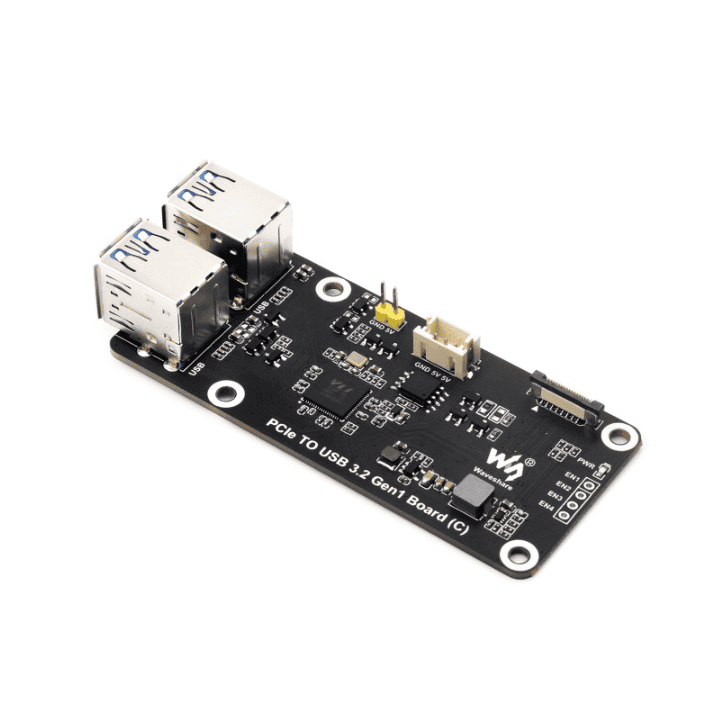

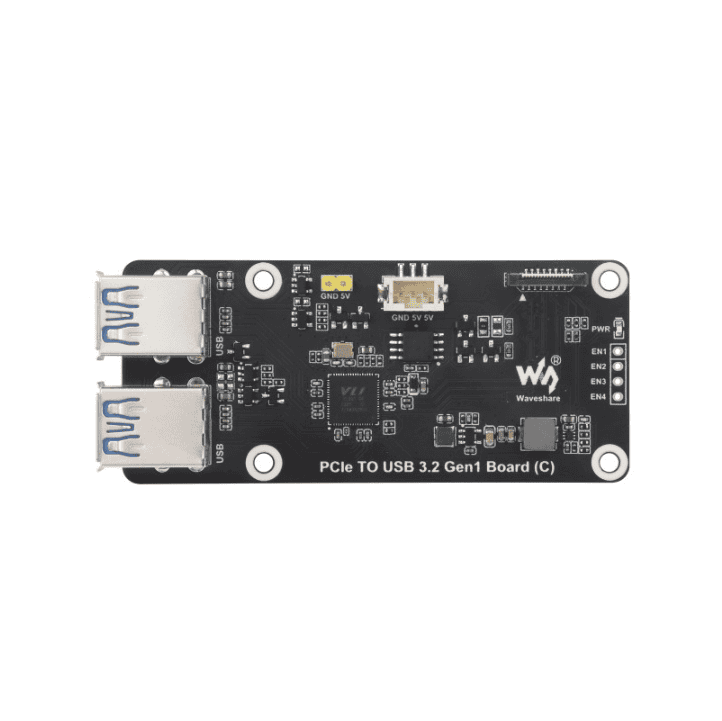

PCIe to 4-ch USB3.2 Gen1 Board (C), front view

Connecting To PI5 Via 16PIN Cable
PCIe to 4-ch USB3.2 Gen1 Board (C), connecting to PI5

Specifications























INTERFACE STANDARD High-speed USB 3.2 Gen1
COMMUNICATION RATE 5Gbps for single USB port
total 5Gbps for 4-ch USB ports
USB OUTPUT 5V@Imax: 2A; USB-A connector
POWER SUPPLY 5V DC power supply header/connector
OPERATING TEMPERATURE 0℃ ~ 75℃


5Gbps Ultra-Fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission


PCIe to 4-ch USB3.2 Gen1 Board (C) up to 500MB/s transmission speed

Enabling Up To 8-Ch USB Ports For The Raspberry Pi 5

PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals


PCIe to 4-ch USB3.2 Gen1 Board (C), supports connecting to various USB devices

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list



4-Ch Power Supply Independent Control

Allows Controlling The Power ON/OFF Of Each USB Port Via Commands


PCIe to 4-ch USB3.2 Gen1 Board (C), allows controlling the power ON/OFF of each USB port via commands

Two Power Supply Methods

Supports Power Supply Via 2PIN Header Or 3PIN Connector


PCIe to 4-ch USB3.2 Gen1 Board (C), supports two power supply methods

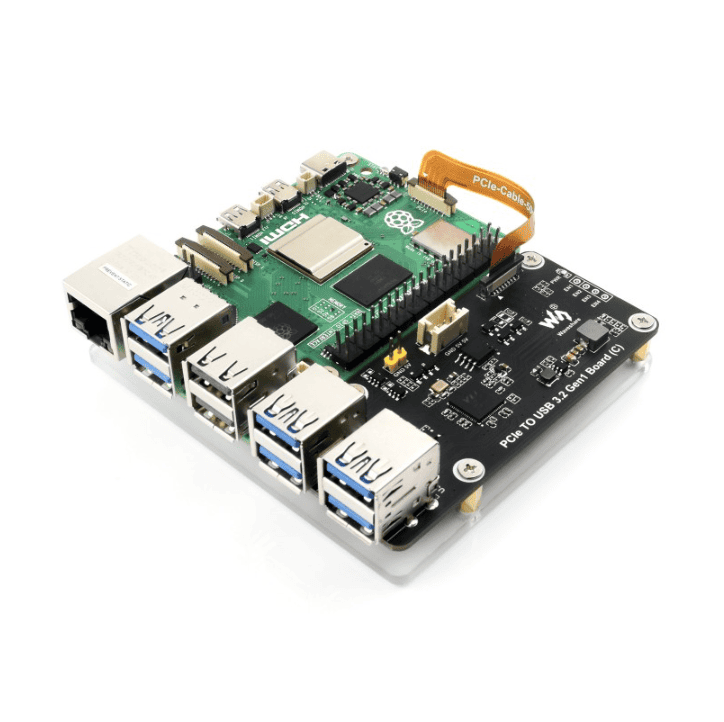

Comes With Transparent Acrylic Mounting Plate

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
Connecting To PI5 Via 16PIN Cable


PCIe to 4-ch USB3.2 Gen1 Board (C), adopts side-mounting solution

* for reference only, please refer to the Package Content for detailed part list



Acrylic Mounting Bottom Plate, Stable And Not Easy To Loosen
PCIe to 4-ch USB3.2 Gen1 Board (C), with Acrylic mounting bottom plate

Outline Dimensions
PCIe to 4-ch USB3.2 Gen1 Board (C), outline dimensions

PACKAGE CONTENT

Weight: 0.065 kg


  1. PCIe TO USB 3.2 Gen1 Board (C) x1

  2. Transparent acrylic mounting plate x1

  3. 16PIN PCIe cable x1

  4. PH2.0 3PIN cable x1

  5. Standoff pack x1



1PCIe to 4-ch USB3.2 Gen1 Board (C)
2
3
4
5
