SKU: 27480
Part Number: PCIe TO 2-CH M.2 HAT+
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PCIe_TO_2-CH_M.2_HAT+ PCIe To 2-Ch M.2 Adapter For Raspberry Pi 5, Compatible With 2230/2242 Size NVMe Solid State Drive, High-Speed Reading/Writing, Raspberry Pi 5 M.2 HAT

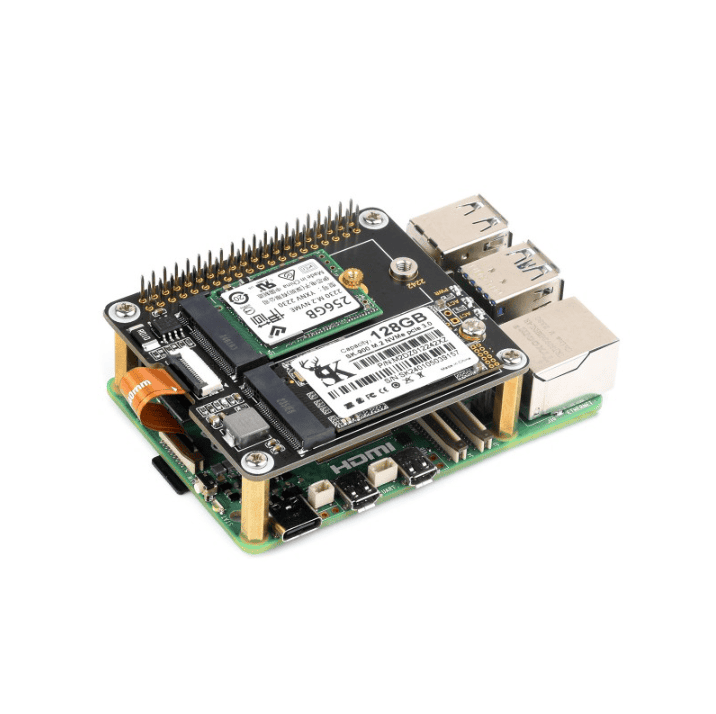

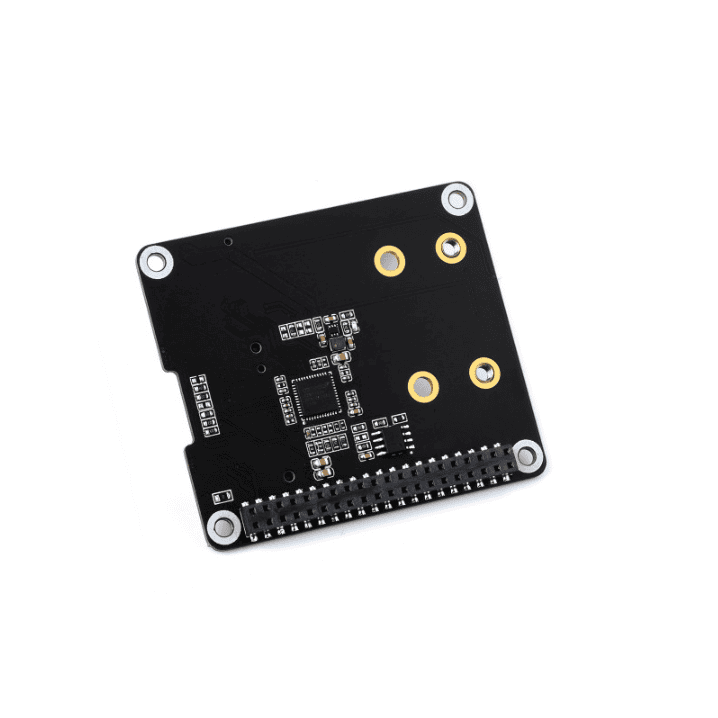

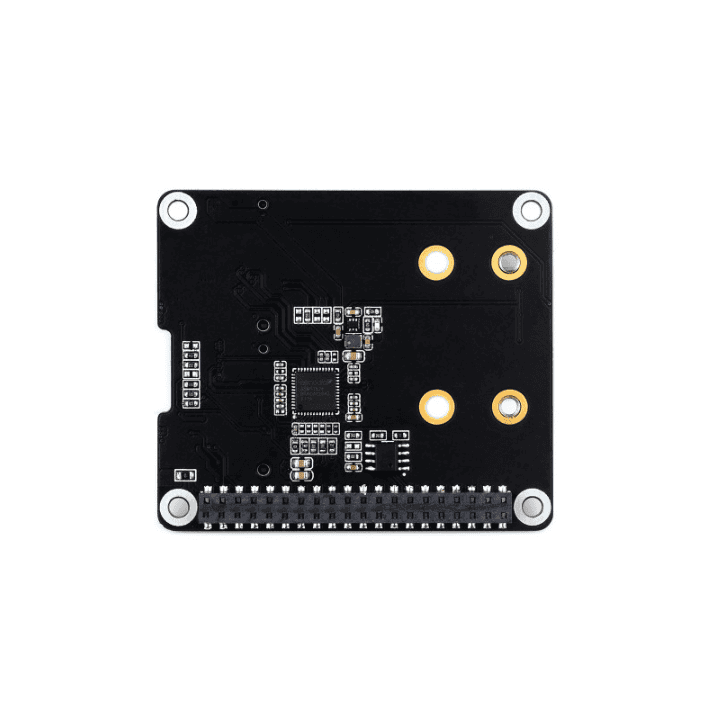

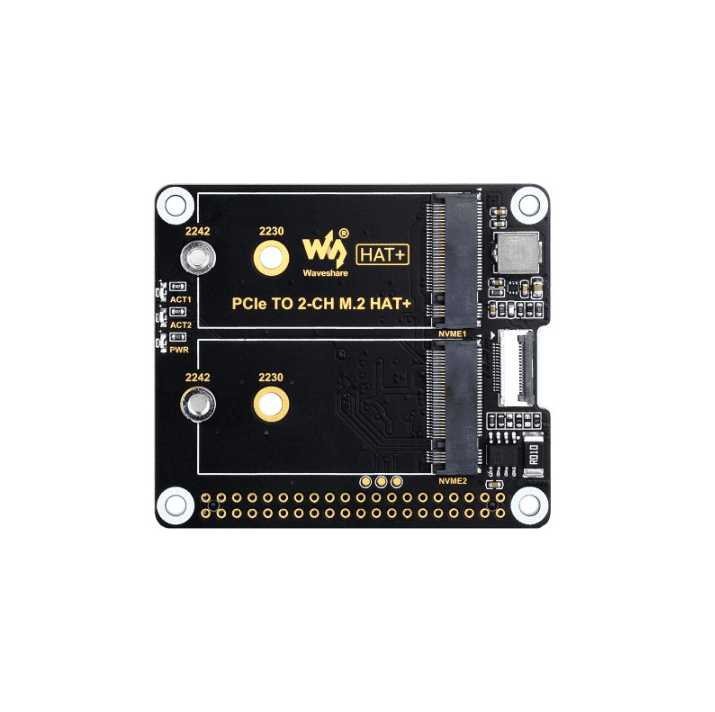

PCIe To 2-Ch M.2 Adapter
Designed for Raspberry Pi 5
2-Ch NVMe Protocol M.2 Solid State Drive Adapter, High-Speed Reading/Writing
Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5
Dual NVMe Solid State Drives Support
Compatible With 2230/2242 Size M.2 Solid State Drives
Supports PCIE X1 Gen2 Only, Does Not Support Booting PI5 From Solid State Drive
Onboard Dual LED Indicators
Easy To Monitor The Working Status
Onboard Power Monitoring Chip And EEPROM
Real-Time Monitoring Of Solid State Drive Power Status For More Stable Operation
Outline Dimensions
PACKAGE CONTENT: Weight: 0.022 kg
- PCIe TO M.2 HAT+ x1
- 2*20 Pin header x1
- 16P-Cable-40mm x1
- Screws pack x1
