Konektori, žice, protobord SKU: 26617
Part Number: RP2040-BLE-Kit
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RP2040-BLE
Waveshare RP2040-BLE Development Board, Raspberry Pi Microcontroller Development Board, Based On RP2040, Supports Bluetooth 5.1 Dual Mode, USB Port Adapter Board Optional

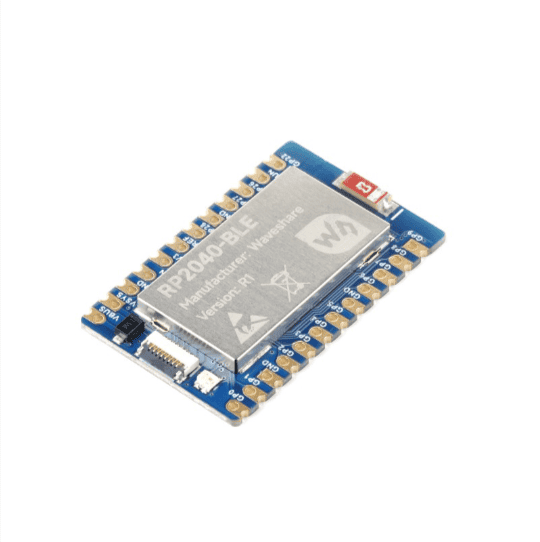

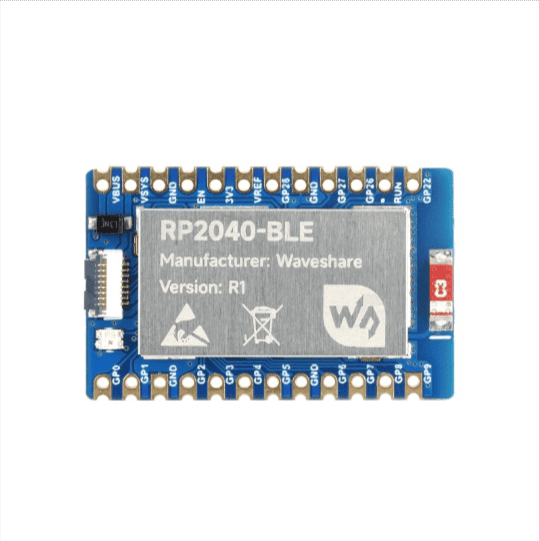

RP2040-BLE Development Board
Based On RP2040, USB Port Adapter Board Optional
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- Supports Bluetooth 5.1 dual mode function
- Onboard Bluetooth module, allows controlling by serial AT commands for quick start-up
- Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Adapting 24 × pins including 14 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 14 × controllable PWM channels
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support

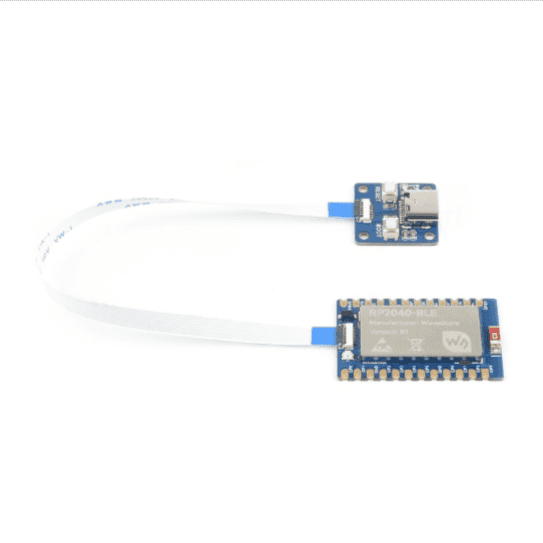

RP2040-BLE-Kit Development board + USB Type-C Adapter Board + FPC cable
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Supports Bluetooth 5.1 Dual Mode
Allows Controlling By Serial AT Commands, With SPP And BLE Support
Compact Size, Separate Adapter Board Design
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications. Adapting USB Type-C Port Via Adapter Board
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
14 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.008 kg
- RP2040-BLE x1

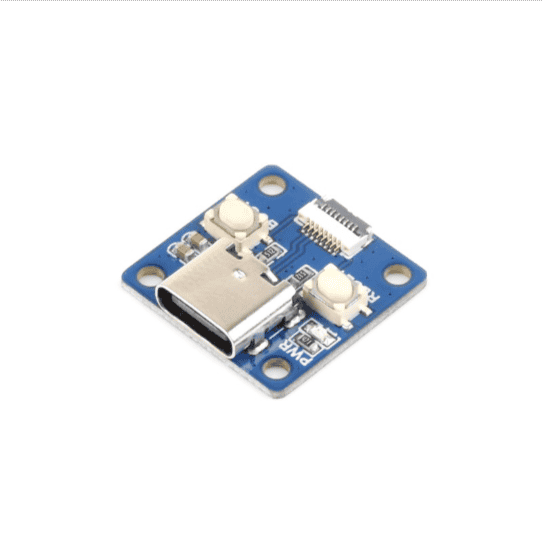

- USB Type-C adapter board x1
- OPTIONS 8PIN FPC cable ~15cm x1
1
2
3
