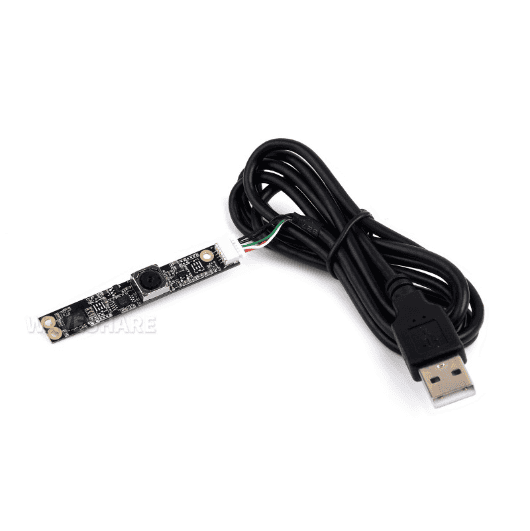

SKU: 26213
Part Number: OV5693 5MP USB Camera (B)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(B) 5MP USB CAMERA MODULE
OV5693 Sensor, USB2.0 Port, Auto Focusing
Specifications
PIXELS |
5MP |
SENSOR |
OV5693 |
INTERFACE |
USB 2.0 |
CAMERA |
Sensor size |
1/4 inch |
Aperture (F) |
2.0 |
Focal length (EFL) |
3.2mm |
Field of view (FOV) |
75° |
Distortion |
<1% |
Focusing |
Auto focusing |
CONSTRUCTION |
4P + IR Filter |
IMAGE |
Format support |
MJPG, YVY2 |
Static image resolution |
2592 × 1944 |
Video recording |
15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
OPERATING VOLTAGE |
5V ± 5% |
CAMERA SIZE |
8.5 × 8.5 mm |
MODULE SIZE |
8.5 × 60.2mm |
More Clear 1080P HD Video Recording
Supports 1080p@30 Video Recording
Auto Focusing
Onboard Micromotor, Flexible Auto Focus
Connecting With USB Cable

Connecting with Raspberry Pi 5
Connecting with Jetson series board * for reference only, please refer to the Package Content for detailed part list
Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.016 kg
OV5693 5MP USB Camera (B) x1
