SKU: 24710
Part Number: OV5693 5MP USB Camera (A)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A) OV5693 5MP USB Camera, Fixed-Focus, Auto Focusing, M12 Camera Module

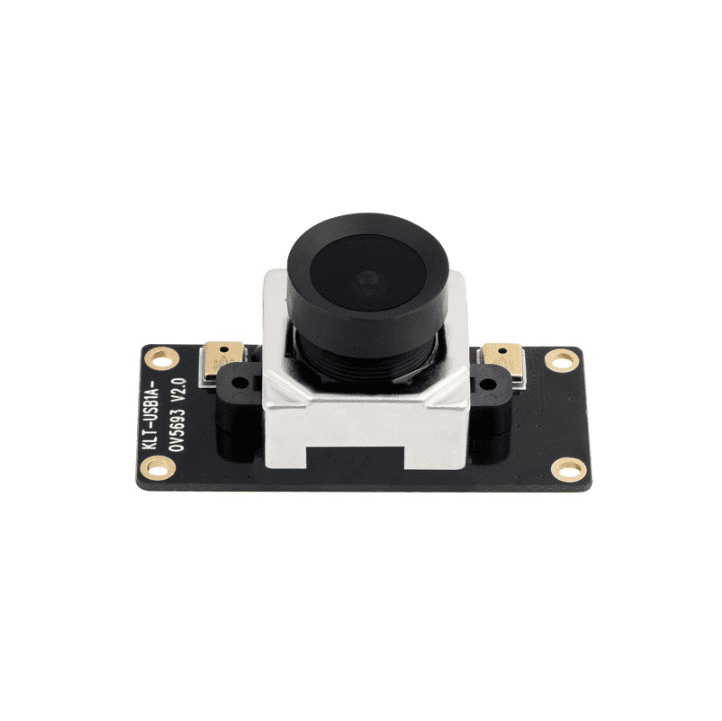

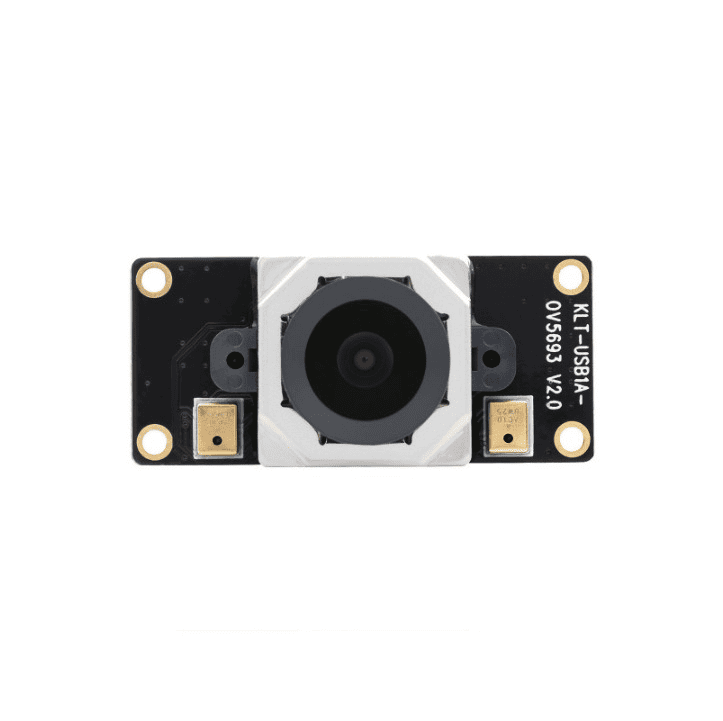

5MP M12 CAMERA MODULE
OV5693 Sensor, USB2.0 Port, Auto Focusing
Specifications
PIXELS |
5MP |
SENSOR |
OV5693 |
INTERFACE |
USB 2.0 |
CAMERA |
Sensor size |
1/4 inch |
Aperture (F) |
2.1 |
Focal length (EFL) |
2.5 mm |
Field of view (FOV) |
135°(D) 95°(H) 70°(V) |
Focusing |
Auto focusing |
IMAGE |
Format support |
MJPG, YVY2 |
Static image resolution |
2592 × 1944 |
Video recording |
MJPG:
2592 × 1944 15FPS
1920 × 1080 15FPS
1280 × 720 15FPS
640 × 480 15FPS |
YUY2:
2592 × 1944 3FPS
1920 × 1080 5FPS
1280 × 720 10FPS
640 × 480 15FPS |
OPERATING VOLTAGE |
5V ± 5% |
OPERATING CURRENT |
500mA |
CAMERA SIZE |
18.00 × 18.00 × 19.69 mm |
MODULE SIZE |
18.00 × 40.00 mm |

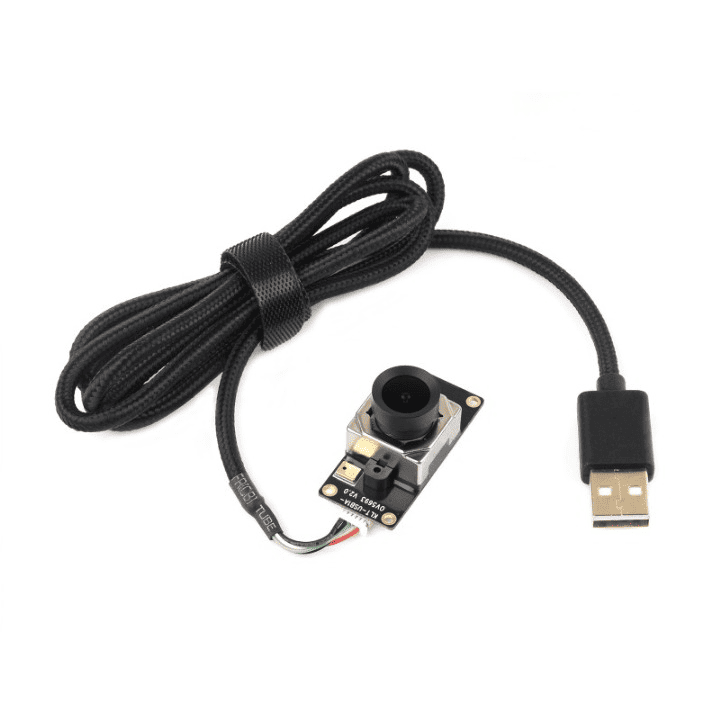

Connecting With USB Cable
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.028 kg
OV5693 5MP USB Camera (A) x1
