SKU: 22980
Part Number: OV5647-70 5MP OIS Camera
Brand: Waveshare
Korisne informacije: www.waveshare.com/wiki/OV5647-70_5MP_OIS_Camera

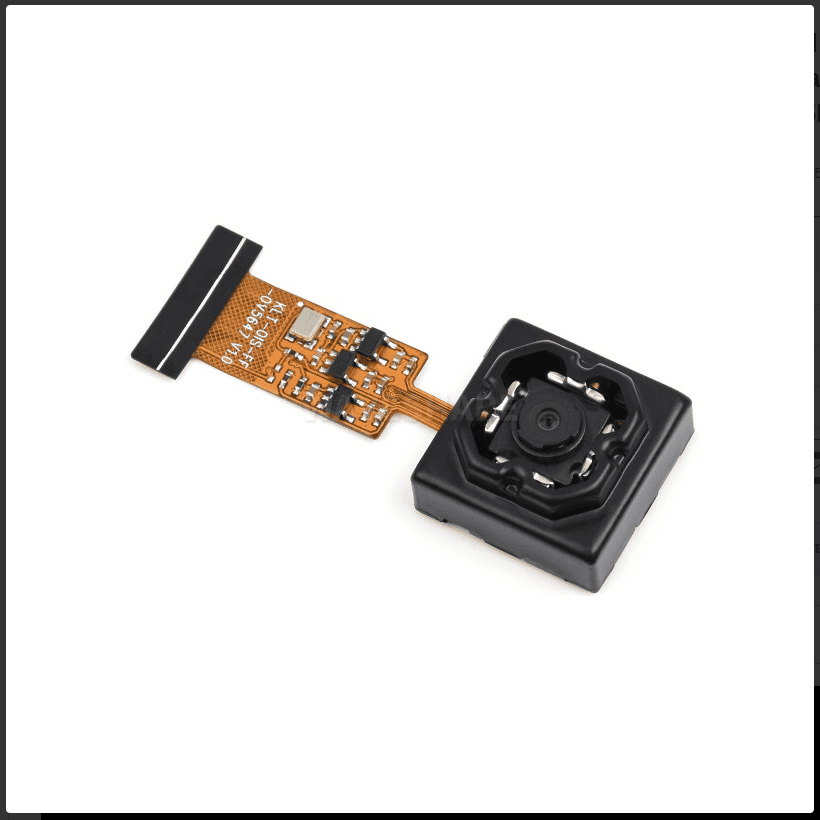

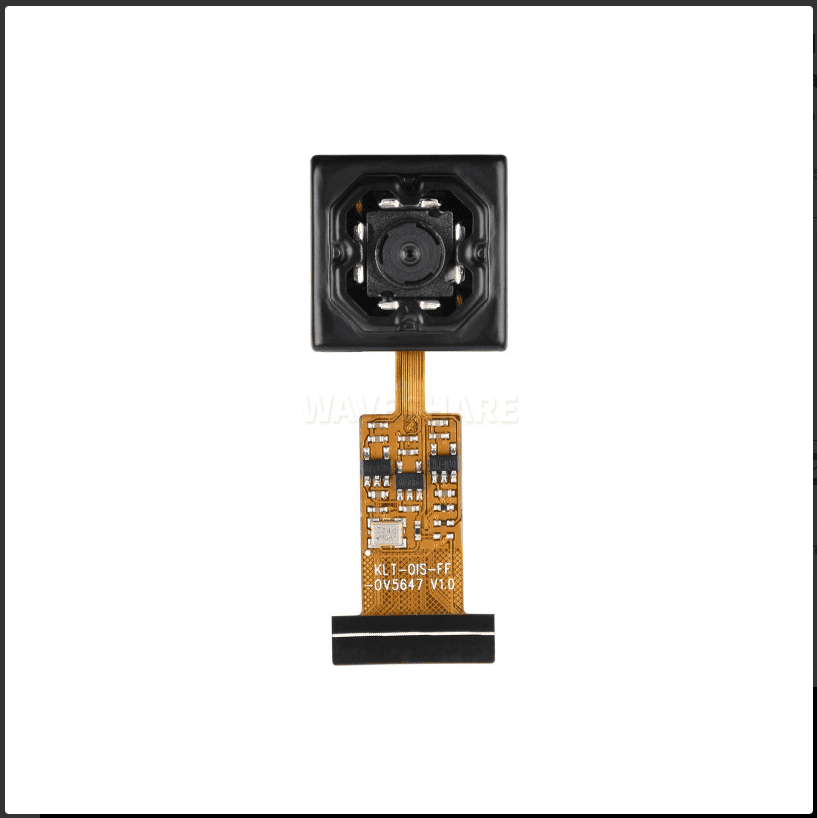

OV5647 Optical Image Stabilization Camera Module For Raspberry Pi, 5MP
OV5647-70 5MP Optical Image Stabilization Camera For Sports Camera, Robotics projects, Wearable applications, etc.
Optical Image Stabilization System Support Dual-Axis Image Stabilization, Compensation Angle ± 5°
OIS Camera Non-OIS Camera More Clear 1080P HD Video Recording
Specifications
SENSOR |
OV5647 |
CMOS SIZE |
1/4 inch |
PIXELS |
5MP |
APERTURE |
F 2.8 |
FOCAL LENGTH |
3.2mm |
FIELD OF VIEW |
70° |
DISTORTION |
< 1.0% |
FOCUSING |
Fixed focus |
STABILIZATION TYPE |
OIS (optical image stabilization) |
STABILIZATION RANGE |
XY axis ± 5° |
IMAGE |
2592 x 1944 static image resolution |
VIDEO RECORDING |
1920 × 1080p @30, 1280 × 720p @60,
640 × 480p @60, 640 × 480p @90 |
Device Support
Raspberry Pi series
Supports 4B / 3B+ / 3A+

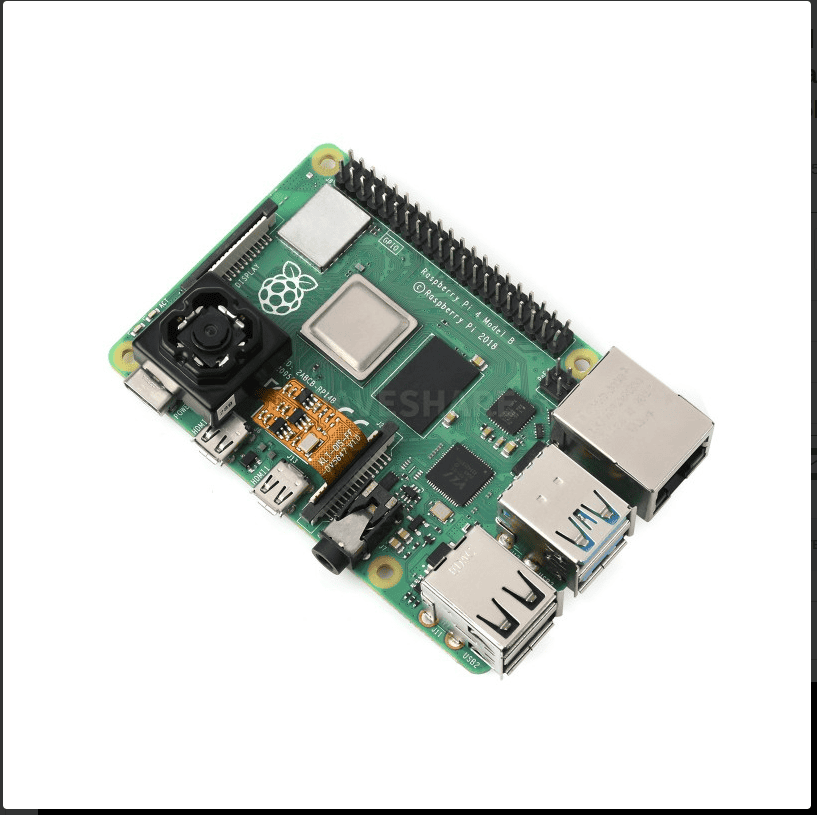

Zero / Zero 2 W, and CM3/3+/4 (extra adapter board required) Application Examples Mini Size, Direct Integration Into Raspberry Pi-Powered Projects
Suitable For Sorts Of Compact Applications
*Raspberry Pi 4B is NOT included. Product Show
Outline Dimensions
PACKAGE CONTENT Weight: 0.006 kg
OV5647-70 5MP OIS Camera x1
