SKU: 21834
Part Number: OV5640 5MP USB Camera (C)
Brand: Waveshare
Korisne informacije:

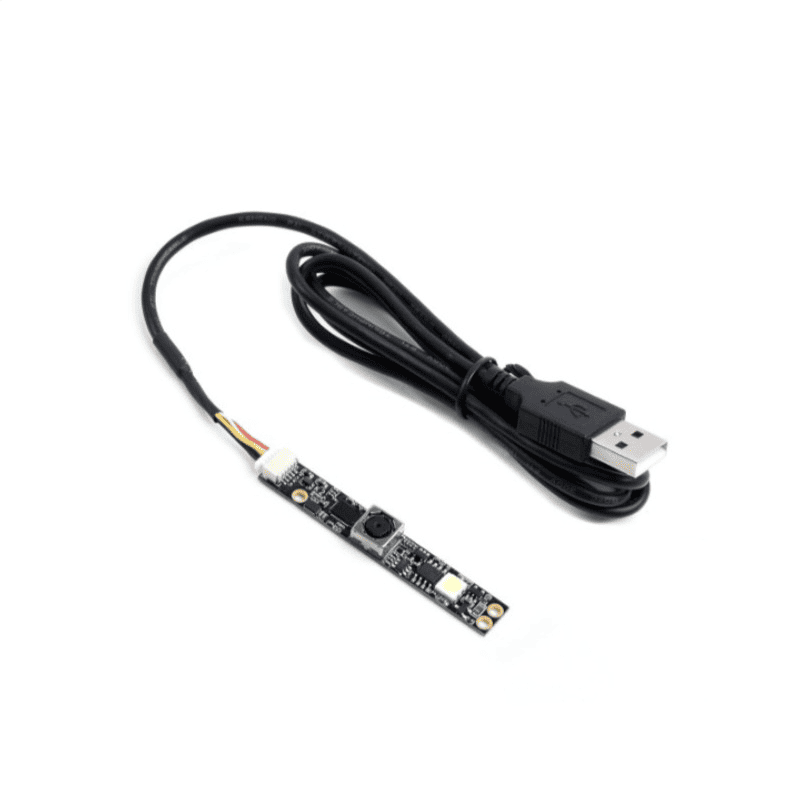

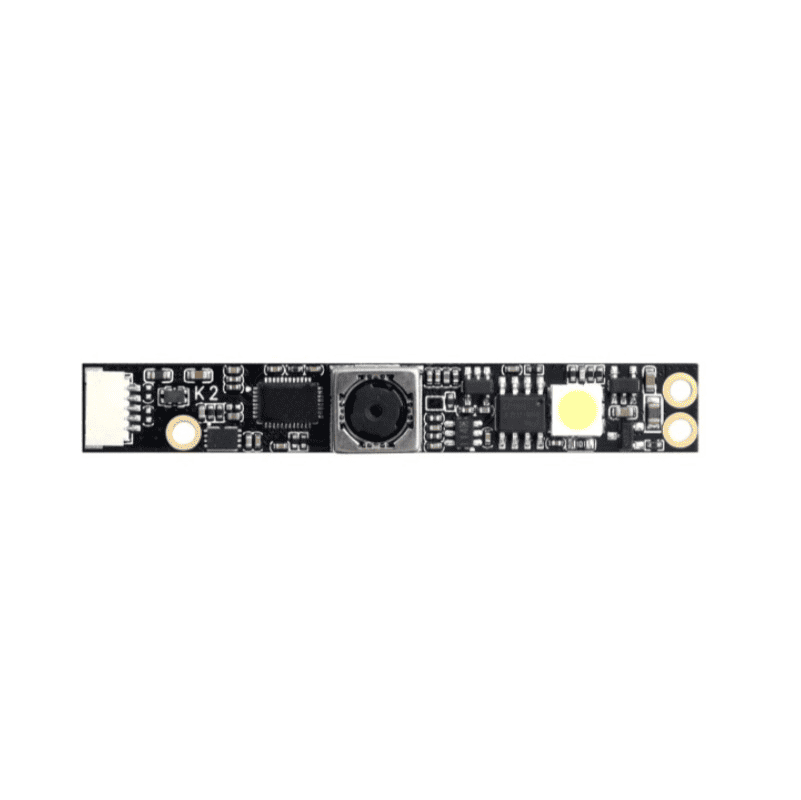

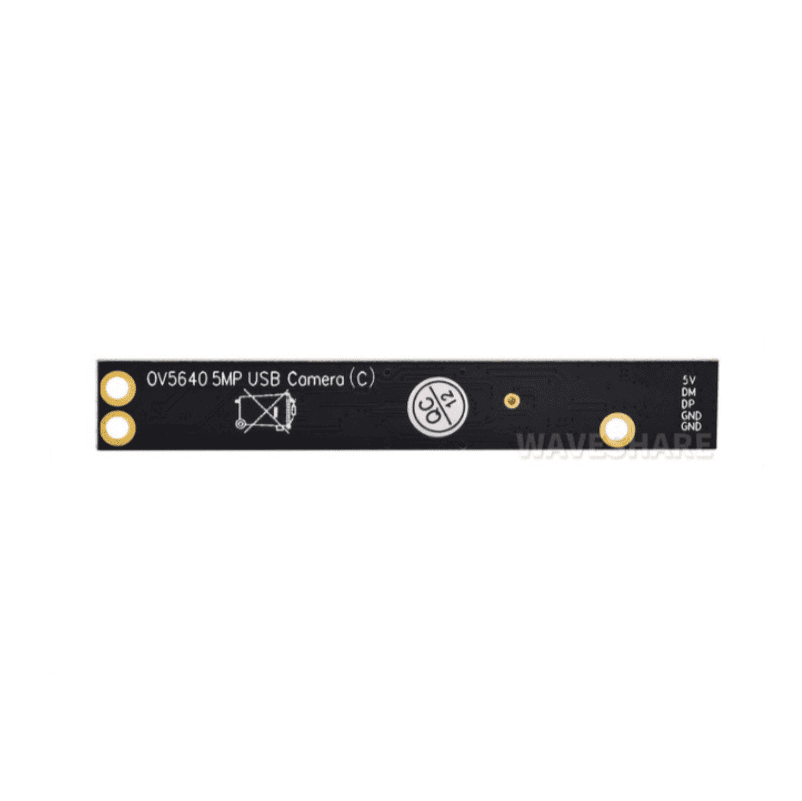

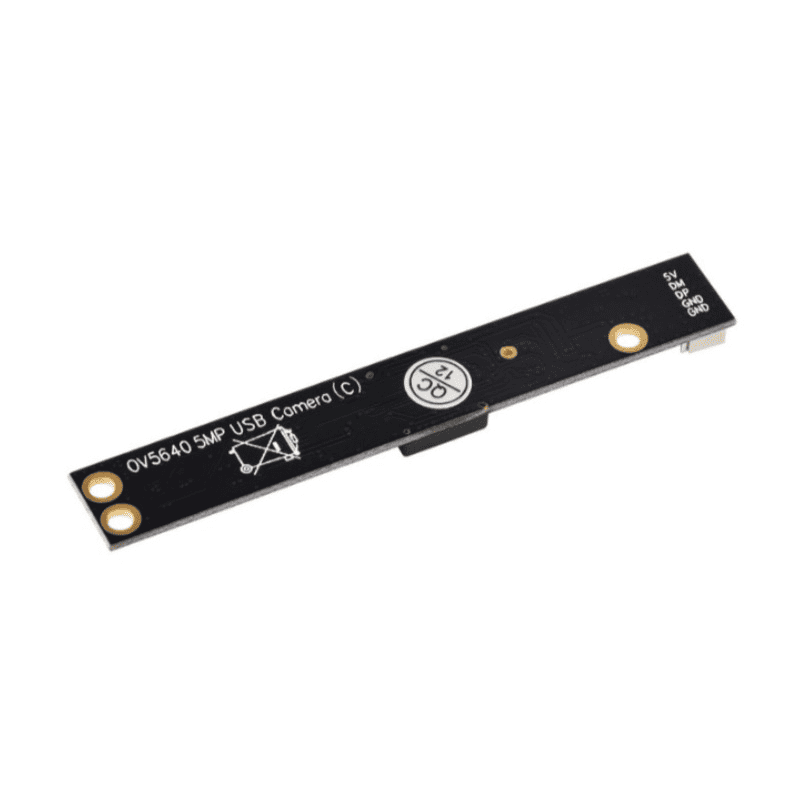

OV5640_5MP_USB_Camera OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF
5MP CAMERA MODULE
OV5640 Sensor, USB Port
Specifications
PIXELS |
5MP |
SENSOR |
OV5640 |
INTERFACE |
USB 2.0 |
CAMERA |
Sensor size |
1/4 inch |
Aperture (F) |
2.8 |
Focal length (EFL) |
3.29 mm |
Field of view (FOV) |
68° |
Distortion |
< 1% |
Focusing |
(B): AF Auto-Focus
(C): FF Fixed-Focus |
IMAGE |
Format support |
MJPG, YUV422 |
Static image resolution |
2592 × 1944 |
Video recording |
15 FPS 2592 × 1944
30 FPS 1920 × 1080
30 FPS 1280 × 720 |
OPERATING VOLTAGE |
5V ± 5% |
CAMERA SIZE |
8.5 × 8.5 mm |
MODULE SIZE |
9 × 62 mm |
NOTE |
Select OV5640 5MP USB Camera (B) for Auto-focus,
Select OV5640 5MP USB Camera (C) for Fixed-focus,
Except for the focus mechanism, the two cameras are exactly the same. |
Connecting With USB Cable
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.027 kg
- OV5640 5MP USB Camera (C) x1
