Samo kamera, bez sočiva!
Sočiva su ovde: https://www.malina314.com/proizvod/socivo-za-novu-kameru-6mm-3mp-lens-for-rpi-hq-camera/
https://www.malina314.com/proizvod/socivo-za-novu-kameru-16mm-10mp-lens-for-rpi-hq-camera/

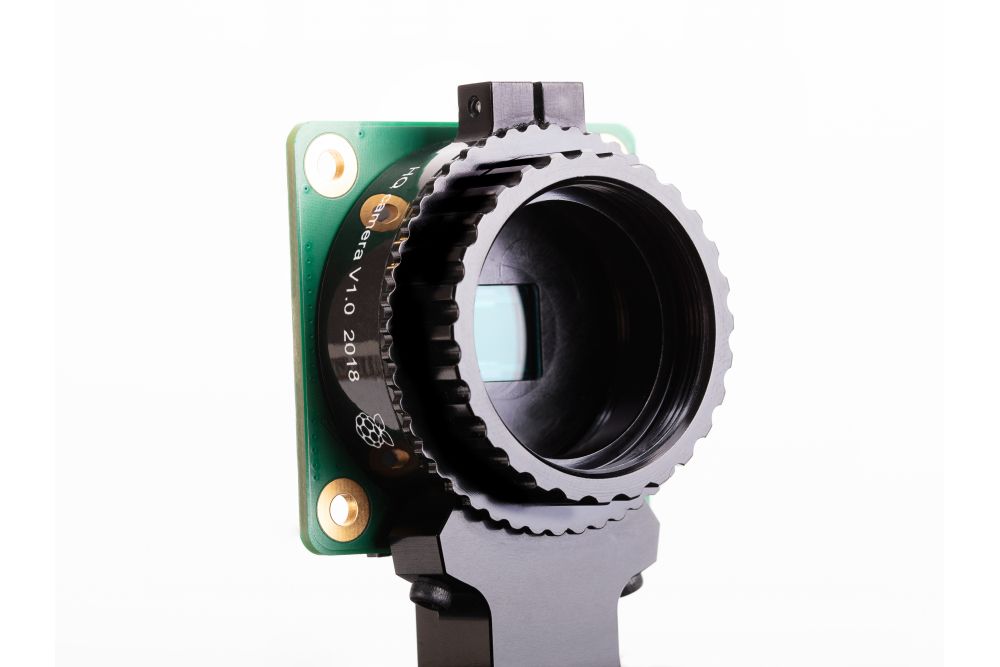

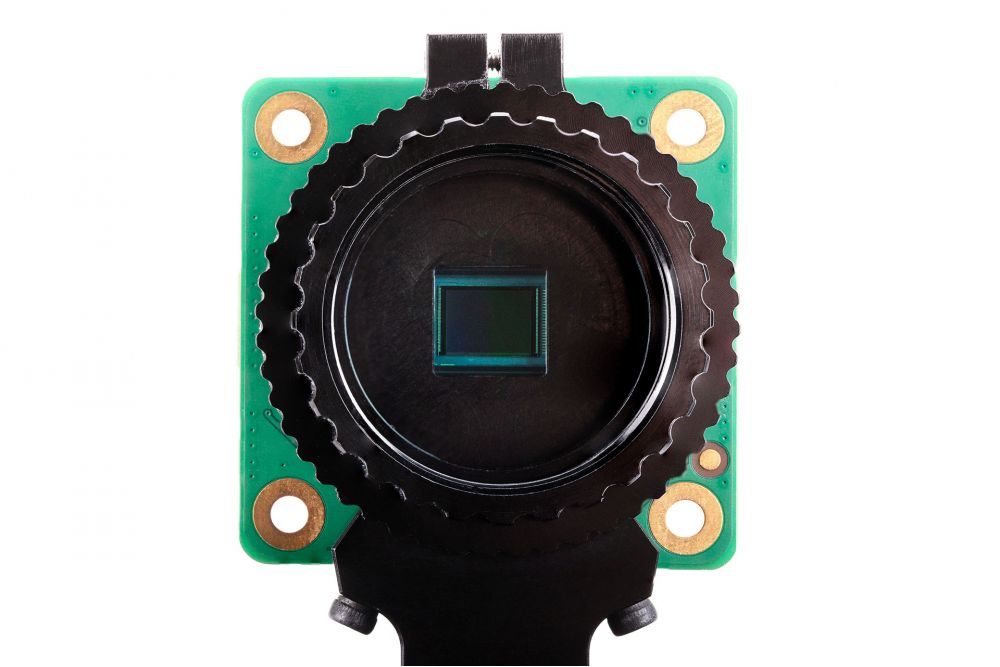

Raspberry Pi High Quality Camera

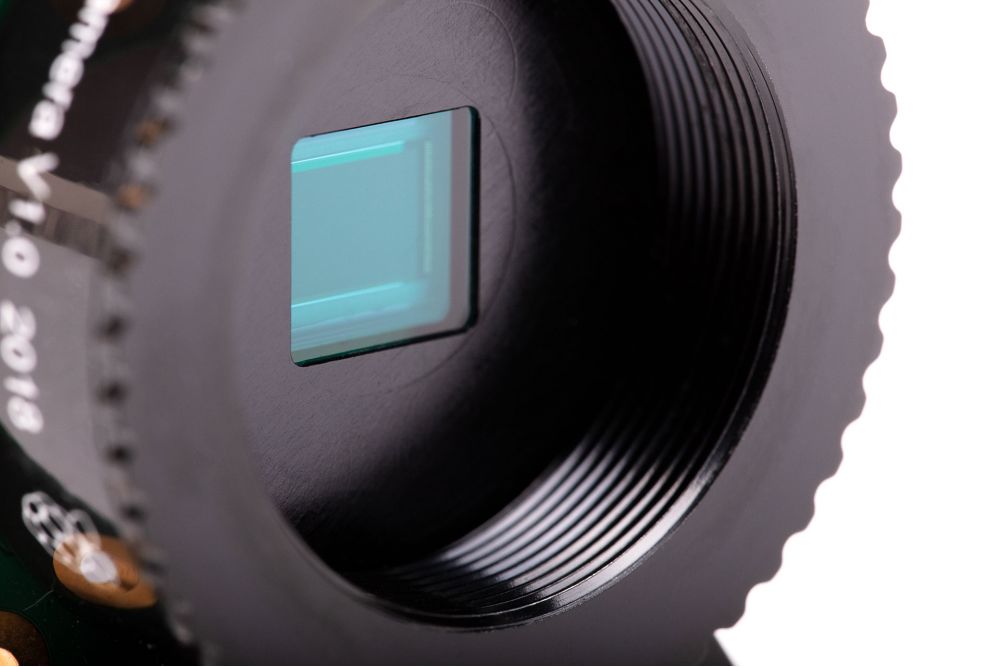

12.3 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus and support for C- and CS-mount lenses
Getting started
Interchangeable lenses
The High Quality Camera is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses.
Operating instructions
For a guide to getting your camera up and running, including back focus adjustment, tripod mounting, connecting your camera to a Raspberry Pi computer, and operating camera software in Raspbian to capture images, see our online Getting started guide.
Specifications
- Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
- Ouput: RAW12/10/8, COMP8
- Back focus: Adjustable (12.5 mm–22.4 mm)
- Lens standards: C-mount, CS-mount (C-CS adapter included)
- IR cut filter: Integrated
- Ribbon cable length: 200 mm
- Tripod mount: 1/4”-20

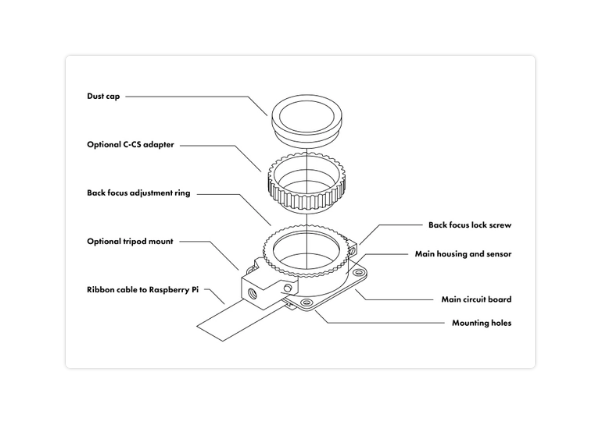

What's included?

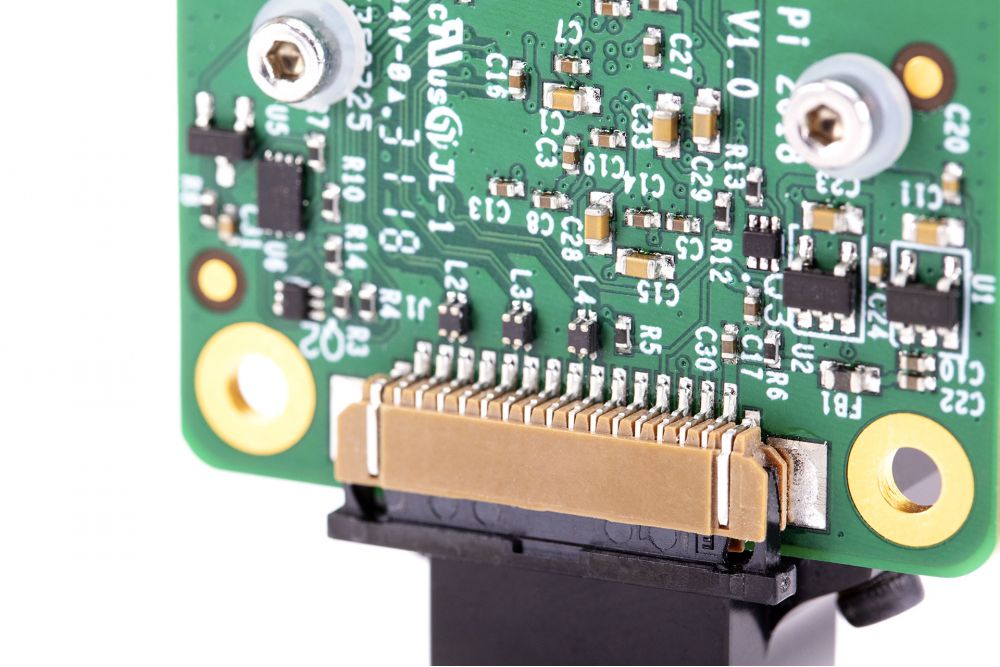

- Circuit board with the Sony IMX477 sensor
- 200mm FPC cables for RPi4 and RPi5

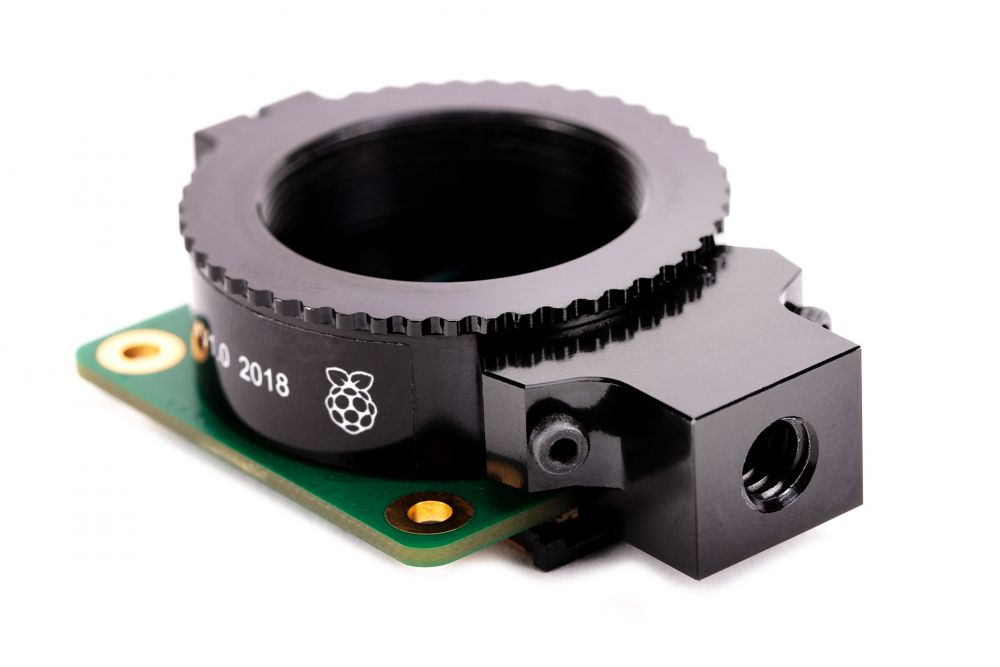

- Milled aluminium lens mount with integrated tripod mount
- Focus adjustment ring
- C- to CS-mount adapter
Documents
- Getting started guide
- Raspberry Pi High Quality Camera - product brief

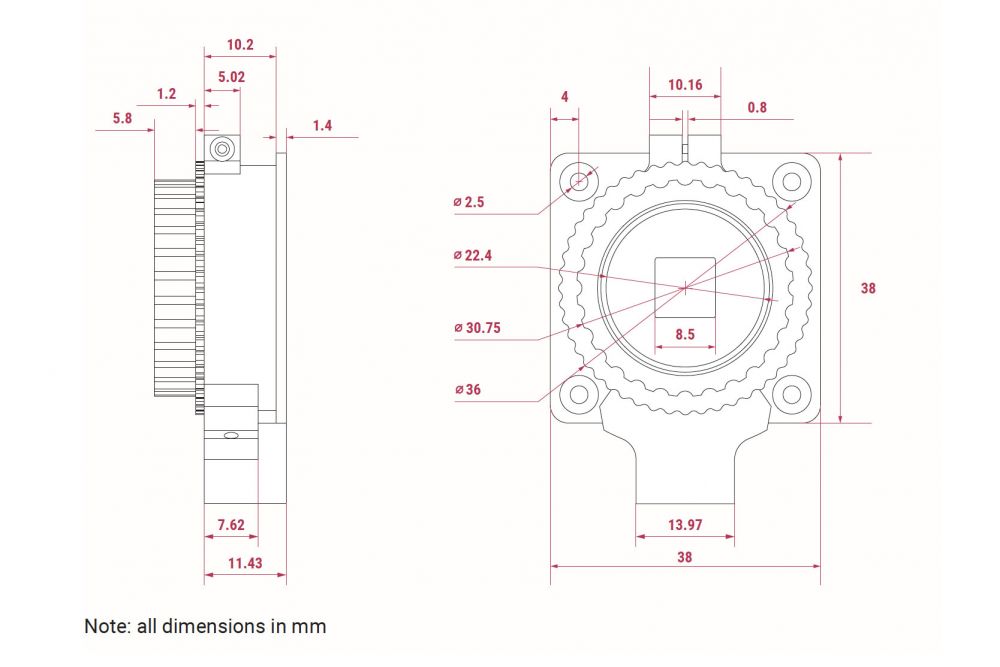

- Raspberry Pi High Quality Camera mechanical drawing
- Example fitting instructions for a typical C-mount lens
- Example fitting instructions for a typical CS-mount lens
